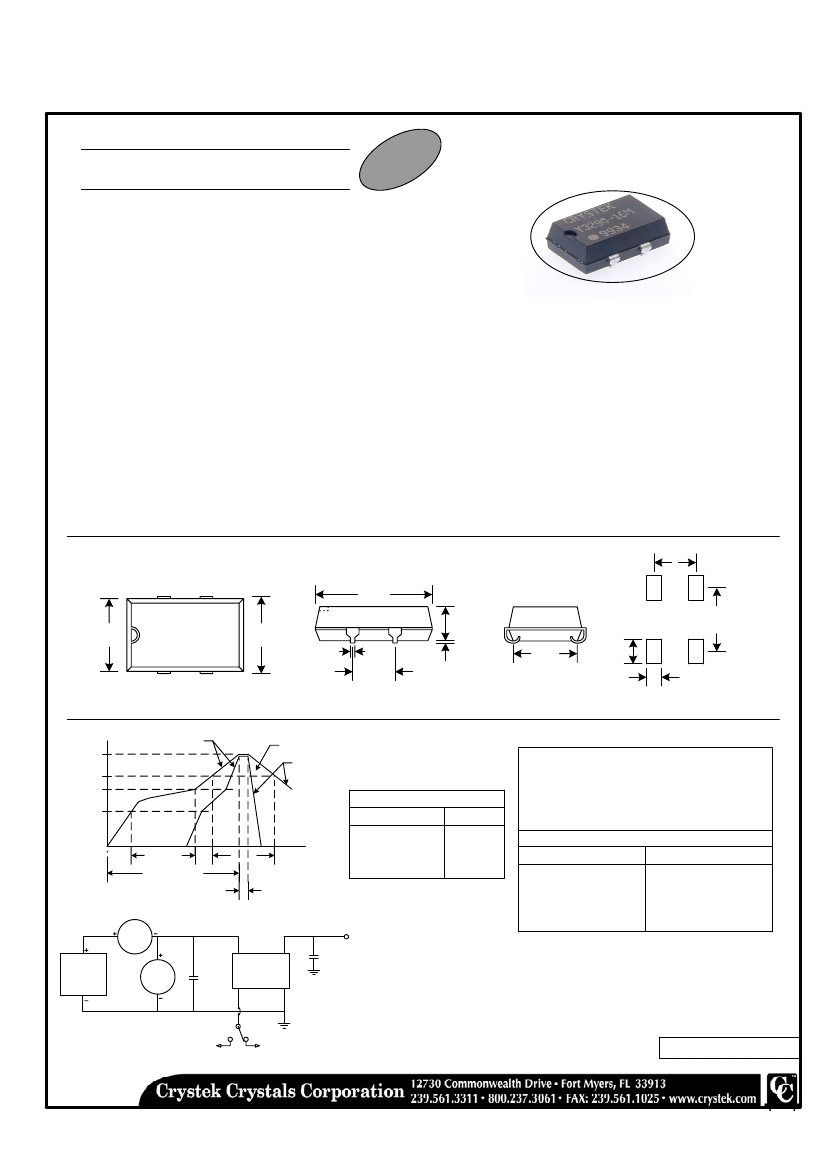

Y33xx Model
9X14 mm SMD,
3.3V,HCMOS
Frequency Range:
Frequency Stability:
Temperature Range:
Operating:
(Option M)
(Option E)
Storage:
Input Voltage:
Input Current:
Output:
Symmetry:
Rise/Fall Time:
Logic:
Load:
Jitter RMS:
12KHz~20MHz
Aging:
ree
dF S
a
Le oH ant
R pli
m
Co
Clock Oscillator
1.544MHz to 66.667MHz
±25ppm,±50ppm,±100ppm
0°C to 70°C
-20°C to 70°C
-40°C to 85°C
-55°C to 120°C
3.3V ± 0.3V
20mA Max @ 66MHZ
HCMOS
45/55% Max @ 50% Vdd
8ns Max @ 20% to 80% Vdd
"0" = 10% Vdd Max
"1" = 90% Vdd Min
30pF Max
0.5ps Typ, 1ps Max
<3ppm 1st/yr, 1ppm every year thereafter
Designed to meet today's
requirements for low jitter
3.3V applications. The Y33xx
Series is a Non-PLL based
oscillator design for excellent
jitter performance. Available
on tape and reel in quantities
of 1K.
Dimensions inches (mm)
All dimensions are Max unless otherwise specified.
.200
(5.08)
4
.340
(8.64)
3
.386
(9.80)
.551
(14.00)
.160
(4.06)
.020
(.51)
.200
(5.08)
.010 MIN
(.25)
.300
(7.62)
.118
(3.00)
.300
(7.62)
CRYSTEK
P/N DC
1
2
SUGGESTED PAD
LAYOUT
Bypass Capacitor Recommended
.070
(1.78)
RECOMMENDED REFLOW SOLDERING PROFILE
TEMPERATURE
260°C
217°C
200°C
150°C
Ramp-Up
3°C/Sec Max.
Critical Temperature
Zone
Ramp-Down
6°C/Sec.
Crystek Part Number Guide
Tri-State Function
Function pin 1
Open
"1" level 2.4V Min
"0" level 0.4V Max
Output pin
Active
Active
High Z
Example: Y3392-44.736MHZ
Intermediate Temp: YM3392-44.736MHZ
Extended Temp: YE3392-44.736MHZ
Y= 0°C to 70°C
*YM= -20°C to 70°C, *YE= -40°C to 85°C
Symmetry 40/60%
Part Number
Y*3390
Y*3392
Y*3391
Freq. Stability
+/-100ppm
+/- 50ppm
+/- 25ppm
(+/- 100ppm only)
-40°C to 85°C
Preheat
180 Secs. Max.
8 Minutes Max.
90 Secs. Max.
260°C for
10 Secs. Max.
NOTE: Reflow Profile with 240°C peak also acceptable.
mA
M
OUT
pin 4
Vdd
OUT
pin 3
OSC.
GND
PWR
Supply
O/P Load
incl Probe Cl
VM
Bypass
Cap.
pin 1
pin 2
High Impedance
GND or "LOW"
Oscillation
OPEN or "HIGH"
Specifications subject to change without notice.
TD-050301 Rev.C
