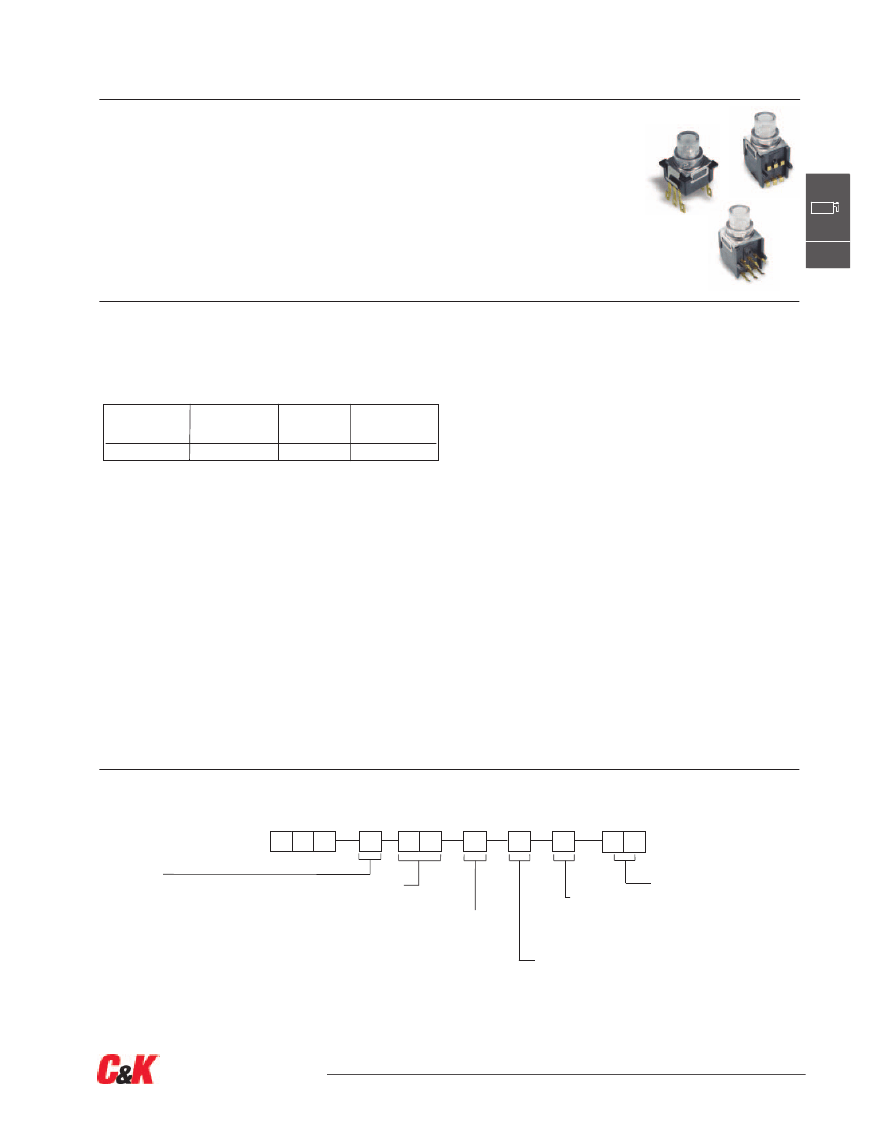

K5V
Illuminated Tact Switch
Features
•
Gold plated dome contact SPST/SPDT
•
Excellent ergonomics
•
High bright leds
•
Reduced space usage on board
•
40 N overload
•
Tape and reel
•
RoHS compliant and compatible
Typical Applications
•
When backlighting and switch are
required to be a “2 in 1” component
•
The dome contact secures a superior
contact reliability in time
•
The ergonomics of K5V provides a
long travel, a sharp tactile feel and
an audible click
•
Server, storage, automotive, network
infrastructure, medical
Electrical
POWER MIN/MAX: 0.02VA / 1.0VA
VOLTAGE MIN/MAX: 20mVdc – 32 Vdc
CURRENT MIN/MAX: 0.1mA – 100mA
CONTACT RESISTANCE: <150m
Ω
INSULATION RESISTANCE: >1G
Ω
initial, >10M
Ω
after damp heat
BOUNCE TIME: <5ms
B
Tactile Switches
Specification
FUNCTION: momentary action
CONTACT ARRANGEMENT: Normally Open + Normally Closed
TERMINALS: SMT with positioning pegs
Mechanical
Operating force
FA
1
Newtons
(grams)
4.0 (400)
Operating
life
(operations)
25,000
Travel (total
travel)
mm(mm)
1.2 (2.4)
Version
THT, SMT, PM
1
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C
STORAGE TEMPERATURE: -50˚C to 85˚C
RELATIVE HUMIDITY: 90 to 96% according to NF EN 60068-2-30
PROTECTION: dust protection and flux tight
OVERLOAD: 40N min
Tolerances of operating force FA is ± 25%.
Packaging
THT:
60 pieces per tray; 300 pieces per box
SMT:
330 pieces per reel (reel ø 360mm)
PM:
60 pieces per tray; 300 pieces per box
Process
SMT
Soldering: Compatible with the lead free soldering profile
No washing
THT
Soldering: Compatible with the lead free soldering profile
No washing
PM
Soldering: Low wattage soldering iron (25-50 watts max).
Solder time 3 seconds max. No washing
LED Characteristics
LED COLOR: White
TEST CONDITIONS: 20 mA
LUMINOUS INTENSITY lF = 20 mA
MIN. 110 mcd
TYP. 220 mcd
MAX. 320 mcd
MAX VOLTAGE: 4 V
Materials
LEAD FREE
CONTACTS: Au over Ni
SOLDERING: Au over Ni
HOUSING: Thermoplastic UL94 HB
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
K
5
V
4
3
Actuator
1
without snap-in, clear
(THT and PM version only)
2
with snap-ins, clear
for light pipe extension
(THT and PM version only)
4
without snap-in, light grey
(SMT version only)
5
with snap-ins, light grey
for light pipe extension
(SMT version only)
Actuator color/LED color
CL
Transparent/No LED
90
Black Actuator/No LED
YE
Translucid/Yellow
GN
Translucid/Green
RD
Translucid/Red
OG
Translucid/Orange
BU
Translucid/Blue
WH
Translucid/White
YG
Translucid/Yellow-Green
RG
Translucid/Red-Green
BA
Blue/Amber
WL
White (low luminosity)
Operating Force
4
4.0 N (400 grams)
Option
NONE
No option
Termination
G
Surface mount
P3
Terminal 3 is cut
P4
Terminal 4 is cut
P
Panel mount
P13
Terminal 1 & 3 is cut
T
Through-hole
P14
Terminal 1 & 4 is cut
Contact Material
3
Gold (Au)

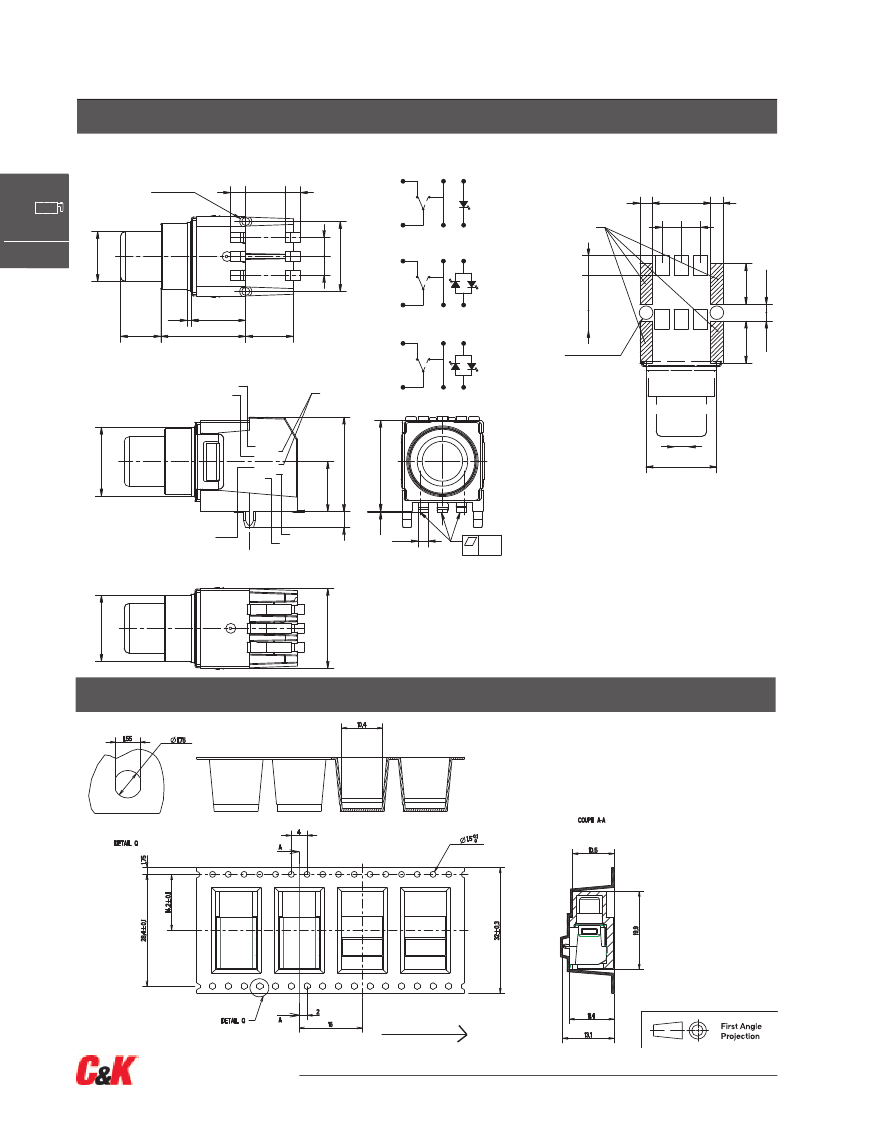

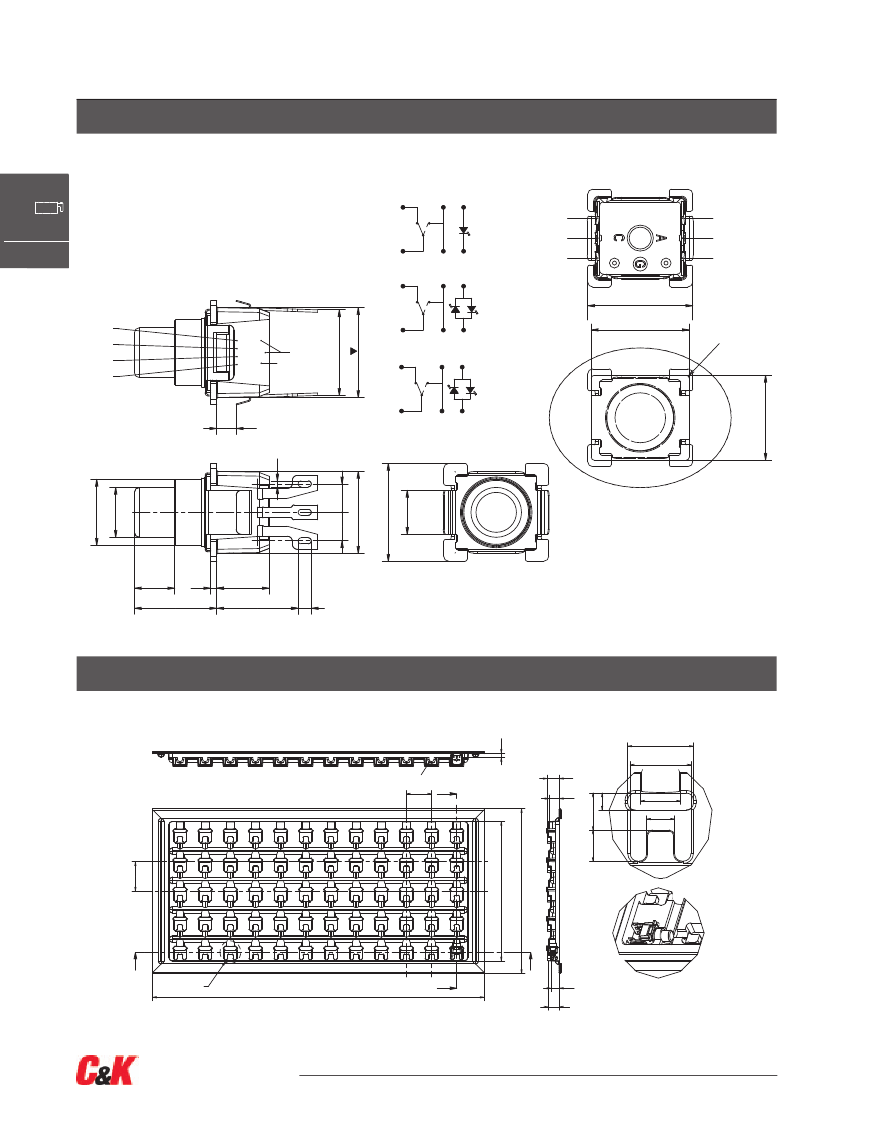

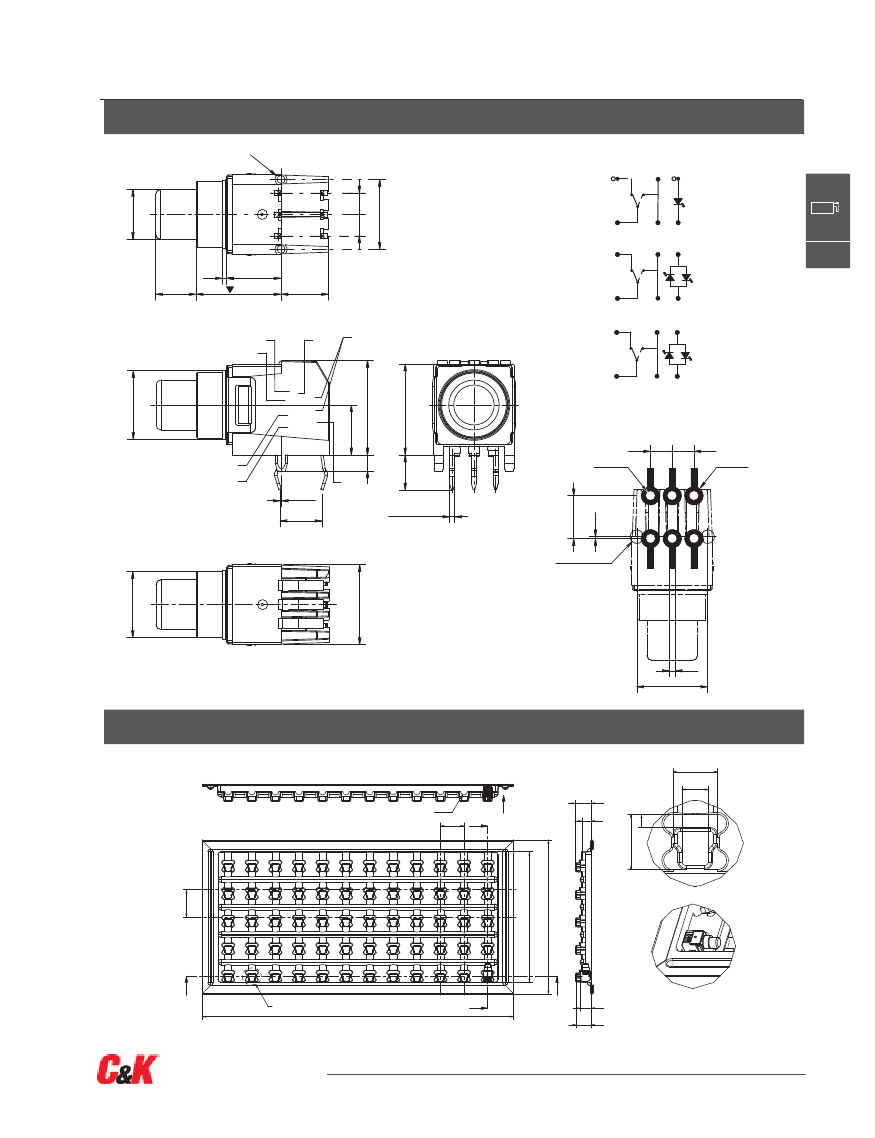

Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
16 july 12
B–51
www.ck-components.com
