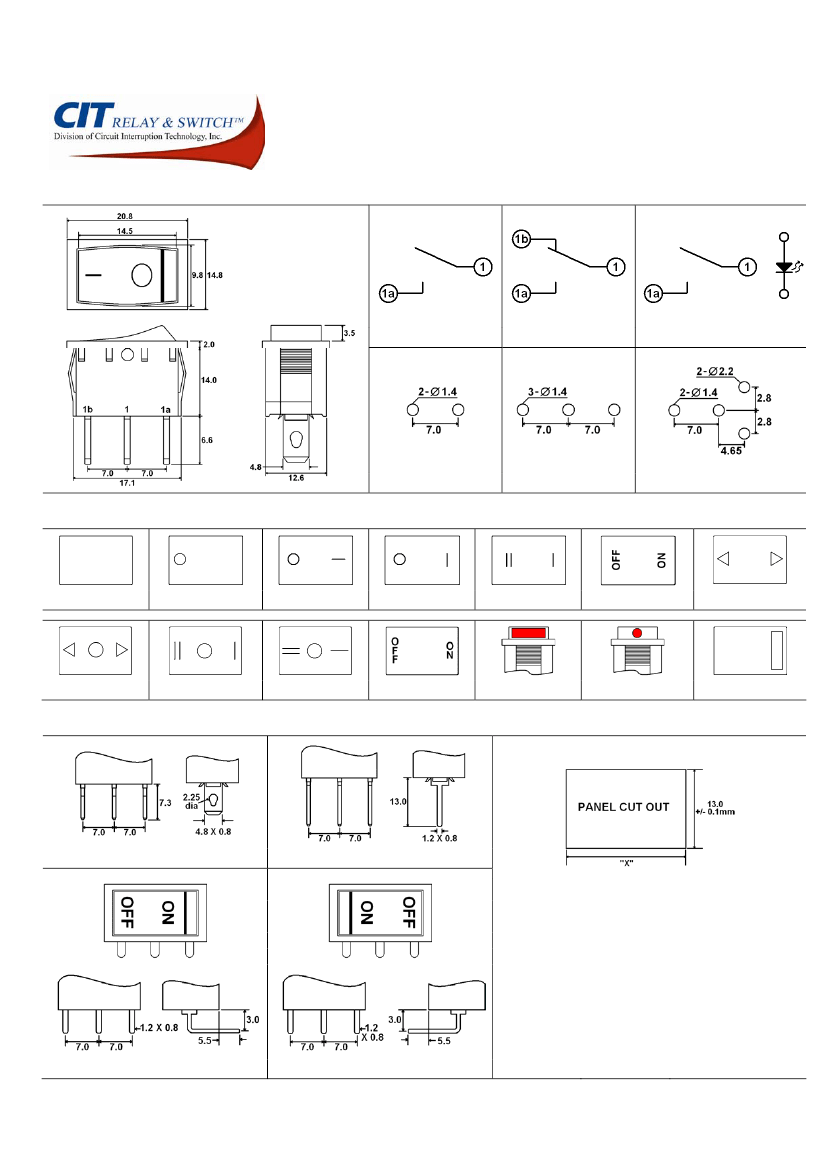

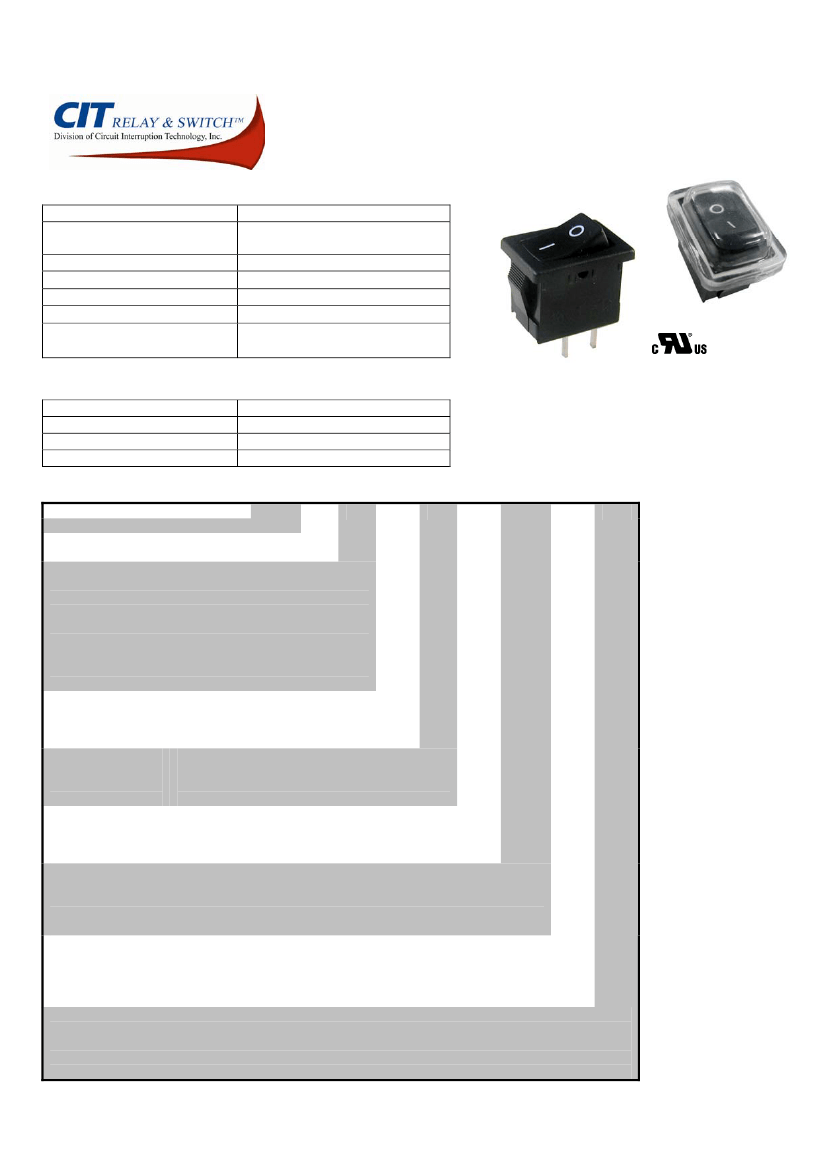

RA
SPECIFICATIONS
Switch Function
Electrical Ratings
Electrical Life
Contact Resistance
Dielectric Strength
Insulation Resistance
Operating Temperature
Storage Temperature
SPST, SPDT
15A @ 125VAC
8A @ 250VAC
10,000 cycles typical
< 50 mΩ initial
1500Vrms min
> 100MΩ min
-40°C to 85°C
-40°C to 85°C
- 222871
MATERIALS
Actuator
Housing
Contacts
Terminals
6/6 Nylon
6/6 Nylon
Silver Alloy
Brass, Sn Plated
ORDERING INFORMATION
1. Series:
RA
1
1
2
2
C
RA
2. Number of Poles:
1 = Single Pole
3. Switch Function:
1 = OFF-ON
**LED only available with this function
2 = OFF-(ON)
3 = (OFF)-ON
4 = ON-ON
5 = ON-(ON)
6 = ON-OFF-ON
7 = (ON)-OFF-(ON)
8 = ON-OFF-(ON)
4. Housing Color:
1 = White
2 = Black
9 = Gray
5. Actuator Color:
1 = White
6 = Orange
2 = Black
7 = Blue
3 = Red
9 = Gray
6. Actuator Marking:
A
D
G
J
M
B
E
H
K
X
**X marking used with LED only
C
F
I
L
7. Actuator Marking Color:
Blank = No Marking
**Use this option for X actuator marking (LED)
B = Black
W = White
R = Red
8. Terminal Options:
C = .187” Quick Connects / Solder Lug
P = PC Pins
R = Right Angle PC Pins
** Not available with LED option
L = Left Angle PC Pins
** Not available with LED option
9. LED Options:
(For use with ON-OFF function & “X” actuator marking only)
Blank = No LED
R = Red
B = Blue
Y = Yellow
G = Green
page
198
W
C
www.citswitch.com
phone – 763.535.2339 fax – 763.535.2194
