SH
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
Actuator Travel
Dielectric Strength
Insulation Resistance
Operating Temperature
Storage Temperature
50mA @ 35VDC
100,000 cycles typical
< 50 mΩ initial
130 +/- 50gF
.50 +/- .1mm
500Vrms min
> 100MΩ min
-40°C to 85°C
-40°C to 85°C
MATERIALS
←
RoHS COMPLIANT
Cover
Base
Contacts
Terminals
PC
Valox
Copper Alloy, Silver Plated
Copper Alloy, Silver Plated
ORDERING INFORMATION
1. Series:
SH
B
L
B
A
MS
SH
2. Actuator Options:
A - Square
B - Round
C - Flat
D - Post
E - Large Square Cap
3. Actuator Colors:
Non-illuminated Actuator Color Options
Illuminated Actuator Options
1 = White
5 = Green
L = LED Option – Clear Actuator Color
2 = Black
6 = Orange
L1 = LED Option – With Laser Etching Style
**LED only available with A & B actuators
3 = Red
7 = Blue
4 = Yellow 8 = Dark Gray
9 = Beige
Bicolor LED Colors:
4. LED Colors:
RG = Red/Green
Blank = No LED
RY = Red/Yellow
R = Red
YG = Yellow/Green
G = Green
BG = Blue/Green
Y = Yellow
BR = Blue/Red
B = Blue
BY = Blue/Yellow
W = White
**Laser etching styles are only available with the A or B actuator. A colored
5. Laser Etching Styles:
film is applied to the actuator and is laser etched to allow the LED to shine
Blank = No Laser Etching Style
through the pattern.
A
F
B
G
C
H
D
J
E
K
6. Laser Etching Colors:
**
A colored film is applied to the actuator and is laser etched to allow the standard
color of the actuator or the LED to shine through the pattern.
Blank = No Laser Etching Color
MS =Misty Silver
BS = Bright Silver
BG = Bright Gold
7. Caps:
Blank = No Cap
C11
C12
C13
C14
Cap Colors:
C15
C16
C17
C18
C19
C22
C26
C27
C28
**See Cap Options for color availability
** Caps available with D actuator only
www.citswitch.com
page
20
phone – 763.535.2339 fax – 763.535.2194
SH

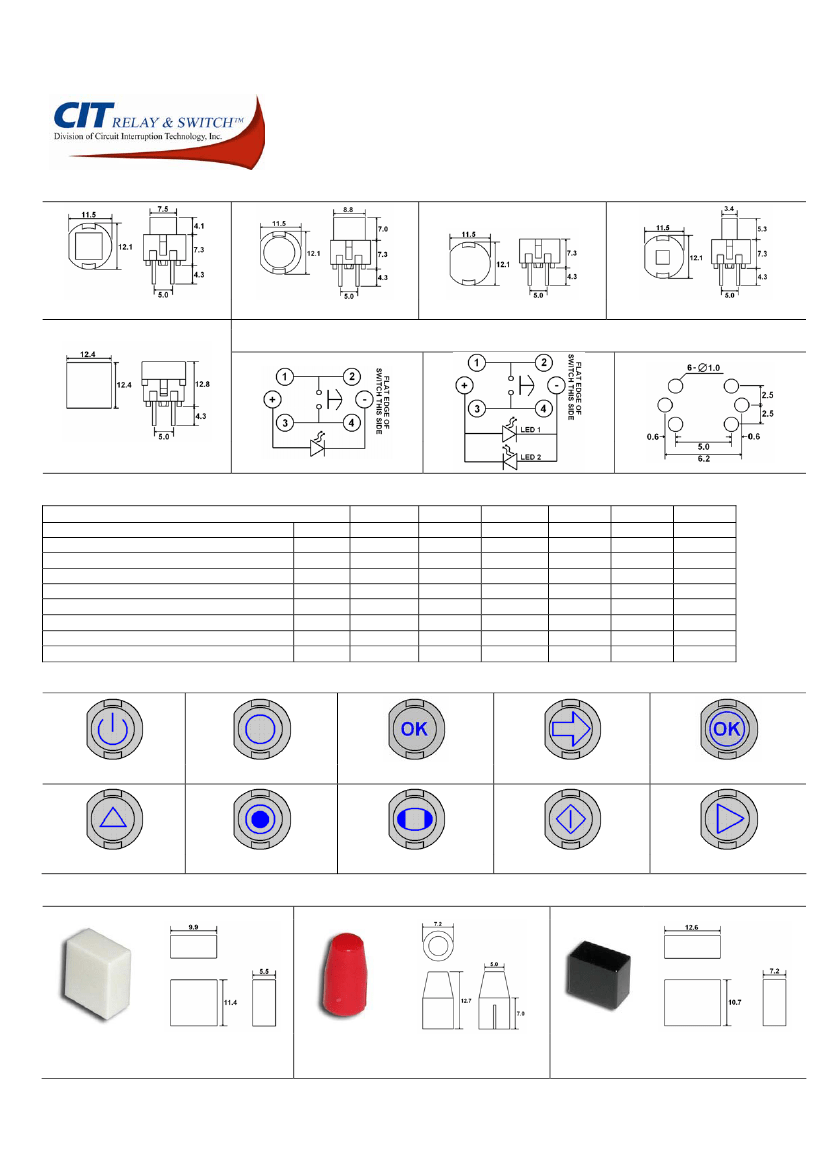

DIMENSIONS
A (Square)
B (Round)
C (Flat)
D (Post)
SCHEMATIC & PC LAYOUT
E (Square Cap)
LED SPECIFICATIONS
LED Ratings
Reverse Voltage
Forward Current (avg / peak)
Reverse Current V
R
= 5V
Power Dissipation
Forward Voltage (typ. / max), I
F
= 20mA
Wavelength, Peak Emmission, I
F
= 20mA
Spectral Line Half-Width, I
F
= 20mA
Luminous Intensity, I
F
= 20mA
Viewing Angle
V
R
I
F
/ I
FS
I
R
P
T
V
F
λ
P
∆λ
LI
Θ
R
5
30 / 125
10
69
1.8 / 2.3
660
20
20
150
G
5
30 / 125
10
75
2.0 / 2.5
572
20
20
150
Y
5
30 / 125
10
75
2.0 / 2.5
595
20
80
150
B
5
30 / 125
10
120
3.5 / 4.0
455
30
40
150
W
5
30 / 125
10
120
3.5 / 4.0
----
----
200
150
Units
V
mA
µA
mW
V
nm
nm
mcd
Deg
LASER ETCHING STYLES
A
B
C
D
E
F
G
H
J
K

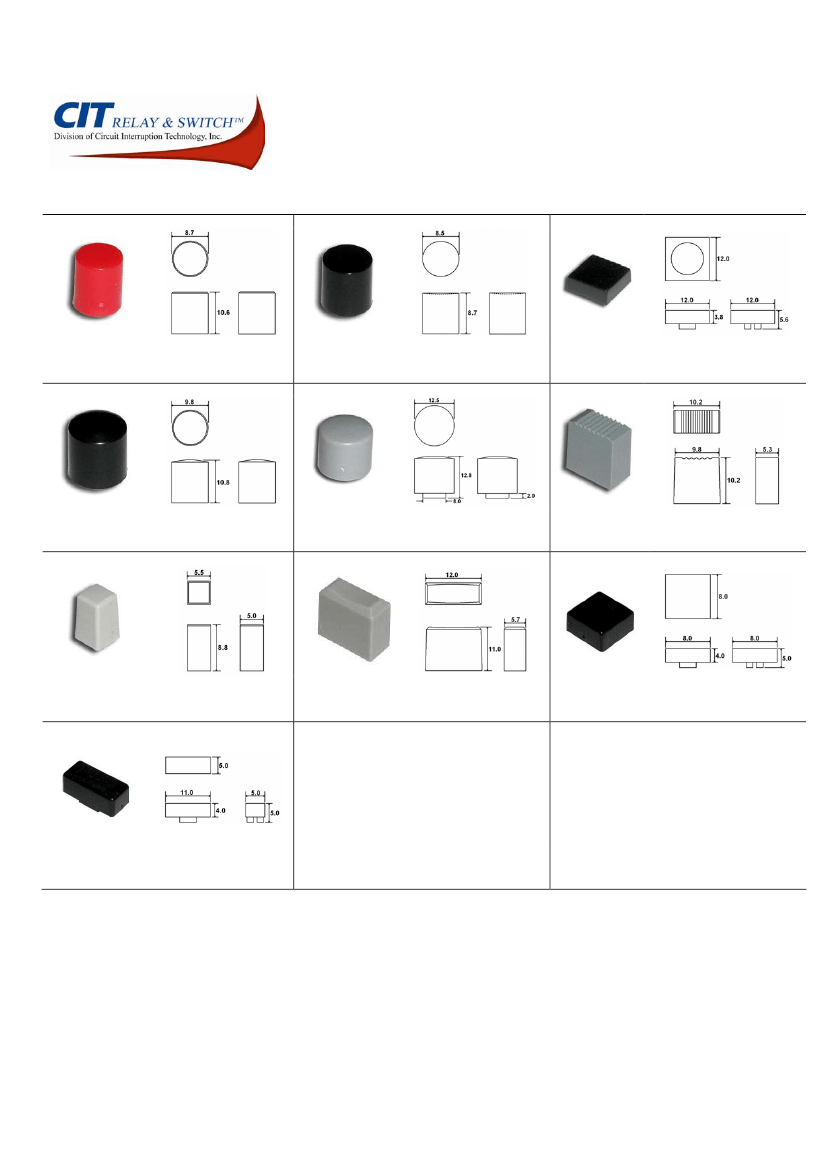

CAP OPTIONS
←FOR
D ACTUATOR
C11_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C12_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C13_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
www.citswitch.com
page
21
phone – 763.535.2339 fax – 763.535.2194
SH
CAP OPTIONS
←
FOR
D
ACTUATOR
C14_
1 = White, 2 = Black, 3 = Red, 9 = Gray
Contact Factory for other available colors
C15_
2 = Black, 0 = Clear
Contact Factory for other available colors
C16_
1 = White, 2 = Black, 3 = Red, 7 = Blue
Contact Factory for other available colors
C17_
2 = Black, 0 = Clear
Contact Factory for other available colors
C18_
1 = White, 2 = Black, 9 = Light Gray
Contact Factory for other available colors
C19_
1 = White, 2 = Black, 3 = Red, 8 = Dark Gray
Contact Factory for other available colors
C22_
2 = Black, 8 = Dark Gray, 9 = Light Gray
Contact Factory for other available colors
C26_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
C27_
1 = White, 2 = Black, 3 = Red, 7 = Blue
Contact Factory for other available colors
C28_
1 = White, 2 = Black, 3 = Red, 7 = Blue
Contact Factory for other available colors
www.citswitch.com
page
22
phone – 763.535.2339 fax – 763.535.2194
