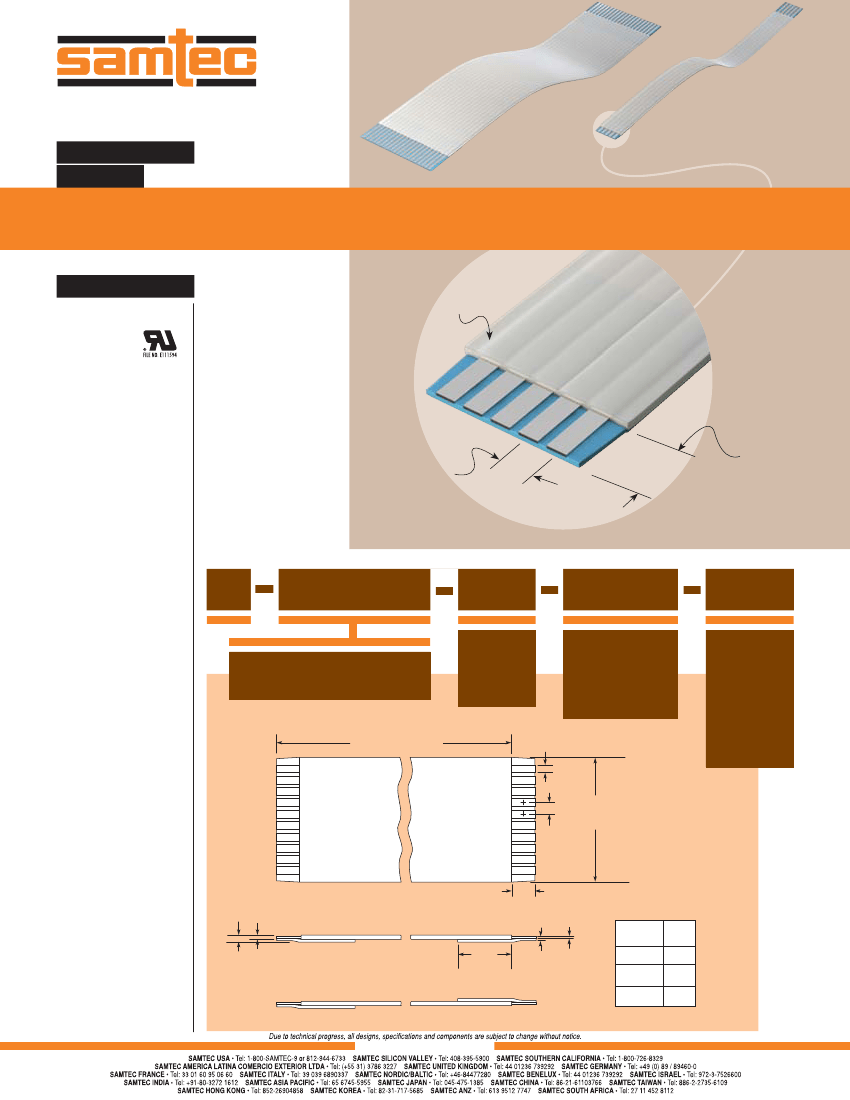

F-211
FJ–20–D–06.50–6
(1,00mm) .03937"
FJ SERIES
FJ–05–D–04.80–2
FLAT FLEXIBLE CABLE (FFC) JUMPER
SPECIFICATIONS
For complete specifications
see www.samtec.com?FJ
Conductor:
Tin Plated Copper
Conductor
Resistance:
300
Ω/km
max
Insulation Resistance:
10 MΩ/km min
(conductor-to-conductor)
Dielectric Test:
400 VAC during 1 minute
(conductor-to-conductor)
Temperature Rating:
-30°C to +80°C
Voltage Rating:
300 VAC
Flame Resistance:
VW-1 (UL 758)
Current Rating:
1.9A @ 50°C ambient
(4 contacts powered)
RoHS Compliant:
Yes
Mates with:
FC1, ZF1
Double or
reversed ended
(1,00mm)
.03937"
pitch
Variable
lengths
FJ
NO. OF
POSITIONS
STYLE
OVERALL
LENGTH
STRIP
LENGTH
–D
–05, –10, –15,
–20, –25, –30
= Double End
–“XX.XX”
= Specify
OVERALL LENGTH
in inches (±1/8 inch)
(–D = (50,80mm)
2.00" minimum)
–2
= (2,00mm) .079"
–R
= Reversed End
–4
= (4,00mm) .157"
(Required for
mating with FC1)
OVERALL LENGTH
(0,70)
.028
–6
= (6,00mm) .236"
(No. of positions
x (1,00) .03937)
+ (1,00) .03937
(1,00)
.03937
C
(0,33)
.013
STRIP
LENGTH
Note:
Stiffener color will be
blue or black at Samtec’s
discretion.
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
C
(2,00)
.079
(4,00)
.157
(6,00)
.236
(0,52)
.021
–D Style
(5,26)
.207
(0,30) (0,10)
.012 .004
–2
–4
–6
–R Style
WWW.SAMTEC.COM
