M213FGN50.0001MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> M213FGN50.0001MHZ

Preview

M213FGN50.0001MHZ: DescriptionXO, Clock, 1.5MHz Min, 135MHz Max, 50MHz Nom; CategoryPassive components oscillator; File Size53KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M213FGN50.0001MHZ Overview

XO, Clock, 1.5MHz Min, 135MHz Max, 50MHz Nom

M213FGN50.0001MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	135 MHz
Minimum operating frequency	1.5 MHz
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	20 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

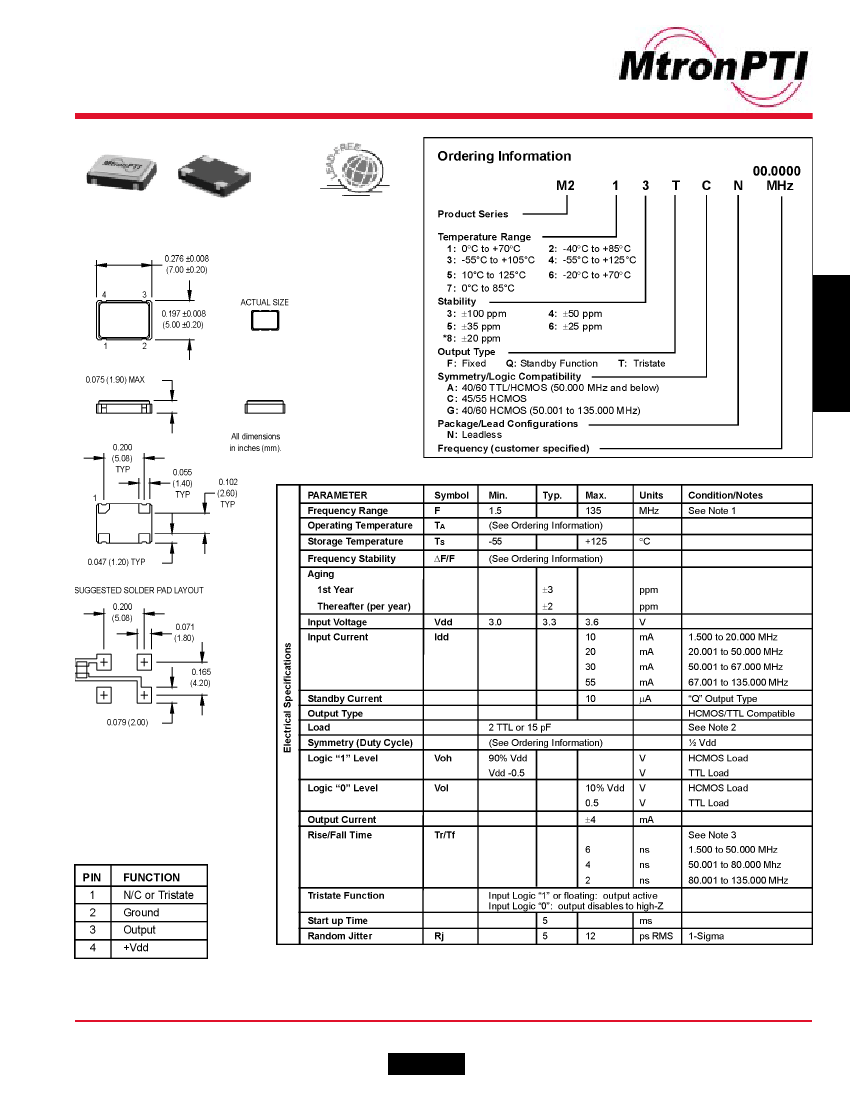

M2 Series

5x7 mm, 3.3 Volt, HCMOS/TTL Compatible Output, Clock Oscillator

X

O

*Contact factory for availability

NOTE:

A capacitor of value 0.01

µF

or greater between Vdd and Ground

is recommended.

Pin Connections

1. Consult factory for availability of higher frequencies.

2. See load circuit diagram #2 on page 116. Consult factory with nonstandard output load requirements.

3. Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

Rev Date: 12/20/04

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
