M30-6101006 datasheet, PDF - EEWORLD Datasheet

M30-6101006: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size754KB，8 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

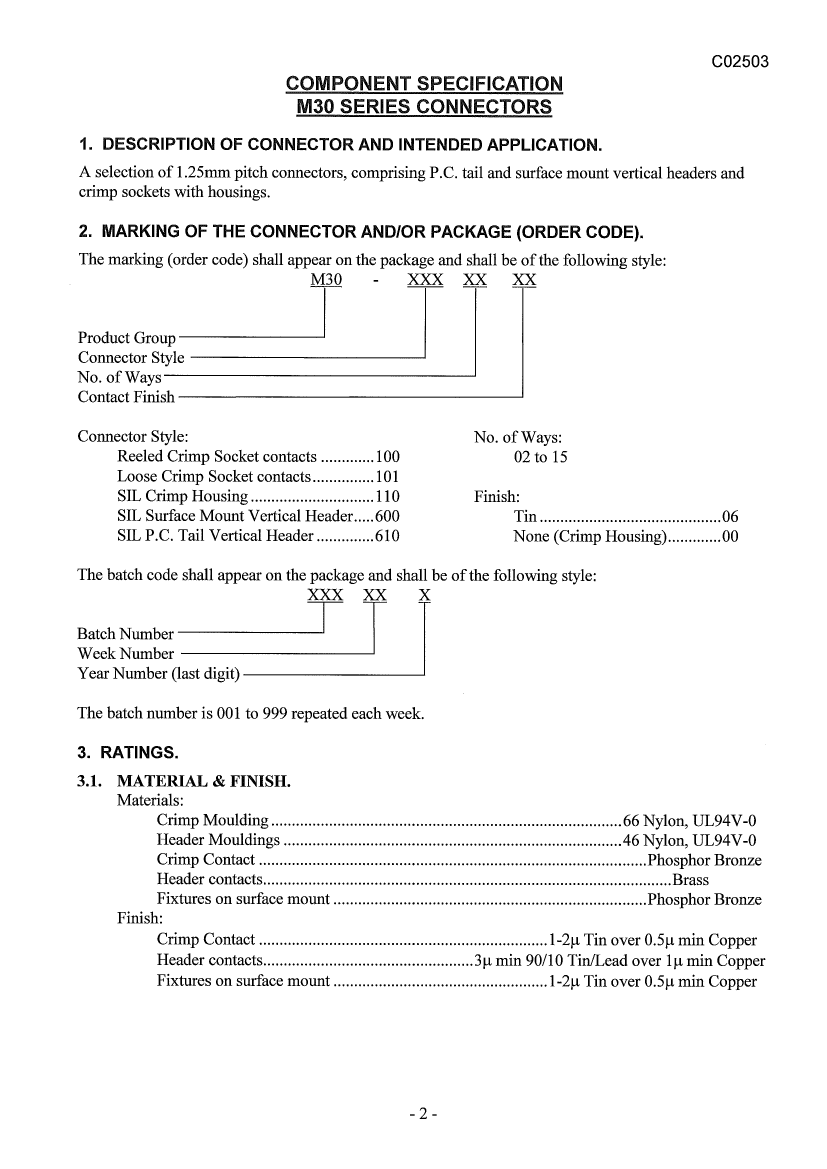

M30-6101006 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SHROUDED
body width	0.134 inch
subject depth	0.169 inch
body length	0.557 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR

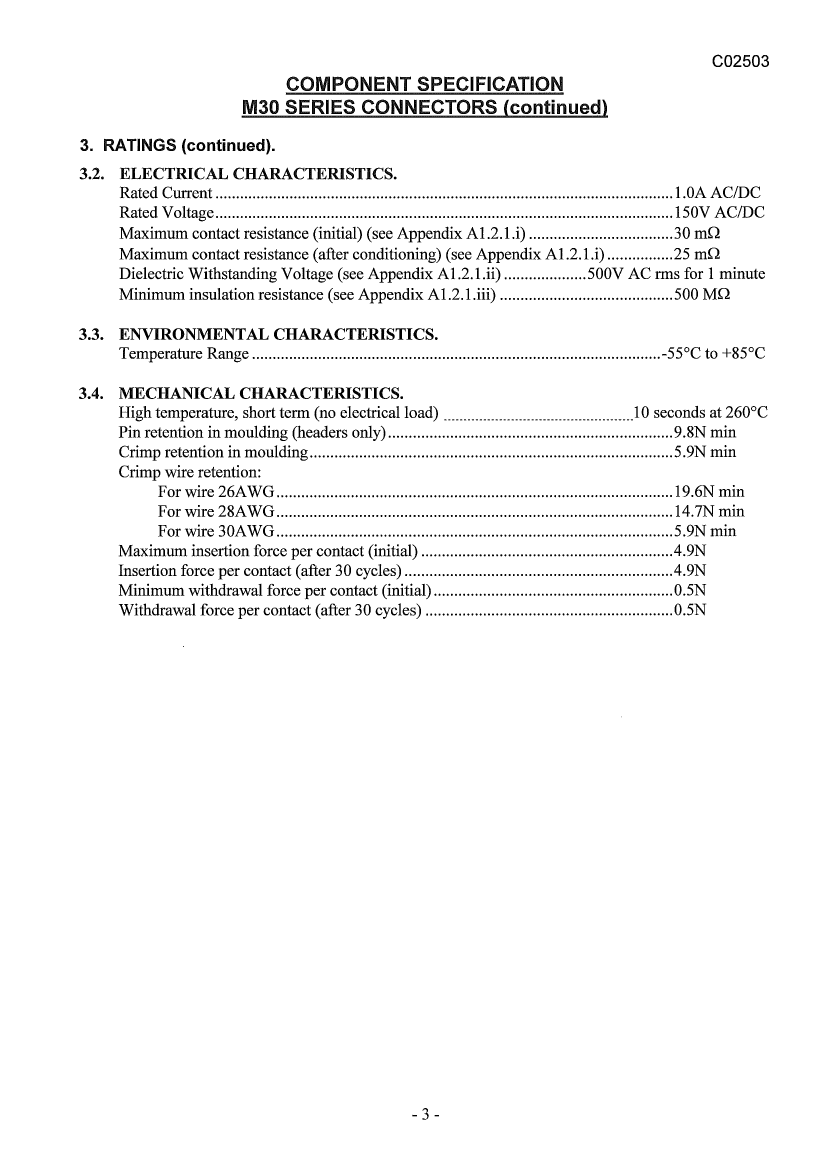

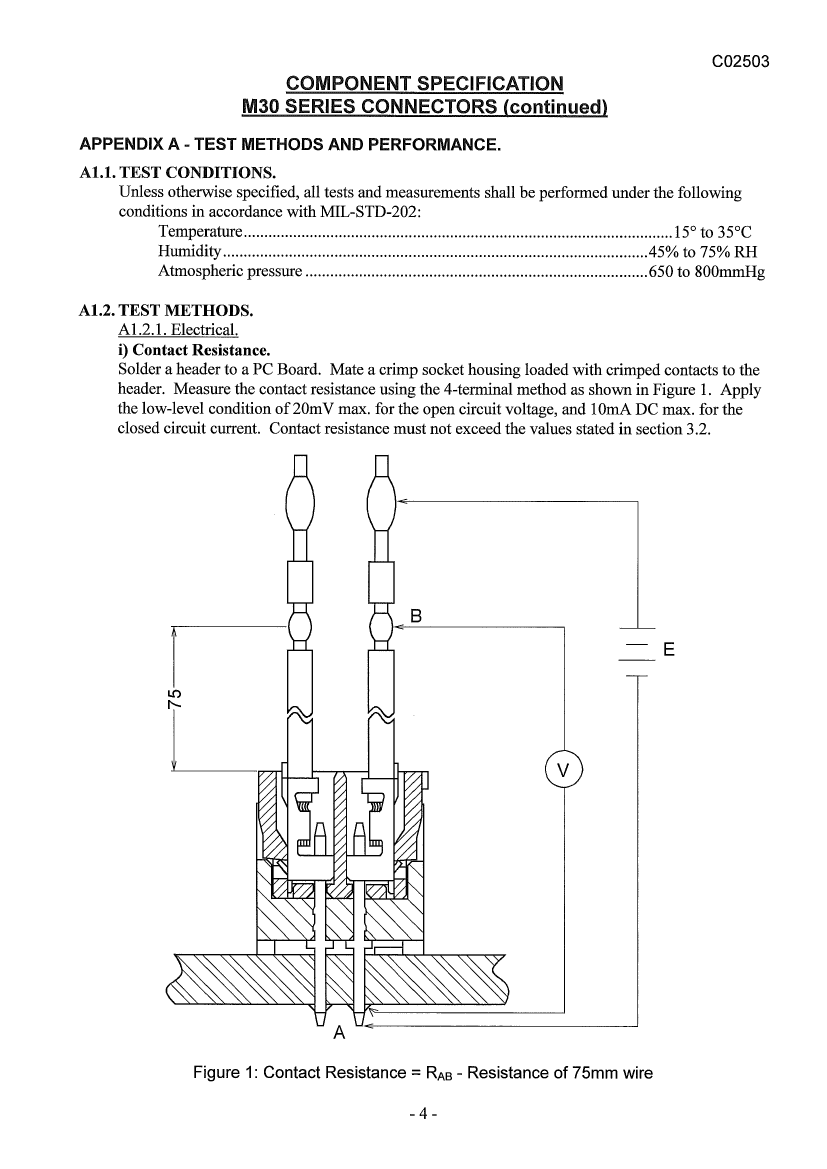

Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO

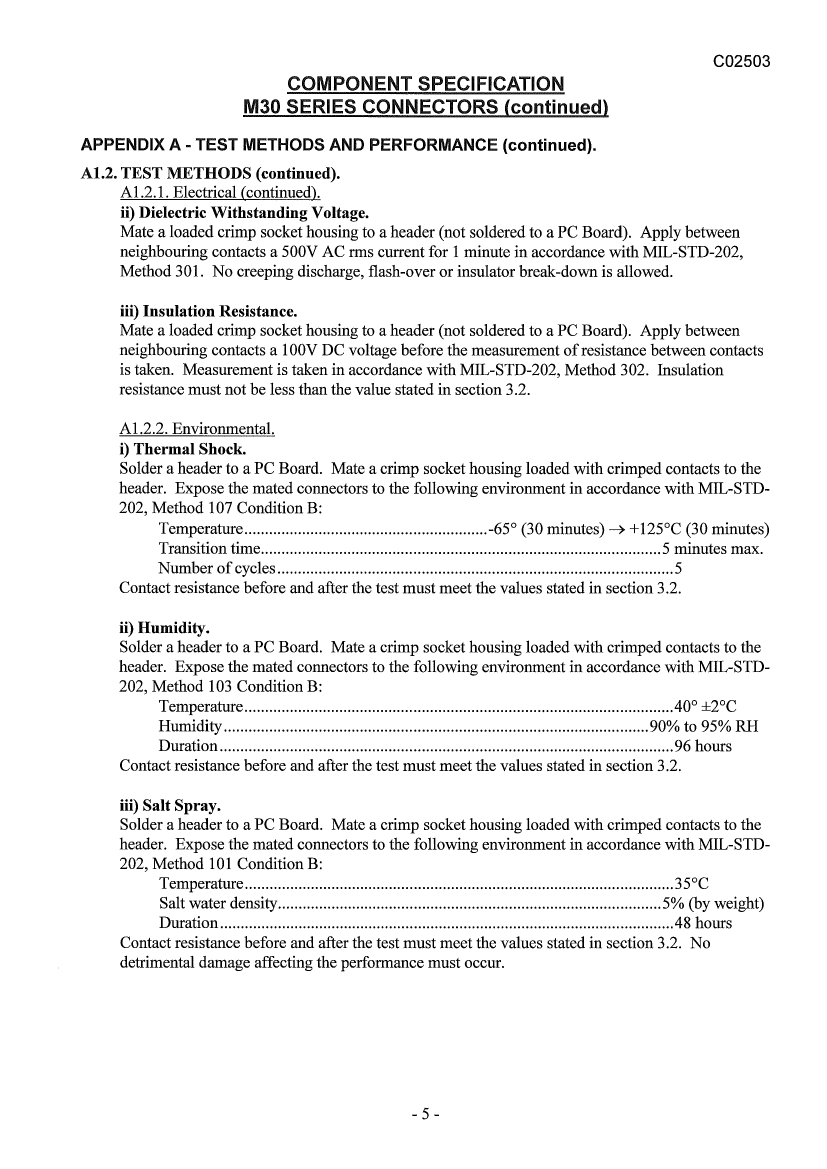

Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.448 N
Insulation resistance	500000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	M30
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZING PEG
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.25 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.5004 N
Base Number Matches	1
