M40-6003106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M40-6003106

M40-6003106: DescriptionBoard Connector, 31 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size193KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M40-6003106 Overview

Board Connector, 31 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug

M40-6003106 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	NONE
Board mount options	PEG
subject depth	0.13 inch
body length	0.831 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.112 N
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	M40
Plug contact pitch	0.039 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
polarization key	ENDS
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	31
Evacuation force-minimum value	.3892 N
Base Number Matches	1

Preview

Download Datasheet

View All

M40 Connectors

0.5

1.0

5.6

9~25 ways: 1.84

31~51 ways: 3.0

1.0

1.3

1.95

1.3

1.95

3.3

Recommended PC Board Pattern

1.2

CALCULATION

(Total No. of Contacts – 3) / 2

A+1

A + 4.1

A + 7.1

1.0mm for 9, 15, 21, 25 way, otherwise 0.8mm

FEMALE

1.0

9~25 ways: 1.84

31~51 ways: 3.0

1.0

1.3

1.95

1.3

1.95

1.2

3.3

Recommended PC Board Pattern

HOW TO ORDER

M40 – 6 X 0 XX XX

FINISH

SERIES CODE

GENDER

Male

Female

Tin/Lead

Tin

TOTAL NO. OF CONTACTS

09, 15, 21, 25, 31, 41, 51

www.harwin.com

3.4

6.0

1.0

5.6

1.0

0.7

1.3

3.4

6.0

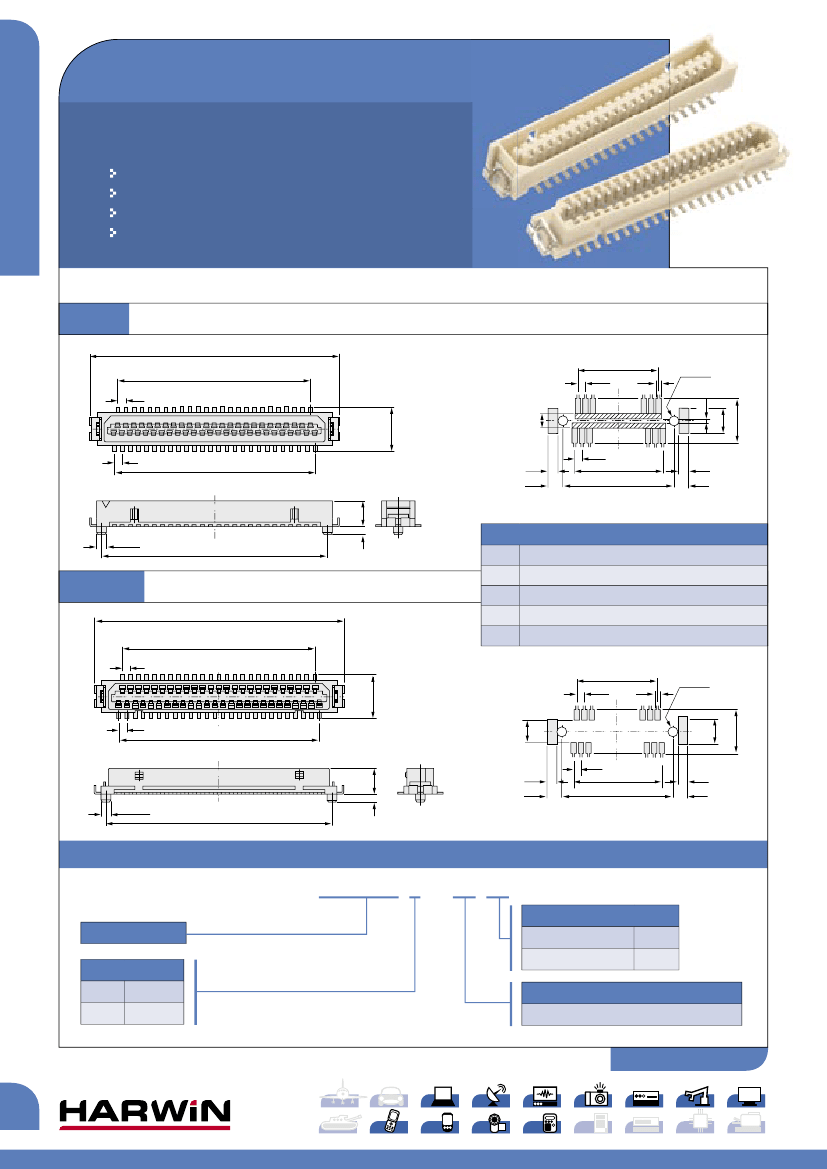

1.0mm (.040") PITCH

Male & Female SMT Connectors

A range of double row 1.00mm pitch SMT male and female

connectors for board-to-board stacking.

Locating pegs to ensure correct positioning onto the board.

Polarised to prevent mis-mating.

Staggered pin-out to help board layout.

For tape and reel packaging contact technical@harwin.com.

MALE

1.0

0.7

1.3
