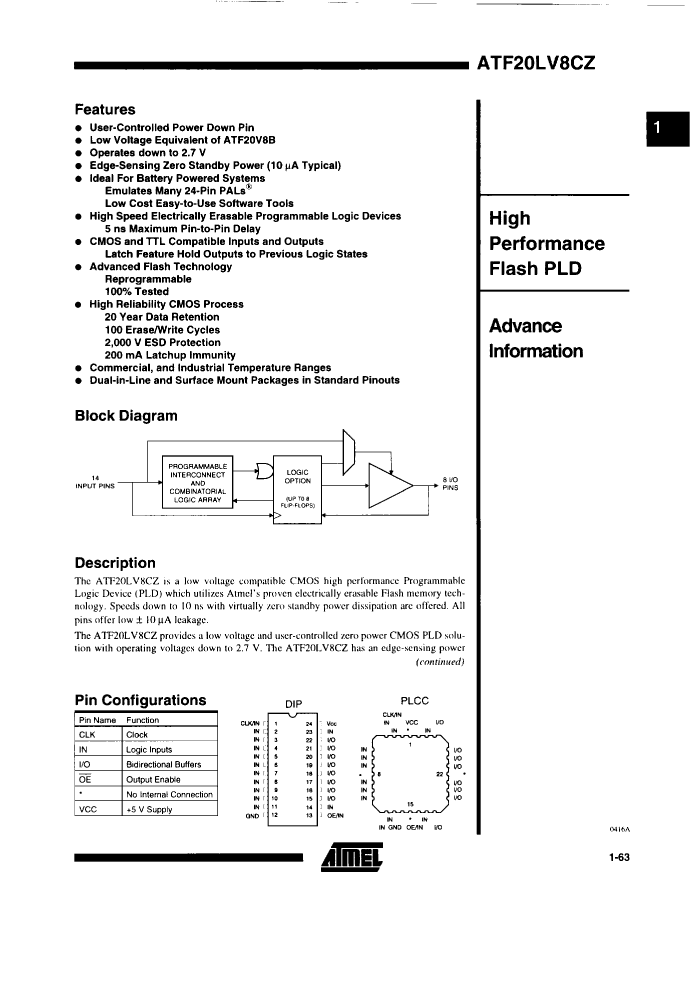

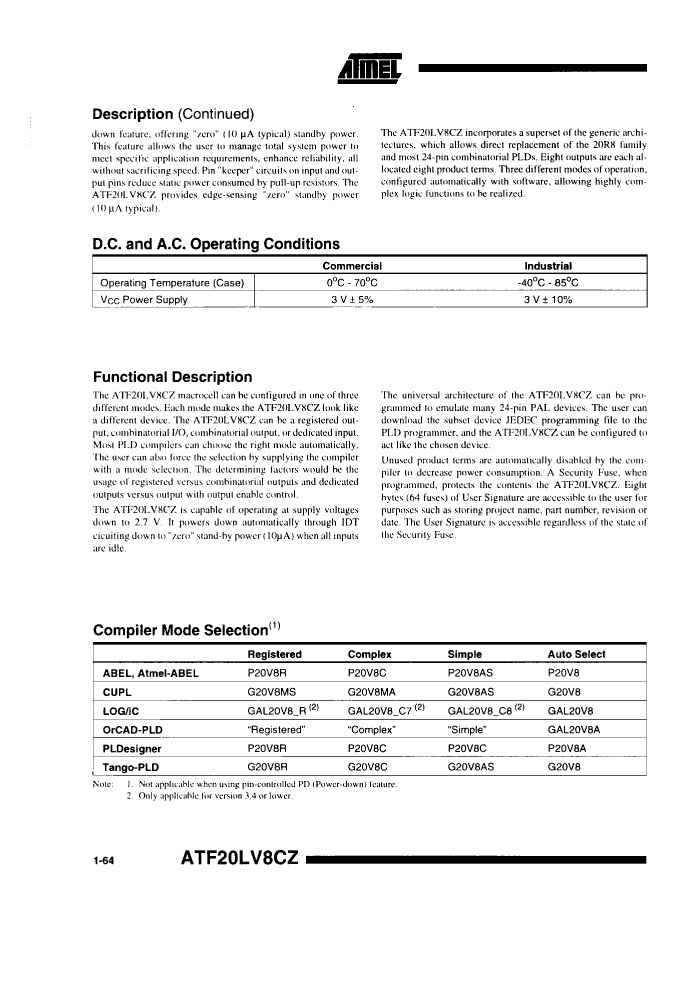

ATF20LV8CZ-15JI: DescriptionFlash PLD, 15ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28; CategoryProgrammable logic devices Programmable logic; File Size67KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

ATF20LV8CZ-15JI Overview

Flash PLD, 15ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28

ATF20LV8CZ-15JI Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
JESD-30 code	S-PQCC-J28
length	11.5062 mm
Dedicated input times	12
Number of I/O lines	8
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	12 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	FLASH PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ATF20LV8CZ-15JI Related Products

	ATF20LV8CZ-15JI	ATF20LV8CZ-15PI	ATF20LV8CZ-15PC	ATF20LV8CZ-25PI	ATF20LV8CZ-25PC	ATF20LV8CZ-25JC	ATF20LV8CZ-25JI	ATF20LV8CZ-15JC
Description	Flash PLD, 15ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28	Flash PLD, 15ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Flash PLD, 15ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Flash PLD, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Flash PLD, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Flash PLD, 25ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28	Flash PLD, 25ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28	Flash PLD, 15ns, CMOS, PQCC28, PLASTIC, MO-047AB, JLCC-28
Parts packaging code	LCC	DIP	DIP	DIP	DIP	LCC	LCC	LCC
package instruction	QCCJ,	DIP,	DIP,	DIP,	DIP,	QCCJ,	QCCJ,	QCCJ,
Contacts	28	24	24	24	24	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	8 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
JESD-30 code	S-PQCC-J28	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28
length	11.5062 mm	32 mm	32 mm	32 mm	32 mm	11.5062 mm	11.5062 mm	11.5062 mm
Dedicated input times	12	12	12	12	12	12	12	12
Number of I/O lines	8	8	8	8	8	8	8	8
Number of terminals	28	24	24	24	24	28	28	28
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C
organize	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O	12 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	DIP	DIP	DIP	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
propagation delay	15 ns	15 ns	15 ns	25 ns	25 ns	25 ns	25 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	4.57 mm	4.57 mm	4.57 mm
Maximum supply voltage	3.3 V	3.3 V	3.15 V	3.3 V	3.15 V	3.15 V	3.3 V	3.15 V
Minimum supply voltage	2.7 V	2.7 V	2.85 V	2.7 V	2.85 V	2.85 V	2.7 V	2.85 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	NO	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD
width	11.5062 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	11.5062 mm	11.5062 mm	11.5062 mm
Base Number Matches	1	1	1	1	1	1	1	1
