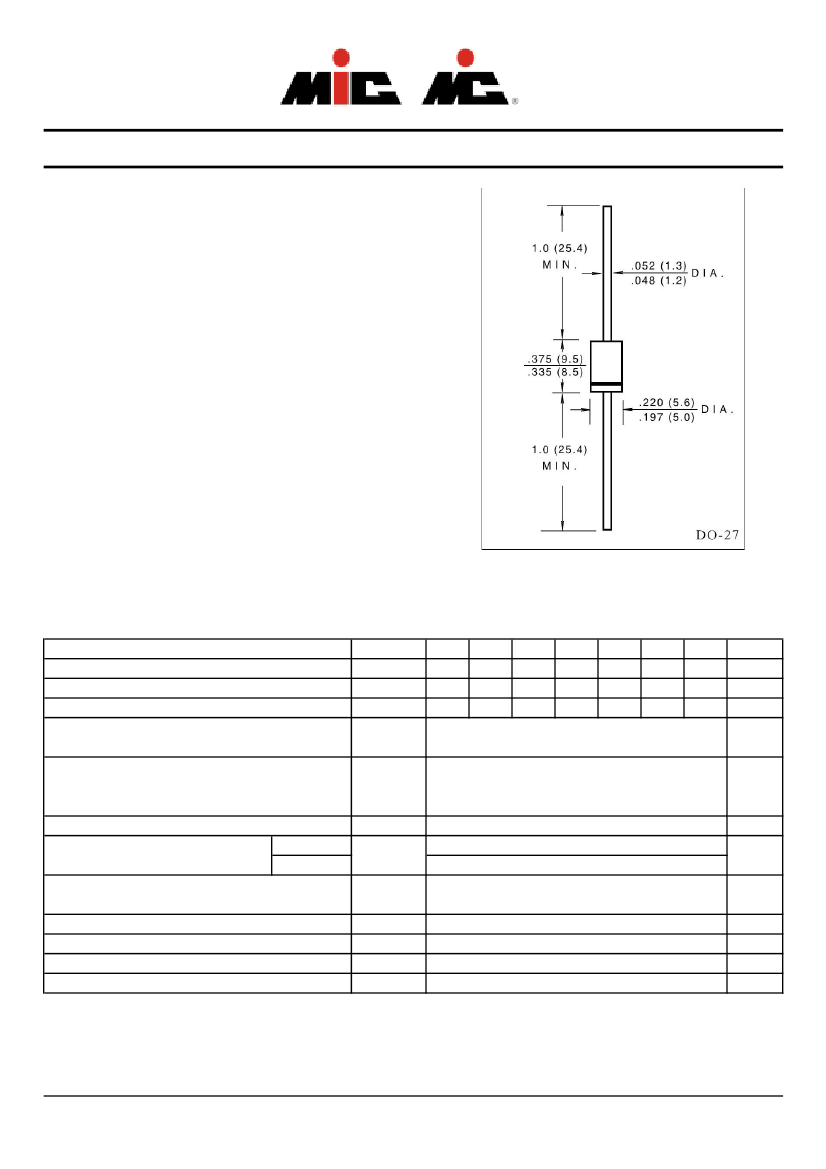

GENERAL PURPOSE SILICON RECTIFIER
P300A
THRU
P300M
VOLTAGE RANGE
CURRENT
50
to
1000
Volts
3.0
Ampere
FEATURES
Low
cost construction.
Low
forward voltage drop
Low
reverse leakage
High
forward surge current capability.
High
temperature soldering guaranteed:
260/10 seconds, 0.375" (9.5mm)lead length
at 5 lbs (2.3kg) tension.
MECHANICAL DATA
Case:
transfer molded plastic
Epoxy:
UL94V - 0 rate flame retardant.
Polarity:
Color band denotes cathode end.
Lead:
Plated axial lead, solderable per MIL - STD - 202E
method 208C
Mounting
position: Any
Weight:
0.042 ounce, 1.19grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings
at 25 ambient temperature unless otherwise specified
Single
phase, half wave, 60Hz, resistive or inductive load.
For
capacitive load derate current by 20%
SYMBOLS P300A P300B
V
RRM
50
100
V
RMS
35
70
V
DC
50
100
I
(AV)
P300D P300G
200
400
140
280
200
400
500
40
30
(-65 to +175)
(-65 to +175)
P300J P300K P300M
600
420
600
UNIT
Volts
Volts
Volts
Amps
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current,
0.375" (9.5mm) lead length at T
A
= 55
Peak Forward Surge Current
8.3ms single half sine - wave superimposed on
rated load (JEDEC method )
Maximum Instantaneous Forward Voltage at 3.0A
Maximum DC Reverse Current at rated T
A
= 25
T
A
DC blocking voltage
Maximum Full Load Reverse Current, full cycle
average 0.375" (9.5mm) lead length at T
L
= 105
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note2)
Operating and Storage Temperature Range
Storage Temperature Range
NOTES:
1. Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts.
I
FSM
V
F
I
R
I
R(AV)
C
J
R
θJA
T
J
T
STG
Amps
Volts
pF
/W
2. Thermal Resistance from Junction to Ambient at 0.375" (9.5mm) lead length, P.C. board mounted with 0.8" X 0.8"
(20 X 20mm) copper heatsink.
MIC INVESTMENTS (CHINA) COMPANY LIMITED
RATINGS AND CHARACTERISTIC CURVES P300A THRU P300M
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT,
3.0
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
200
PEAK FORWARD SURGE
(JEDEC Method)
100
80
8.3ms Single Half Sine-Wave
T
=T
j
j max
CURRENT, (A)
2.0
(A)
60
Single Phase
Half Wave 60Hz
40
1.0
Resistive or
Inductive Load
0.375"(9.5mm)
Lead Length
20
1 Cycle
0
0
0.1
25
50 55
75
100
125
150
175
10
1
2
4
6
8
10
20
40
60 80 100
AMBIENT TEMPERATURE, ( ° C)
NUMBER OF CYCLES AT 60 Hz
FIG.3-TYPICAL INSTANTANEOUS
FIG.4-TYPICAL REVERSE
100
CHARACTERISTICS
20
10
INSTANTANEOUS FORWARD CURRENT,
10
INSTANTANEOUS REVERSE CURRENT,
T
j
=100 ° C
1.0
(A)
1.0
T
j
=25 ° C
1% Duty Cycle
0.1
(uA)
0.1
T
j
=25 ° C
0.01
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK
INSTANTANEOUS FORWARD VOLT
AGE,(V)
REVERSE VOLTAGE,(%)
FIG.5-TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE,(pF)
10
T =25 ° C
j
f=1MHz
V
sig
=50mV
p-p
1
0.1
1.0
100
REVRESE VOLTAGE,(V)
