D SERIES
SMD VIDEO DELAY LINES
•
Surface mount compatible
•
Video performance
•
Small size, low cost
•
50, 75 or 200 ohms
This range of SMD delay lines is suitable for automatic placement and reflow, and so do not add the excessive
production costs associated with through hole devices. They are designed to delay video bandwidth signal with
minimal distortion. The equalised lines allow small delay differences between signals to be matched and give excellent
response to pulse and bar test signals. They may also be cascaded to give wider ranges of delay times.
Part number
DA01A
DA02A
DA05A
DA10A
DB01A
DB02A
DB05A
DB10A
DC01A
DC02A
DC05A
DC10A
Delay time
1 ns
2 ns
5 ns
10 ns
1 ns
2 ns
5 ns
10 ns
1 ns
2 ns
5 ns
10 ns
Group delay ripple
< 0.5 ns
< 0.5 ns
< 1.0 ns
< 1.0 ns
< 0.5 ns
< 0.5 ns
< 1.0 ns
< 1.0 ns
< 0.5 ns
< 0.5 ns
< 1.0 ns
< 1.0 ns
Impedance
50
Ω
50
Ω
50
Ω
50
Ω
75
Ω
75
Ω
75
Ω
75
Ω
200
Ω
200
Ω
200
Ω
200
Ω
Common specifications:
Tolerance on delay time at 200 kHz
Bandwidth
Amplitude ripple
Return loss
Pulse and bar K-rating(2T)
Luma/Chroma Gain Inequality(20T)
Luma/Chroma Delay Inequality(20T)
Temperature range
Aqueous Washable
SMD Reflow Limitations as
Package
Other delay times and impedances supplied upon request.
© Faraday Technology. As part of continual product improvement the specifications, details and dimensions shown in this publication are subject to change without notice
± 2%
> 5.5 MHz
< 0.1 dB
> 27 dB
< 0.5%
< 1%
< 5 ns
0 to 70
0
C
Yes
Data Sheet Fara309
DR00142A
FARA083d.DOC
Page 1 of 2
Aug-01(C)

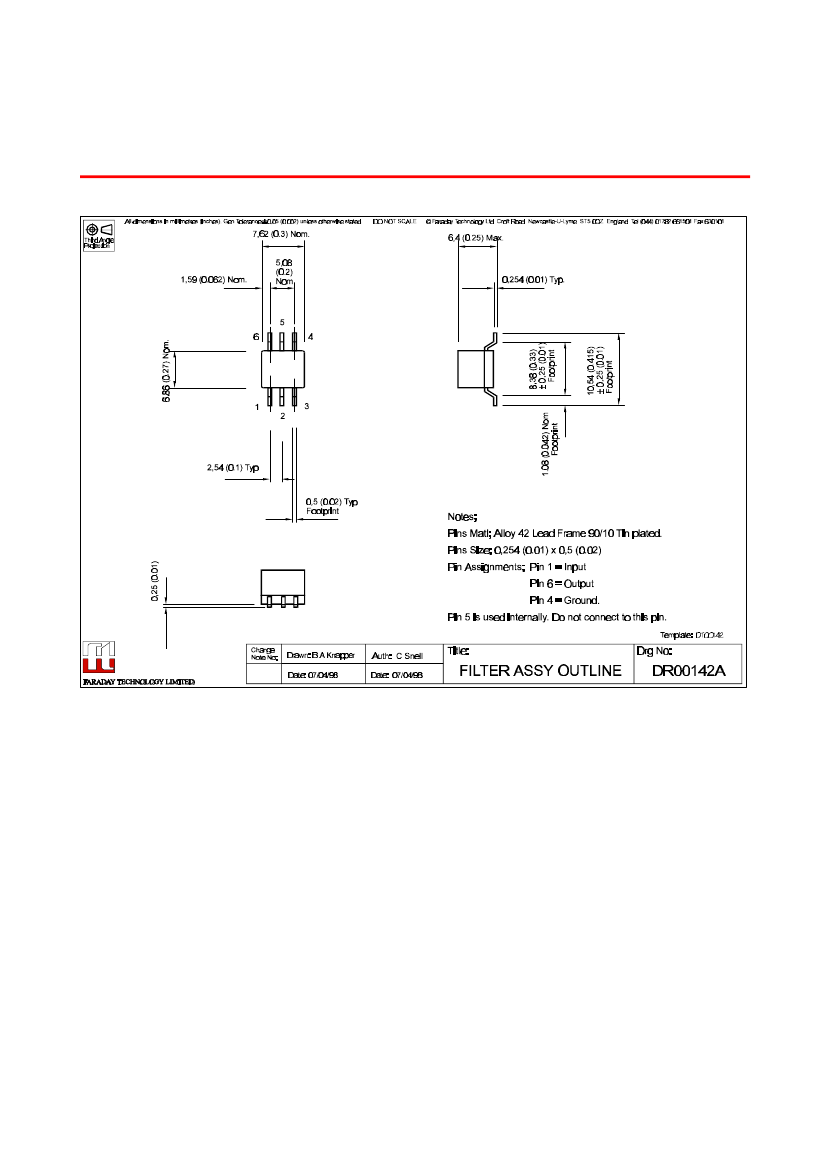

PACKAGE DETAIL
Faraday Technology Ltd.
Croft Road Industrial Estate,
Newcastle, Staffordshire
ST5 0QZ. England.
FARA083d.DOC
Tel:
Fax:
Email:
Web site:
Page 2 of 2
+ 44 (0)1782 661501
+ 44 (0)1782 630101
sales@faradaytech.co.uk
http://www.faradaytech.co.uk
Aug-01(C)
