SE130-00
VIDEO ENCODER POST FILTER
The SE130-00 is a surface mountable two channel active hybrid module designed to provide true
broadcast quality filtering and buffering for the Fairchild/Raytheon TMC2490 encoder. Based on the
popular Faraday AH1000 single channel filter the SE130-00 also compensates for the DC offset of the
encoder output and provides a composite output by combining Y/C signals.
Other features
•
2 independent filtered channels for oversampled PAL/NTSC Composite or Y/C
•
accurate factory set gain of 0 dB or 6 dB (order SE130-60)
•
75Ω input and output impedance
•
sinx/x correction for 27 MHz sampling
•
DC coupling eliminates tilt problems associated with AC coupling
•
Drives two composite outputs and one Y/C output
•
DC offset of encoder output (
due to single rail operation
) is corrected to bring blanking level near zero
•
24-pin DIL surface mount j-lead package
FILTER SPECIFICATION FOR EACH CHANNEL
End of Passband
5.75 MHz
Passband shape
sinx/x
Sampling frequency
27 MHz
Amplitude ripple
1
< 0.2 dB to 5.75 MHz,
Gain
0 dB ± 0.2 dB
Group Delay ripple
10 ns max to 5.75 MHz
Start of stopband
21.5 MHz
Stopband rejection wrt 100 kHz
40 dB min
Input/Output impedance
75Ω
Supply voltage
± 5V
Supply current
8 mA per rail (typical)
Aqueous Washable
Yes
Package

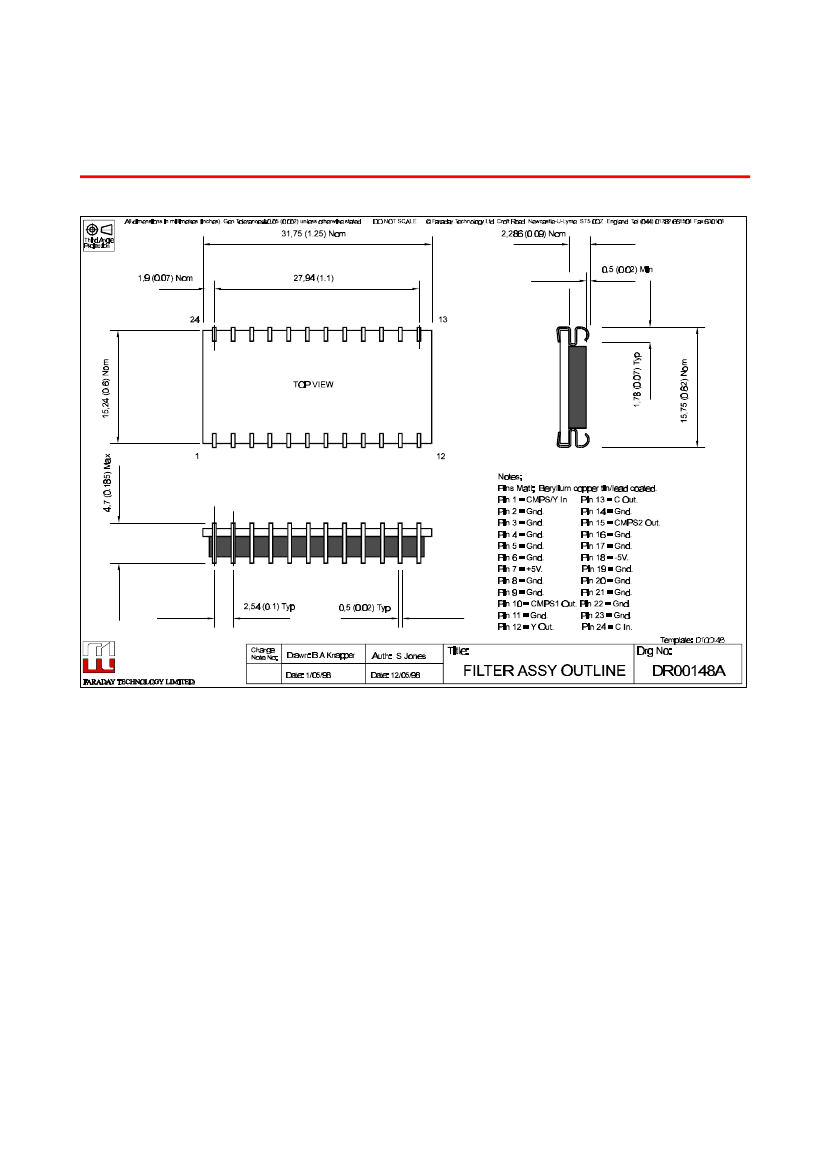

DR00148A
1
measured against sinx/x predistortion curve
