7304/7204 Sensor Manager
The 7304/7204 Sensor Managers from MRV Communications
is a four-slot modular, expandable, high-density sensor
concentrator engineered to address the needs of
telecommunications network service providers, utilities and
corporate enterprise facilities. At unstaffed facilities that
require lights-out management, the Sensor Managers can be
used to alert technical staff to a door opening, power outages,
or fuel levels in a back-up power generator or many other uses.
The 7304/7204 Sensor Managers supports up to 4
modules that provide a variety of sensor input and control
options. Available modules provide 32 port sensor inputs,
8 port control outputs, or 8 port analog loops.
The
7304/7204 is ideally suited for facilities that employ
environmental, power, pressure and fluid or security alarms.
The 7304 Sensor Manager is a standalone unit with an
integrated LX Series Console Server, providing access through
an Ethernet/IP network, a serial connection or a V92 modem.
The 7204 Sensor Manager is managed through a separate LX
Series Console Server. This distributed architecture allows the
LX Series Console Server and 7204 Sensor Manager to manage
up to 512 sensor points using a single IP address.
The LX Series Console Servers provide
remote service port access and remote
power management of other network
elements. Security features include SSHv2,
SSL, PPP, RADIUS, TACACS+, SecurID.
The sophisticated Trigger/Action feature
allows automation, with the ability to define
an event trigger and follow on actions,
including flexible, automated notification
via e-mail, SMS, TAP, or SNMP traps.
This MRV solution supports an easy to
use browser based GUI, powerful CLI, or
SNMP based management. The SNMP
based Megavision management platform
also provides an fault management system
capabilities that provide administrators
with the additional tools to quickly identify,
manage, prioritize and resolve sensor events
and fault conditions.
Mobile Access
Centralized
Operations
Applications
•
•
•
•
Utilities
Telco central office and remote facilities
Wireless cellular sites
Manufacturing facilities
Benefits
•
High density IP based sensor platform eliminates multi-
box solutions
• Wet, dry and 20 ma analog sensor inputs and control
output meet wide range of needs
• Rapid return on investment from reduced site visits
• Integrated console server with Ethernet connectivity,
serial port, and v.92 modem (7304 Sensor Manager only)
• Single management interface for sensor network,
console/terminal servers and power control
• Industry leading security features, including SSHV2,
SNMPv3, RADIUS, SecurID, TACACS+ and more

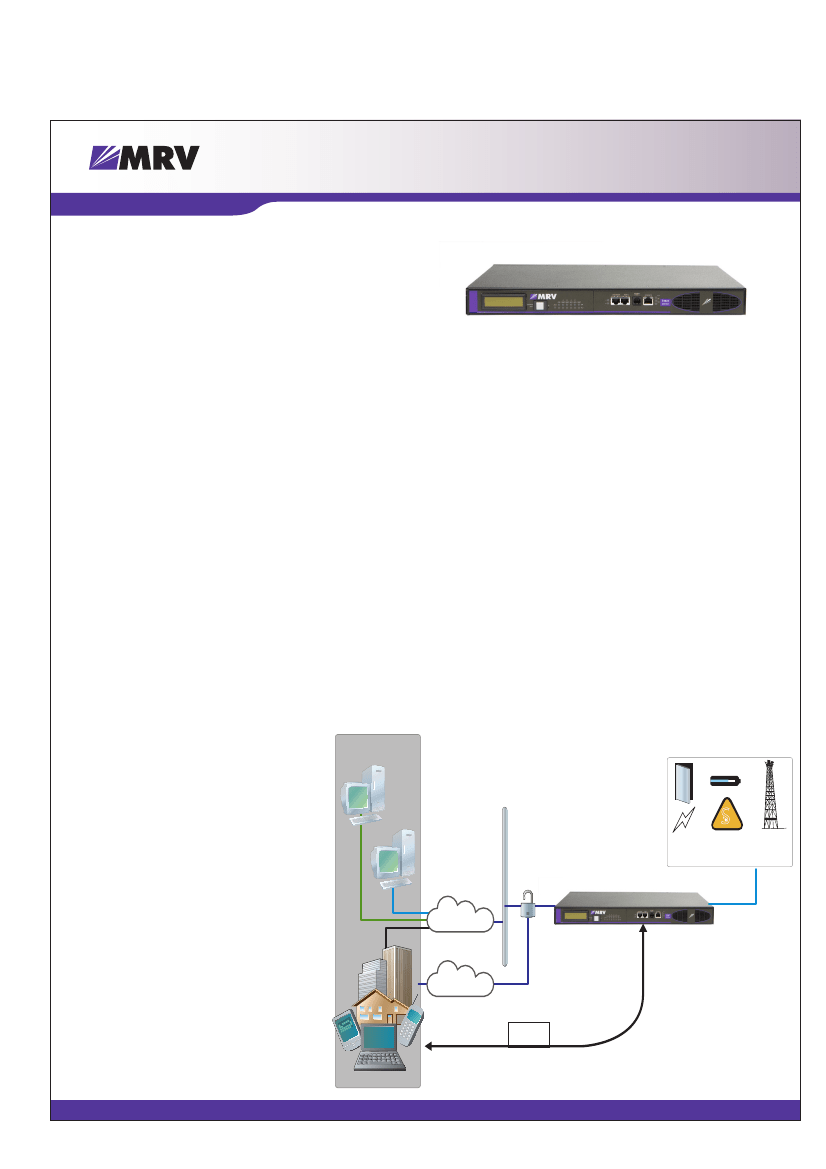

7304 Sensor Manager
S
- Wet or Dry Contacts
- Control Input/Output
- Analog Loops
Private Net/Internet
PSTN
Dial On
Demand
sales@mr v. com
Out-of-Band Networking
Datasheet

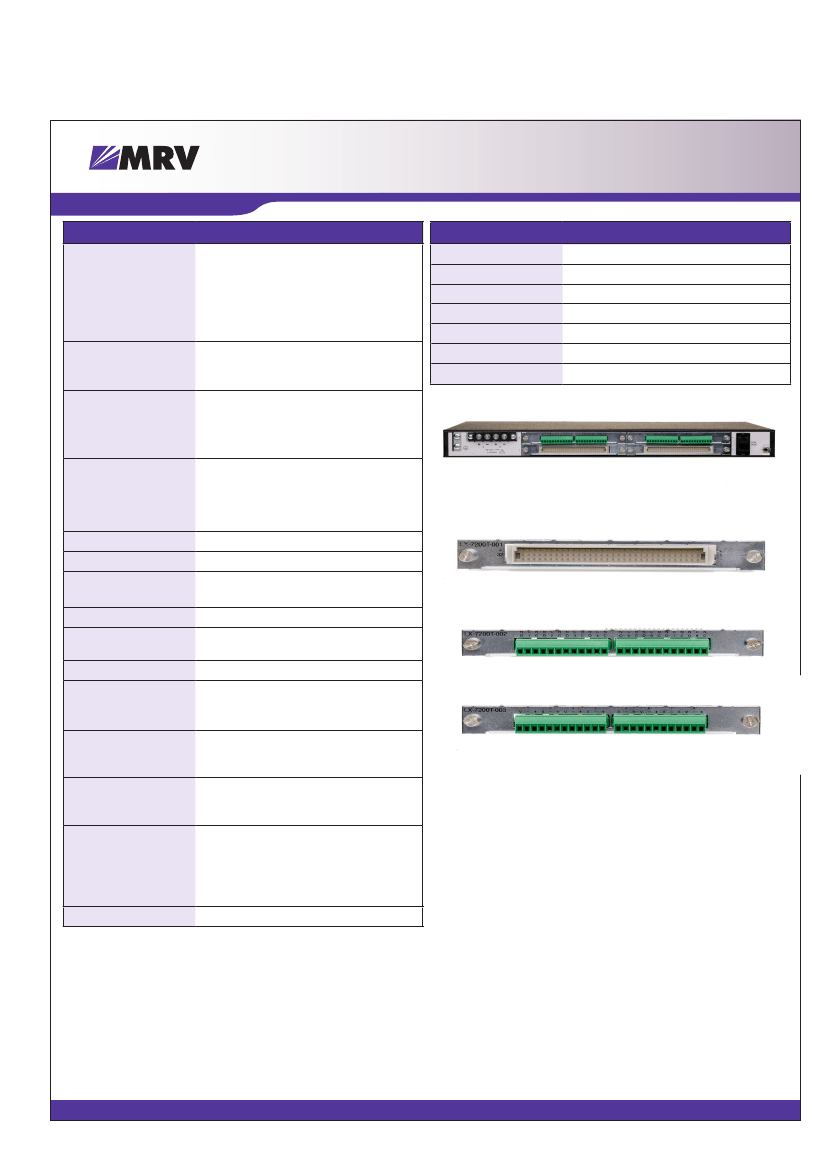

Specifications
System Features 19” or 23” 1U rack unit
Up to 4 modules per 7304/7204
Up to 4 7204 Sensor Managers per LX
Series
LCD alarm status display
Audible alarm
Power Requirements Dual AC power supplies, 120-240VAC,
50/60Hz, .5 amps
Dual 36-72VDC power supplies, .75 amps
Physical Dimensions Height: 4.48 cm/1.75 in
Width 44.8 cm/17.48 in
Depth: 29.21 cm/11.5 in
Physical Weight: 3.64 kg/8.02 lbs
Serial Ports 1 LX Series console port, RS232 (7304
only)
1 Management port, RS232 (7304 only)
1 Uplink port, RS232 (7204 only)
Ethernet 10/100 Ethernet (7304 only)
Modem V.92 (7304 only)
Operating Temperature 23 to 131˚F (-5 to 55˚C) Short Term
(DC Units Only)
Storage Temperature -40 to 185˚F (-20 to 85˚C)
Humidity 5% to 85% Long Term; 5% to 90% Short
Term(DC Units Only)
Warranty Three Year
Alarm Input Module 32 dry or wet contacts
3.5V to 75VDC
96 pi
Control Output Module 8 control outputs
Screw-type terminal connector
Max switching DC 30V @ 1.0A, 30W
Analog Loop Module 8 analog loop inputs
Supports 4-20 ma loop powered sensors
Screw-type terminal connector
Certifications FCC Part 15, Class A; EN 300-386 V1.3.3
(2005-04); ICES-03 ISSUE 4; AS/NZ CISPR
22:2004
NEBS Level 3 (DC only)
RoHS compliant
Warranty Three years
Ordering Information
LX-7304T-102AC 7304 Sensor Manager, dual AC, modem
LX-7304T-112DC 7304 Sensor Manager, dual DC, modem
LX-7204T-002AC 7204 Sensor Manager, dual AC
LX-7204T-012DC 7204 Sensor Manager, dual DC
LX-7200-001 32 Port Alarm Input Module
LX-7200-002 8 Port Control Output Module
LX-7200-003 8 Port Analog Loop Module
LX-7304T-112DC
LX-7200-001
LX-7200-002
LX-7200-003
