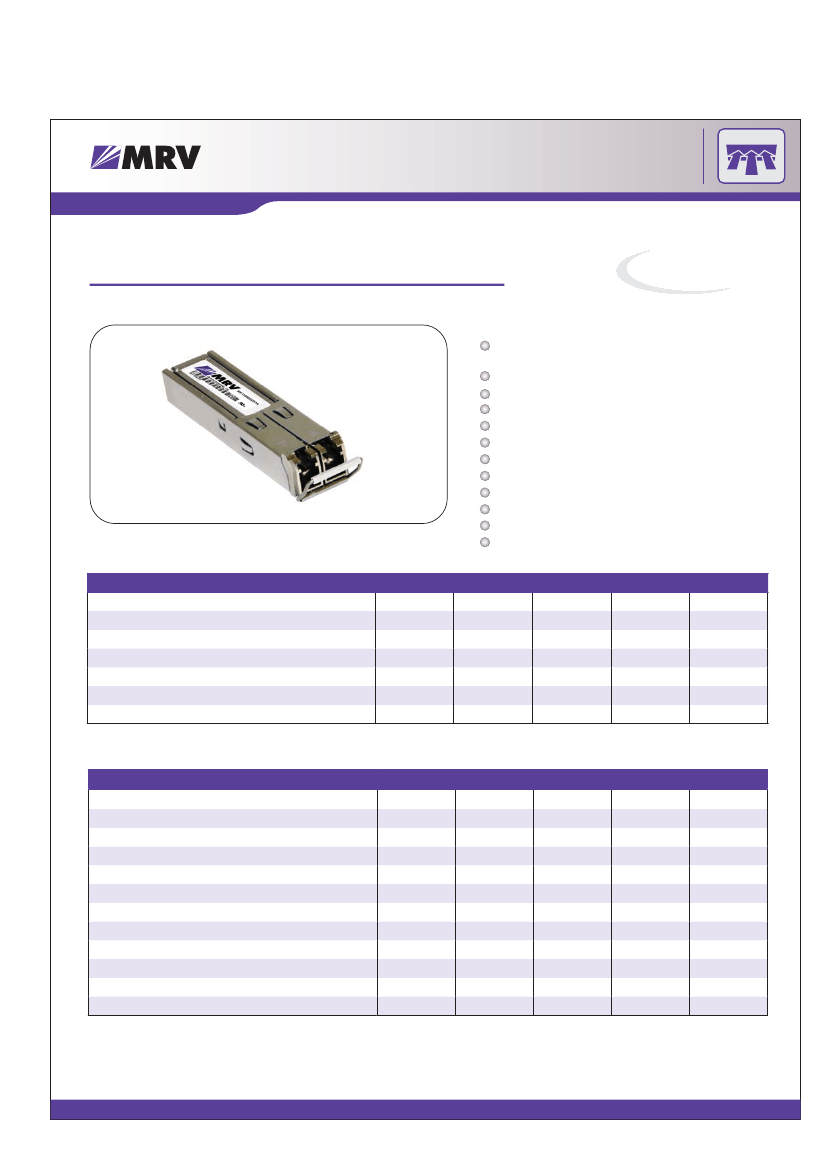

Models available for all 100 GHz C-Band wavelengths on
the DWDM ITU grid
1.06/2.125/4.25Gbps Fibre Channel support
10km, 40km, or up to 80 km reach
1.25 Gbps Ethernet compatibility
SFP MSA compliance (SFF-8074i)
Digital Diagnostic (SFF-8472)
Telecordia GR-468 compliance
Cold start-up wavelength support
Low power usage up to 1.5W
-5ºC to 70ºC operating case temperature
Class 1 Laser
APD-based receiver sensitivity
General Operating
Parameter
Supply Voltage
Total Current (BOL)
Power Supply Noise Rejection
a
Operating Case Temperature
Storage Temperature
Data Rate Multirate
a) 20 Hz to 155 MHz
Symbol
V
cc
I
cc
PSR
T
op
T
st
MR
Min.
3.135
-
100
-5
-40
-
Typical
3.3
-
-
-
-
4.25
Max.
3.465
375
-
70
85
-
Unit
V
mA
mV
p-p
ºC
ºC
Gbps
Transmitter Specifications (Optical)
Parameter
Optical Power
Average Launch Power (Tx: Off )
Channel Spacing
Deviation From Central Frequency, EOL
Spectral Width (20dB)
Side Mode Suppression Ratio
Dispersion Penalty at Specified Distance:
SFPFC4DW08-xx
b
SFPFC4DW04-xx
c
SFPFC4DW01-xx
d
Symbol
P
op
P
off
Min
0
-
-
-
-
30
-
-
-
-
-
Typical
2
-
100
-
-
-
-
-
-
-
-
Max
4
-30
-
±12
0.3
-
3
2
2
-135
-
Unit
dBm
dBm
GHz
GHz
nm
dB
dB
dB
dB
dB/Hz
dB
Δφ
-
Δλ
SMSR
dp
dp
dp
Relative Intensity Noise
Reflection Tolerance
e
RIN
rp
b) Measured at BER of 10
-12
, PRBS of 2
7
-1, at eye center, 4.25Gbps, 80km (1600ps/nm) fiber.
c) Measured at BER of 10
-12
, PRBS of 2
7
-1, at eye center, 4.25Gbps, 40km (800ps/nm) fiber.
d) Measured at BER of 10
-12
, PRBS of 2
7
-1, at eye center, 4.25Gbps, 10km (200ps/nm) fiber.
e) 2dB degradation of receiver sensitivity
sales@mrv.com
Pluggables
Transmitter Specifications (Electical)
Parameter
Input Differential Impedence
PECL Single-Ended Data Input Swing
TxFault_Fault
TxFault_Normal
TxDisable_Disable
TxDisable_Enable
Symbol
R
in
V
in,p-p
V
fault
V
normal
V
d
V
en
Min
80
250
2
V
ee
2
V
ee
Typical
100
-
-
-
-
-
Max
120
1200
V
cc
V
ee
+0.5
V
cc
V
ee
+0.8
Unit
Ω
mV
V
V
V
V
Receiver Specifications (Optical)
Parameter
Receive Power Low:
SFPFC4DW08-xx
f
SFPFC4DW04-xx
f
SFPFC4DW01-xx
f
Symbol
R
sens,low
R
sens,low
R
sens,low
R
sens,high
P
in,damage
λ
RX_r
Min
-
-
-
-6
4
1528
-
Typical
-26
-26
-20
-
-
-
-
Max
-24
-24
-18
-
-
1564
-27
Unit
dBm
dBm
dBm
dBm
dBm
nm
dB
Receive Power High
Damage Threshold for Receiver
Wavelength
Maximum Reflectance of Receiver
f ) at 10-12 BER, PRBS 27-1, 4.25Gbps
Receiver Specifications (Electrical)
Parameter
Single-Ended Data Output
Symbol
V
out, p-p
Min
185
Typical
-
Max
800
Unit
mV
Timing and Electrical
Parameter
Tx Disable Negate Time
Tx Disable Assert Time
Time to Initialize after Reset of Tx_Fault/
INT in Normal Operation
Start-up Time
Tx Fault/INT Assert Time
Tx Disable To Reset
LOS Assert Time
LOS De-assert Time
Serial ID Clock Rate
RX_LOS Voltage (High)
RX_LOS Voltage (Low)
LOS Output Voltage-Fault
LOS Output Voltage-Normal
MOD_DEF (0:2)-High
MOD_DEF (0:2)-Low
Symbol
t_on
t_off
t_init
t_startup
t_fault
t_reset
t_loss_on
t_loss_off
f_serial_clock
-
-
V
LOS
fault
V
LOS
normal
V
H
V
L
Min
-
-
-
-
-
10
-
-
-
2
-
2
V
ee
2
V
ee
Typical
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max
20
20
300
90
50
-
100
100
100
-
0.8
V
cc
V
ee
+0.5
V
cc
V
ee
+0.5
Unit
ms
ms
ms
secs
ms
µs
µs
µs
KHz
V
V
V
V
V
V
sales@mrv.com
2
Pluggables
Ordering Information
Description
Distance
Range (km)
Min.
SFPFC4DW08-xx*
SFPFC4DW04-xx*
SFPFC4DW01-xx*
SFP DWDM Transceiver
SFP DWDM Transceiver
SFP DWDM Transceiver
1/2/4 Gbps Fibre Channel/
Gigabit Ethernet
1/2/4 Gbps Fibre Channel/
Gigabit Ethernet
1/2/4 Gbps Fibre Channel/
Gigabit Ethernet
Black
Black
Black
**
**
**
Data Rate
(Mbps)
Bail Latch
Color
Model
Max.
80
40
10
* See Wavelength Guide below for “
xx
” values
** Minimum distance is dependant on the insertion loss of a Max/DeMux module used.
λc
Wavelength Guide
ITU Channel/
Product Code
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Frequency (THz)
191.7
191.8
191.9
192.0
192.1
192.2
192.3
192.4
192.5
192.6
192.7
192.8
192.9
193.0
193.1
193.2
193.3
193.4
193.5
193.6
193.7
193.8
193.9
Wavelength (nm)
1563.863
1563.047
1562.233
1561.419
1560.606
1559.794
1558.983
1558.173
1557.363
1556.555
1555.747
1554.940
1554.134
1553.329
1552.524
1551.721
1550.918
1550.116
1549.315
1548.515
1547.715
1546.917
1546.119
ITU Channel/
Product Code
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
Frequency (THz)
194.0
194.1
194.2
194.3
194.4
194.5
194.6
194.7
194.8
194.9
195.0
195.1
195.2
195.3
195.4
195.5
195.6
195.7
195.8
195.9
196.0
196.1
Wavelength (nm)
1545.322
1544.526
1543.730
1542.936
1542.142
1541.349
1540.557
1539.766
1538.976
1538.186
1537.397
1536.609
1535.822
1535.036
1534.250
1533.465
1532.681
1531.898
1531.116
1530.334
1529.553
1528.773
sales@mrv.com
3
Pluggables
Diagnostics
Parameter
Temperature
Voltage
Bias Current
TX Power
RX Power:
SFPFC4DW08-xx
SFPFC4DW04-xx
SFPFC4DW01-xx
Range
-40 to 102
0 to V
cc
0 to 120
0 to 4
-24 to -6
-24 to -6
-18 to -6
-1200 to 1200
20 to 70
Accuracy
±3
0.1
5
±2
±2
±2
±2
±60
±0.25
Unit
°C
V
mA
dBm
dBm
dBm
dBm
mA
°C
TEC Current
TEC Temperature
g
g) Relative accuracy. Absolute accuracy is +/-3°C
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Function
V
ee
T
TX_FAULT/INT
TX_DISABLE
MOD_DEF2
MOD_DEF1
MOD_DEF0
NC
LOS
Notes
TX Ground
Open Collector
Internally Pulled High
Serial Data Input
Serial Clock Input
Internally Grounded
Not Connected
Open Collector
RX Ground
RX Ground
RX Ground
RX Data Negative
RX Data Positive
RX Ground
RX Power
TX Power
TX Ground
TX Data Positive
TX Data Negative
TX Ground
V
ee
R
V
ee
R
V
ee
R
RXD-
RXD+
V
ee
R
V
cc
R
V
cc
T
V
ee
T
TXD+
TXD-
V
ee
T
sales@mrv.com
4
Pluggables

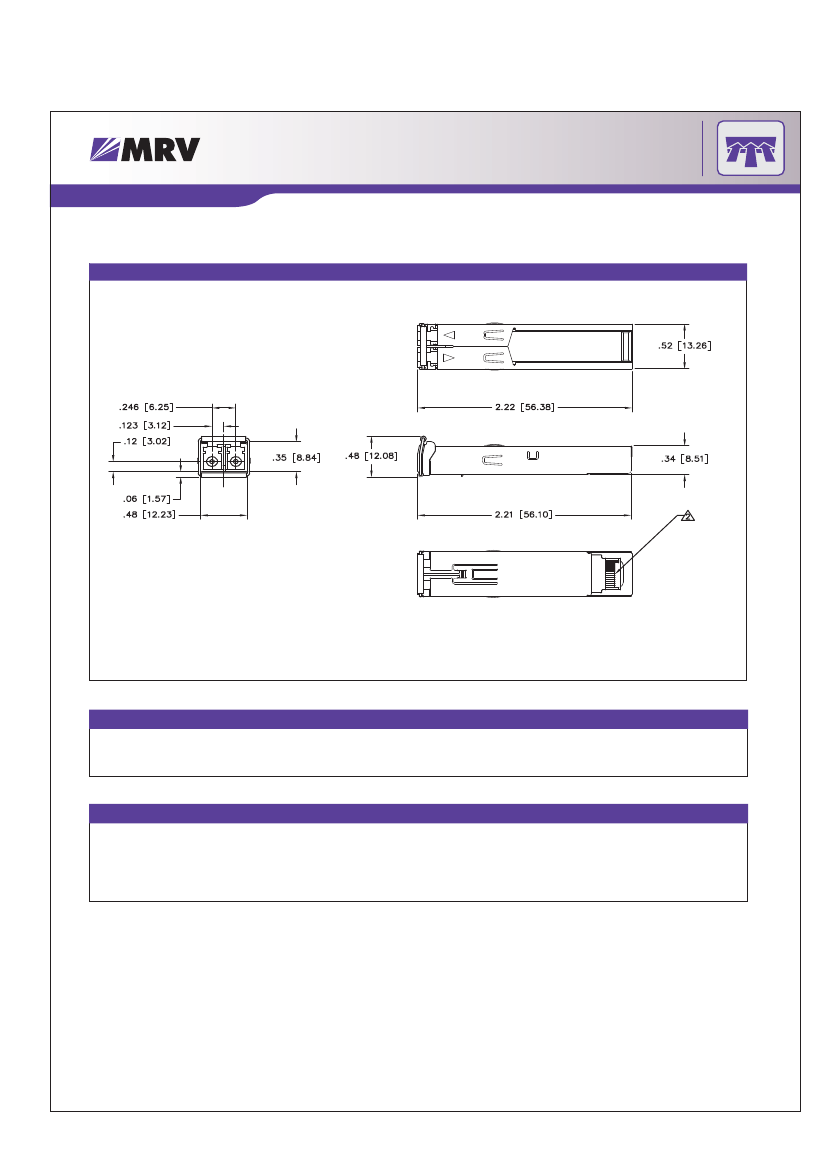

Outline Drawing
Regulatory and Industry Compliances
RoHS directive; China RoHS; USA and Canada UL listing; 21CFR 1040.10; MSA SFF-8074i; SFF-8472; Telecordia GR-468;
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic descharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indeirect radiation.
