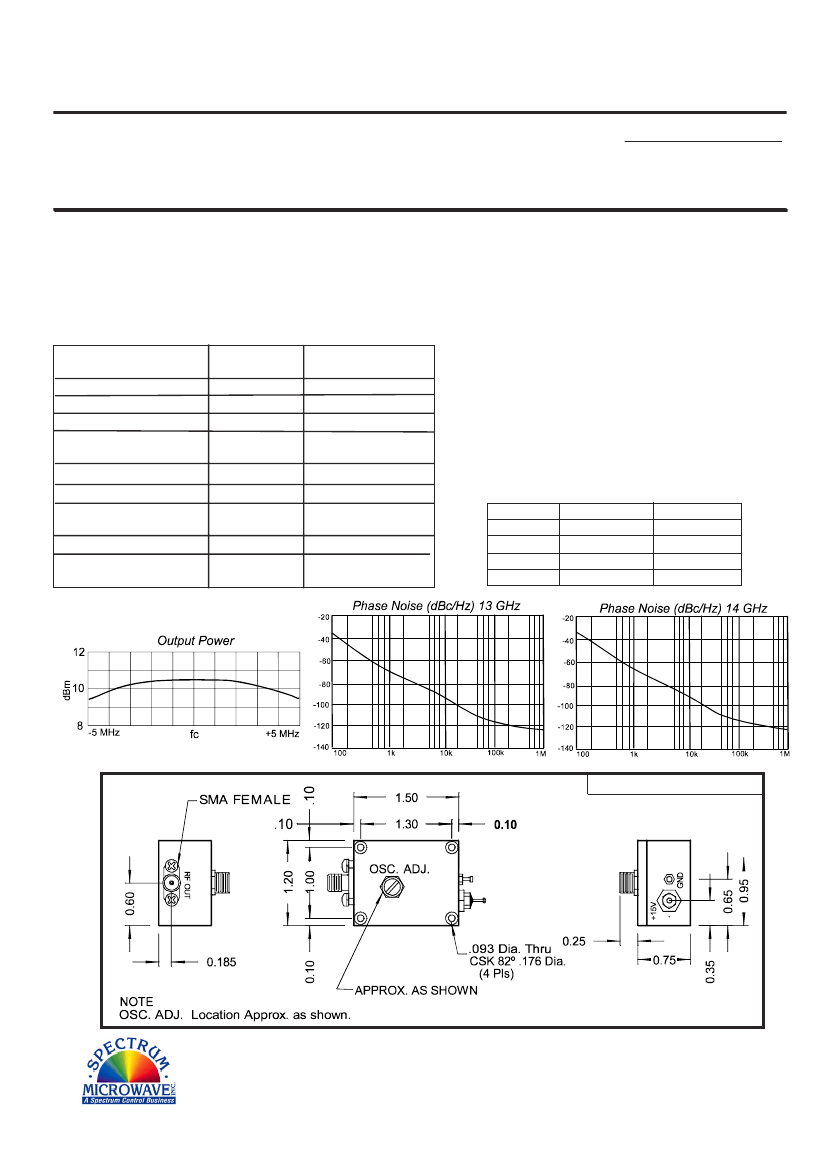

DIELECTRIC RESONATOR OSCILLATOR

Preview

Download Datasheet

View All

DIELECTRIC RESONATOR

OSCILLATOR

Features

Model 517054

13 GHz to 14 GHz

Low Noise

Rugged Construction for Extreme Environmental Conditions

High Frequency Stability

Mechanically Tuned

Specifications

CHARACTERISTIC

Frequency

Output Power (dBm)

Power Flatness (dBm)

Frequency Stability

(ppm)/ ºC

Harmonics (dBc)

Spurious (dBc)

Phase Noise (13 GHz)

@ 100 KHz (dBc/Hz)

Load VSWR

Power

Vdc

Absolute Maximum Ratings

TYPICAL

MIN/MAX

Ta = +25 ºC Ta = -55ºC to +85 ºC

13 - 14 GHz

+10.0

+/- 1.5

-80

-119

1.5:1

+15

13 - 14 GHz

0 / +17.0

+/- 3.0

3 to 5

15 Max.

-80 Max.

-117 Max.

2.0:1 Max.

+15 to +20

90 Max.

Ambient Operating Temperature ............. -55ºC to +100 ºC

Storage Temperature .............................. -62ºC to +125 ºC

Case Temperature ............................................... +125 ºC

DC Voltage ....................................................... +24 Volts

Maximum DC Tuning Voltage ............................ +20 Volts

Minimum DC Tuning Voltage .................................. 0 Volts

NOTE: Care should always be taken to effectively ground the case of

each unit.

Typical Performance Data

Phase Noise

Offset

1 kHz

10 kHz

100 kHz

Typical

13 GHz

-68

-95

-119

Typical

14 GHz

-65

-92

-117

Mechanical Outline

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

8/11/08

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
