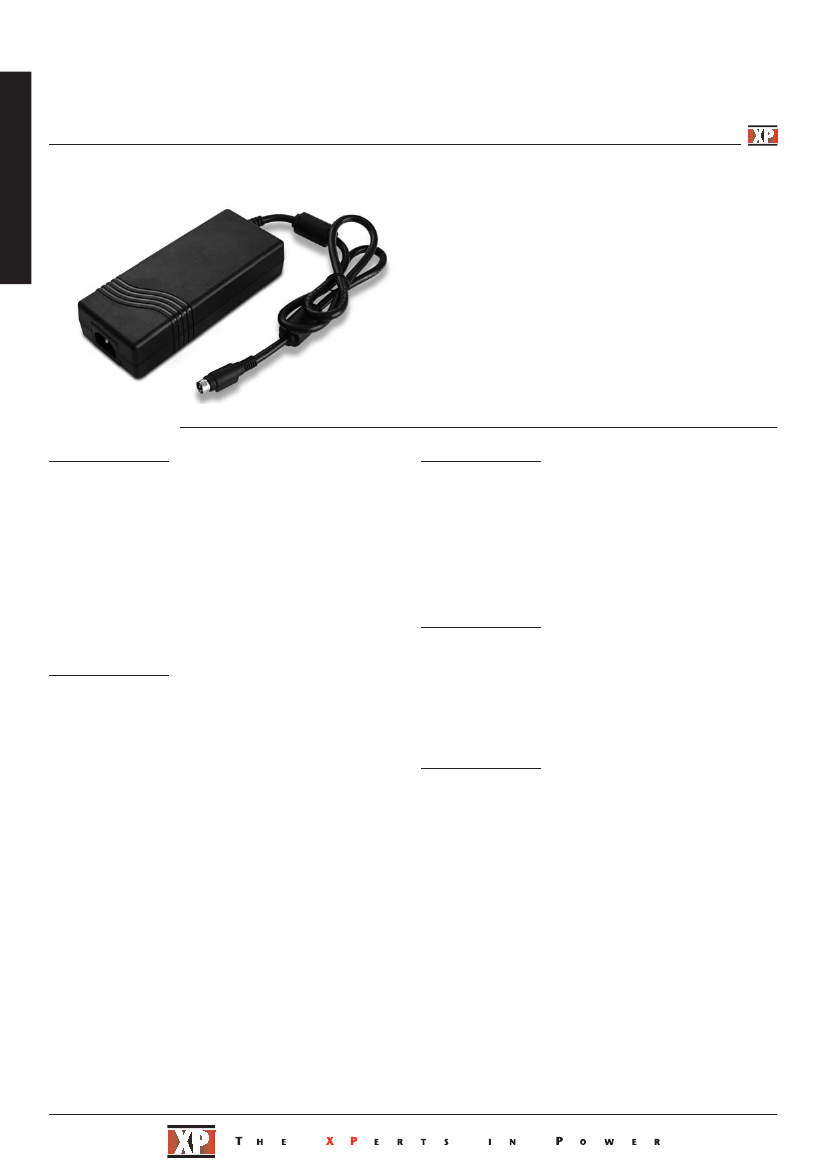

AC-DC
150 Watts
AML150 Series
•
•
•
•
•
•
•
High Power Density
xppower.com
Single Outputs from 12 V to 24 V
Universal Input
High Efficiency
0 °C to +70 °C Operating Temperature
Non-standard Connectors Available
International Safety Approvals
Specification
Input
Input Voltage
Input Frequency
Input Current
• 90-264 VAC
• 47-63 Hz
• 2.0 A rms at 115 VAC,
1.0 A rms at 230 VAC
Inrush Current
• 60 A at 115 VAC, 120 A at 230 VAC,
cold start +25 °C
Power Factor
• 0.95 typical
Earth Leakage Current
• 150 µA max at 115 VAC,
250 µA max at 230 VAC
Input Protection
• Internal 4 A fuse
Standby Power
• <1 W
Consumption
General
Efficiency
Isolation
• 88% min
• 3000 VAC Input to Output
1500 VAC Input to Ground
Output 0 V is electrically connected to
Input Ground
• 20-80 kHz variable
• 5.1 W/In
3
• >100 kHrs per MIL-HDBK-217F
(+25 °C ambient at full load)
Switching Frequency
Power Density
MTBF
Environmental
Operating Temperature
• 0 °C to +70 °C, derate from 100% power
at +40 °C to 60% power at +70 °C
Operating Humidity
• 10-95% RH, non-condensing
Storage Temperature
• -20 °C to +80 °C
Operating Altitude
• 3000 m
Shock
• 30 g, 10 ms on 3 axes
Vibration
• 5-100 Hz, 2.31 m/s
2
, 20 mins, 3 axes
Output
Output Voltage
Output Voltage Trim
Initial Set Accuracy
Minimum Load
Start Up Delay
Hold Up Time
Line Regulation
Load Regulation
Transient Response
See table
Not user-adjustable
±2%
No minimum load required
5 s max at 100 VAC
3 ms minimum at 100 VAC
±0.5% maximum
See table
4% max. deviation, recovery to within
1% in 500 µs for a 25% load change
Ripple & Noise
• 2% max pk-pk (see note 1)
Overvoltage Protection
• 110-140% Vnom, recycle input to reset
Overtemperature
• Unit shuts down, recycle input to reset
Protection
Overload Protection
• 110-150%, auto recovery
Short Circuit Protection
• Trip and restart (Hiccup mode)
Temperature
• 0.04%/°C
Coefficient
•
•
•
•
•
•
•
•
•
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Dips & Interruptions
• EN55022/FCC/VCCI, Class B conducted
EN55022/FCC/VCCI, Class B radiated
• EN61000-3-2
• EN61000-3-3
• EN61000-4-2, level 2 Perf Criteria A
• EN61000-4-3, level 2 Perf Criteria A
• EN61000-4-4, level 2 Perf Criteria A
• EN61000-4-5, level 3 Perf Criteria A
• EN61000-4-6, level 2 Perf Criteria A
• EN61000-4-11, 30% for 10 ms,
60% 100 ms, 100% 5000 ms,
Perf Criteria A, B, B
• EN60950, UL60950,
CSA22.2 No. 60950 per cUL, CE Mark
Safety Approvals
AC-DC
Models and Ratings
Output
Power
150 W
150 W
150 W
150 W
150 W
Notes
1. Ripple and noise measured at 20 MHz bandwidth with a 47 µF tantalum and 0.1 µF ceramic cap connected at the measurement point.
2. Total regulation includes initial set accuracy, line and load regulation.
†
Available from Farnell. See pages 204-206.
^
Available from Newark. See page 207-208.
AML150
Output
Voltage
12 V
15 V
19 V
20 V
24 V
Output
Current
12.50 A
10.00 A
7.89 A
7.50 A
6.25 A
Total Regulation
(2)
5%
5%
5%
5%
5%
Model
Number
AML150PS12
†^
AML150PS15
†^
AML150PS19
†^
AML150PS20
†^
AML150PS24
†^
Mechanical Details
Cable length approx 70.9” ±1.97” (1800mm ±50mm)
(4)
1 3
2
4
1.57
(40.0)
Power On Indicator
Rubber foot
(4 places.)
Pin
1
2
3
4
Shell
Function
Output +
Output +
Return/Input Earth
Return/Input Earth
Return/Input Earth
2.83 (72.0)
0.02
(0.5)
AC Input
IEC 320/C14 Inlet
Notes
1. Dimensions shown in inches (mm). Tolerance is 0.02 (0.5) maximum, except output cable length.
2. Weight: 1.76 lb (800 g).
3. Optional output connectors available. Consult sales.
4. AML150PS12 cable length is 37.4” (950 mm).
5. Output connector (Kycon KPP-4P or equivalent) mates with Kycon KPJ-4S or equivalent.
6.73 (171.0)
