RF AMPLIFIER
MODEL
CZ8454
Features
!
!
!
!
Low +5 Volt Supply
High Gain: 27 dB Typical
Operating Temp. -55 ºC to +85 ºC
Environmental Screening Available
Available as:
CZ8454, 4 Pin TO-5
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+33 dBm (Typ.)
Second Order Two Tone Intercept Poin..........+28 dBm (Typ.)
Third Order Two Tone Intercept Point.............+16 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Gain Flatness (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25
ºC
5 - 350 MHz
27
+/- 0.7
+4
- 43
1.5:1
1.5:1
3.8
+5
32
MIN/MAX
Ta = -55
ºC
to +85
ºC
5 - 350 MHz
25 Min.
+/- 1.2 Max.
+1 Min.
-40 Max.
2.0:1 Max.
2.0:1 Max.
5.0 Max.
+5
36 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature .................................-62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage ........................................................... +7 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

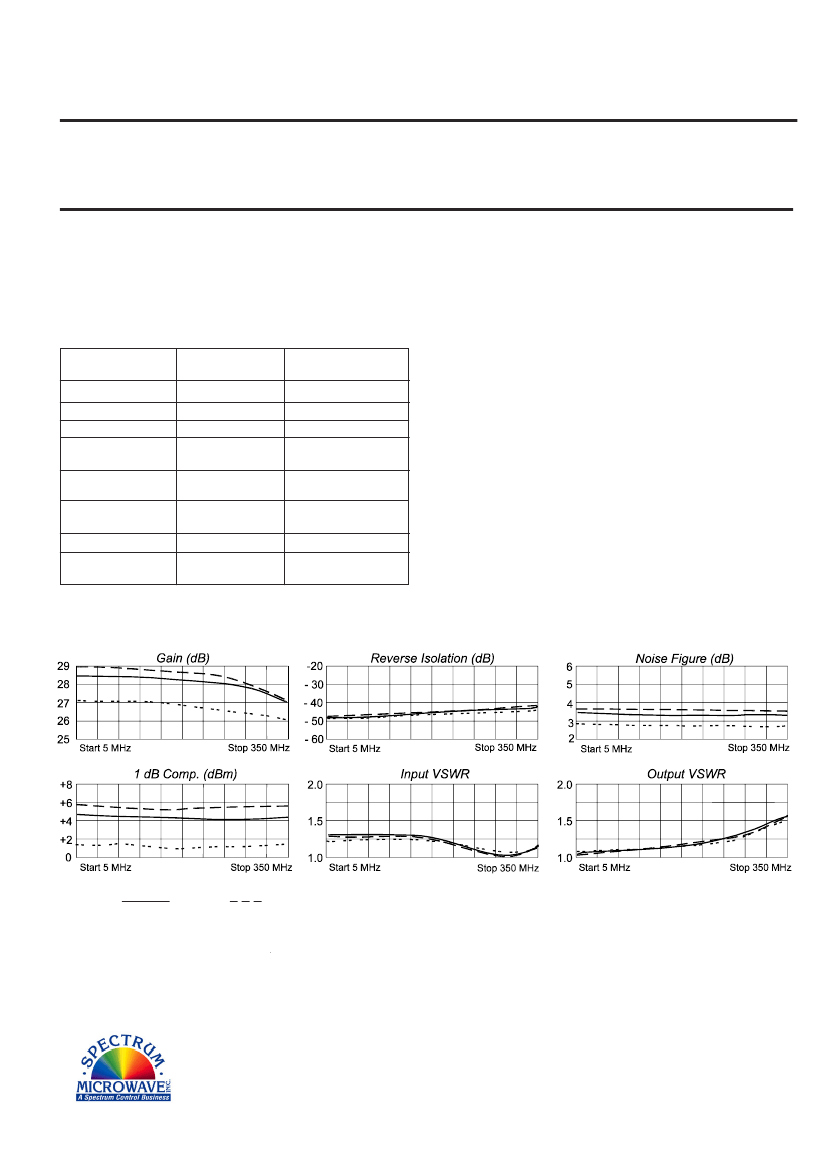

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
