BHP-25+

Description
High Pass Filter 50ヘ 27.5 to 800 MHz
CategoryAnalog mixed-signal IC    filter
File Size123KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BHP-25+ Overview

High Pass Filter 50ヘ 27.5 to 800 MHz

BHP-25+ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMini-Circuits
package instructionCASE FF55
Reach Compliance Codeunknow
ECCN codeEAR99
Maximum attenuation frequency13 MHz
minimum attenuation frequency19 MHz
Attenuation at maximum frequency40 dB
Attenuation@frequency min20 dB
average input power0.5 W
Center frequency or cutoff frequency (fo/fc)25 MHz
diameter13.72 mm
filter typeHIGH PASS FILTER
high65.79 mm
input connectorBNC FEMALE
input resistance50 OHM
Maximum insertion loss3 dB
Installation typePANEL MOUNT
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Output connectorBNC MALE
Output impedance50 OHM Ω
physical sizeD13.72XH65.79 (mm)/D0.54XH2.59 (inch)
voltage standing wave ratio1.7
Base Number Matches1
High Pass Filter
50Ω
27.5 to 800 MHz
Features
-55°C to 100°C
-55°C to 100°C
0.5W max.
Coaxial
BHP-25+
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power Input
• rugged shielded case
• other standard and custom BHP
models available with wide selection of fco
Connectors
BNC
CASE STYLE: FF55
Model
Price
Qty.
BHP-25+
$38.95 ea. (1-9)
Applications
• lab use
• transmitters/receivers
• radio communications
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
High Pass Filter Electrical Specifications
STOPBAND
(MHz)
(loss > 40 dB)
(loss > 20 dB)
13-19
fco (MHz)
Nom.
(loss 3 dB)
25
PASSBAND
(MHz)
(loss <1 dB)
27.5-800
Stopband
Typ.
18
VSWR
(:1)
Passband
Typ.
1.7

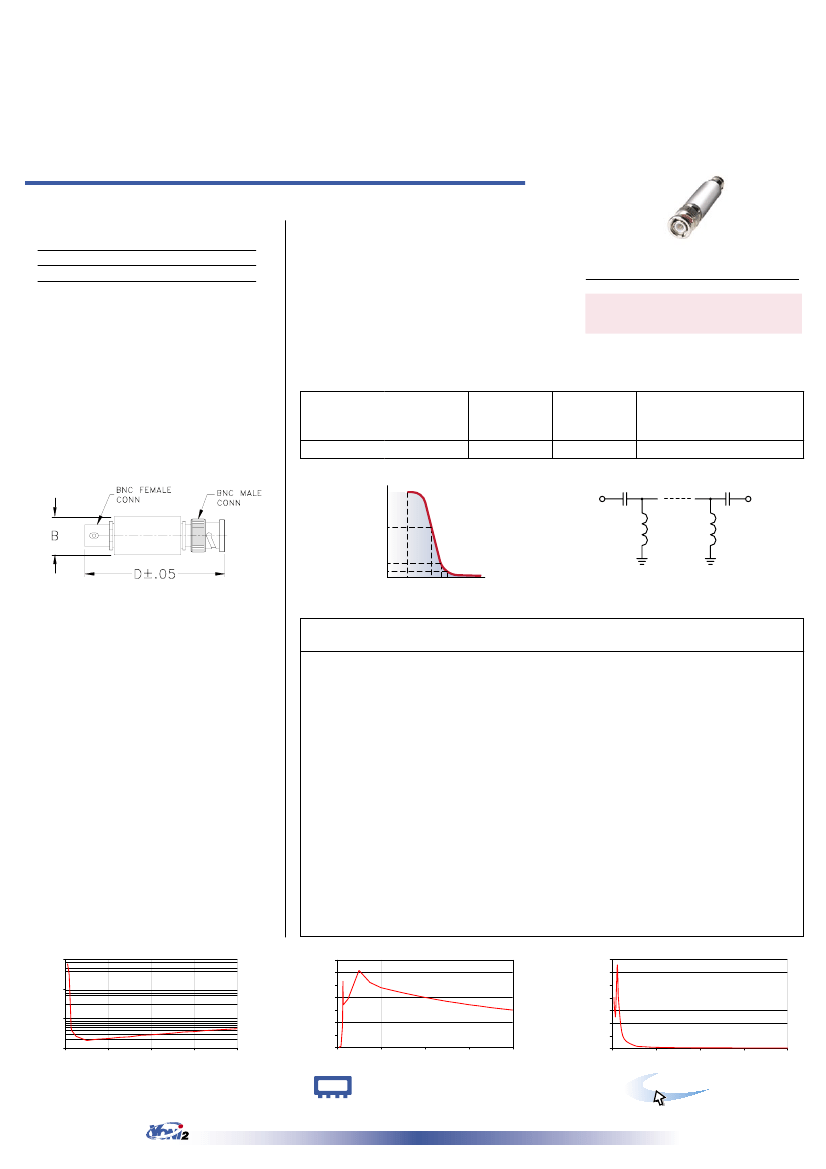

Outline Drawing
DC-13
typical frequency response
40
Attenuation, dB
RF IN
electrical schematic
RF OUT
20
3
1
DC
.75 1 1.1
.5
Frequency/fco
Typical Performance Data
Outline Dimensions (
inch
)
mm
B
D
wt
.54
2.59 grams
13.72 65.79
40.0
Frequency
(MHz)
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
25.00
27.00
28.00
29.00
30.00
50.00
100.00
150.00
200.00
250.00
300.00
350.00
400.00
450.00
500.00
550.00
600.00
650.00
700.00
750.00
800.00
Insertion Loss
(dB)
_
x
σ
67.19
68.52
58.67
53.20
48.60
43.62
38.71
34.04
29.51
1.37
0.47
0.45
0.42
0.39
0.25
0.18
0.20
0.21
0.23
0.24
0.27
0.28
0.30
0.32
0.35
0.36
0.39
0.41
0.43
0.45
RETURN LOSS
Return Loss
(dB)
0.16
0.15
0.11
0.20
0.20
0.33
0.34
0.29
0.38
8.53
26.43
18.63
17.01
17.14
19.33
30.73
25.92
23.84
22.80
21.78
20.86
19.97
19.15
18.38
17.74
17.04
16.51
15.88
15.38
14.89
Frequency
(MHz)
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
25.00
27.00
28.00
29.00
30.00
50.00
100.00
150.00
200.00
250.00
300.00
350.00
400.00
450.00
500.00
550.00
600.00
650.00
700.00
750.00
800.00
GROUP DELAY
Group Delay
(nsec)
40.11
34.82
31.93
29.96
28.87
28.34
25.81
24.89
28.84
65.12
59.20
53.28
46.47
40.06
9.87
2.50
1.26
0.85
0.65
0.55
0.48
0.44
0.41
0.40
0.38
0.37
0.35
0.34
0.34
0.34
3.53
6.60
1.74
1.29
0.72
0.76
0.65
0.72
0.70
0.11
0.03
0.04
0.06
0.06
0.01
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.01
0.01
0.01
0.01
100
INSERTION LOSS (dB)
at RF level of 0 dBm
INSERTION LOSS
35
RETURN LOSS (dB)
30
25
20
15
10
5
0
at RF level of 0 dBm
70
GROUP DELAY (nsec)
60
50
40
30
20
10
0
at RF level of 0 dBm
10
1
0
0
200
400
FREQUENCY (MHz)
600
800
0
200
400
FREQUENCY (MHz)
600
800
0
200
EW
ALL N
400
FREQUENCY (MHz)
600
800
Mini-Circuits
ISO 9001 ISO 14001
CERTIFIED
RF/IF MICROWAVE COMPONENTS
®
minicircuits.com
REV. C
M108294
BHP-25+
070404
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site
The Design Engineers Search Engine
Provides ACTUAL Data Instantly From MINI-CIRCUITS At:
www.minicircuits.com

BHP-25+ Related Products

BHP-25+ BHP-25
Description High Pass Filter 50ヘ 27.5 to 800 MHz High Pass Filter 50ヘ 27.5 to 800 MHz
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Maker Mini-Circuits Mini-Circuits
Reach Compliance Code unknow unknow
Maximum attenuation frequency 13 MHz 13 MHz
minimum attenuation frequency 19 MHz 19 MHz
Attenuation at maximum frequency 40 dB 40 dB
Attenuation@frequency min 20 dB 20 dB
average input power 0.5 W 0.5 W
Center frequency or cutoff frequency (fo/fc) 25 MHz 25 MHz
filter type HIGH PASS FILTER HIGH PASS FILTER
input resistance 50 OHM 50 OHM
Maximum insertion loss 3 dB 3 dB
Installation type PANEL MOUNT PANEL MOUNT
Maximum operating temperature 100 °C 100 °C
Minimum operating temperature -55 °C -55 °C
Output impedance 50 OHM Ω 50 OHM Ω
voltage standing wave ratio 1.7 1.7
Base Number Matches 1 1
