BZV37116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZV37116

BZV37116: DescriptionDIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode; CategoryDiscrete semiconductor diode; File Size62KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BZV37116 Overview

DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode

BZV37116 Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-34
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	BIDIRECTIONAL
Maximum power dissipation	0.4 W
Certification status	Not Qualified
Nominal reference voltage	6.5 V
Maximum reverse current	10 µA
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Voltage temperatureCoeff-Max	6.5 mV/°C
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

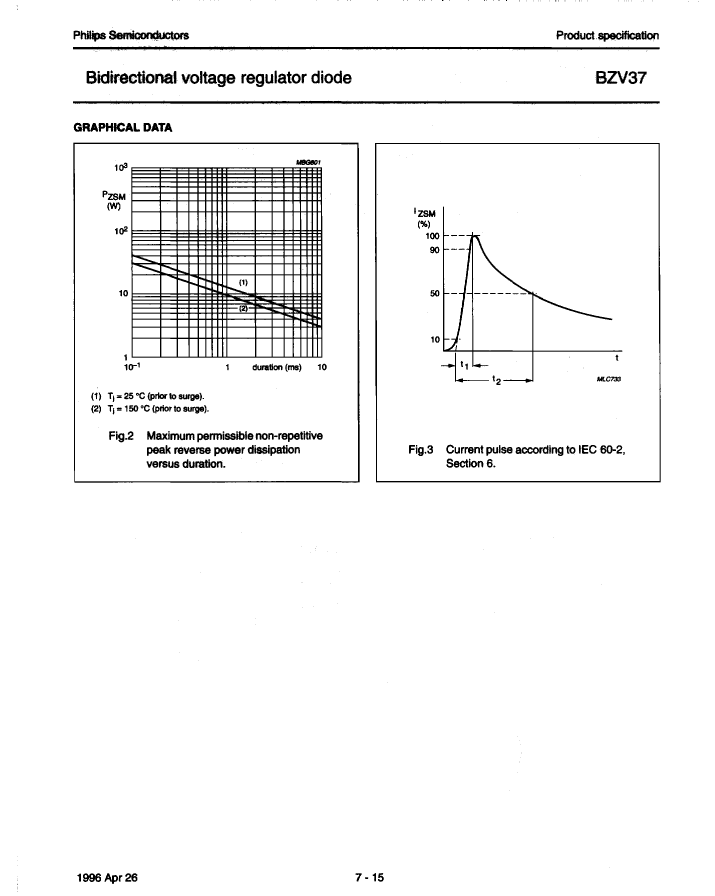

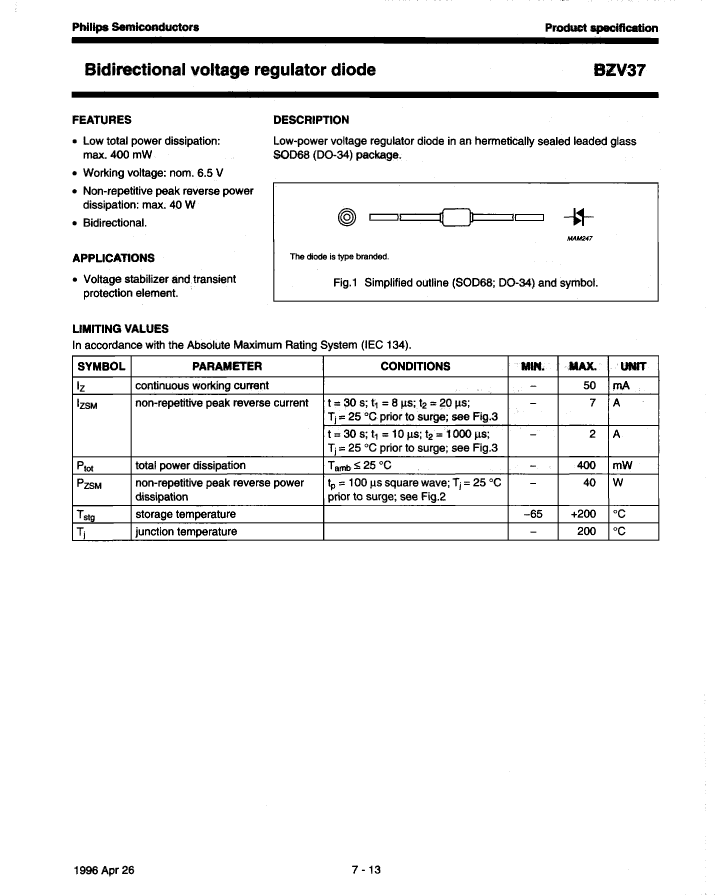

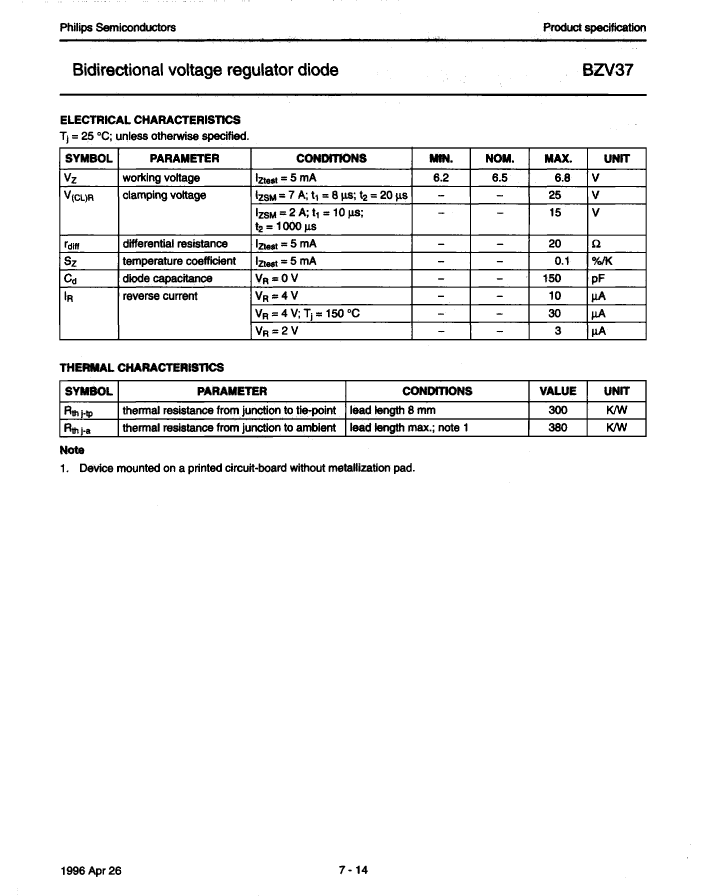

Preview

Download Datasheet

View All

BZV37116 Related Products

	BZV37116	BZV37153	BZV37136	BZV37133	BZV37143
Description	DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode	DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode	DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode	DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode	DIODE 6.5 V, 0.4 W, SILICON, BIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-34, Voltage Regulator Diode
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-34	DO-34	DO-34	DO-34	DO-34
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
Maximum power dissipation	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Voltage temperatureCoeff-Max	6.5 mV/°C	6.5 mV/°C	6.5 mV/°C	6.5 mV/°C	6.5 mV/°C
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	5 mA	5 mA	5 mA	5 mA	5 mA
Base Number Matches	1	1	1	1	-
