XZFUR10A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZFUR10A2

XZFUR10A2: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 10.16mm, ROHS COMPLIANT PACKAGE-20; CategoryLED optoelectronic/LED photoelectric; File Size230KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZFUR10A2 Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 10.16mm, ROHS COMPLIANT PACKAGE-20

XZFUR10A2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	10.16 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

XZFUR10A2

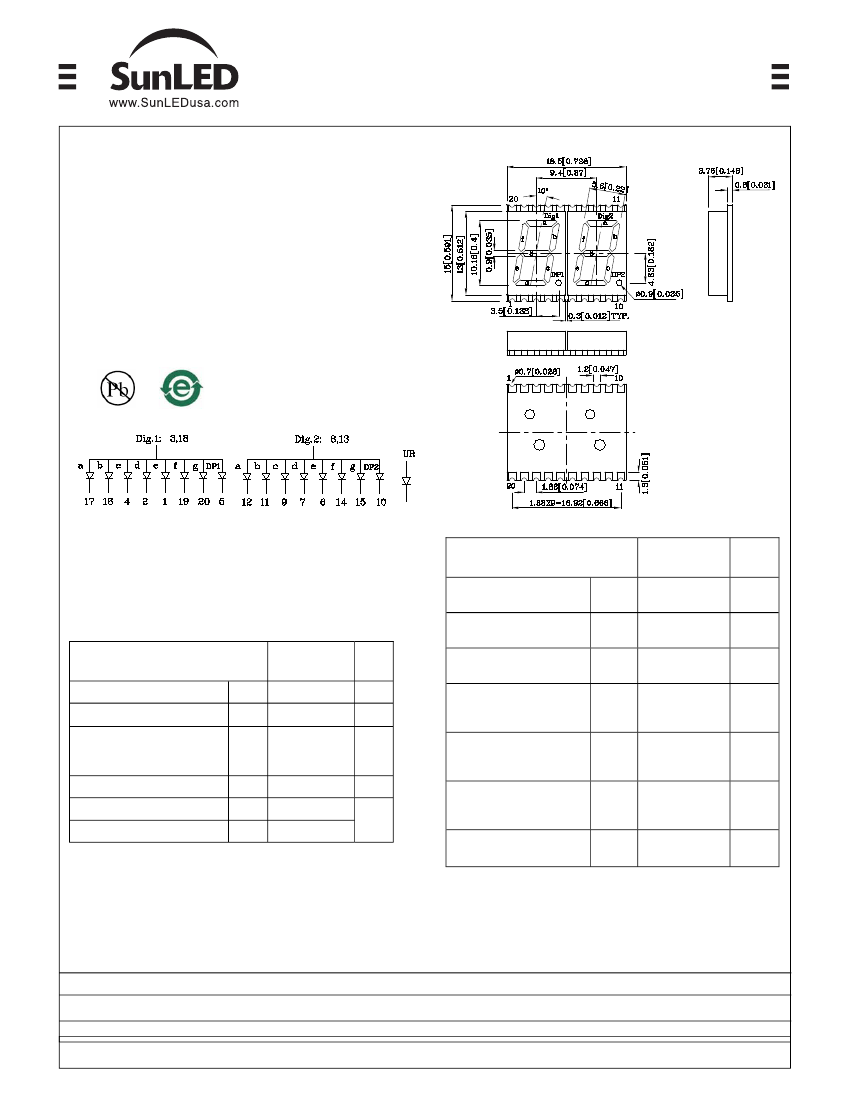

SURFACE MOUNT DISPLAY

Features

●0.4INCH

DIGIT HEIGHT.

●LOW

CURRENT OPERATION.

●EXCELLENT

CHARACTER APPEARANCE.

●I.C.

COMPATIBLE.

●MECHANICALLY

RUGGED.

●GRAY

FACE,WHITE SEGMENT.

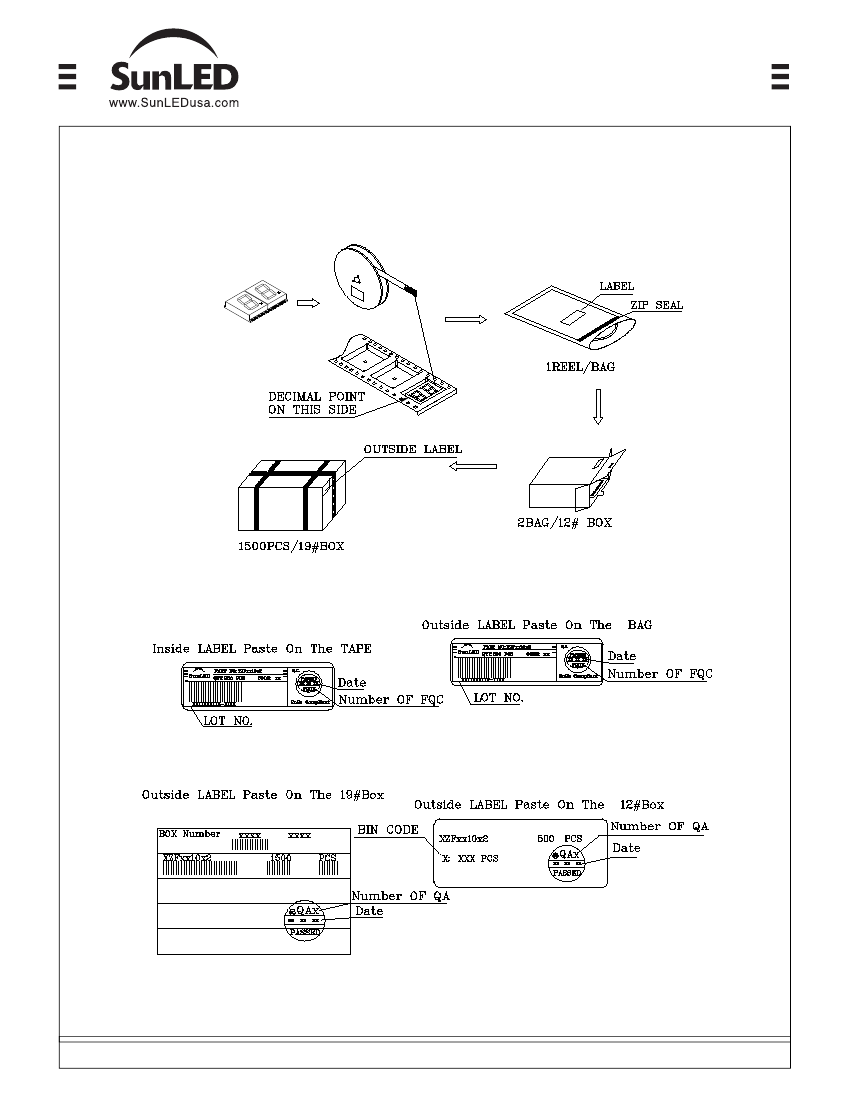

●PACKAGE:250PCS/REEL.

●

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

●RoHS

COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice

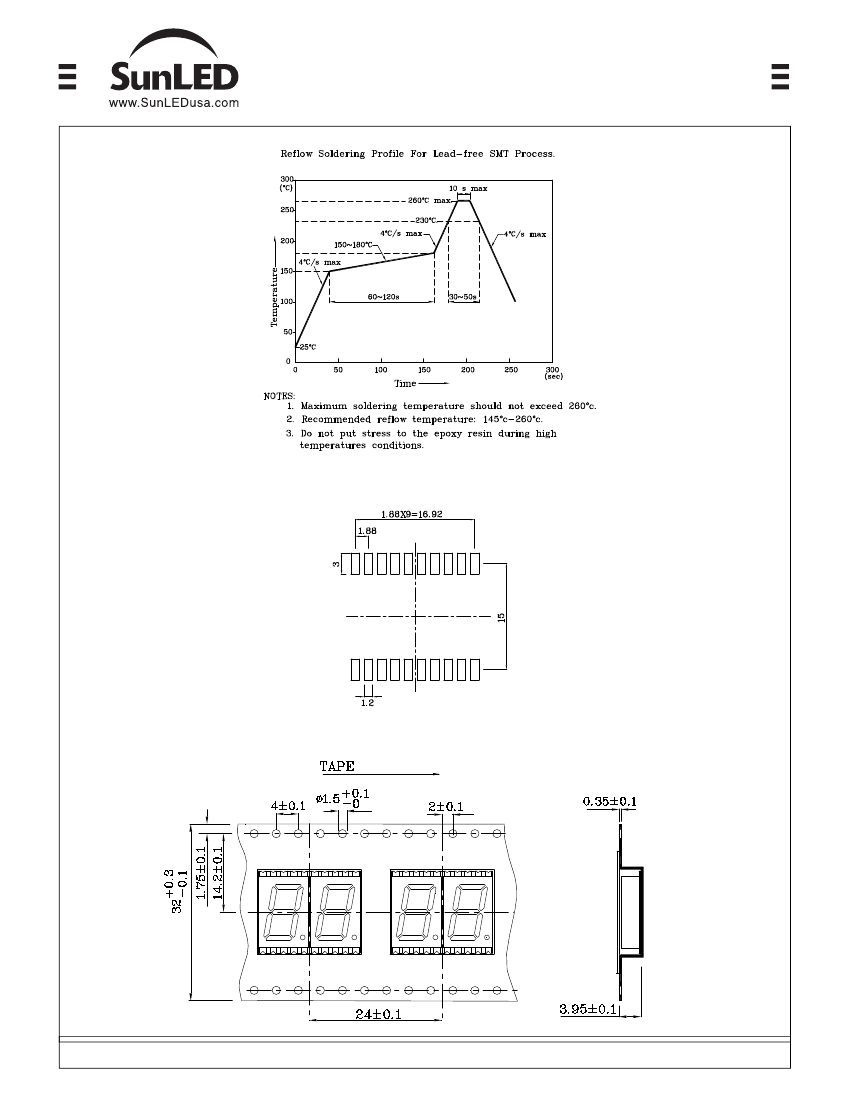

4.The gap between the reflector and PCB shall not exceed 0.25mm.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(GaAsP/GaP)

160

-40 ~ +85

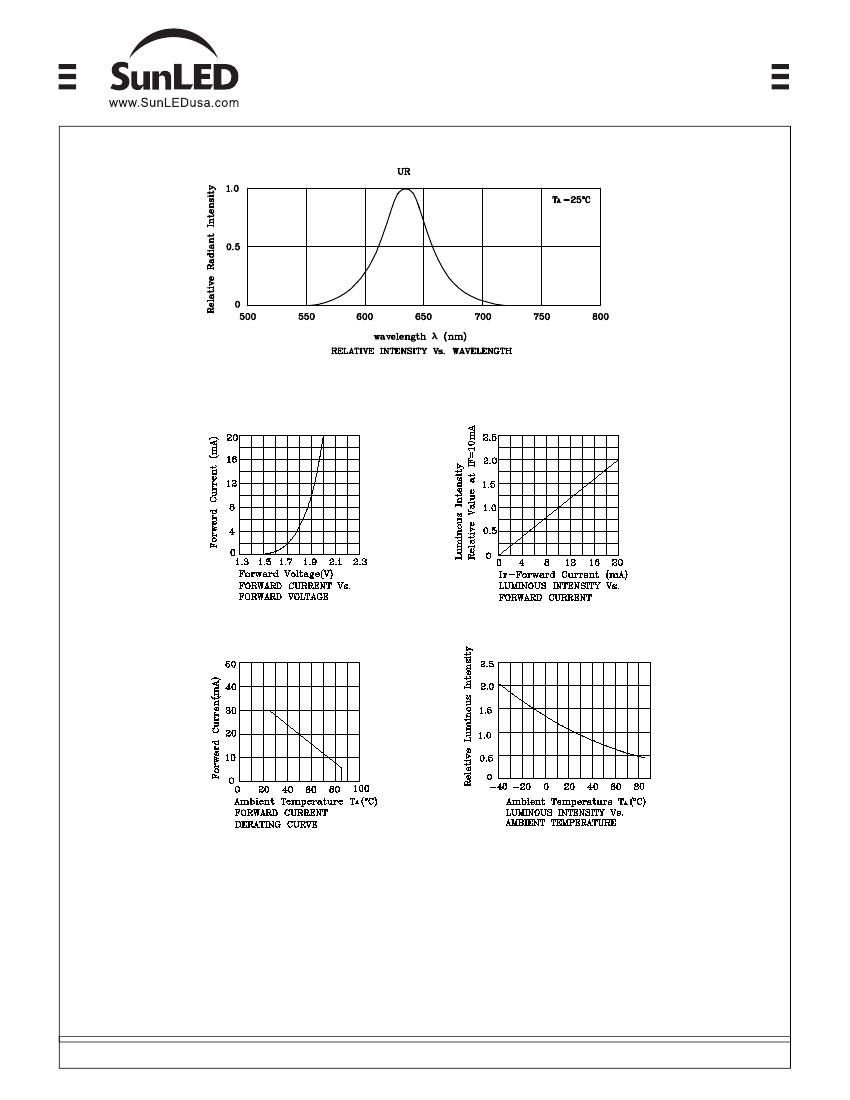

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAsP/GaP)

1.9

2.5

Unit

°C

627

625

Δλ

Part

Number

Emitting

Color

Emitting

Material

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

4990

Wavelength

Description

XZFUR10A2

Red

GaAsP/GaP

1200

627

Common Anode. Rt. Hand Decimal

Published Date : DEC 24, 2007

Drawing No : XDSA9142

Checked : Shin Chi

P.1/4
