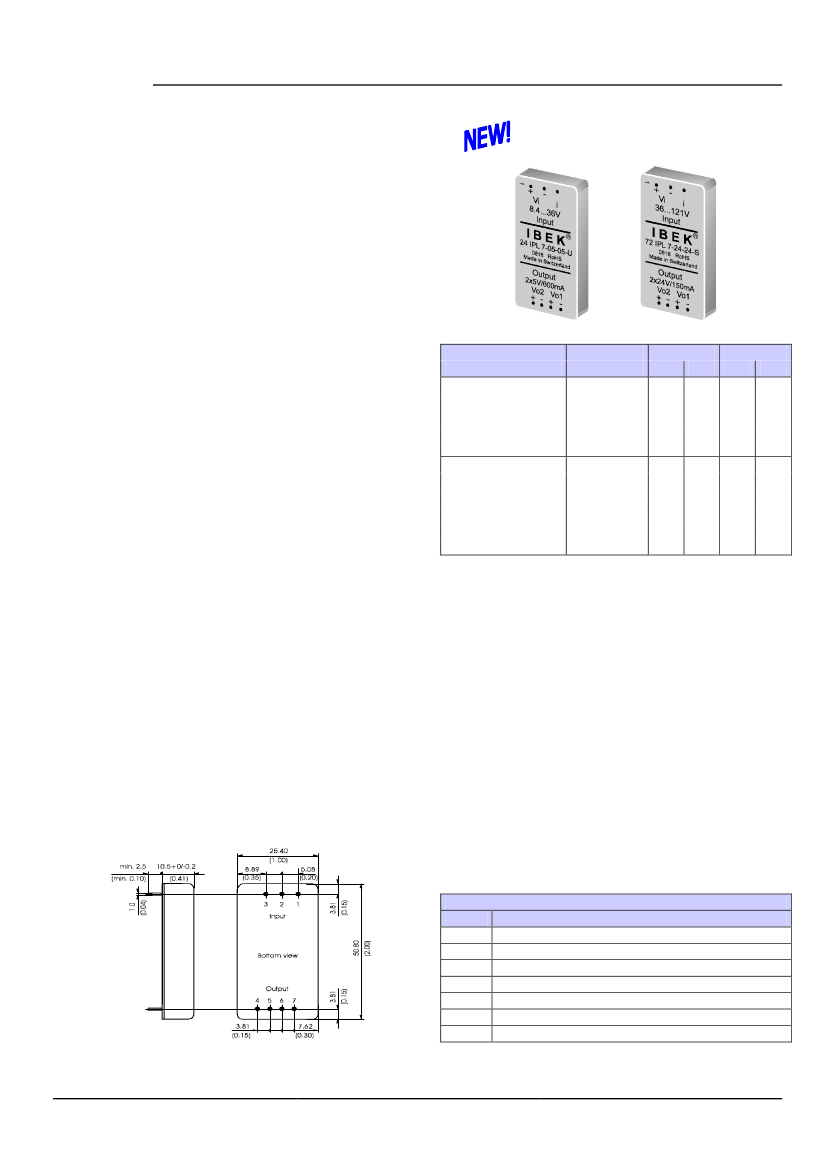

IBEK
€
www.ibek.ch
Dual outputs
Input to output isolated
Output to output isolated
•
•
•
•
•
•
•
•
•
7 Watt
DC-DC-Converter
Family IPL7
Ultra wide 1:4 input voltage ranges up to 156 VDC
Inhibit input
Very high efficiency up to 85%
Low output voltage noise
Continuous no-load and short-circuit proof
Extended ambient temperature range -40…+85‚C
No derating
Made in Switzerland, accordingly ISO 9001:2000
2 years warranty
Standard Types
Dual output
1
24 IPL7-05-05-U
RoHS
24 IPL7-12-12-U
RoHS
24 IPL7-15-15-U
RoHS
24 IPL7-24-24-U
RoHS
Dual output
1
xx IPL7-05-05-U
RoHS
2
xx IPL7-12-12-U
RoHS
2
xx IPL7-15-15-U
RoHS
2
xx IPL7-24-24-U
RoHS
2
1
Electromagnetic emission EN 55022 < B
Conducted and radiated emissions
24 IPL
48 IPL
72 IPL
110 IPL
Input voltage
VDC
8.4…36
(nominal 24)
Output 1
VDC mA
5
12
15
24
5
12
15
24
600
250
200
130
700
300
240
150
Output 2
VDC mA
5
12
15
24
5
12
15
24
600
250
200
130
700
300
240
150
No load input current
12
8
5
5
mA typ.
Input current in inhibited condition
3 mA max.
Switching frequency
350 kHz typ.
Output voltage accuracy
€ 1% max. at 50% L
Static line regulation
€ 1% max.
Static symmetrical load regulation
€ 3% max. FL to 10%
Static cross load regulation
€ 3% max. FL - 10% to 10% - FL
Output voltage noise (20 MHz BW) 50 mVpp typ.
Efficiency
82% to 85% typ.
I/O Electric strength test voltage
1500 VDC
O/O Electric strength test voltage
150 VDC
Coupling capacitance
1000 pF
Inhibit input (i) :
- All
Apply -10…+0.8 VDC to operate (switch on) the unit.
- 24 IPL
Apply +2.4…+36 VDC to inhibit (switch off) the unit.
- 48 IPL / 72 IPL / 110 IPL Apply +2.4…+75 VDC to inhibit (switch off) the unit.
With open pin the unit is inhibited.
Ambient temperature range
-U: -40…+71‚C; -S: -40…+85‚C
Case temperature range
-U: -40…+95‚C; -S: -40…+105‚C
Storage temperature range
-U: -55…+105‚C; -S: -55…+105‚C
Case material
Non-conductive plastic, UL94 V-0 rated
MTBF, GB @ 40‚C case
1.500.000 hours
(MIL-HDBK-217F, Notice 2)
16.8…75
(nominal 48)
36…121
(nominal 72)
55…156
(nominal 110)
For single output modules connect the dual outputs in parallel.
2
To complete type number replace "xx" by the required nominal input
voltage, e.g. 48 IPL7-05-05-U
RoHS
.
Extended temperature range -S is available for all types.
Replace -U by -S on type number, e.g. 72 IPL7-24-24-S
RoHS
.
Modifications and customs are available upon request.
Dimensions in mm (inches)
Pin
1
2
3
4
5
6
7
Pin Configuration
Dual output
+Vi
-Vi
i
-Vo1
+Vo1
-Vo2
+Vo2
Specifications subject to change without notice
15.12.2008
More power with IBEK
€
!
Page 14
