G65SC150DW-1: DescriptionMicrocontroller, 8-Bit, MROM, 1MHz, CMOS, CDIP68, CERDIP-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size715KB，15 Pages; ManufacturerCalifornia Micro Devices

Download Datasheet Parametric Compare View All

G65SC150DW-1 Overview

Microcontroller, 8-Bit, MROM, 1MHz, CMOS, CDIP68, CERDIP-68

G65SC150DW-1 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	68
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T68
Number of I/O lines	27
Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
speed	1 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

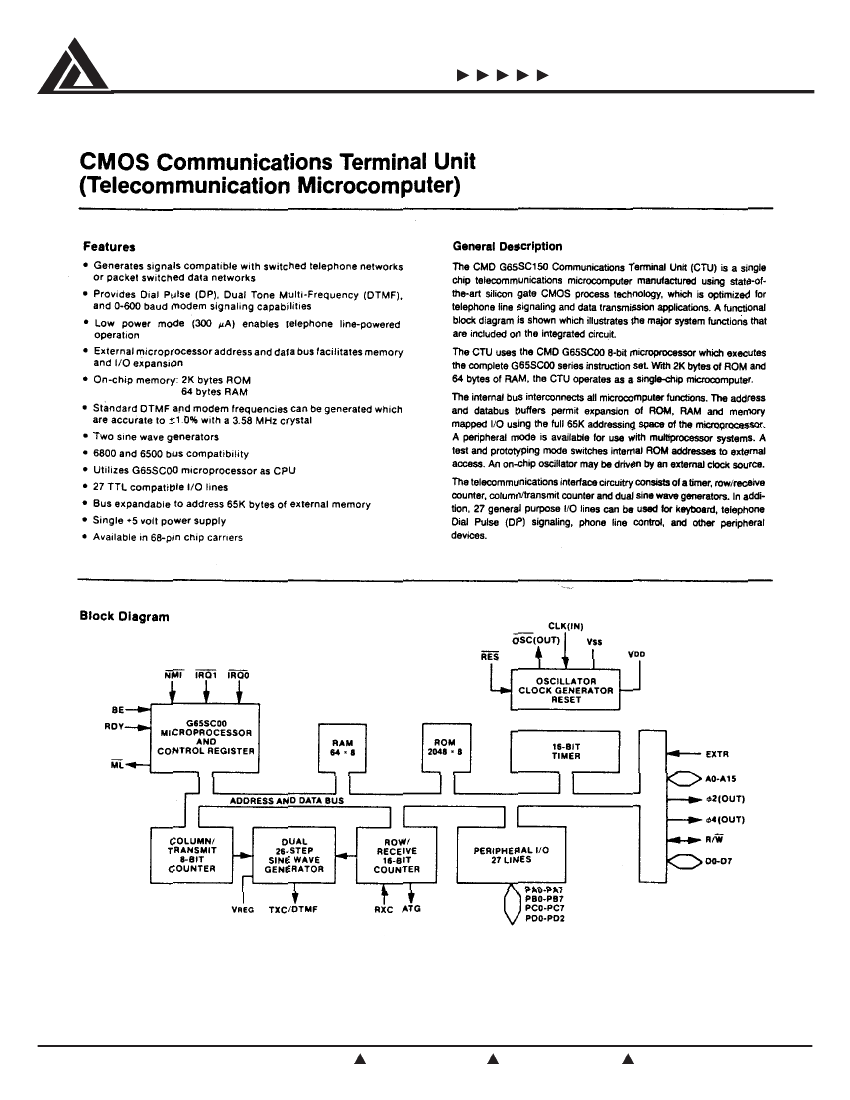

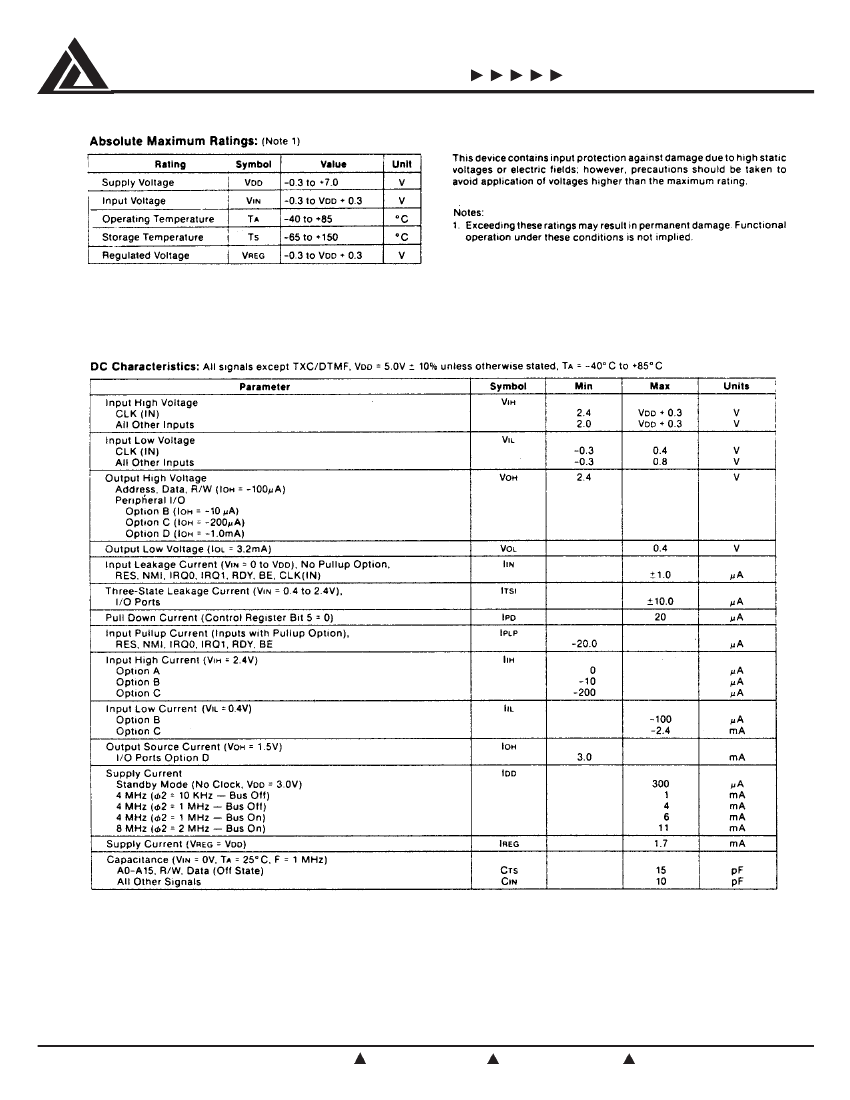

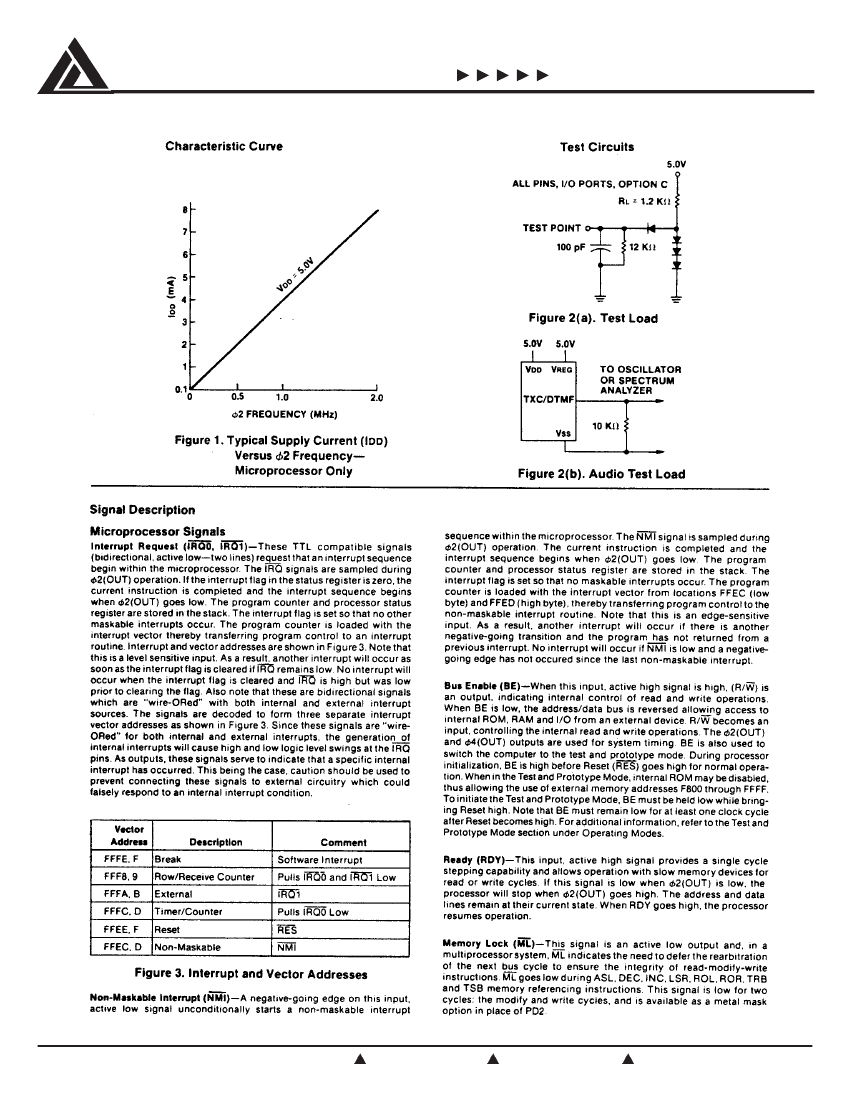

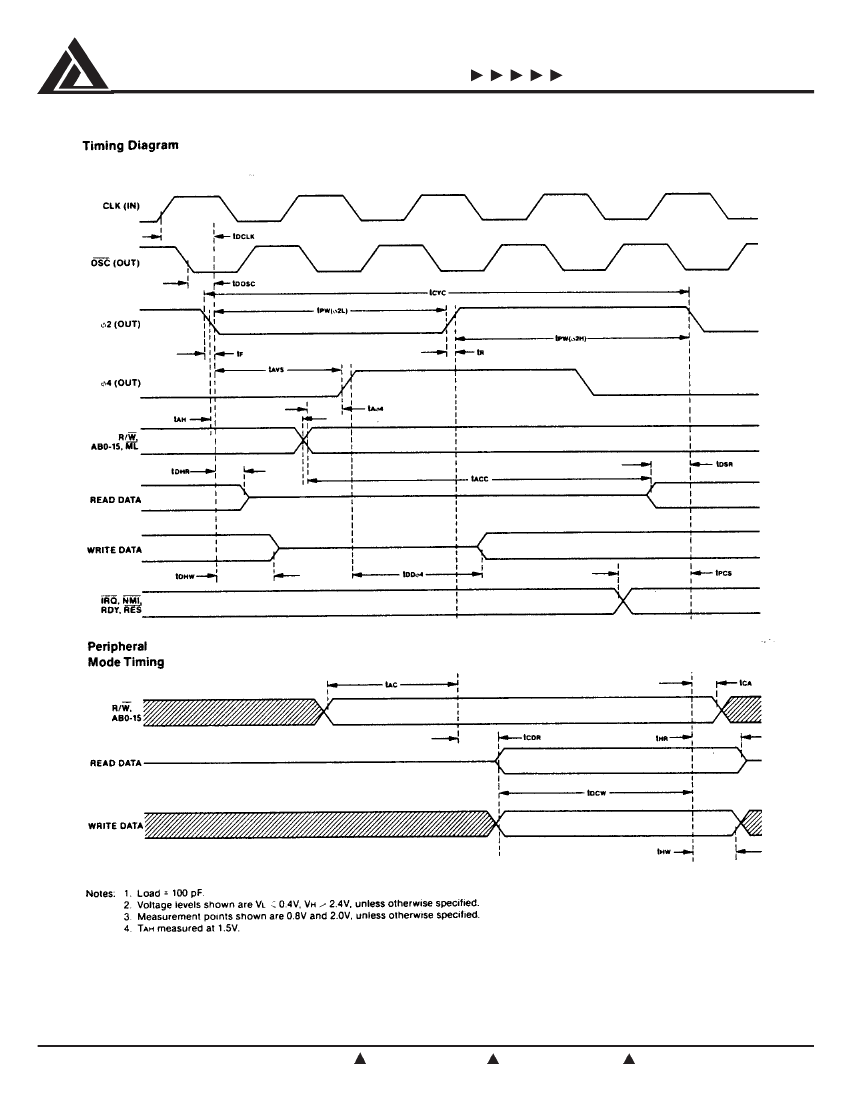

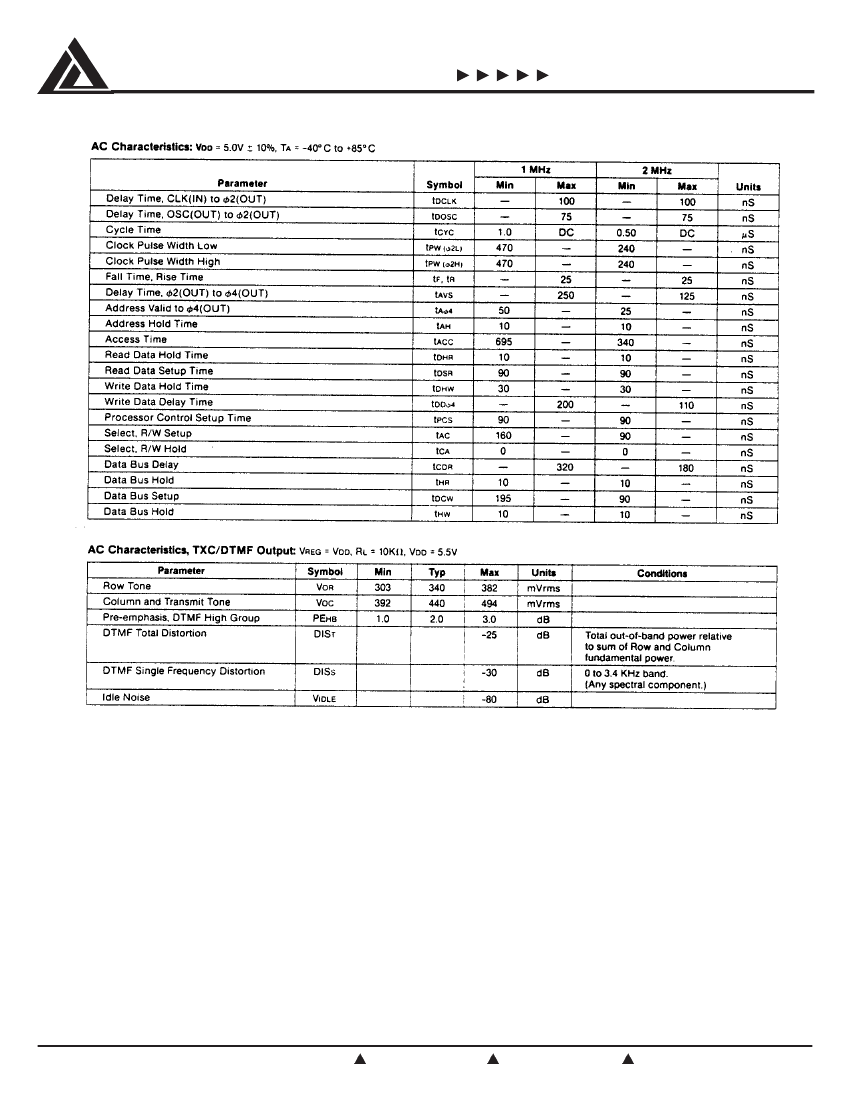

CALIFORNIA MICRO DEVICES

G65SC150
