BCR20C-10

Description
TRIAC, 500V V(DRM), 20A I(T)RMS, STUD TYPE PACKAGE
CategoryAnalog mixed-signal IC    Trigger device
File Size98KB,5 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet Parametric Compare View All

BCR20C-10 Overview

TRIAC, 500V V(DRM), 20A I(T)RMS, STUD TYPE PACKAGE

BCR20C-10 Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
Maximum DC gate trigger current30 mA
Maximum DC gate trigger voltage1.5 V
Maximum leakage current3 mA
Maximum operating temperature125 °C
Minimum operating temperature-20 °C
Certification statusNot Qualified
Maximum rms on-state current20 A
Off-state repetitive peak voltage500 V
surface mountNO
Trigger device typeTRIAC
Base Number Matches1

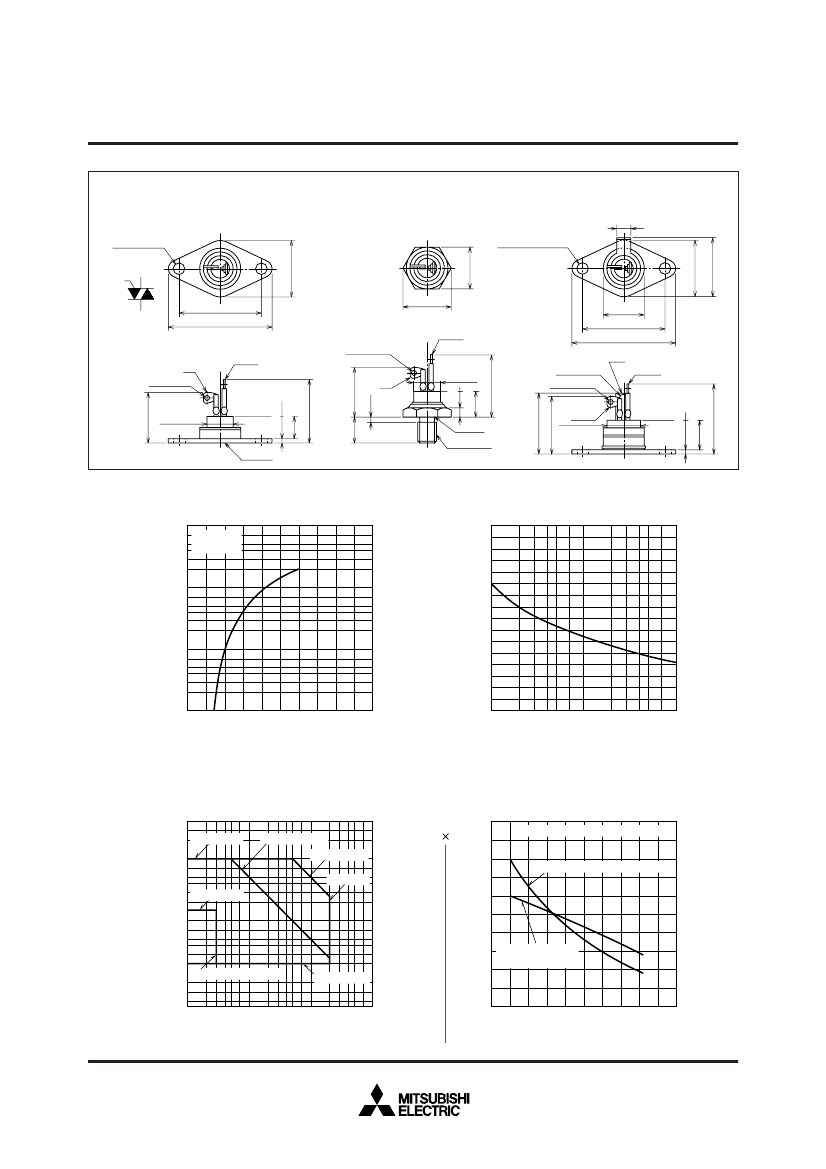

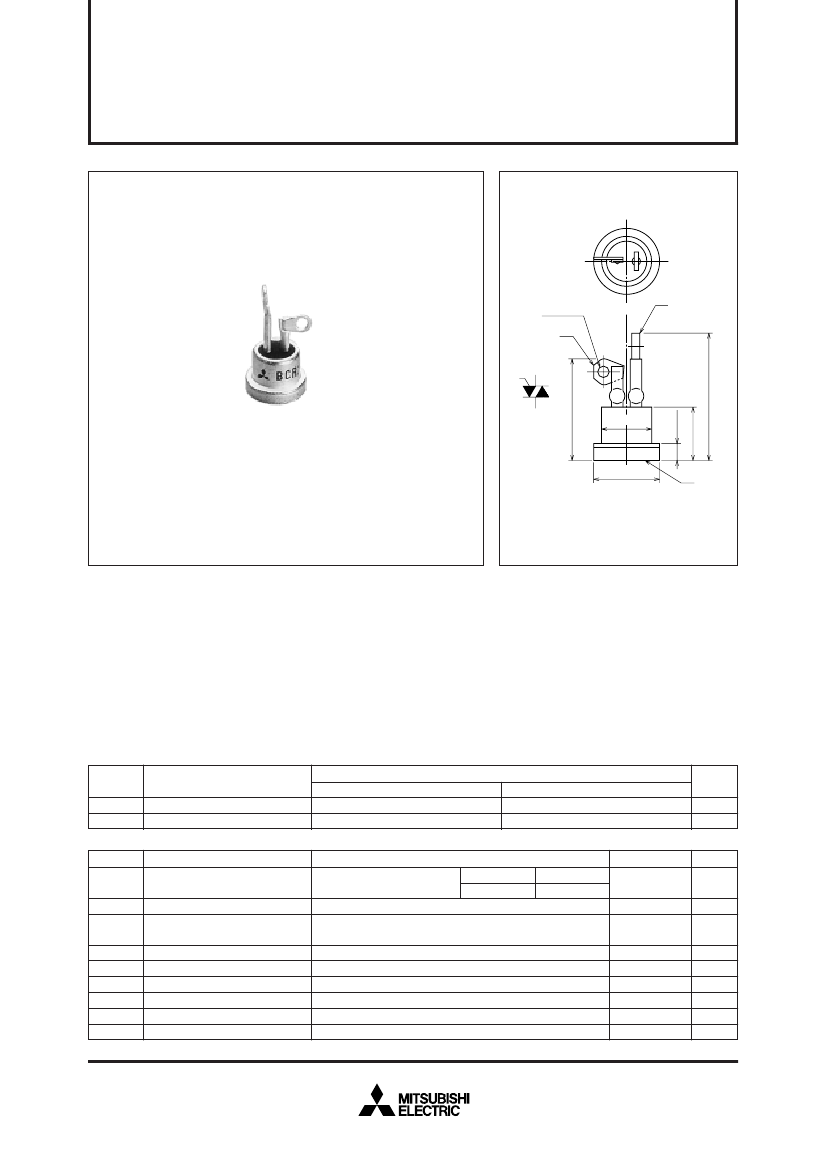

MITSUBISHI SEMICONDUCTOR
〈TRIAC〉
BCR20A, BCR20B, BCR20C, BCR20E
MEDIUM POWER USE
A, B, C : NON-INSULATED TYPE, E : INSULATED TYPE, GLASS PASSIVATION TYPE
BCR20A, BCR20B, BCR20C, BCR20E
OUTLINE DRAWING
Dimensions
in mm
φ2.0
MIN
3
1
φ11
MAX
1
T
1
TERMINAL
2
T
2
TERMINAL
3
GATE TERMINAL
2
• I
T (RMS)
...................................................................... 20A
• V
DRM
..............................................................400V/500V
• I
FGT
!
, I
RGT
!
, I
RGT
#
........................................... 30mA
BCR20A
APPLICATION
Contactless AC switches, light dimmer,
on/off control of traffic signals, on/off control of copier lamps, microwave ovens,
solid state relay

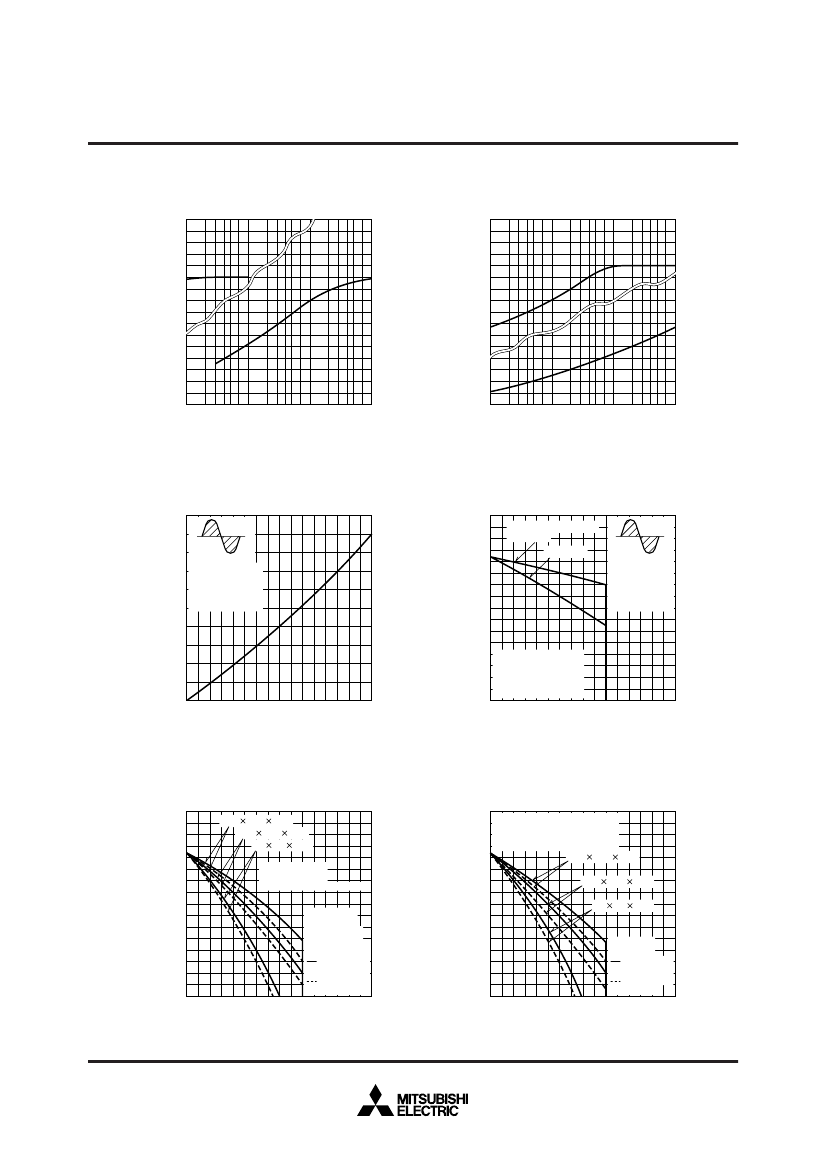

MAXIMUM RATINGS
Symbol
V
DRM
V
DSM
Parameter
Repetitive peak off-state voltage
V1
Non-repetitive peak off-state
voltage
V1
Voltage class
8
400
600
12
500
700
Unit
V
V
Symbol
I
T (RMS)
I
TSM
I
2t
P
GM
P
G (AV)
V
GM
I
GM
T
j
T
stg
Parameter
RMS on-state current
Surge on-state current
I
2t
for fusing
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction temperature
Storage temperature
Conditions
Commercial frequency, sine full
wave, 360° conduction
BCR20A, B, C
BCR20E
T
c
=98°C
T
b
=64°C
Ratings
20
220
203
5.0
0.5
10
2.0
–20 ~ +125
–20 ~ +125
9 MAX
Unit
A
A
A
2
s
W
W
V
A
°C
°C
φ8.7
MAX
60Hz sinewave 1 full cycle, peak value, non-repetitive
Value corresponding to 1 cycle of half wave 60Hz, surge on-state
current
V1.
Gate open.
3 MAX
2
17.5 MAX
Feb.1999
24 MAX
3
1

BCR20C-10 Related Products

BCR20C-10 BCR20E-10 BCR20E-8 BCR20B-8 BCR20A-10 BCR20A-8
Description TRIAC, 500V V(DRM), 20A I(T)RMS, STUD TYPE PACKAGE Trigger Output SSR TRIAC, 400V V(DRM), 20A I(T)RMS TRIAC, 400V V(DRM), 20A I(T)RMS, MOUNTING PLATE TYPE PACKAGE TRIAC, 500V V(DRM), 20A I(T)RMS, FLAT BASE PACKAGE TRIAC, 400V V(DRM), 20A I(T)RMS, FLAT BASE PACKAGE
Reach Compliance Code unknown unknown unknown unknown unknown unknown
Maximum DC gate trigger current 30 mA - 30 mA 30 mA 30 mA 30 mA
Maximum DC gate trigger voltage 1.5 V - 1.5 V 1.5 V 1.5 V 1.5 V
Maximum leakage current 3 mA - 3 mA 3 mA 3 mA 3 mA
Maximum operating temperature 125 °C - 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -20 °C - -20 °C -20 °C -20 °C -20 °C
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 20 A - 20 A 20 A 20 A 20 A
Off-state repetitive peak voltage 500 V - 400 V 400 V 500 V 400 V
surface mount NO - NO NO NO NO
Trigger device type TRIAC - TRIAC TRIAC TRIAC TRIAC
Base Number Matches 1 1 1 1 - -
