BL-HJF36A

Description
Single Color LED, Super Amber, Water Clear, 1mm, SURFACE MOUNT PACKAGE-2
CategoryLED optoelectronic/LED    photoelectric
File Size189KB，1 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric View All

BL-HJF36A Overview

Single Color LED, Super Amber, Water Clear, 1mm, SURFACE MOUNT PACKAGE-2

BL-HJF36A Parametric

Parameter NameAttribute value
package instructionSURFACE MOUNT PACKAGE-2
Reach Compliance Codeunknown
colorSUPER AMBER
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity50.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature80 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height0.6 mm
method of packingBULK
peak wavelength610 nm
shapeRECTANGULAR
size1 mm
surface mountYES
Terminal pitch1.5 mm
perspective120 deg
Base Number Matches1

Preview

Download Datasheet

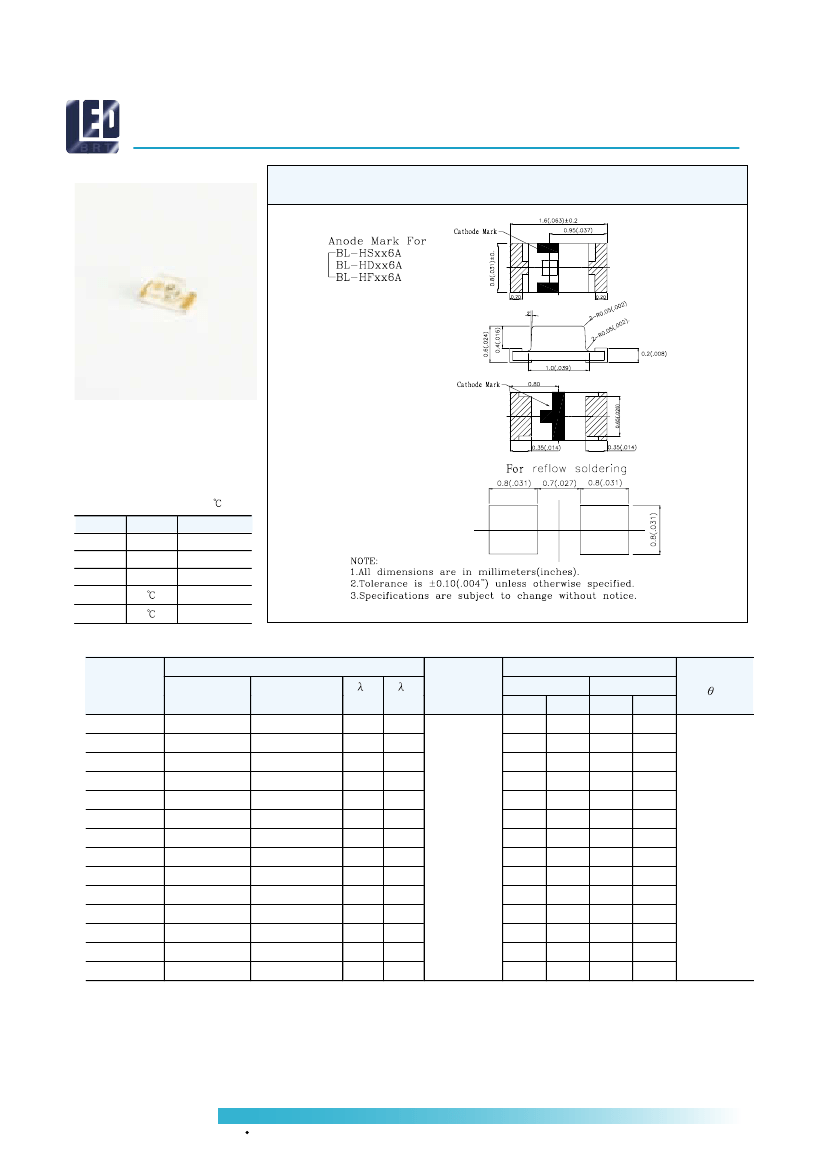

Surface Mount Chip LED Lamps
0603 Super Thin BL-Hxxx6A Series
Absolute Maximum Ratings(Ta=25 )
UNIT
IF
IFp
VR
Topr
Tstg
mA
mA
V
SPEC.
30
100
5
-25~+80
-30~+85
Chip
Part No.
BL-HJ836A
BL-HJD36A
BL-HJB36A
BL-HJE36A
BL-HJF36A
BL-HK836A
BL-HKB36A
BL-HKD36A
BL-HGE36A
BL-HG536A
BL-HB336A
BL-HB536A
BL-HG436A
BL-HG636A
Material
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
A1GaInP
InGaN
InGaN
Emitted Color
Super Amber
Super Orange Red
Super Orange
Super Orange Red
Super Amber
Super Yellow
Super Yellow
Super Yellow
Super Yellow Green
Yellow Green
Super Blue
Super Blue
Bluish Green
Green
p
(nm)
613
630
620
630
610
590
590
595
570
572
460
470
505
525
d
(nm)
605
625
615
620
605
587
587
594
570
572
465
467
505
525
Lens
Appearance
Electro-optical Data (At 20mA)
Vf(V)
Typ.
2.0
2.1
2.0
2.0
2.0
2.2
2.1
2.1
2.0
2.0
3.6
3.6
3.5
3.5
Max.
2.6
2.6
2.6
2.6
2.6
2.3
2.6
2.6
2.6
2.6
4.0
4.0
4.0
4.0
Iv(mcd)
Min.
63.0
28.0
28.0
63.0
28.0
63.0
28.0
28.0
28.0
18.5
28.0
42.0
63.0
63.0
Typ.
100.0
50.0
50.0
100.0
50.0
150.0
45.0
45.0
50.0
35.0
60.0
80.0
120.0
160.0
Viewing
Angle
2 1/2
(deg)
Water Clear
120
AMERICAN BRIGHT
(909) 628-5050
FAX (909) 628-5006
© 2003 American Bright Optoelectronics Corporation. Specifications subject to change without notice
.
www.americanbrightled.com
SMT-11
