XZFBBA129A2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZFBBA129A2

XZFBBA129A2: DescriptionSmart/Normal 7 Seg Numeric LED Display, Blue, 13mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size230KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZFBBA129A2 Overview

Smart/Normal 7 Seg Numeric LED Display, Blue, 13mm, ROHS COMPLIANT PACKAGE-10

XZFBBA129A2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	BLUE
Configuration	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	13 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

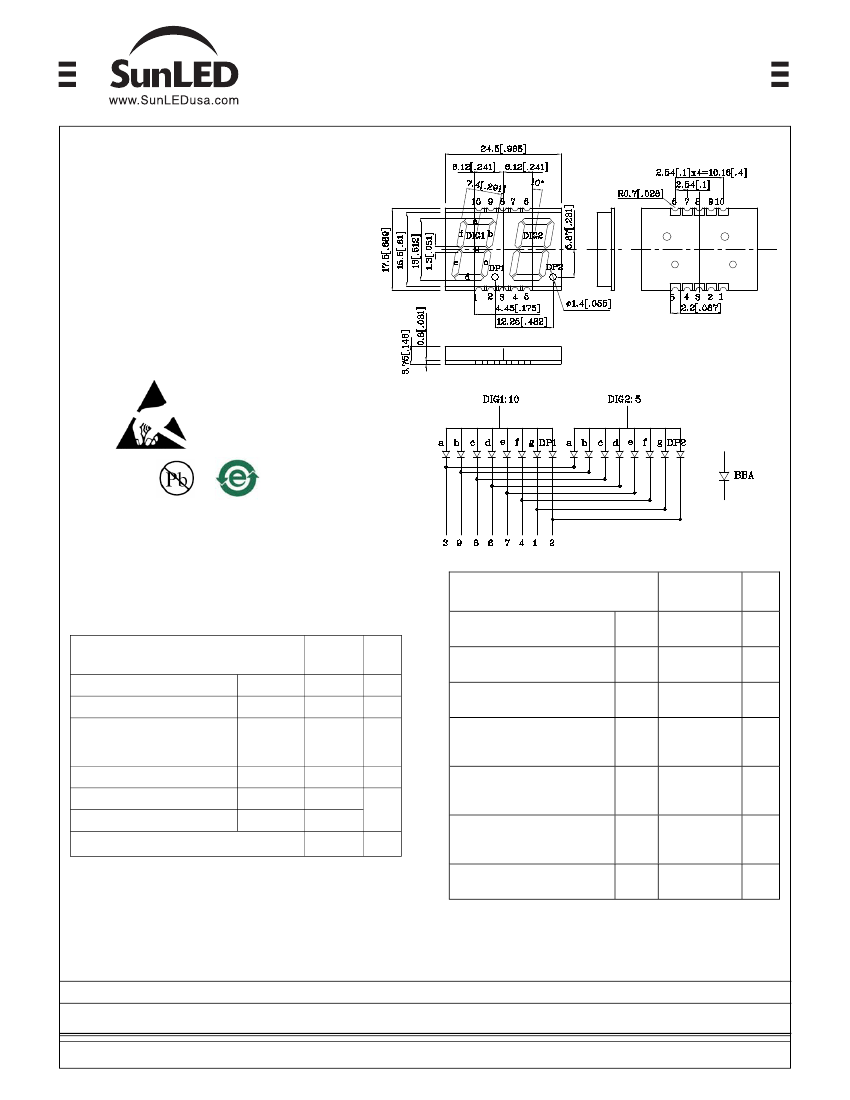

Part Number:

XZFBBA129A2

SURFACE MOUNT DISPLAY

PRELIMINARY SPEC

Features

●

0.51 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

GRAY FACE,WHITE SEGMENT.

●

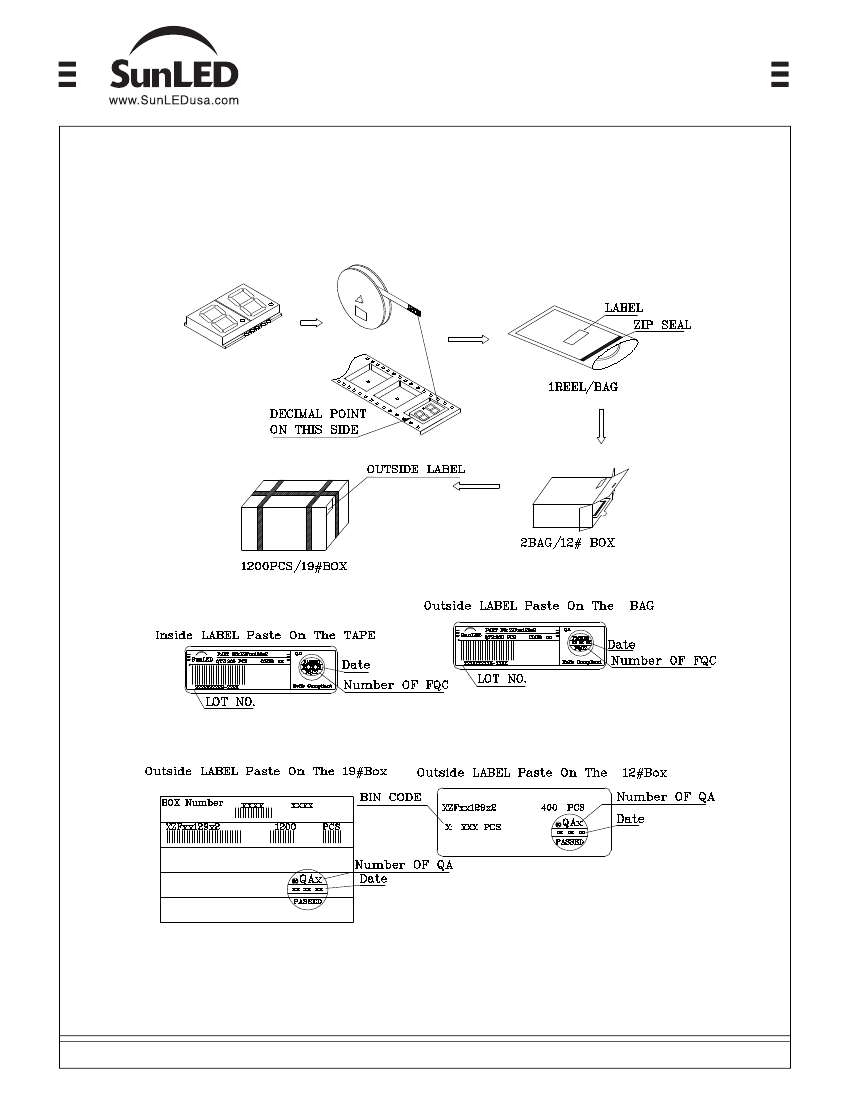

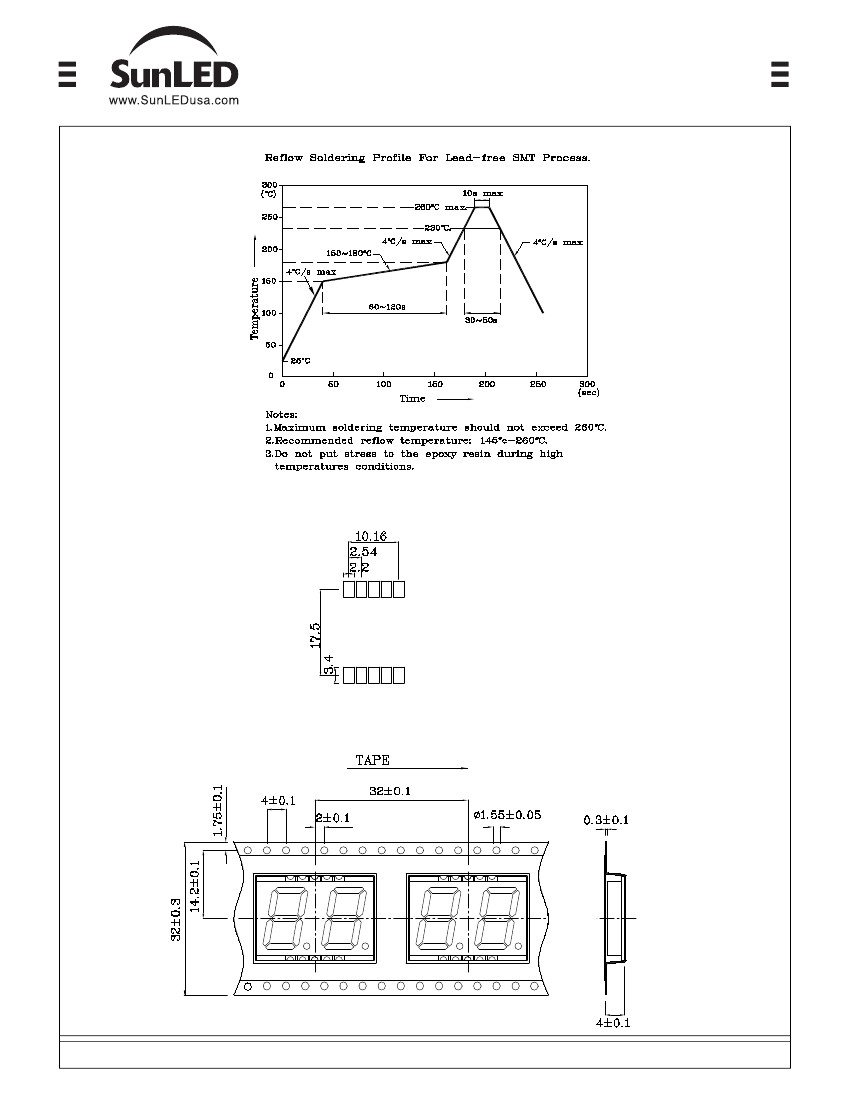

PACKAGE : 200PCS / REEL.

●

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

●

RoHS COMPLIANT.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

4.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

BBA

(InGaN)

100

120

-40 ~ +85

1000

Unit

°C

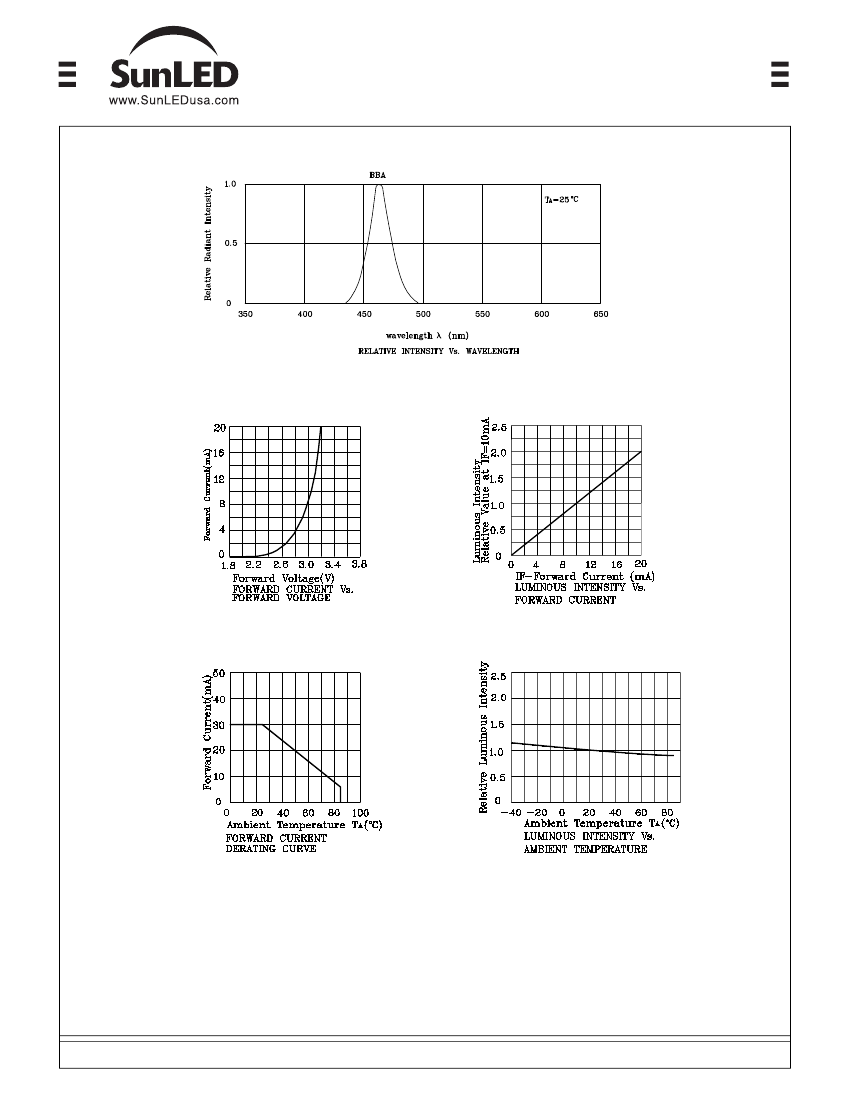

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width At

Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

BBA

(InGaN)

3.05

4.0

Unit

468

470

Electrostatic Discharge Threshold (HBM)

Δλ

100

Part

Number

Emitting

Color

Emitting

Material

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

6490

Wavelength

Description

XZFBBA129A2

Blue

InGaN

1900

468

Common Anode. Rt. Hand Decimal

Checked : Shin Chi

P.1/4

Published Date : DEC 25,2007

Drawing No : XDSB1613
