5000W Transient Voltage Suppressor
- High Reliability controlled devices
- Unidirectional (A) and Bidirectional (CA) construction
- Plastic encapsulated TVS series for Thru Hole mounting
- Selections for 5.0 to 110 V standoff voltages (V
WM
)
LEVELS
M, MA, MX, MXL
DEVICES
M5KP5.0A thru M5KP110CA, e3
FEATURES
High reliability controlled devices with wafer fabrication and assembly lot traceability
100 % surge tested devices
Suppresses transients up to 5000 watts @10/1000 µs and 34000 watts @ 8/20 µs (see Figure 1)
Optional upscreening available by replacing M prefix with MA, MX or MXL prefixes. These prefixes specify
various screening and conformance inspection options based on MIL-PRF-19500. Refer to
MicroNote 129
for more details on the screening options.
Metal hermetically sealed DO-13 axial-leaded equivalents available in the LC6.5A - LC170A series in
separate data sheet
Moisture classification is Level 1 with no dry pack required per IPC/JEDEC J-STD-020B
RoHS Compliant devices available by adding “e3” suffix
3σ lot norm screening performed on Standby Current I
D
APPLICATIONS / BENEFITS
Protection from switching transients and induced RF
Fast response
Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4
Secondary lightning protection per IEC61000-4-5 with 42 Ohms source impedance:
Class 1,2,3,4: M5KP5.0A to M5KP110CA
Class 5: M5KP5.0A to M5KP110CA (short distance)
Class 5: M5KP5.0A to M5KP36CA (long distance)
Secondary lightning protection per IEC61000-4-5 with 12 Ohms source impedance:
o
Class 1 & 2: M5KP5.0A to M5KP110CA
o
Class 3: M5KP5.0A to M5KP78CA
o
Class 4: M5KP5.0A to M5KP40CA
Secondary lightning protection per IEC61000-4-5 with 2 Ohms source impedance:
Class 2: M5KP5.0A to M5KP70CA
Class 3: M5KP5.0 to M5KP36CA
Class 4: M5KP5.0 to M5KP18CA
CASE 5A
(DO-204AR)
MAXIMUM RATINGS
Peak Pulse Power dissipation at 25 ºC: 5000 watts at 10/1000 μs (also see Figures 1 and 2) with impulse
repetition rate (duty factor) of 0.05 % or less
t
clamping
(0 volts to V
BR
min.): < 100 ps theoretical for unidirectional and < 5 ns for bidirectional
Operating and Storage temperature: -65 ºC to +150 ºC
Thermal resistance: 20ºC/W junction to lead, or 80ºC/W junction to ambient when mounted on FR4 PC
board with 4 mm
2
copper pads (1oz) and track width 1 mm, length 25 mm
Steady-State Power dissipation: 6 watts at TL = 30 ºC, or 1.56 watts at TA = 25 ºC when mounted on FR4
PC board described for thermal resistance
Forward Surge Voltage: 3.5 V maximum @ 100 Amps 8.3 ms half-sine wave (unidirectional devices only)
Solder temperatures: 260 ºC for 10 s (maximum)
RF01010 Rev A, June 2010
High Reliability Product Group
Page 1 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________
MECHANICAL AND PACKAGING
Void-free transfer molded thermosetting epoxy body meeting UL94V-0
Tin-Lead (90 % Sn, 10 % Pb) or RoHS (100% Sn) Compliant annealed matte-Tin plating readily solderable per
MIL-STD-750, method 2026
Body marked with part number
Cathode indicated by band. No cathode band on bi-directional devices.
Available in Bulk or custom tape-and-reel packaging
TAPE-AND-REEL standard per EIA-296 for axial package (add “TR” suffix to part number)
Weight: 1.4 gram (approximately)

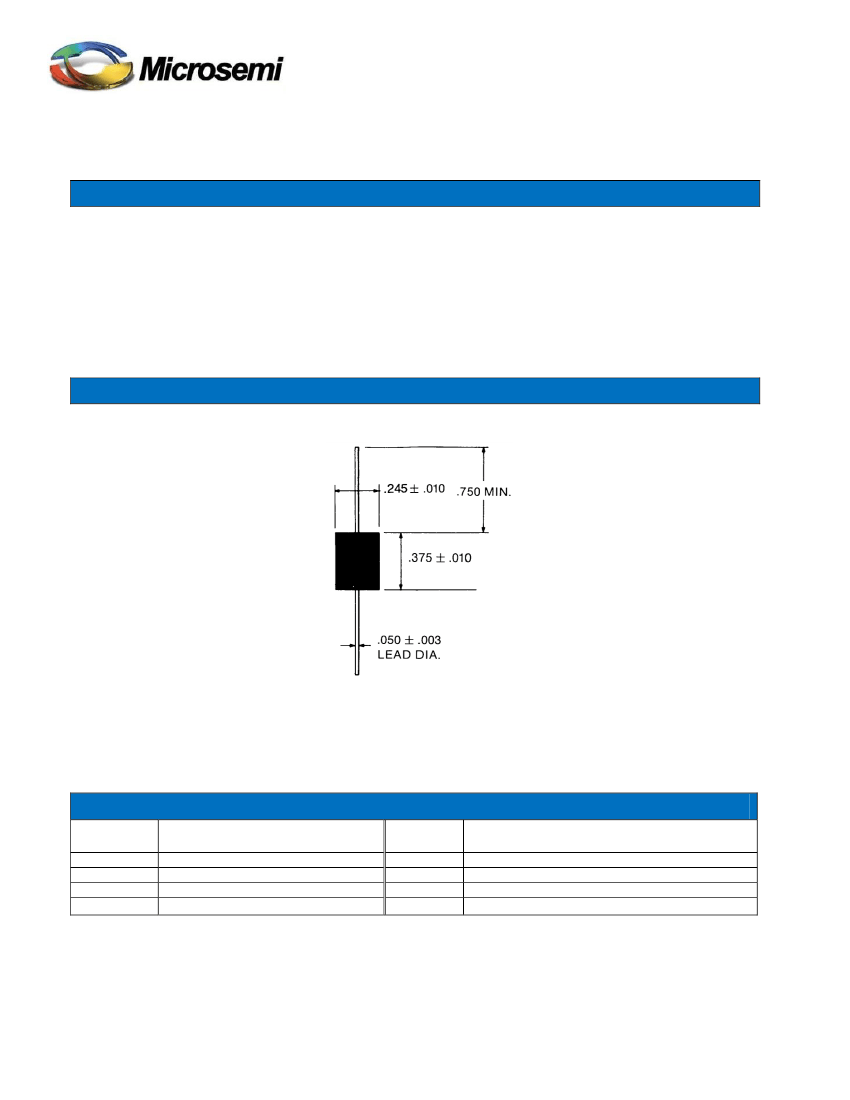

PACKAGE DIMENSIONS
CASE 5A
Dimensions in inches
SYMBOLS & DEFINITIONS
Symbol
V
WM
P
PP
V
BR
I
D
Definition
Working Peak (Standoff) Voltage
Peak Pulse Power
Breakdown Voltage
Standby Current
Symbol
I
PP
V
C
Definition
Peak Pulse Current
Clamping Voltage
Breakdown Current for V
BR
I
BR
RF01010 Rev A, June 2010
High Reliability Product Group
Page 2 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________
ELECTRICAL CHARACTERISTICS @ 25
o
C
REVERSE
STAND-OFF
VOLTAGE
V
WM
(Note 1)
BREAKDOWN
VOLTAGE
V
BR
@
I
BR
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ I
PP
MAXIMUM
STANDBY
CURRENT
I
D
@ V
WM
MAXIMUM
PEAK PULSE
CURRENT
I
PP
(FIG. 2)
MAXIMUM
TEMPERATURE
COEFFICIENT OF V
BR
MICROSEMI
PART NUMBER
(Note 2)
α
V(BR)
V
M5KP5.0A
M5KP6.0A
M5KP6.5A
M5KP7.0A
M5KP7.5A
M5KP8.0A
M5KP8.5A
M5KP9.0A
M5KP10A
M5KP11A
M5KP12A
M5KP13A
M5KP14A
M5KP15A
M5KP16A
M5KP17A
M5KP18A
M5KP20A
M5KP22A
M5KP24A
M5KP26A
M5KP28A
M5KP30A
M5KP33A
M5KP36A
M5KP40A
M5KP43A
M5KP45A
M5KP48A
M5KP51A
M5KP54A
M5KP58A
M5KP60A
M5KP64A
M5KP70A
M5KP75A
M5KP78A
M5KP85A
M5KP90A
M5KP100A
M5KP110A
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
V
6.40 – 7.00
6.67 – 7.37
7.22 – 7.98
7.78 – 8.60
8.33 – 9.21
8.89 – 9.83
9.44 – 10.4
10.0 – 11.1
11.1 – 12.3
12.2 – 13.5
13.3 – 14.7
14.4 – 15.9
15.6 – 17.2
16.7 – 18.5
17.8 – 19.7
18.9 – 20.9
20.0 – 22.1
22.2 – 24.5
24.4 – 26.9
26.7 – 29.5
28.9 – 31.9
31.1 – 34.4
33.3 – 36.8
36.7 – 40.6
40.0 – 44.2
44.4 – 49.1
47.8 – 52.8
50.0 – 55.3
53.3 – 58.9
56.7 – 62.7
60.0 – 66.3
64.4 – 71.2
66.7 – 73.7
71.1 – 78.6
77.8 – 86.0
83.3 – 92.1
86.7 – 95.8
94.4 – 104.0
100 – 111
111 – 123
122 - 135
mA
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
V
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.5
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113
121
126
137
146
162
177
A
2000
*
5000
2000
1000
250
150
50
20
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
A
543
485
447
417
388
367
347
325
294
274
251
232
215
206
192
181
172
154
141
128
119
110
103
94
86
78
72
69
65
61
57
53
52
49
44
41
40
36
34
31
28
mV/ ºC
4.0
4.0
4.0
5.0
6.0
6.0
7.0
8.0
9.0
10
11
12
13
15
16
18
19
22
24
27
29
30
35
38
40
45
49
51
55
60
64
69
70
75
84
90
94
102
109
122
132
NOTE 1:
NOTE 2:
Transient Voltage Suppressors are normally selected with reverse “Stand Off Voltage” V
WM
which should be equal to or
greater than the dc or continuous peak operating voltage level
For bidirectional construction, indicate a CA suffix after the part number
* For the 5KP5.0CA double the I
D
Maximum Standby Current to 4000 µA
RF01010 Rev A, June 2010
High Reliability Product Group
Page 3 of 4
TECHNICAL DATA SHEET
Gort Road Business Park, Ennis, Co. Clare, Ireland.
Tel: +353 (0) 65 6840044, Fax: +353 (0) 65 6822298
6 Lake Street, Lawrence, MA 01841
Tel: 1-800-446-1158 / (978) 794-1666, Fax: (978) 6890803
Website: http://www.microsemi.com
___________________________________________________________________________________________________________________________________

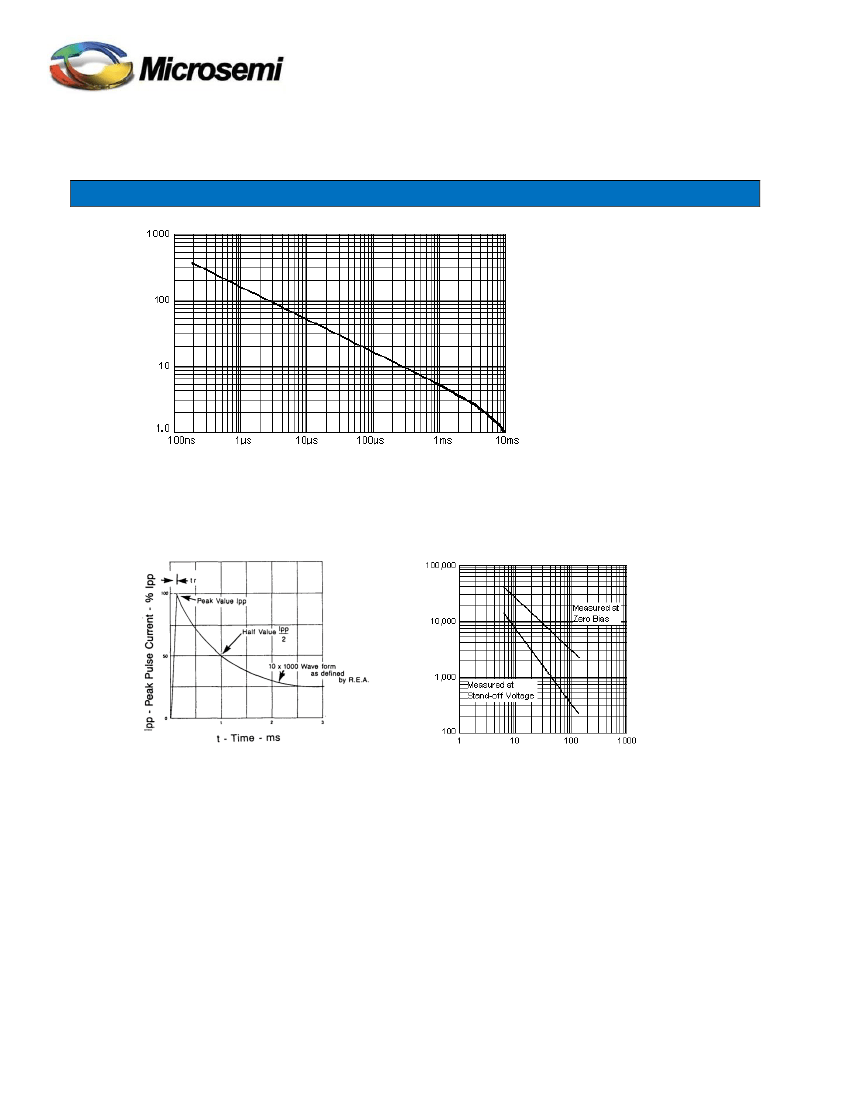

GRAPHS
P
PP
Peak Pulse Power - kW
tp – Pulse Time – sec
FIGURE 1
- Peak Pulse Power vs. Pulse Time to 50% of Exponentially Decaying Pulse
Test waveform parameters: tr=10
s,
tp=1000
s
C – Capacitance – pico farads
V
(BR)
Breakdown Voltage - Volts
FIGURE 2 -
Pulse Waveform
FIGURE 3
Typical Capacitance vs Breakdown Voltage
RF01010 Rev A, June 2010
High Reliability Product Group
Page 4 of 4
