• Easy front access to fiber connectors and fiber management
• Easy rear access to power distribution, alarms, and
Ethernet interface for remote module management
• Convection cooling: no fans required
• Optional communications module
Applications
• Mounting shelf for WaveReady
3000 series modules

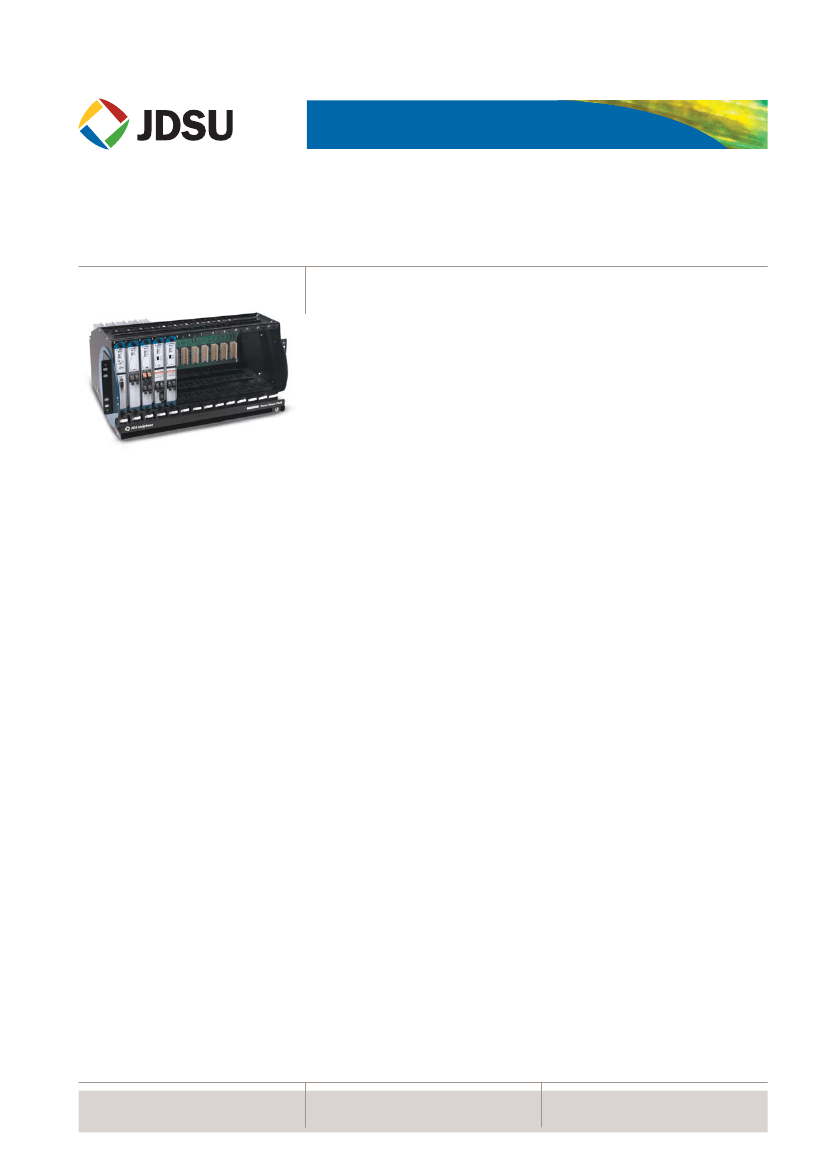

The WaveReady 3500 shelf accommodates up to 13 WaveReady 3000 series
modules in slots 1 to 13 and a communications module in slot “C.” The
DenseMount Shelf is configured for installation in standard 19- and 23-inch
telecommunication racks.
The WaveReady 3500 shelf supports a broad range of 3000 series modules,
including Wideband, CWDM and DWDM optical transponders, optical
regenerators and Erbium doped fiber amplifiers (EDFA).
The WaveReady 3500 shelf provides power, monitoring, and configuration
through the backplane for each 3000 series module and the optional
communications module.
External interfaces on the backplane include a standard five-position terminal
block, a 50-pin Amp-Champ connector for aggregated Major Alarm and Minor
Alarm relays, one sensor input for each module (14 in all), and an RJ-45 Ethernet
connector. The optical communications module also has a DB-9/RS-232 port on
the front panel.
Compliance
• NEBS Level 3 compliant
• UL 60950 Third Edition
• CAN/CSA C22.2 No. 60950-00
Third Edition
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
WAVEREADY 3500, 5 U RACK-MOUNT SHELF
2
Performance Specifications
1
Parameter
Electrical Characteristics
DC supply voltage, primary and secondary
Power dissipation
Specification
Typical
Power connectors, DMS
Power connectors, modules
Fuses (optional)
Alarm relay signals
Physical Dimensions
Size, 5 U high (19-inch configuration, H x W x D)
Weight (empty)
Weight, when fully populated with NRPs
Environmental Characteristics
Operating ambient temperature
Storage temperature
Relative humidity (non-condensing)
Typical
Typical
Typical
Typical
-48 V
The WaveReady 3500 shelf itself does not dissipate power. Overall
power dissipation depends on the number and type of installed
modules. Refer to individual 3000 series module user manuals for
power dissipation values. Convection cooled, no fan required.
Standard five-position terminal block, -48 V, on the backplane
Common power drawn through 96-pin connectors on the backplane
3.5 A Indicating, replace only with this rating of fuse
Dry contacts on individual NRP modules
8.75 x 17.4 x 11.8 inches (22.23 x 48.26 x 29.97 cm)
12 lbs (5.45 kg)
31.6 lbs (14.35 kg)
-5 °C
55 °C
-40 °C
85 °C
5%
95%
Maximum
Minimum
Maximum
Minimum
Maximum
Minimum
Maximum
Note: This product should be deployed in accordance with your company’s deployment directives.
1. Unless otherwise noted, all specifications are guaranteed over the life, operating temperatures, wavelength range, and input voltage range specified.
Interface Specifications
Parameter
RS-232
Alarms
Ethernet
Specification
RS-232 through a DB-9 connector on the front panel of an optional COMM module.
Alarms and sense through one 50-pin Amp-Champ connector on the backplane.
Ethernet connector on the backplane reserved for a communications module in slot “C”.
WAVEREADY 3500, 5 U RACK-MOUNT SHELF
3
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: 10129126
Product Code
10129126
Description
WaveReady 3500 DenseMount
Shelf
Associated Parts
See
WaveReady 3000
series
modules at www.jdsu.com
