1N5820
THRU
1N5822
Elektronische Bauelemente
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
VOLTAGE 20V ~ 40V
3.0AMP Schottky Barrier Rectifiers
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
DO-27
.220(5.6)
.197(5.0)
DIA.
1.0(25.4)
MIN.
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
.052(1.3)
.048(1.2)
DIA.
.375(9.5)
.285(7.2)
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=90 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 3.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note1)
Typical Thermal Resistance R
θ
JA (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
1N5820
20
20
20
1N5821
30
30
30
3.0
80
1N5822
40
40
40
UNITS
V
V
V
A
A
V
mA
mA
pF
C/W
C
C
0.45
0.55
2.0
20
250
20
-50 +150
-65 +175
0.55
Ta=100 C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length.
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
1N5820
THRU
1N5822
Elektronische Bauelemente
VOLTAGE 20V ~ 40V
3.0AMP Schottky Barrier Rectifiers

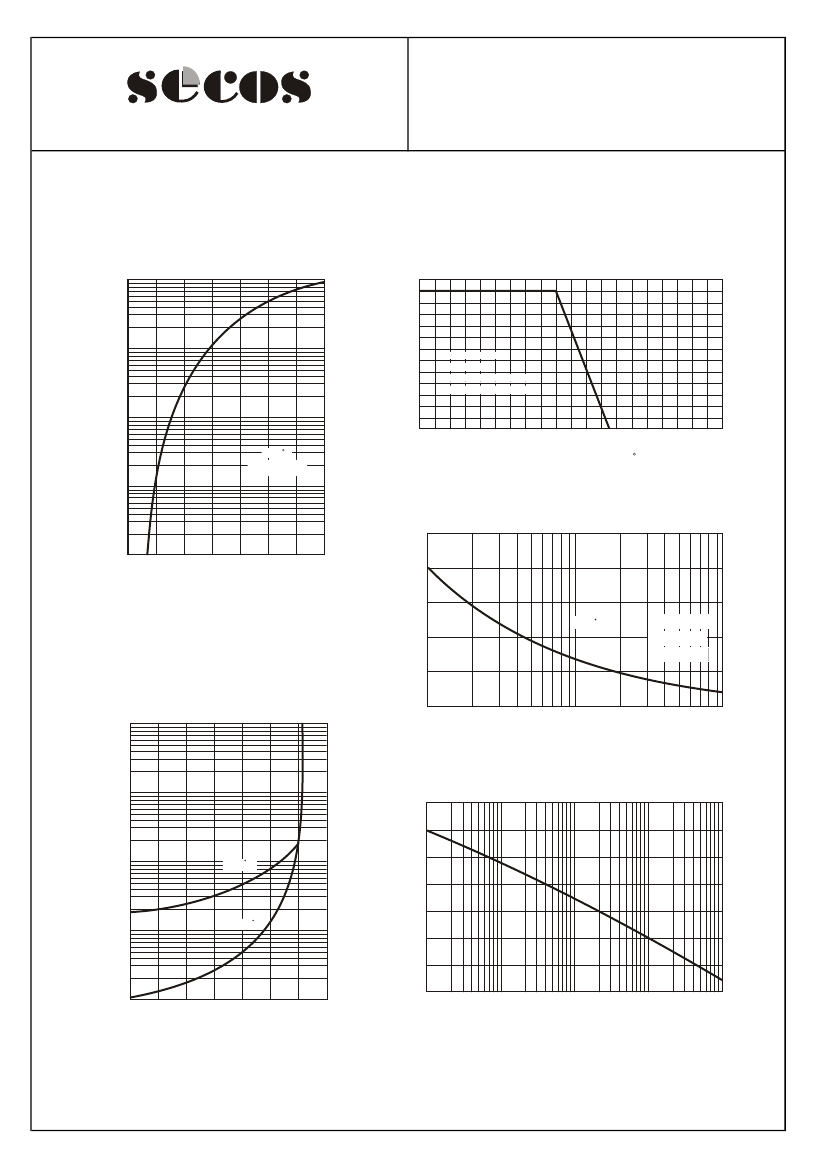

RATING AND CHARACTERISTIC CURVES (1N5820 THRU 1N5822)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
3.0
2.5
2.0
1.5
1.0
0.5
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
0.375"(9.5mm) Lead Length
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
50
INSTANTANEOUS FORWARD CURRENT,(A)
10
3.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE ( C)
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWAARD SURGE CURRENT,(A)
100
0.1
.01
.1
.3
.5
.7
.9
1.1
1.3
1.5
80
FORWARD VOLT
AGE,(V)
60
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
40
20
FIG.3 - TYPICAL REVERSE
CHARACTERISTICS
100
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
REVERSE LEAKAGE CURRENT, (mA)
10
700
600
500
400
300
200
100
0
FIG.5-TYPICAL JUNCTION CAPACITANCE
1.0
Tj=75 C
.1
Tj=25 C
.01
0
JUNCTION CAPACITANCE,(pF)
.01
.05
.1
.5
1
5
10
50
100
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENTAGE RATED PEAK REVERSE VOL
TAGE
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
2
of 2
