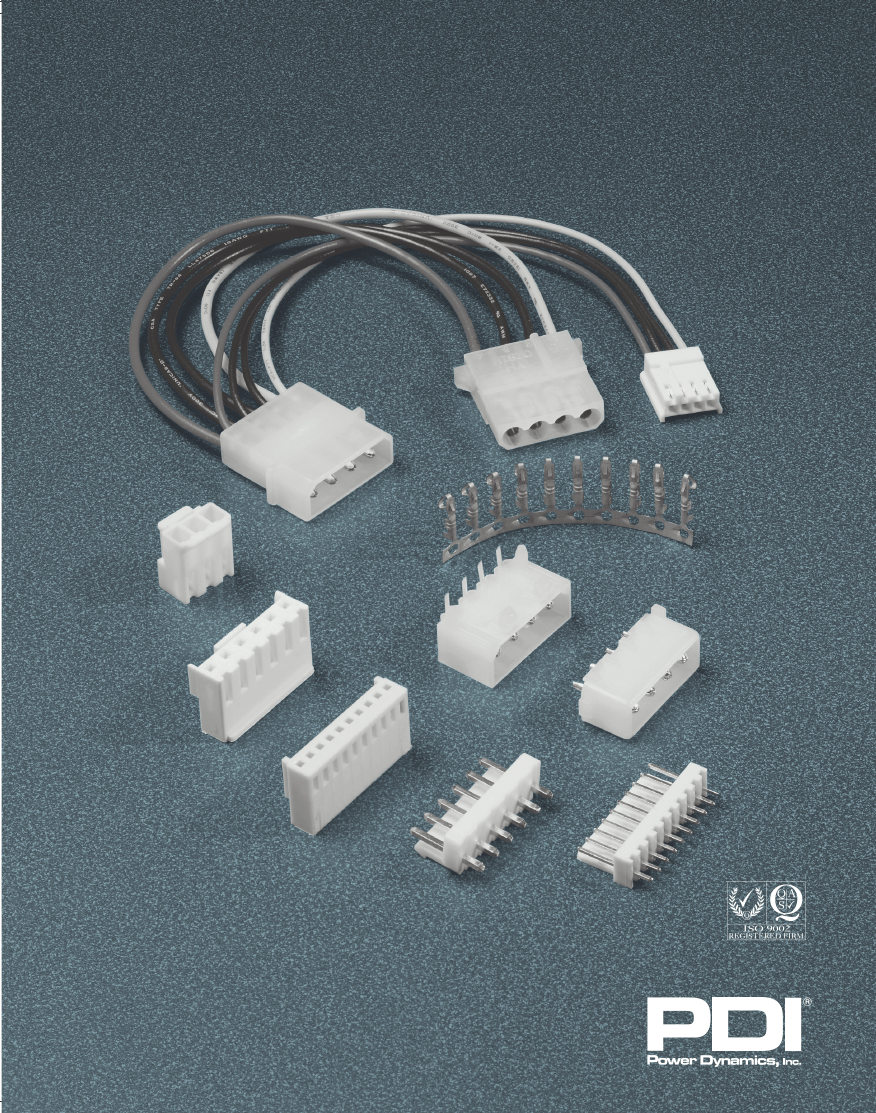

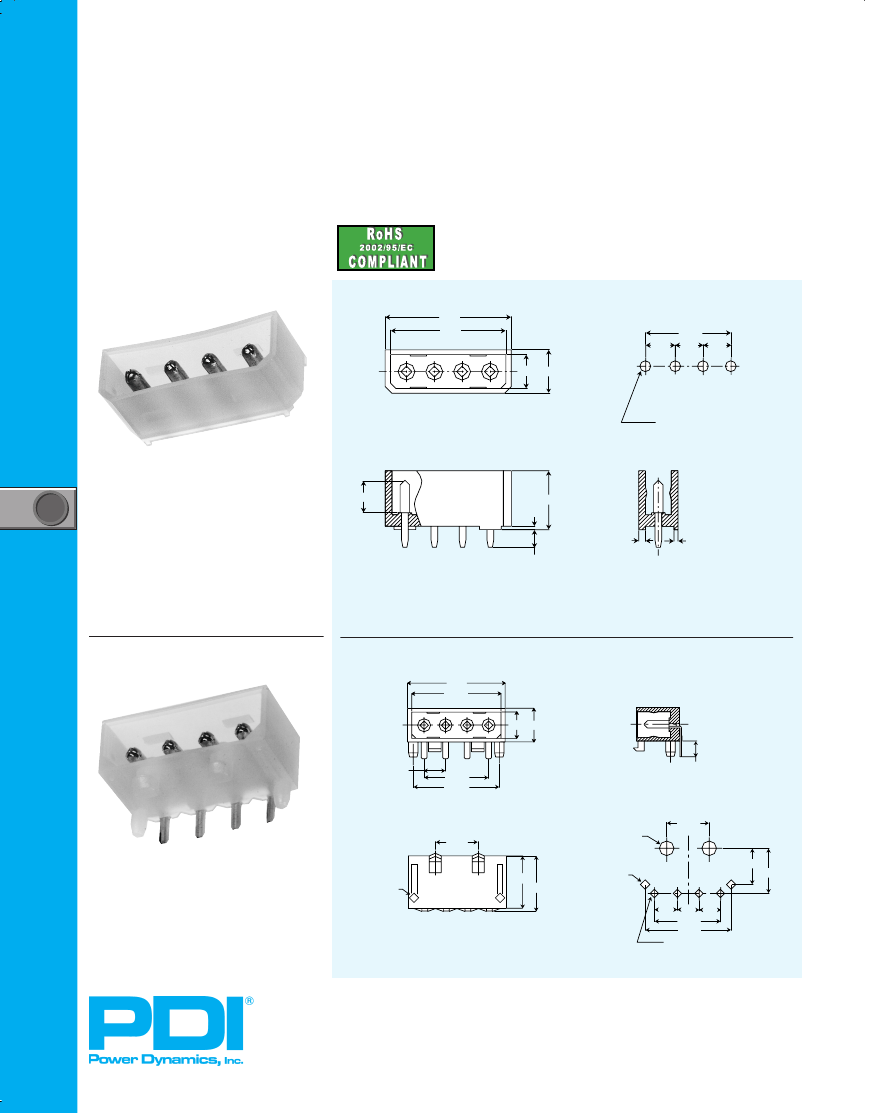

POWER PIN CONNECTORS
Power Dynamics Power Pin connectors are a low cost, high quality interconnect
product that can withstand currents up to 5 amps. They are available in P.C.B.,
crimp and cable assembly types. All P.C.B. connectors feature a polarizing
friction lock back so that the plug can not be inserted incorrectly.
233
SPECIFICATIONS
MATERIAL AND FINISH:
Housing:
Material:
Rating:
Contacts:
Material:
Plating:
Nylon 66
UL 94V-2
Brass
Tin: 70µ"
OVER NICKEL
ELECTRICAL SPECIFICATIONS:
Current Rating 2.54mm Centers:
1A
Current Rating 3.96mm Centers:
5A
Current Rating 5.08mm Centers:
7A
Insulator Resistance:
1000 Megaohm min. @ 500 VDC
Dielectric Withstanding Strength:
1000 VAC rms for 1 minute
Temperature:
-55°C to 105°C
PM-001
23.1
21.3
15.24
5.08 5.08 5.08
6.5 8.3
P. C. B. LAYOUT
TOP VIEW
Ø
1.8; 4 HOLES
9
5.8
10.16
0.7
1.3
0.8
POWER PIN CONNECTORS
3.8
PM-002
23.1
21.08
6.5 8.3
5.08
3.6
15.24
20.32
P. C. B. LAYOUT
TOP VIEW
10.16
Ø
3.0
10.16
2 HOLES
12.1
12.9
Ø
2.54
7.62
10.16
Ø
2.3
2 HOLES
5.08 5.08 5.08
15.24
20.32
Ø
1.5; 4 HOLES
Specifications subject to change without notice. Dimensions in mm.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: sales@powerdynamics.com •
www.powerdynamics.com
234

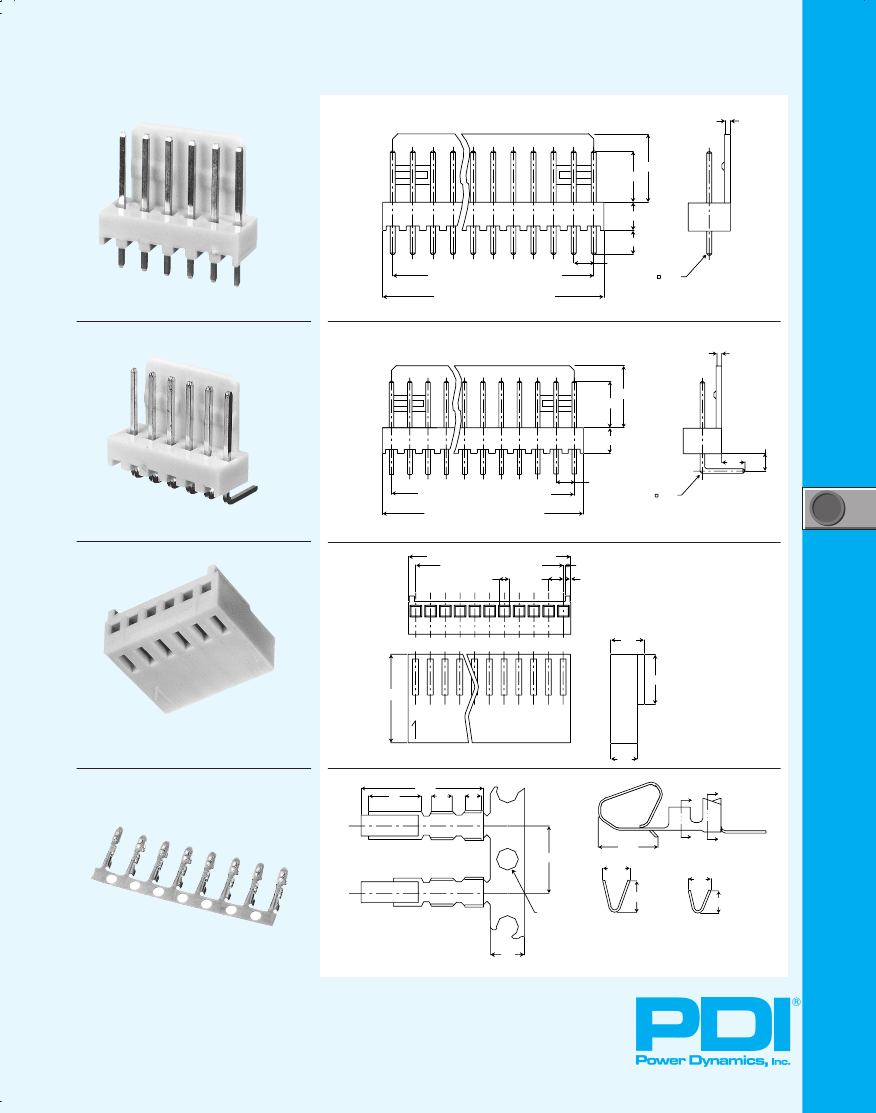

2.54mm Power Connectors
TCP-0XX
0.8
8.1
7.6
3.3
3.4
TCP-006
(shown)
2.54
2.54 X [(NO. OF POSITIONS)-1]
2.54 X (NO. OF POSITIONS)
0.64
XX = Number of Circuits
Available in 2-20 Circuits
TRP-0XX
0.8
8.1
7.6
3.3
3.1
2.4
TRP-006
(shown)
2.54
2.54 X [(NO. OF POSITIONS)-1]
2.54 X (NO. OF POSITIONS)
0.64
XX = Number of Circuits
Available in 2-20 Circuits
9
TCC-0XX
(NO. OF PINS -1 X 2.54) + 2.76
(NO. OF PINS -1) X 2.54
2.54
1.37
TYP.
SQ.
POWER PIN CONNECTORS
POWER PIN CONNECTORS
1.15
.2
NOTE:
REQUIRES CRIMP TERMINAL (PART # TCC-REEL)
6.2
8.0
TCC-006
(shown)
12.7
XX = Number of Circuits
Available in 2-20 Circuits
4.8
10.0
4.0
2.0
1.4
TCC-REEL
A
B
A
3.55
7.0
2.15
1.7
2.3
Ø
1.9
B
1.75
SECTION A-A
SECTION B-B
3.0
NOTE:
ACCEPTS AWG-18 TO AWG-22 WIRE
FOR USE WITH PART# TCC-0XX
Specifications subject to change without notice. Dimensions in mm.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: sales@powerdynamics.com •
www.powerdynamics.com
235

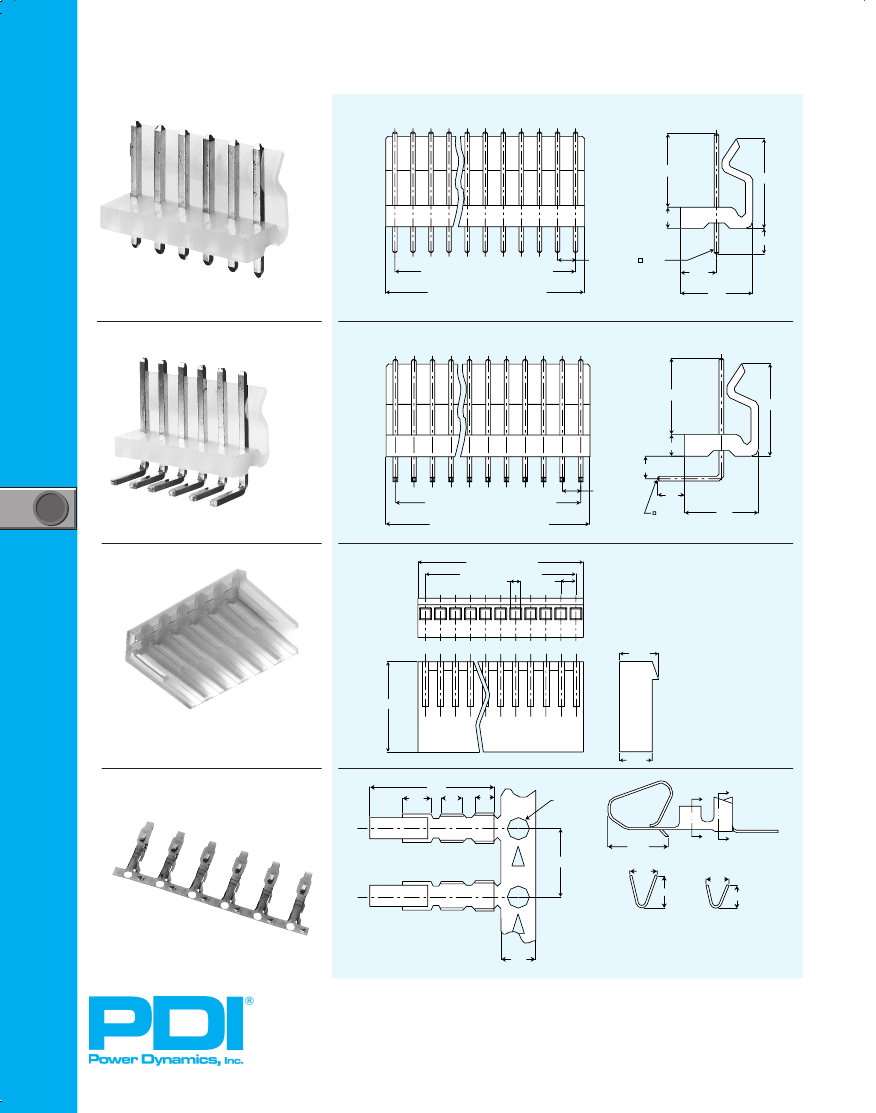

3.96mm Power Connectors
TCP-0XX-396
10.6
12.5
3.3
3.6
3.96
3.96 X [(NO. OF POSITIONS)-1]
1.14
5.75
10.2
XX = Number of Circuits
Available in 2-12 Circuits
TCP-006-396
(shown)
3.96 X (NO. OF POSITIONS)
TRP-0XX-396
11.9
12.5
3.3
3.5
9
TRP-006-396
(shown)
3.96
3.96 X [(NO. OF POSITIONS)-1]
3.96 X (NO. OF POSITIONS)
3.6
1.14
10.2
XX = Number of Circuits
Available in 2-12 Circuits
POWER PIN CONNECTORS
TCC-0XX-396
NO. PINS X 3.96
(NO. PINS-1) X 3.96
3.96
2.0
NOTE:
REQUIRES CRIMP TERMINAL (PART # TCC-REEL-396)
7.65
TCC-006-396
(shown)
16.0
XX = Number of Circuits
Available in 2-12 Circuits
6.35
13.7
3.96
2.36
2.0
TCC-REEL-396
Ø
1.4
A
B
A
6.35
7.0
B
3.3
3.3
SECTION B-B
2.5
2.3
SECTION A-A
2.4
NOTE:
ACCEPTS AWG-18 TO AWG-22 WIRE
FOR USE WITH PART# TCC-0XX-396
Specifications subject to change without notice. Dimensions in mm.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: sales@powerdynamics.com •
www.powerdynamics.com
236

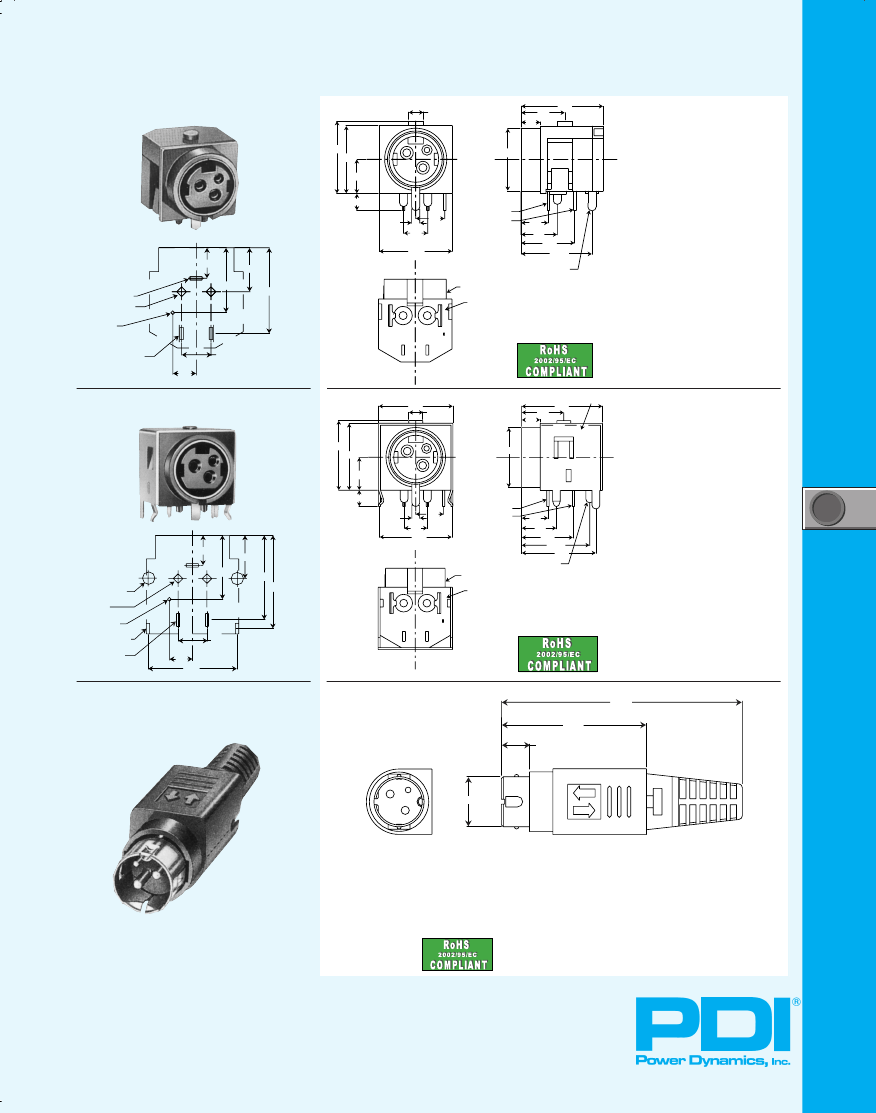

Power Sockets and Plugs
DC-002
15.0
14.0
7.1
3.5
1.8
5.0
15.0
5.5
11.5
2.2 X 0.6
Ø1.7
2 HOLES
Ø1.1
7.5
14.65
Ø
3.0
9.0
4.0
17.0
MATERIAL AND FINISH:
Housing: (Body & Cover)
Material: P.B.T.; Valox 420-SEO
Rating: UL-94V-0
Contacts:
Terminals A & B:
Material: Brass
Plating: Silver
Earth Terminal:
Material: Brass
Plating: Silver
Terminal C:
Material: Phosphor Bronze
Plating: Silver
MECHANICAL SPECIFICATIONS:
Insertion Force: 3.5 Kg max.
Withdrawal Force: 0.5 to 2.5 Kg
ELECTRICAL SPECIFICATIONS:
Rated Current:
Pin A&B: 7.5 A max. at 20 VDC
Pin C: 1 A max. at 20 VDC
Ø
12.9
6.0
EARTH
TERMINAL
TERMINAL C
5.5
7.5
11.5
14.65
CONTACT TERMINAL
BODY
COVER
2.5 x 0.6
2 HOLES
6.0
5.0
P. C. B. LAYOUT
TOP VIEW
SHIELD
DC-002S
15.0
14.4
7.1
3.5
1.8
16.0
Ø
3.0
9.0
4.0
17.4
MATERIAL AND FINISH:
Housing: (Body & Cover)
Material: P.B.T.; Valox 420-SEO
Rating: UL-94V-0
Contacts:
Terminals A & B:
Material: Brass
Plating: Silver
Earth Terminal:
Material: Brass
Plating: Silver
Terminal C:
Material: Phosphor Bronze
Plating: Silver
Shield:
Material: Brass
Plating: Tin/Lead; 90%/10%
MECHANICAL SPECIFICATIONS:
Insertion Force: 3.5 Kg max.
Withdrawal Force: 0.5 to 2.5 Kg
Ø
12.9
6.0
5.0
15.6
EARTH
TERMINAL
TERMINAL C
5.5
11.5
Ø
2.2
7.5
14.65
16.0
5.5
7.5
11.5
14.65
16.0
CONTACT TERMINAL
9
POWER PIN CONNECTORS
POWER PIN CONNECTORS
BODY
COVER
2 HOLES
Ø
1.7
2 HOLES
Ø
1.1
2.2 x 0.6
3 HOLES
2.5 x 0.6
2 HOLES
5.0
6.0
15.6
P. C. B. LAYOUT
TOP VIEW
ELECTRICAL SPECIFICATIONS:
Rated Current:
Pin A&B: 7.5 A max. at 20 VDC
Pin C: 1 A max. at 20 VDC
50.00
30.20
6.00
DP-002
Ø
10.00
MATERIAL AND FINISH:
Housing:
Material: P.B.T.;
Valox 420-SEO
Rating: UL-94V-0
Strain Relief:
Material: PVC
Contacts:
Terminals A & B:
Material: Brass
Plating: Nickel
Earth Terminal:
Material: Brass
Plating: Nickel
Terminal C:
Material: Brass
Plating: Nickel
ELECTRICAL SPECIFICATIONS:
Rated Current:
Pin A & B: 7.5 A max. at 20 VDC
Pin C: 1 A max. at 20 VDC
Insulator Resistance:
250 VAC for 1 minute
Dielectric Withstanding Strength:
250 VAC for 1 minute
Specifications subject to change without notice. Dimensions in mm.
Custom cables also available. See page 290.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: sales@powerdynamics.com •
www.powerdynamics.com
237
