RF AMPLIFIER
MODEL
TM3027
Features
!
!
!
!
High Gain: 24 dB Typical
Low Noise Figure: <2.0 dB Typical
Operating Temp. - 55 ºC to + 85 ºC
Environmental Screening Available
Available as:
TM3027, 4 Pin TO-8 (T4)
TN3027, 4 Pin Surface Mount (SM3)
FP3027, 4 Pin Flatpack (FP4)
BX3027, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +27 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +22 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +19 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
30 - 500 MHz
24
+8.5
-27
<1.75:1
<2.0:1
<2.0
+15
20
MIN/MAX
Ta = -55 ºC to +85 ºC
30 - 500 MHz
22 Min.
+7.0 Min.
-26 Max.
2.0:1 Max.
2.8:1 Max.
2.5 Max.
+15
22 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................... + 6 dBm
Short Term RF Input Power ..... 100 Milliwatts (1 MinuteMax.)
Maximum Peak Power .................... 0.1 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

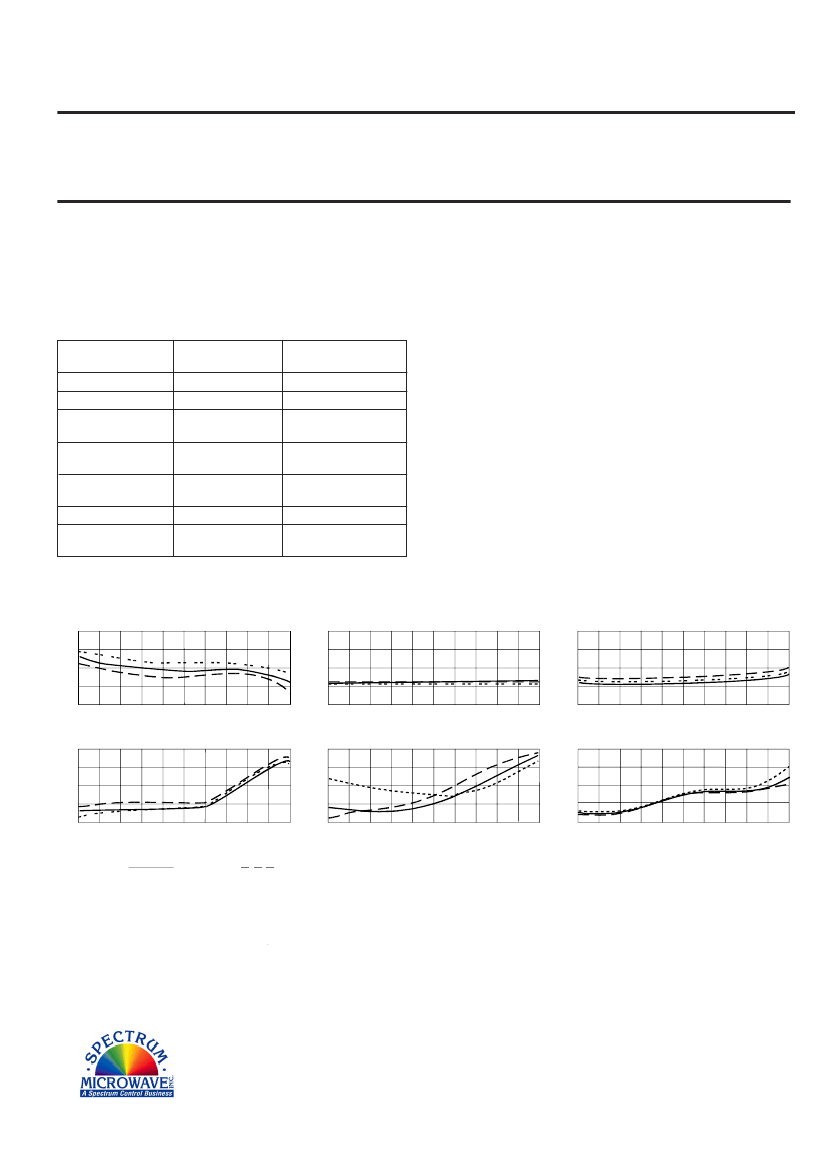

Typical Performance Data
Gain (dB)
26
25
24
23
22
Start 30 MHz
Stop 500 MHz
Reverse Isolation (dB)
0
- 10
- 20
- 30
- 40
Start 30 MHz
Stop 500 MHz
Noise Figure (dB)
3
2
1
Start 30 MHz
Stop 500 MHz
1 dB Comp. (dBm)
12
11
10
9
8
Start 30 MHz
Stop 500 MHz
2.0
1.5
1.0
Start 30 MHz
Input VSWR
Output VSWR
3.0
2.0
1.0
Stop 500 MHz
Start 30 MHz
Stop 500 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
