BRS-02-HPC-04-A-SG10

Description
Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size102KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

BRS-02-HPC-04-A-SG10 Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

BRS-02-HPC-04-A-SG10 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.157 inch
subject depth0.25 inch
body length0.177 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability500 Cycles
Insulation resistance1000000000 Ω
insulator materialNYLON
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness10u inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.094 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts4
Base Number Matches1
1
2
3
4
5
6
7
8
9
A
A
B
SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Insulator Material:
Insulator Resistance:
Withstanding:
Operating Temp:
B
C
1 Amps
Phosphor Bronze
20 m ohms max.
Polyester, UL 94V-0
Standard: Nylon-6T
1000 Megohms min.
AC 500V
-40ºC ~ +105ºC
C
D
D
E
E
Series
BRS
2mm Receptacle
Strip
F
Rows
XX
01-04
Profile
HPC
HPC=6.35mm
Profile
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Positions
XX
1 Row 01-40
2 Row 04-80
3 Row 09-120
4 Row 16-160
Date
04/06/08
04/06/08
04/06/08 Part No.:
Tail Length
X
A=2.4mm
C=3.0mm
Plating
XX
TN=Tin
SGXX=Selective Gold
GDXX=Gold
XX=Flash if Blank, 03, 05, 10, 15 u”
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
BRS-02-HPC-XX-X-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

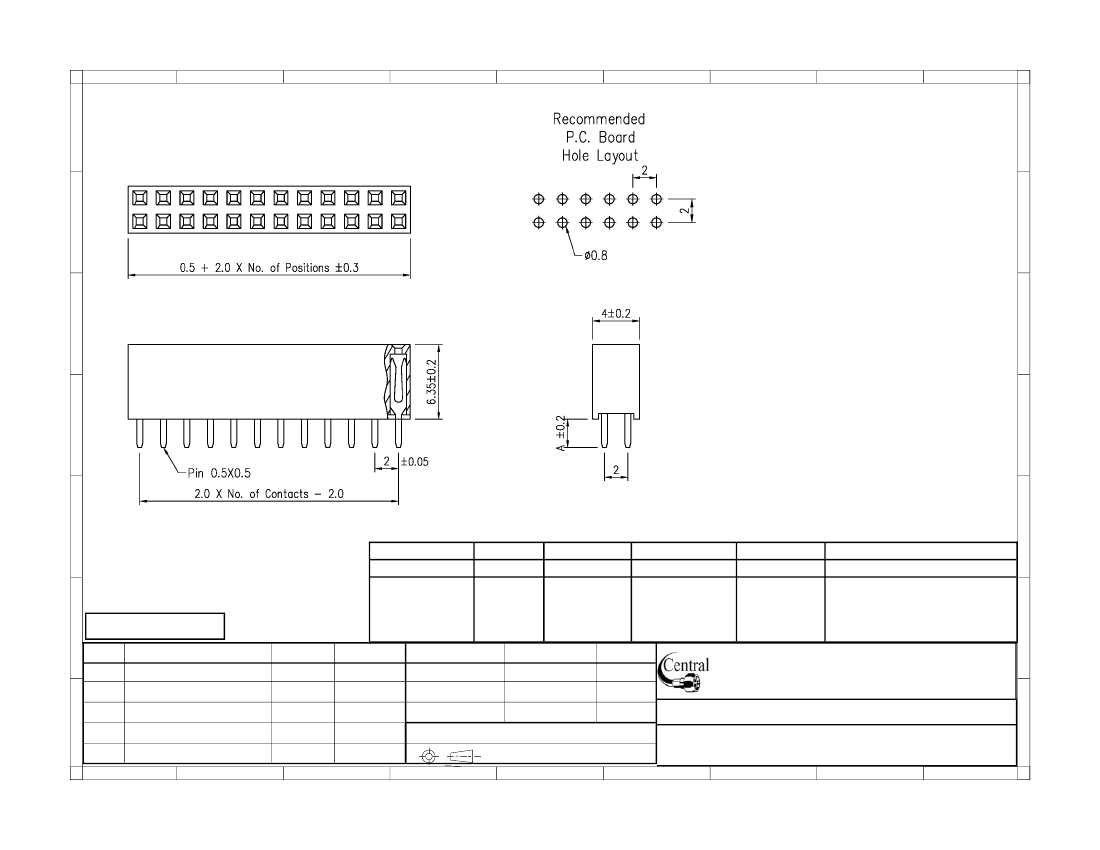

Description: 2mm Vertical Receptacle Strip, Dual Row
