UPD29F008LGZ-B12T-LJH

Description
Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Categorystorage    storage
File Size380KB，32 Pages
ManufacturerNEC Electronics
Download Datasheet Parametric Compare View All

UPD29F008LGZ-B12T-LJH Overview

Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40

UPD29F008LGZ-B12T-LJH Parametric

Parameter NameAttribute value
Parts packaging codeTSOP1
package instruction10 X 20 MM, PLASTIC, TSOP1-40
Contacts40
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum access time120 ns
Other featuresMINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION
startup blockTOP
JESD-30 codeR-PDSO-G40
length18.4 mm
memory density8388608 bit
Memory IC TypeFLASH
memory width8
Number of functions1
Number of terminals40
word count1048576 words
character code1000000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
organize1MX8
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP1
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
Parallel/SerialPARALLEL
Programming voltage3 V
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyMOS
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
typeNOR TYPE
width10 mm
Base Number Matches1

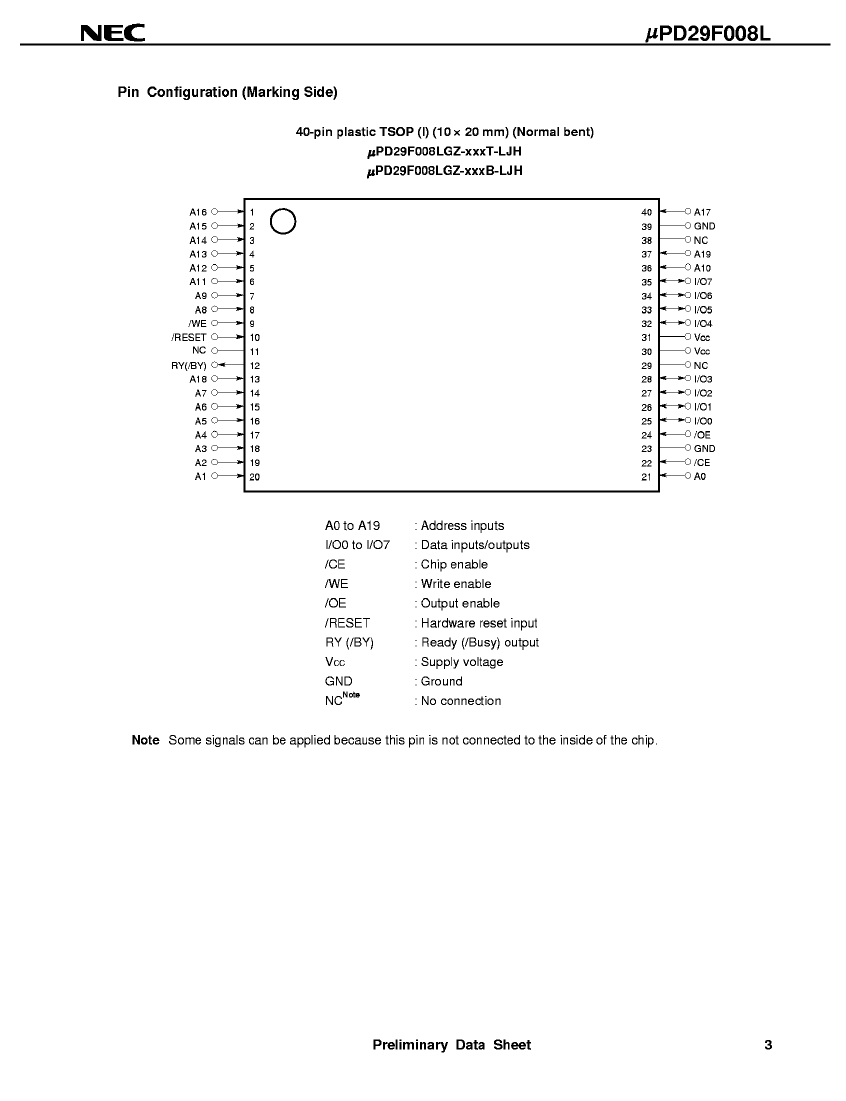

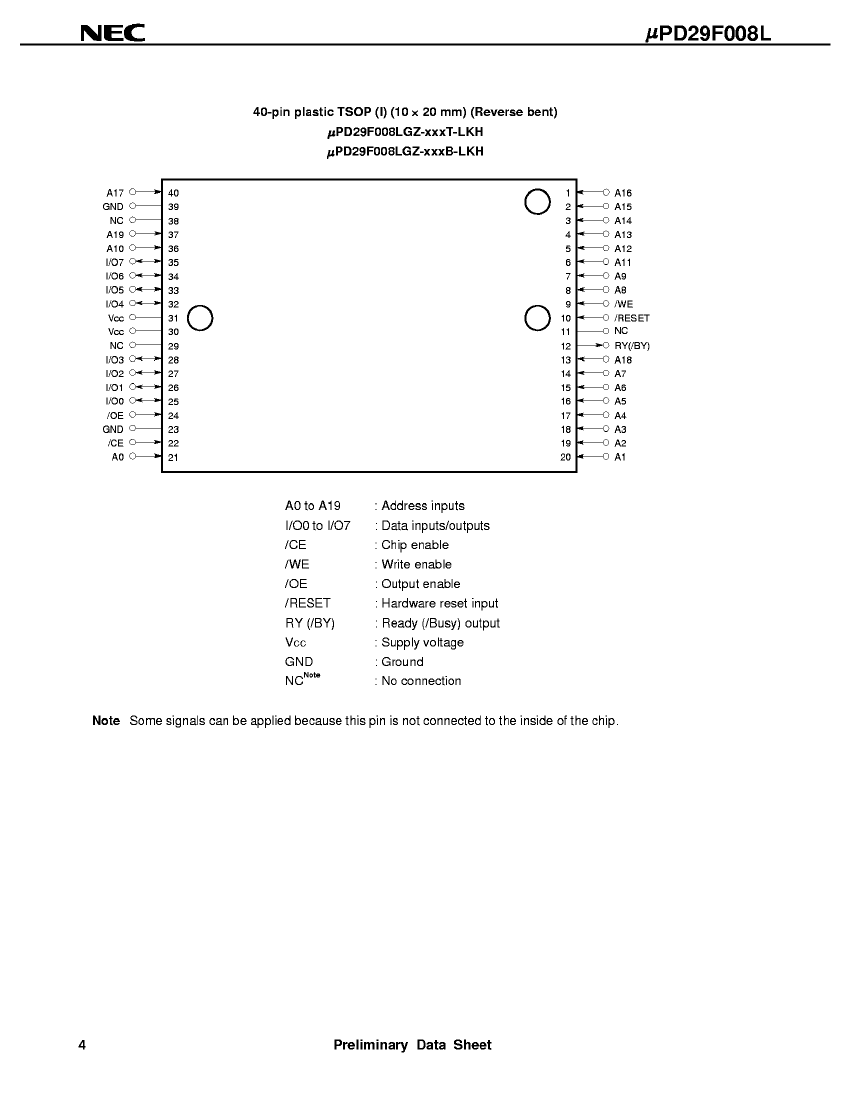

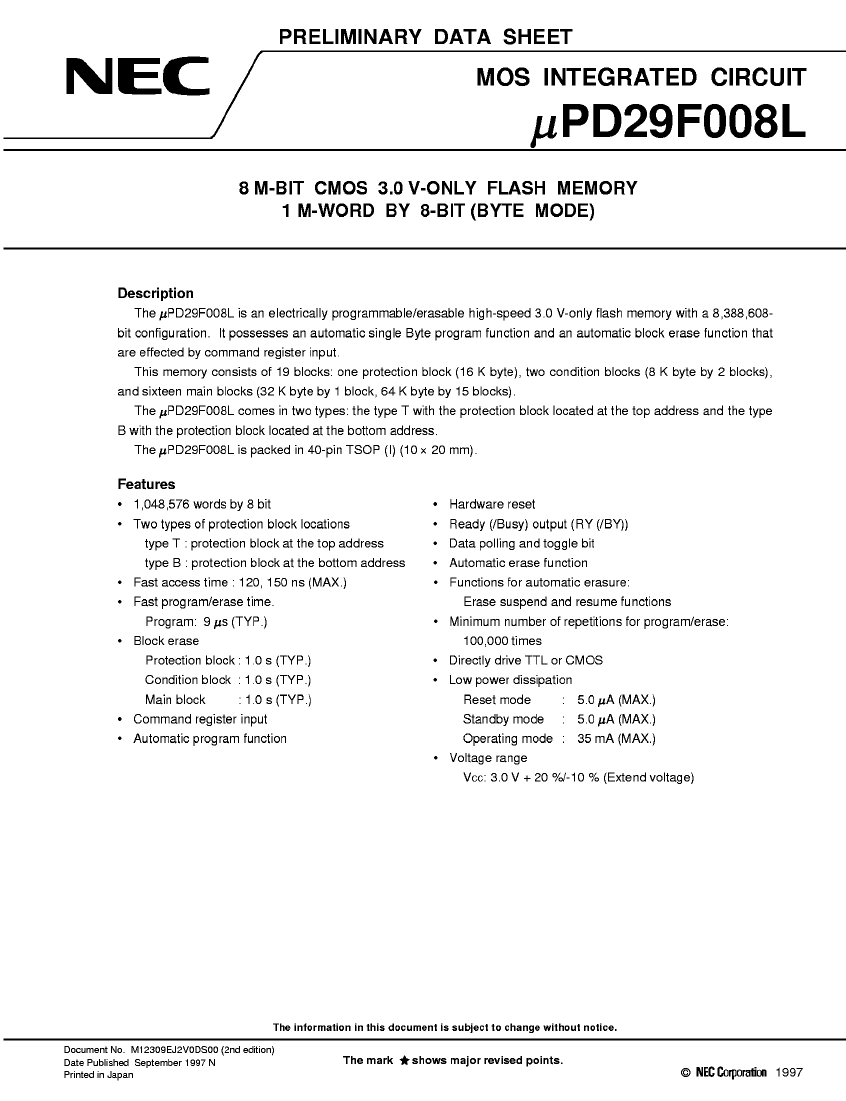

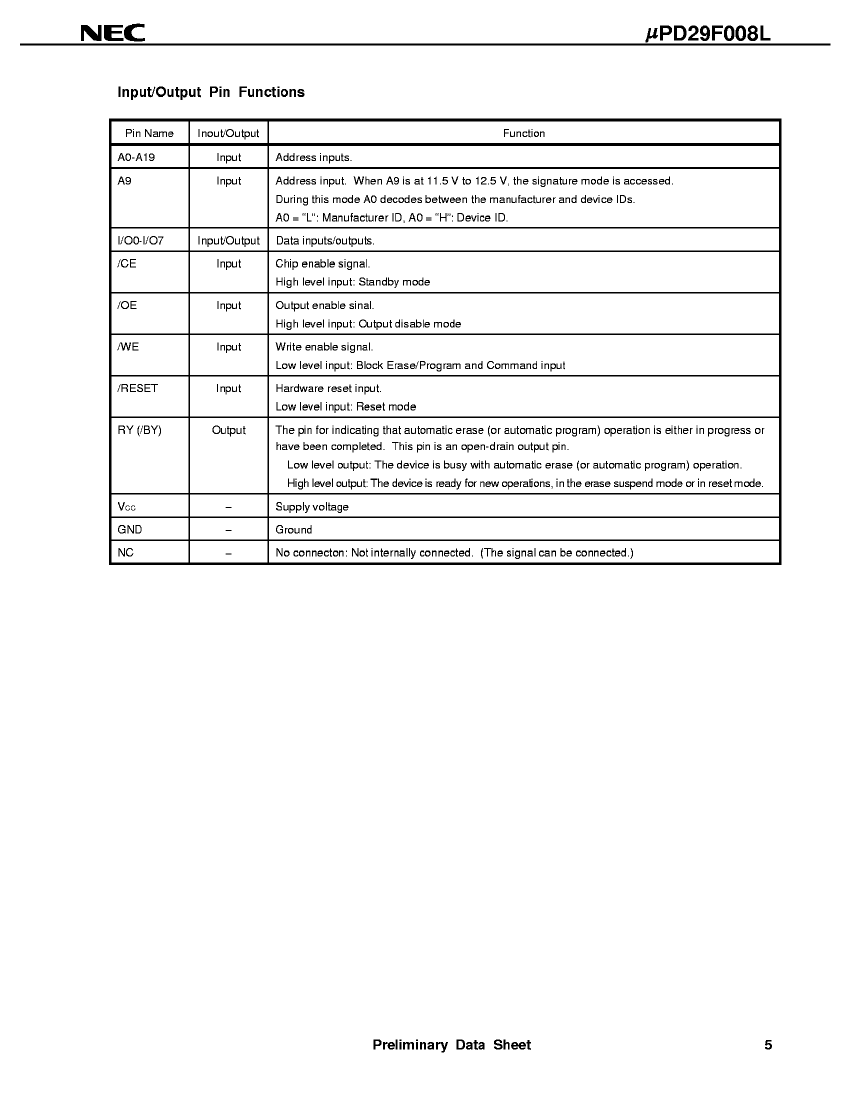

Preview

Download Datasheet

UPD29F008LGZ-B12T-LJH Related Products

UPD29F008LGZ-B12T-LJH UPD29F008LGZ-B12B-LKH UPD29F008LGZ-B12T-LKH UPD29F008LGZ-B15B-LKH UPD29F008LGZ-B15T-LJH UPD29F008LGZ-B15T-LKH UPD29F008LGZ-B15B-LJH UPD29F008LGZ-B12B-LJH
Description Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40 Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 Flash, 1MX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 Flash, 1MX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40 Flash, 1MX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 Flash, 1MX8, 150ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40 Flash, 1MX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Parts packaging code TSOP1 TSOP1 TSOP1 TSOP1 TSOP1 TSOP1 TSOP1 TSOP1
package instruction 10 X 20 MM, PLASTIC, TSOP1-40 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 10 X 20 MM, PLASTIC, TSOP1-40 10 X 20 MM, PLASTIC, REVERSE, TSOP1-40 10 X 20 MM, PLASTIC, TSOP1-40 10 X 20 MM, PLASTIC, TSOP1-40
Contacts 40 40 40 40 40 40 40 40
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum access time 120 ns 120 ns 120 ns 150 ns 150 ns 150 ns 150 ns 120 ns
Other features MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION MINIMUM 100000 ERASE/WRITE CYCLES; AUTOMATIC PROGRAM FUNCTION
startup block TOP BOTTOM TOP BOTTOM TOP TOP BOTTOM BOTTOM
JESD-30 code R-PDSO-G40 R-PDSO-G40 R-PDSO-G40 R-PDSO-G40 R-PDSO-G40 R-PDSO-G40 R-PDSO-G40 R-PDSO-G40
length 18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm 18.4 mm
memory density 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit 8388608 bit
Memory IC Type FLASH FLASH FLASH FLASH FLASH FLASH FLASH FLASH
memory width 8 8 8 8 8 8 8 8
Number of functions 1 1 1 1 1 1 1 1
Number of terminals 40 40 40 40 40 40 40 40
word count 1048576 words 1048576 words 1048576 words 1048576 words 1048576 words 1048576 words 1048576 words 1048576 words
character code 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Minimum operating temperature -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C
organize 1MX8 1MX8 1MX8 1MX8 1MX8 1MX8 1MX8 1MX8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSOP1 TSOP1-R TSOP1-R TSOP1-R TSOP1 TSOP1-R TSOP1 TSOP1
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Programming voltage 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.2 mm 1.2 mm 1.2 mm 1.2 mm 1.2 mm 1.2 mm 1.2 mm 1.2 mm
Maximum supply voltage (Vsup) 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V
Minimum supply voltage (Vsup) 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V 2.7 V
Nominal supply voltage (Vsup) 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V
surface mount YES YES YES YES YES YES YES YES
technology MOS MOS MOS MOS MOS MOS MOS MOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
type NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE NOR TYPE
width 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm
Base Number Matches 1 1 1 1 1 1 - -
