UVV80Z8LN-FREQ: DescriptionVCXO, CLOCK, 0.75 MHz - 800 MHz, LVDS OUTPUT, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-6; CategoryPassive components oscillator; File Size489KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

UVV80Z8LN-FREQ Overview

VCXO, CLOCK, 0.75 MHz - 800 MHz, LVDS OUTPUT, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-6

UVV80Z8LN-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	25 ppm
frequency stability	50%
JESD-609 code	e4
linearity	15%
Manufacturer's serial number	UVV
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.9mm
longest rise time	1 ns
Maximum supply voltage	3.456 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	NICKEL GOLD
Base Number Matches	1

Preview

Download Datasheet

View All

UVV Series

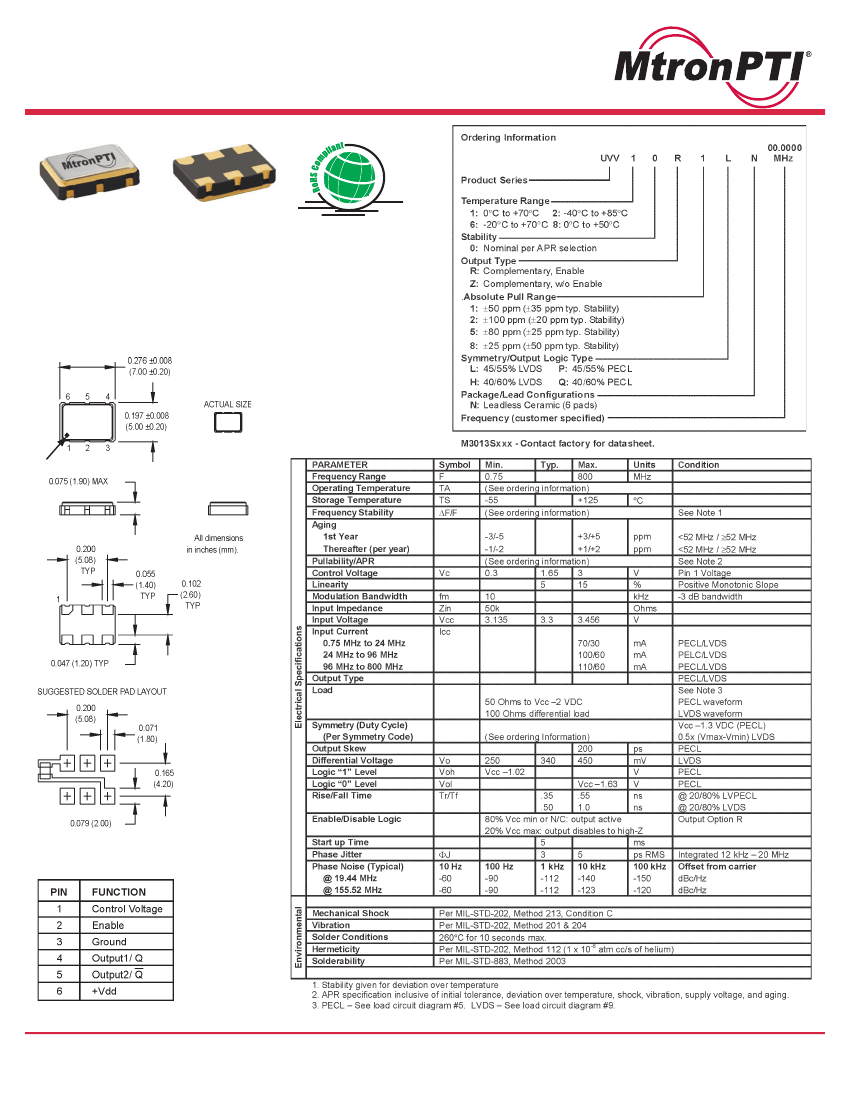

5x7 mm, 3.3 Volt, LVPECL/LVDS, VCXO

•

Versatile VCXO to 800 MHz with good

jitter (3 ps typical)

Used in low jitter clock synthesizers

and SONET applications

DENOTES PIN 1

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 8-14-07
