UVVJ60B1HNFREQ datasheet, PDF - EEWORLD Datasheet

UVVJ60B1HNFREQ: DescriptionLVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, LEADLESS PACKAGE-6; CategoryPassive components oscillator; File Size68KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

UVVJ60B1HNFREQ Overview

LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, LEADLESS PACKAGE-6

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	35%
JESD-609 code	e4
linearity	5%
Manufacturer's serial number	UVVJ
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	50 OHM
physical size	7mm x 5mm x 1.9mm
longest rise time	0.55 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

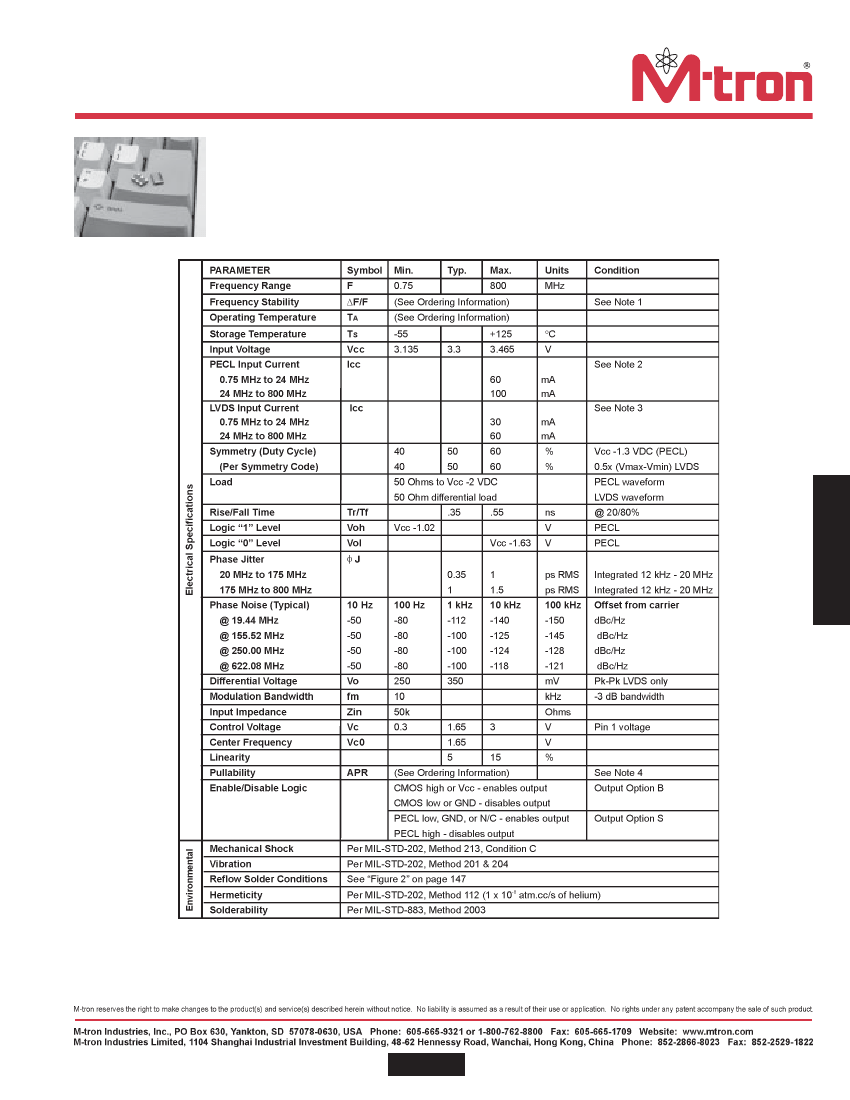

UVVJ Series

5x7 mm, 3.3 Volt, LVPECL/LVDS, VCXO

•

Integrated phase jitter of less than 1

ps from 12 kHz to 20 MHz

• Ideal for 10 and 40 Gigabit Ethernet

and Optical Carrier applications

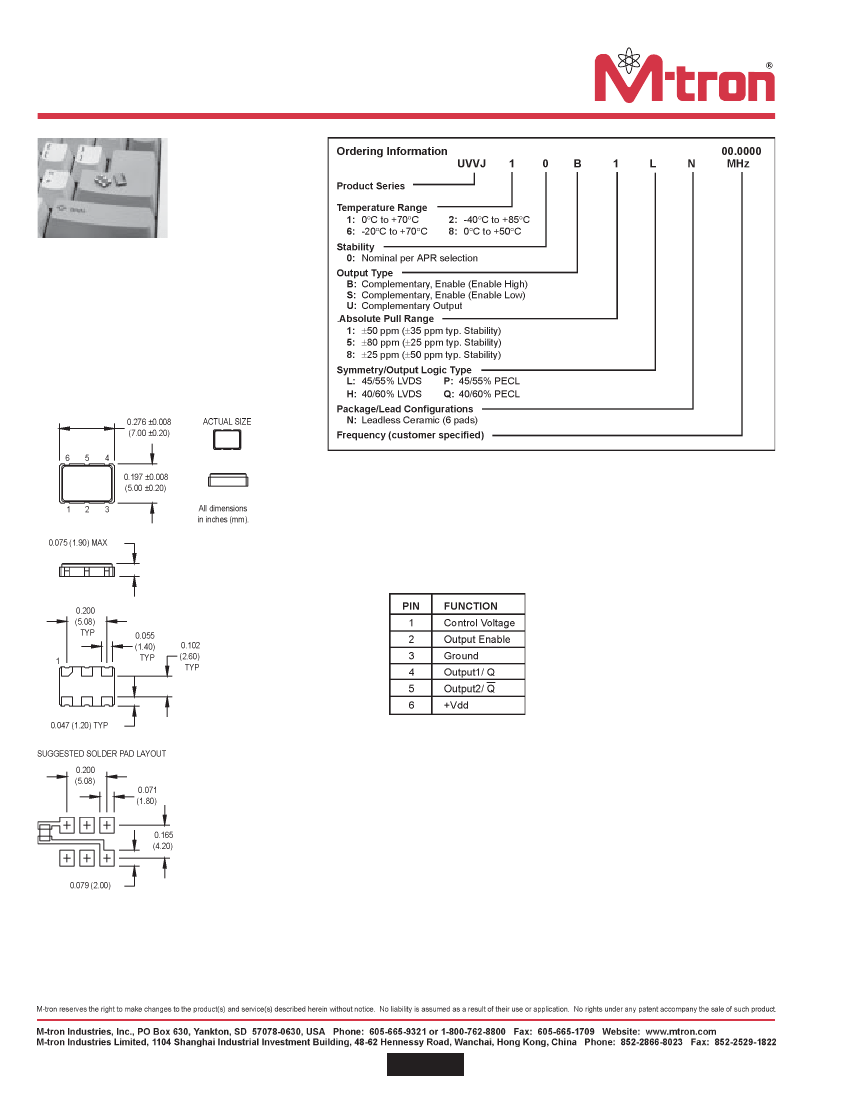

Pin Connections
