2.5mm Pitch Connector for Full Lock and Discrete Wire Connection
DF1E Series
Full lock function
added
UL, C-CL Listed
Inner-lock system
full lock mechanism
Mis-insertion
prevention
Photo 1

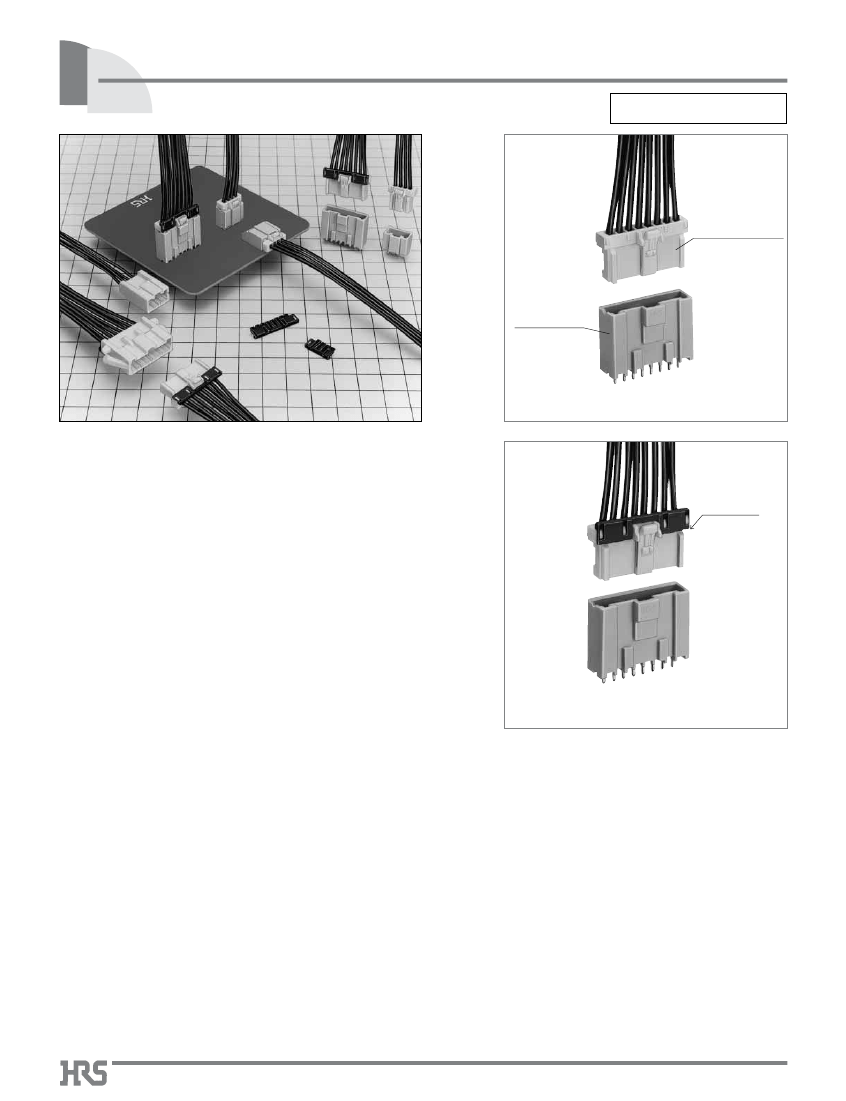

■Features
1. Full Lock Function Added
The inner lock system adopts a full lock mechanism.
This mechanism prevents disengagement to occur due to
an unexpected external shock. (Refer to photo 1)
Double lock
engaged
Double lock
engaged
2. Increase in Crimping Contact Fixation Force and
Semi-insertion Prevention
The double lock is activated for the use method to give a
stress to the cable, to increase crimping contact fixation
force, and to prevent the semi-insertion of the crimping
contact. (Refer to photo 2)
3. Mold Lance Adopted
Since the contact lance may be deformed involving in the
contact after the crimping process, the mold lance has been
adopted.
4. Mis-insertion Prevention
Equipped with the mechanism to completely prevent reverse
insertion and insertion between dissimilar contacts.
8. Various Applications
Photo 2
5. Means to Prevent Solder Crack
The glass enforcement resin is adopted for the pin header to
prevent a solder crack to occur due to heat compression.
With the same series, various applications can
be used for the board solder dip type and in-
line.
9. Listed by UL, C-UL
6. Correspond to Potting
Corresponding to potting, the pin header is provided for
product variations.
Corresponding to potting up to 8mm and mounting height
19.8mm (no retainer), the low profile is achieved.
■
Applications
Electronic equipment, office machines,
industrial equipment, and consumer
equipment, and so on
7. Production Facility Cost Reduction
The female crimping contact uses the DF1B series crimping
contact, which has been conventionally marketed.
Investment for new facilities isn't needed. However, if the
retainer is installed in the cable with AWG#22 or more wire,
use the DF1E crimping contact. The female crimping
contact for in-line is used together with the DF1B applicator.
Therefore, no investment is needed for new facilities.
B146
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF1E Series●2.5mm Pitch Connector for Full Lock and Discrete Wire Connection
■Products
Specifications
Current rating Note 1.
AWG#20
to
24 :
3A
26 :
2A
28 :
1A
30 : 0.5A
Voltage rating 250VAC
Rating
Operating Temperature Range :
-35 to +85ç
Note 2.
Operating Moisture Range :
-40
to 80%
Storage Temperature Range :
-10 to +60ç
Note 3.
Storage Moisture Range
:
-40
to 70% Note 3.
C-UL Rating
AWG#20
to #22
: 3A
Current rating
Rating
Voltage rating
Item
1. Contact Resistance
2. Insulation Resistance
3. Withstanding voltage
4. Single Insertor/Extraction Forth
5. Durability (Mating/un-mating)
6. Vibration
7. Shock
8.
Humidity (Steady state)
9. Temperature Cycle
10. Resistance to Soldering heat
30m
ohms
max.
1000M
ohms
min.
No flashover or insulation breakdown.
MIN 0.4N, MAX 4.4N
30m
ohms
max
No electrical discontinuity of 1μs or more
No electrical discontinuity of 1μs or more
30m
ohms
max
30m
ohms
max.
No deformation of components affecting performance.
Specification
500V DC
AWG#24
to #28
: 1A
AWG#30
30V AC
: 0.5A
■UL/C-UL
File No. and Recognition No.
UL
:E52653
C-UL :E52653
Condition
Measured at 20mV max. and 1mA
650V AC/1 minute
Measured at the square steel pin with 0.635±0.002
30 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave waveform, 3 cycles in each of the 3 axis
96 hours at temperature of 40±2ç and humidity of 90% to 95%
(-55ç: 30 minutes-> 5 to 35ç: 5 minutes-> 85ç: 30 minutes-> 5 to 35ç: 5 minutes) 5 cicles
Flow: 260ç for 10 seconds
Manual soldering: 300ç for 3 seconds
Note 1: Current rating of header is 3A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Material
Product
Socket
Header
In-line Plug
retainer
Crimping contact
Part
Insulator
Insulator
Contact
Insulator
Insulator
Contact
Material
Polyamide
Polyamide
Brass
Polyamide
Polyamide
Phosphor copper
Treatment
White
Beige
Tin-lead plated
White
Black
Tin plated
Remarks
UL94V-0
UL94V-0
–––––––
UL94V-0
UL94V-0
–––––––
B147
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Discrete Wire Connection
RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF1E Series●2.5mm Pitch Connector for Full Lock and
products status on the Hirose website
■Ordering
Information
●Pin
Header
DF1E C -
*
P - 2.5 DSA
q
w
e
r
t
y
q
Series Name : DF1E
w
Hold Types (Note. 1)
Standard Product
With Boss
C
Without Boss
G
Potting
With Boss
Without Boss
e
Number of Contacts : 2 to 15 contacts
(note. 2)
r
Connector Type
P : Pin Header
t
Contact Pitch : 2.5mm
y
Form type
DSA : Straight through hole
DS : Right Angle Type
Note 1 : The right angle pin header has no symbol.
Note 2 : The potting header has 2 to 10 contacts.
●Socket
DF1E -
*
S - 2.5 C
q
w
e
r
t
q
Series Name : DF1E
w
Number of Contacts : 2 to 15 contacts
e
Connector type
S: Socket
r
Contact Pitch : 2.5mm
t
Form Type
C : Crimping socket
●In-line
Plug
DF1E A -
*
EP - 2.5 C
q
w
e
r
t
y
q
Series Name : DF1E
w
In-line Plug type
Blank: With Panel mount Lock
A : Without Panel mount Lock
e
Number of Contacts : 2 to 10 contacts
r
EP : In-line plug
t
Contact Pitch : 2.5mm
y
Form Type
C : Crimping socket
●Crimping
Contact
DF1E -
**
SCF
q
w
e
q
Series Name :
Socket side : DF1B (Note 1)
DF1E (Note 1)
Plug side
: DF1E
w
Applicable Cable Size
2022 : AWG#20
to #22
2428 : WG#24
to #28
30
: AWG#30
e
Packaging Type
SCF : Female contact : Reel
SC
PC
: Female contact : Bag
: Male contact : Bag
PCF : Male contact : Reel
Note 1 : When the retainer is used, use DF1E-2022SC(F), DF1B-
2428SC(F), and DF1B-30SC(F) contacts.
Note 1 :
When no retainer is used, all DF1B-**SC(F) and DF1E-
2022SC(F) contacts can be used.
●Retainer
DF1E -
*
RS/P - 2.5
q
w
e
r
q
Series Name : DF1E
w
Number of Contacts : 2 to 10 contacts
e
Connector Type
RS/P : Retainer
Commonly used for socket and in-line plug
r
Contacts Pitch:2.5mm
B148
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF1E Series●2.5mm Pitch Connector for Full Lock and Discrete Wire Connection

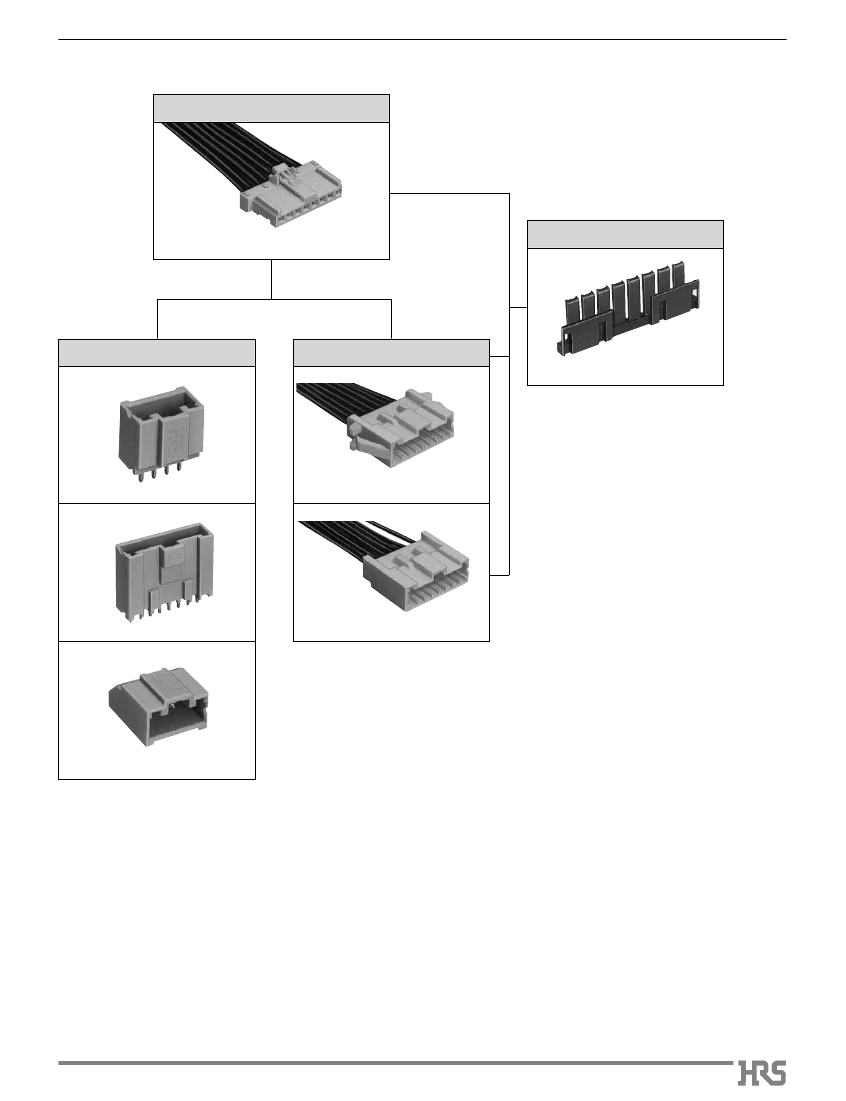

■Application
Pattern
Socket
Retainer
Photo : Contact Inserted
Pin Header
●Straight
Type
In-line Plug
●In-line
Plug (Panel Mount Lock Type)
Photo: Contact Inserted
●Straight
Potting Type
●In-line
Plug
Photo: Contact Inserted
●Right
Angle Type
B149
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Discrete Wire Connection
RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF1E Series●2.5mm Pitch Connector for Full Lock and
products status on the Hirose website

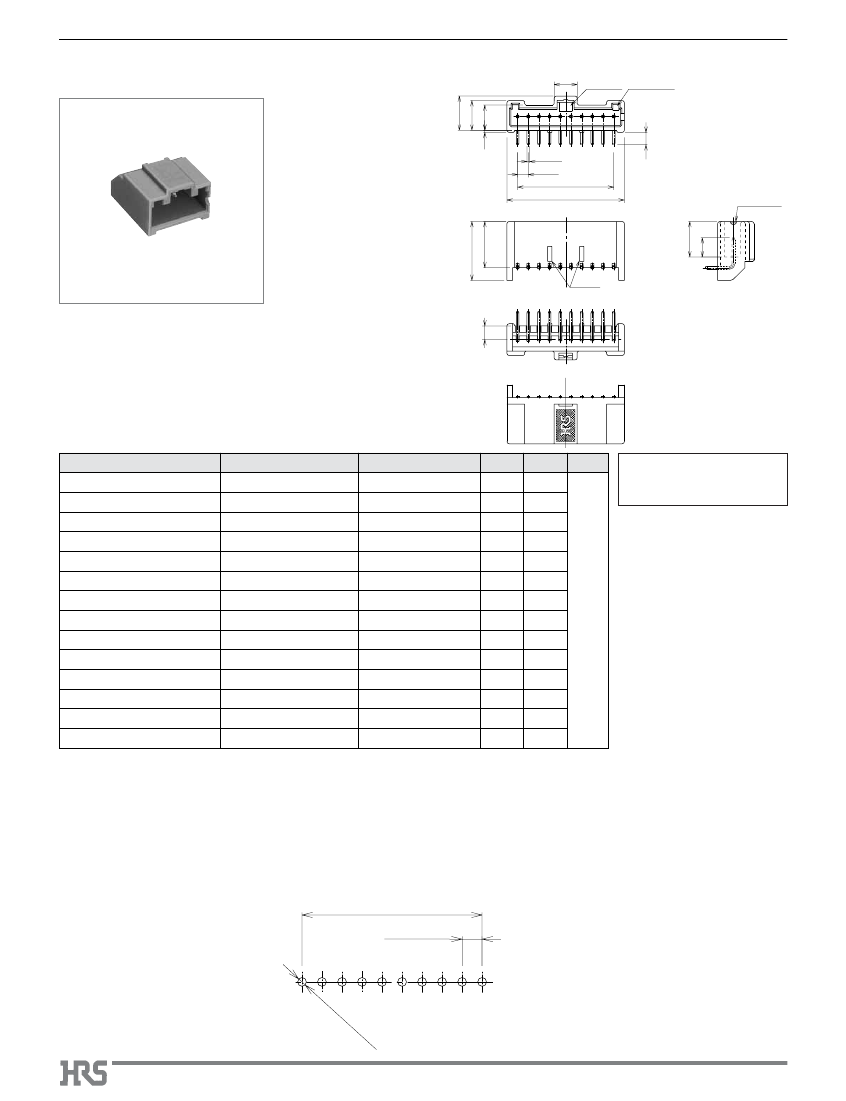

■Right
Angle Pin Header
8
6.95
5.9
5.4
10
Contact
No. mark
A
Mold Cavity
No. mark
0.5
M
0.64
P=2.5
A
B
Contact
No.1 indicated
2.9
10.8
8.3
Note 2
13.8
Part Number
DF1E –02P–2.5DS(**)
DF1E –03P–2.5DS(**)
DF1E –04P–2.5DS(**)
DF1E –05P–2.5DS(**)
DF1E –06P–2.5DS(**)
DF1E –07P–2.5DS(**)
DF1E –08P–2.5DS(**)
DF1E –09P–2.5DS(**)
DF1E –10P–2.5DS(**)
DF1E –11P–2.5DS(**)
DF1E –12P–2.5DS(**)
DF1E –13P–2.5DS(**)
DF1E –14P–2.5DS(**)
DF1E –15P–2.5DS(**)
CL No.
541 – 0985– 0 –**
541 – 0986– 3 –**
541 – 0987– 6 –**
541 – 0988– 9 –**
541 – 0989– 1 –**
541 – 0990– 0 –**
541 – 0991– 3 –**
541 – 0992– 6 –**
541 – 0993– 9 –**
541 – 0994– 1 –**
541 – 0995– 4 –**
541 – 0996– 7 –**
541 – 0997– 0 –**
541 – 0998– 2 –**
Number of Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3.2
A
02.5
05.0
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
B
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
40.0
RoHS
[Specific No.]
–
* *
,
(*
*)
(01): Gold plated
(05): Tin plated
Yes
Note 1. : A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the products per bag. However, the quantity
for delivery will be changed according to the Specific No.
Note 2. : The 2 to 4 contacts differ in two convex portions from those in above figures. The 2 and 3 contacts are not contained, but the 4
contact connector is contained in the center at one point.
Note 3. : Styles of 2 to 4 contact connectors partially differ from those in above figures.
[i=s]This post was last edited by MianQi on 2021-10-7 21:51[/i]Things to note and set up include:
1. Download-unzip " esp-idf-v4.2.2.zip"
(https://github.com/espressif/esp-idf/releases/tag/v4.2.2)
(ht...
I want at91rm9200 to boot from flash. I see the partition table. I need to burn boot.bin, u-boot.gz, uImage, and finally the u-boot environment variables. Where can I find the boot.bin and environment...
Last week we sent out a 32G USB flash drive in an event. People also shared their comparison of the transmission speed of this USB flash drive on the forum. Some people questioned that USB only relies...
The course design requires counting two external pulse signals separately. Please send me a counting program for a 430 microcontroller, but not a frequency counter. . ....
I suddenly had the urge to do a series of topics on sound visualization. This topic is a bit difficult and covers a wide range of areas. The related FFT and FHT algorithms are also quite complicated, ...
The TIA Portal software's shift instructions shift the contents of an accumulator bit by bit to the left or right. The number of bits shifted is determined by N. A left shift of N bits multiplies t...[Details]
ISP devices, such as field programmable devices (FPGAs and CPLDs), do not require a programmer. Using programming kits provided by the device manufacturer, they employ a top-down modular design app...[Details]
"Have you set your calendar reminder?"
On August 24, Nvidia Robotics' official account posted a photo of a black gift box on a social media platform, with an attached greeting card sig...[Details]
On August 25th, Apple's expansion in India encountered new troubles. According to Bloomberg, Foxconn Technology Group has recalled approximately 300 Chinese engineers from India, further hindering ...[Details]
According to foreign media reports, researchers at the University of Surrey have developed an artificial intelligence system that can accurately locate the location of equipment in densely populate...[Details]
Keysight Technologies is combining its electromagnetic simulator with Synopsys' AI-driven RF design migration flow to create an integrated design flow for migrating from TSMC's N6RF+ process techno...[Details]
Plessey Semiconductors has been acquired by Haylo Labs, which was established in March last year with a $100 million, five-year loan from Chinese technology company Goertek.
Haylo Labs w...[Details]
Magna's integrated in-cabin perception system fuses vision and millimeter-wave radar data to detect the presence of passengers, identify stranded children, monitor driver fatigue and vital signs, a...[Details]
Tools/Materials
Yitong Chuanglian MODBUS to PROFIBUS Gateway YT-PB-03
Siemens s7-300
This article describes how to configure the YT-PB-03 MODBUS to PROFIBUS gat...[Details]
HTTP is the abbreviation of Hypertext Transfer Protocol. It is an application protocol based on TCP/IP communication protocol used to transmit HTML and image files. It is an application-level objec...[Details]
Previously, Positive Motion Technology shared with you the firmware upgrade of motion controller, ZBasic program development, ZPLC program development, communication with touch screen and input/out...[Details]
Batteries, at the core of new energy vehicles, are crucial to vehicle performance and range. Existing automotive batteries are categorized into lead-acid and lithium batteries. Currently, new energ...[Details]
Shanghai, China, August 21, 2025 –
Toshiba Electronic Devices & Storage Corporation (“Toshiba”) today announced the launch of the TLX9161T
, an automotive photorelay in a compact SO12L-T pa...[Details]
introduction
In recent years, multi-touch has emerged as a new alternative to traditional human-computer interaction. It eliminates the need for keyboards and mice, enabling simultaneous inter...[Details]
Introduction: In digital circuit calculations, there is no concept of decimal points. You know where the decimal is, but the circuit does not know where the decimal point is. Therefore, you need to...[Details]
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
