AD9618SZ

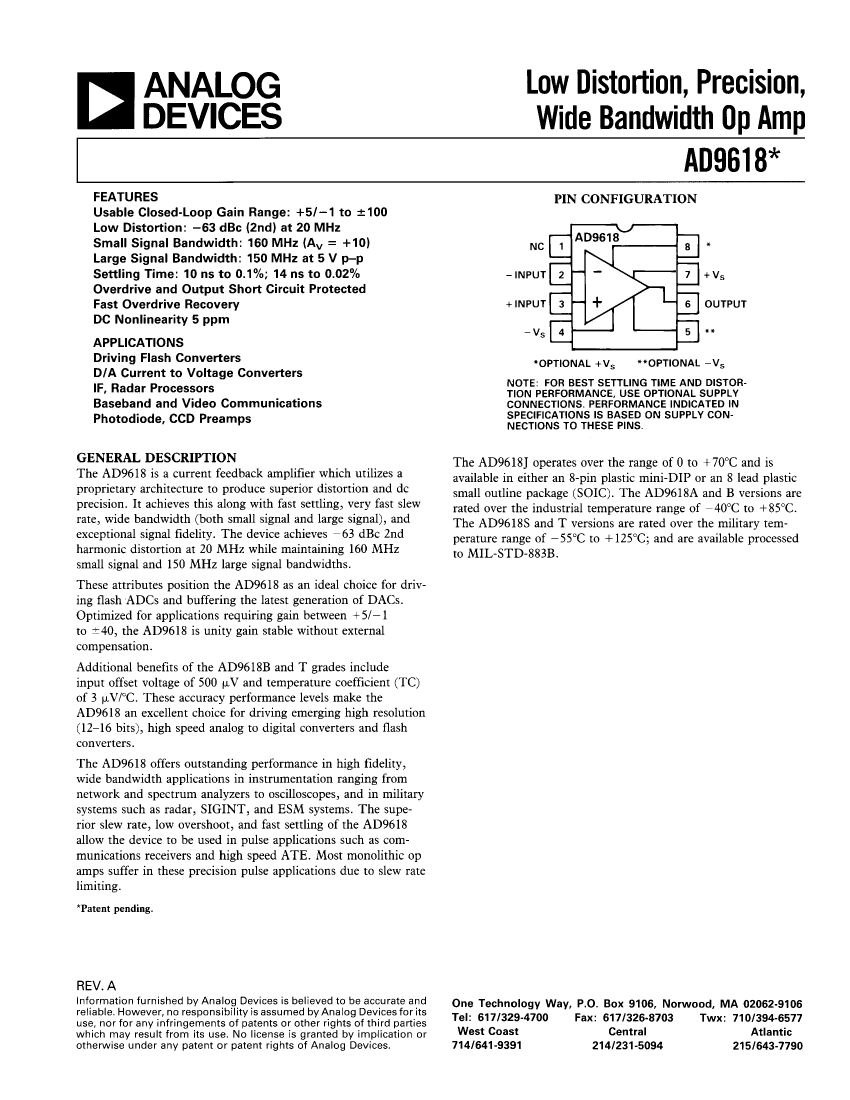

Description

AD9618SZ amplifier basic information:

AD9618SZ is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, SOIC-8

AD9618SZ amplifier core information:

The AD9618SZ has a minimum operating temperature of -55 °C and a maximum operating temperature of 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 45 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the AD9618SZ has a nominal slew rate of 1800 V/us. The maximum slew rate of the AD9618SZ given by the manufacturer is 43 mA, while the minimum slew rate is 1400 V/us.

The nominal supply voltage of the AD9618SZ is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the AD9618SZ is 2200 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of AD9618SZ:

The width of AD9618SZ is: 6.475 mm and the length is 6.475 mm. AD9618SZ has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8

AD9618SZ amplifier additional information:

AD9618SZ adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of AD9618SZ is: YES (AVCL>=5). Its temperature grade is: MILITARY. AD9618SZ is not Rohs certified.

The corresponding JESD-30 code is: S-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of AD9618SZ is: SOP. The materials used in the AD9618SZ package are mostly PLASTIC/EPOXY. The package shape is SQUARE.

AD9618SZ package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 2.49 mm.

CategoryAnalog mixed-signal IC    Amplifier circuit
File Size415KB,8 Pages
ManufacturerADI
Websitehttps://www.analog.com
Alternative parts:AD9618SZ
Download Datasheet Parametric Compare View All

AD9618SZ Overview

AD9618SZ amplifier basic information:

AD9618SZ is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, SOIC-8

AD9618SZ amplifier core information:

The AD9618SZ has a minimum operating temperature of -55 °C and a maximum operating temperature of 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 45 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the AD9618SZ has a nominal slew rate of 1800 V/us. The maximum slew rate of the AD9618SZ given by the manufacturer is 43 mA, while the minimum slew rate is 1400 V/us.

The nominal supply voltage of the AD9618SZ is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the AD9618SZ is 2200 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of AD9618SZ:

The width of AD9618SZ is: 6.475 mm and the length is 6.475 mm. AD9618SZ has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8

AD9618SZ amplifier additional information:

AD9618SZ adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of AD9618SZ is: YES (AVCL>=5). Its temperature grade is: MILITARY. AD9618SZ is not Rohs certified.

The corresponding JESD-30 code is: S-PDSO-G8. The corresponding JESD-609 code is: e0. The packaging code of AD9618SZ is: SOP. The materials used in the AD9618SZ package are mostly PLASTIC/EPOXY. The package shape is SQUARE.

AD9618SZ package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 2.49 mm.

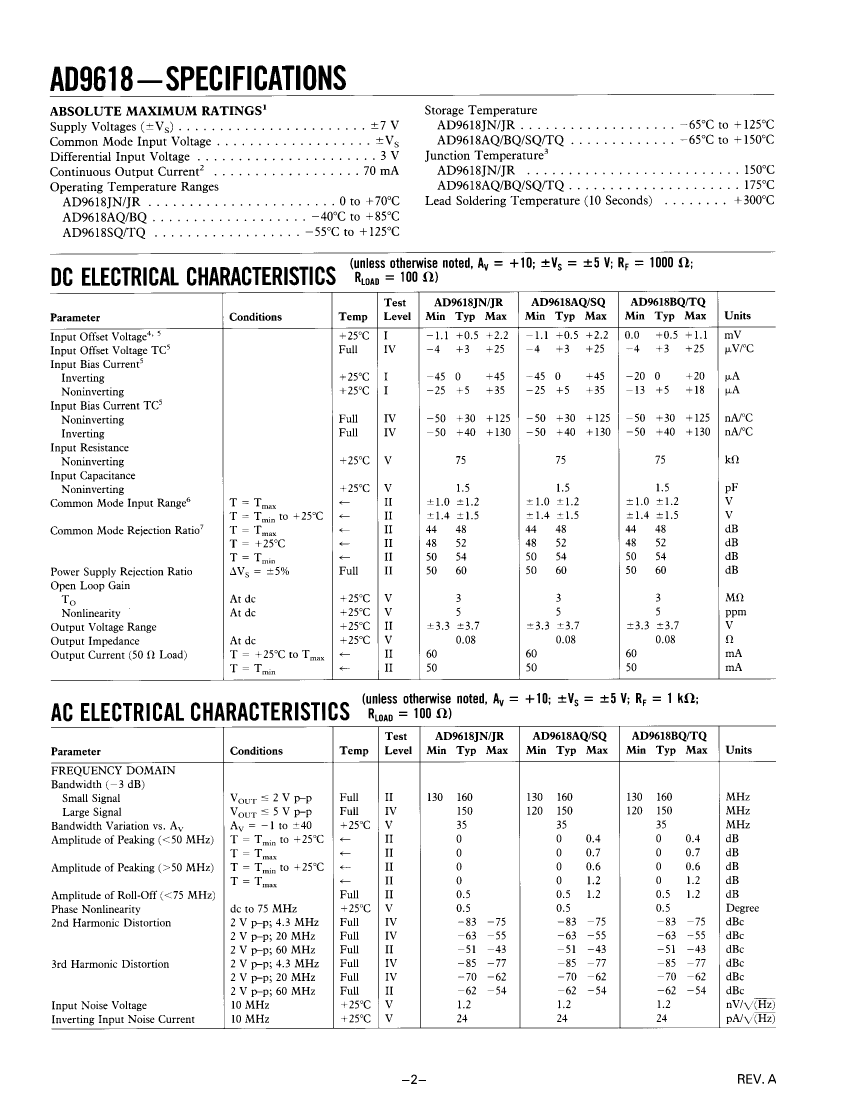

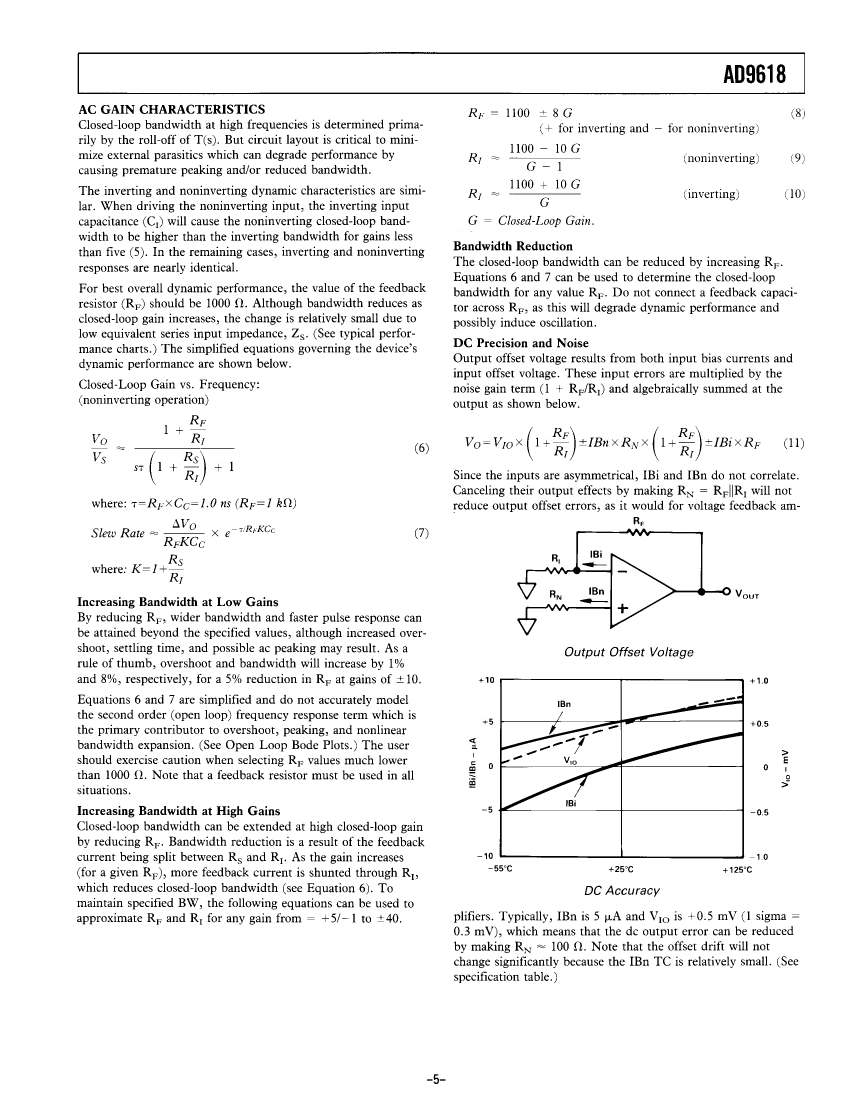

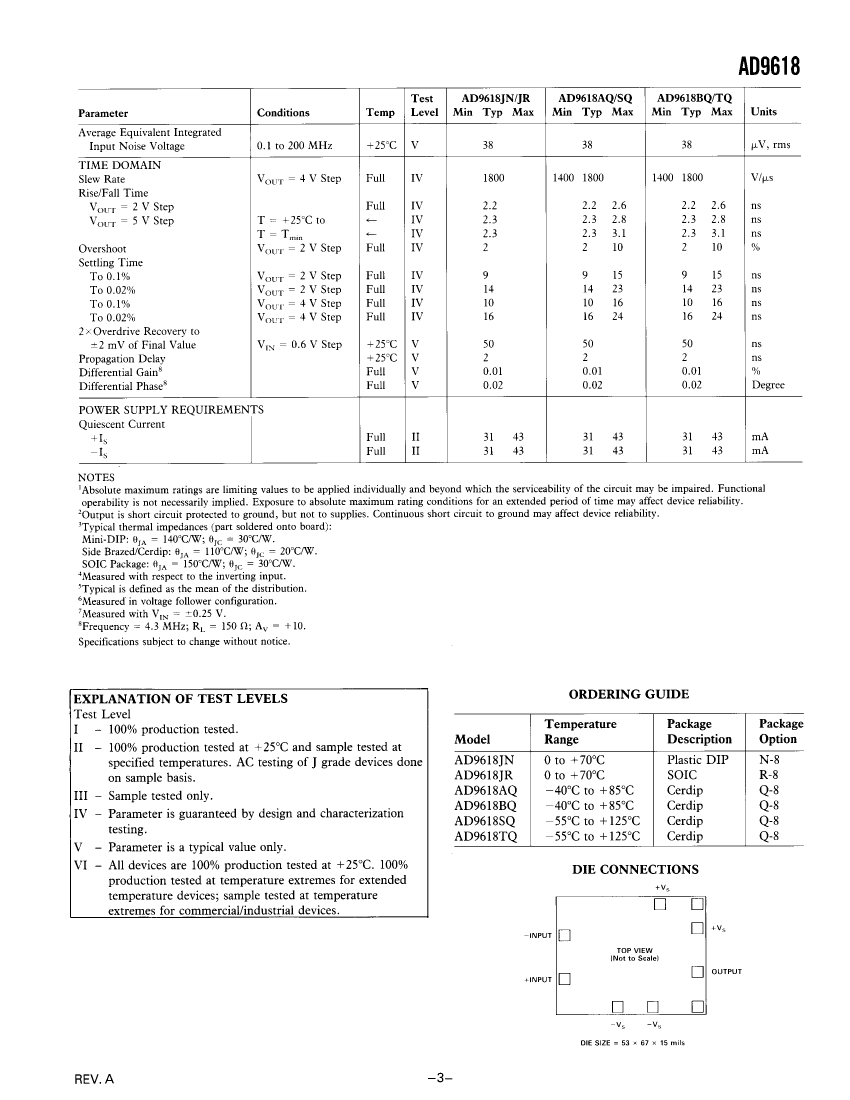

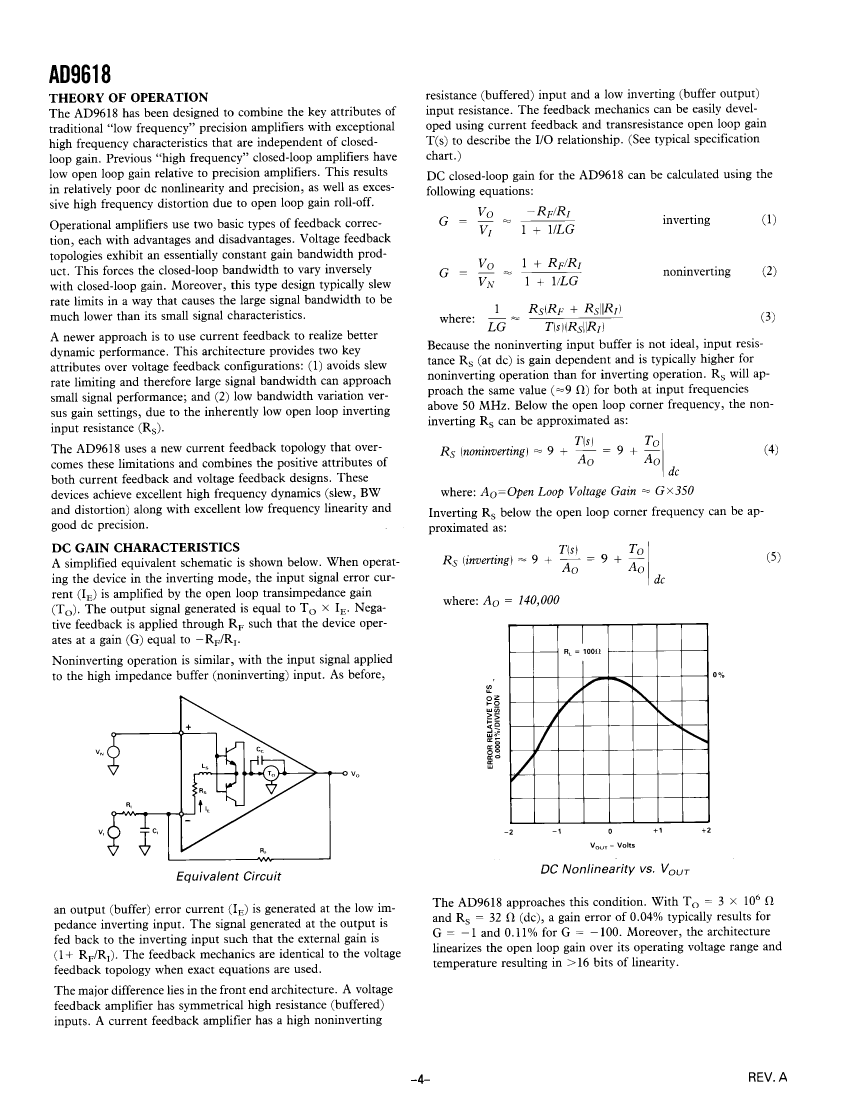

AD9618SZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeSOIC
package instructionPLASTIC, SOIC-8
Contacts8
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureCURRENT-FEEDBACK
Maximum bias current (IIB) at 25C45 µA
Minimum Common Mode Rejection Ratio50 dB
Nominal Common Mode Rejection Ratio60 dB
frequency compensationYES (AVCL>=5)
Maximum input offset voltage2200 µV
JESD-30 codeS-PDSO-G8
JESD-609 codee0
length6.475 mm
low-dissonanceNO
Negative supply voltage upper limit-7 V
Nominal Negative Supply Voltage (Vsup)-5 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.45
Package shapeSQUARE
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply+-5 V
Certification statusNot Qualified
Maximum seat height2.49 mm
minimum slew rate1400 V/us
Nominal slew rate1800 V/us
Maximum slew rate43 mA
Supply voltage upper limit7 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
broadbandYES
width6.475 mm
Base Number Matches1

AD9618SZ Related Products

AD9618SZ AD9618TZ/883B AD9618SZ/883B AD9618TZ AD9618SQ/883B AD9618TQ/883B
Description IC OP-AMP, 2200 uV OFFSET-MAX, PDSO8, PLASTIC, SOIC-8, Operational Amplifier IC OP-AMP, 1100 uV OFFSET-MAX, 8000 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Operational Amplifier IC OP-AMP, 2200 uV OFFSET-MAX, 8000 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Operational Amplifier IC OP-AMP, 1100 uV OFFSET-MAX, PDSO8, PLASTIC, SOIC-8, Operational Amplifier IC OP-AMP, 2200 uV OFFSET-MAX, 8000 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier IC OP-AMP, 1100 uV OFFSET-MAX, 8000 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code SOIC SOIC SOIC SOIC DIP DIP
package instruction PLASTIC, SOIC-8 PLASTIC, SOIC-8 PLASTIC, SOIC-8 PLASTIC, SOIC-8 DIP, DIP8,.3 DIP, DIP8,.3
Contacts 8 8 8 8 8 8
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture CURRENT-FEEDBACK CURRENT-FEEDBACK CURRENT-FEEDBACK CURRENT-FEEDBACK CURRENT-FEEDBACK CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C 45 µA 20 µA 45 µA 20 µA 45 µA 20 µA
Minimum Common Mode Rejection Ratio 50 dB 50 dB 50 dB 50 dB 50 dB 50 dB
Nominal Common Mode Rejection Ratio 60 dB 60 dB 60 dB 60 dB 60 dB 60 dB
frequency compensation YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5)
Maximum input offset voltage 2200 µV 1100 µV 2200 µV 1100 µV 2200 µV 1100 µV
JESD-30 code S-PDSO-G8 S-PDSO-G8 S-PDSO-G8 S-PDSO-G8 R-GDIP-T8 R-GDIP-T8
JESD-609 code e0 e0 e0 e0 e0 e0
low-dissonance NO NO NO NO NO NO
Negative supply voltage upper limit -7 V -7 V -7 V -7 V -7 V -7 V
Nominal Negative Supply Voltage (Vsup) -5 V -5 V -5 V -5 V -5 V -5 V
Number of functions 1 1 1 1 1 1
Number of terminals 8 8 8 8 8 8
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED
encapsulated code SOP SOP SOP SOP DIP DIP
Encapsulate equivalent code SOP8,.45 SOP8,.45 SOP8,.45 SOP8,.45 DIP8,.3 DIP8,.3
Package shape SQUARE SQUARE SQUARE SQUARE RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED 220 NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply +-5 V +-5 V +-5 V +-5 V +-5 V +-5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 2.49 mm 2.49 mm 2.49 mm 2.49 mm 5.08 mm 5.08 mm
minimum slew rate 1400 V/us 1400 V/us 1400 V/us 1400 V/us 1400 V/us 1400 V/us
Nominal slew rate 1800 V/us 1800 V/us 1800 V/us 1800 V/us 1800 V/us 1800 V/us
Maximum slew rate 43 mA 43 mA 43 mA 43 mA 43 mA 43 mA
Supply voltage upper limit 7 V 7 V 7 V 7 V 7 V 7 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V
surface mount YES YES YES YES NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING GULL WING THROUGH-HOLE THROUGH-HOLE
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED 30 NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
broadband YES YES YES YES YES YES
width 6.475 mm 6.475 mm 6.475 mm 6.475 mm 7.62 mm 7.62 mm
length 6.475 mm 6.475 mm 6.475 mm 6.475 mm - -
Base Number Matches 1 1 1 1 - -
Filter level - 38535Q/M;38534H;883B 38535Q/M;38534H;883B - 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal Uniform Gain Bandwidth - 8000000 kHz 8000000 kHz - 8000000 kHz 8000000 kHz
