MSM5259GS-VL datasheet, PDF - EEWORLD Datasheet

MSM5259GS-VL: DescriptionInterface Circuit, CMOS, PQFP56; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size350KB，9 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric View All

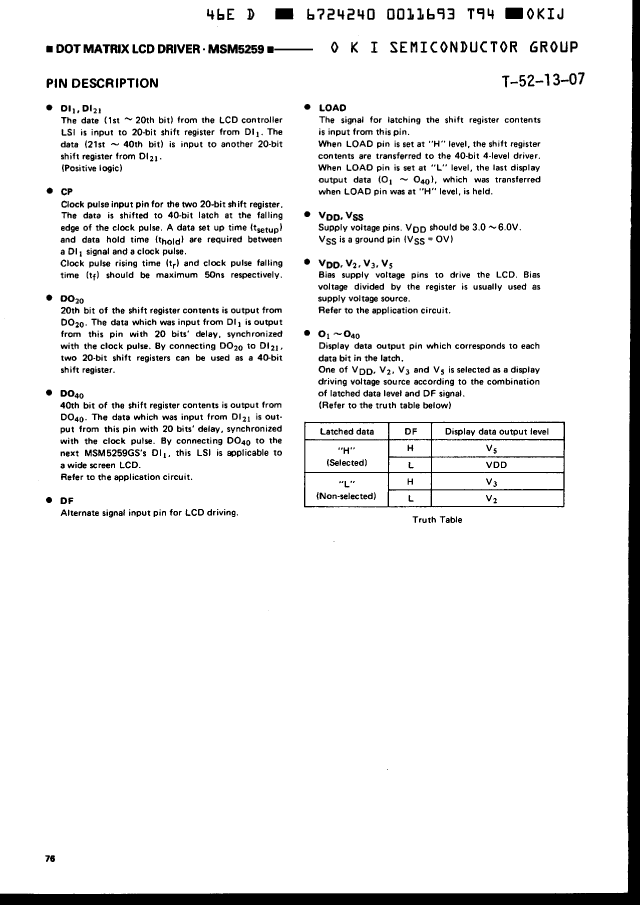

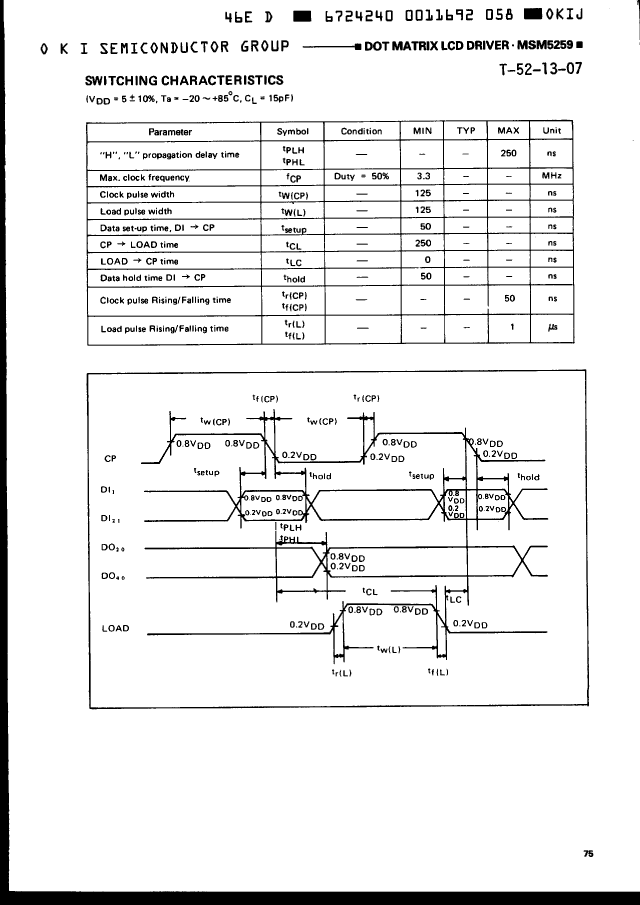

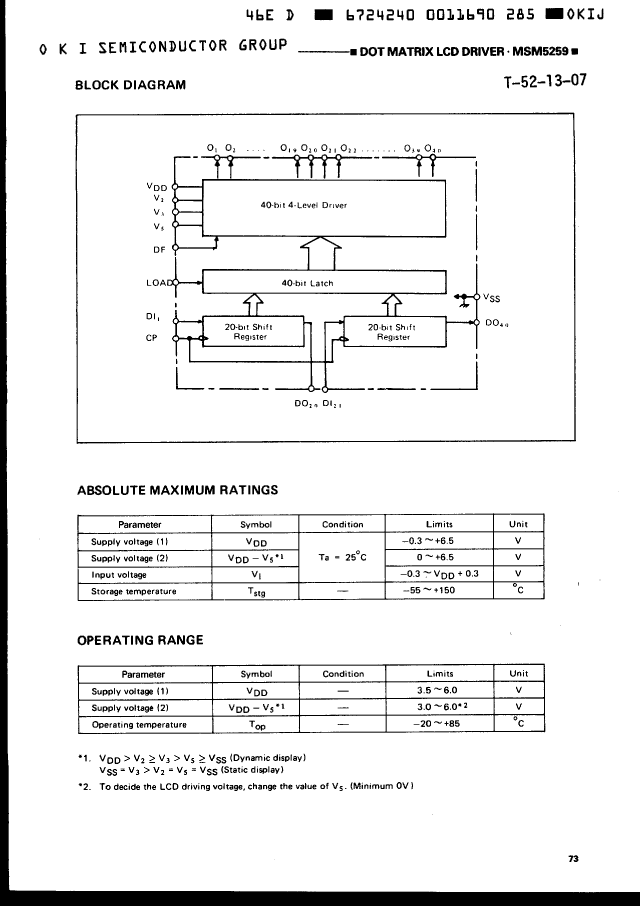

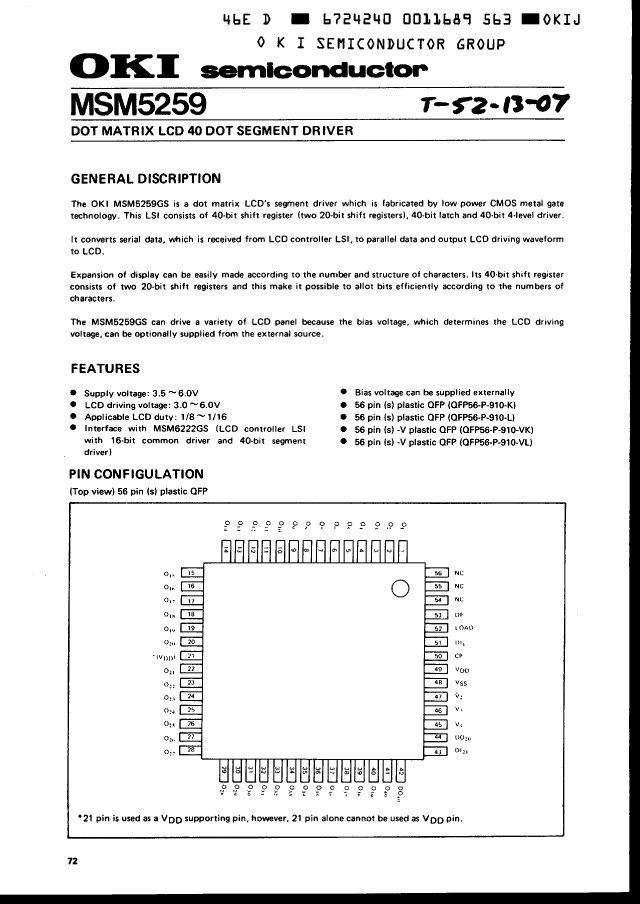

MSM5259GS-VL Overview

Interface Circuit, CMOS, PQFP56

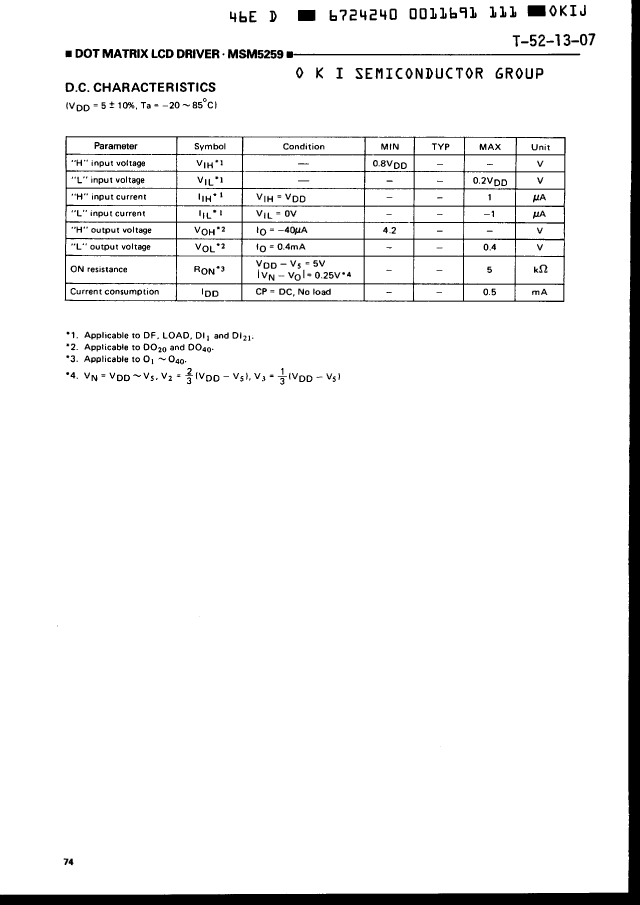

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QFP, QFP56,.53X.57
Reach Compliance Code	unknown
display mode	SEGMENT
JESD-30 code	S-PQFP-G56
JESD-609 code	e0
Number of base plates	0-BP
Number of segments	40
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP56,.53X.57
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	0.5 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
Base Number Matches	1
