UPD424170LG5-A80-7JF datasheet, PDF

Datasheet> All Categories > storage> storage> UPD424170LG5-A80-7JF

UPD424170LG5-A80-7JF: DescriptionIC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC; Categorystorage storage; File Size2MB，37 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD424170LG5-A80-7JF Overview

IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC

UPD424170LG5-A80-7JF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	TSOP, TSOP40/44,.46,32
Reach Compliance Code	unknown
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of terminals	40
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP40/44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.0005 A
Maximum slew rate	0.08 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Base Number Matches	1

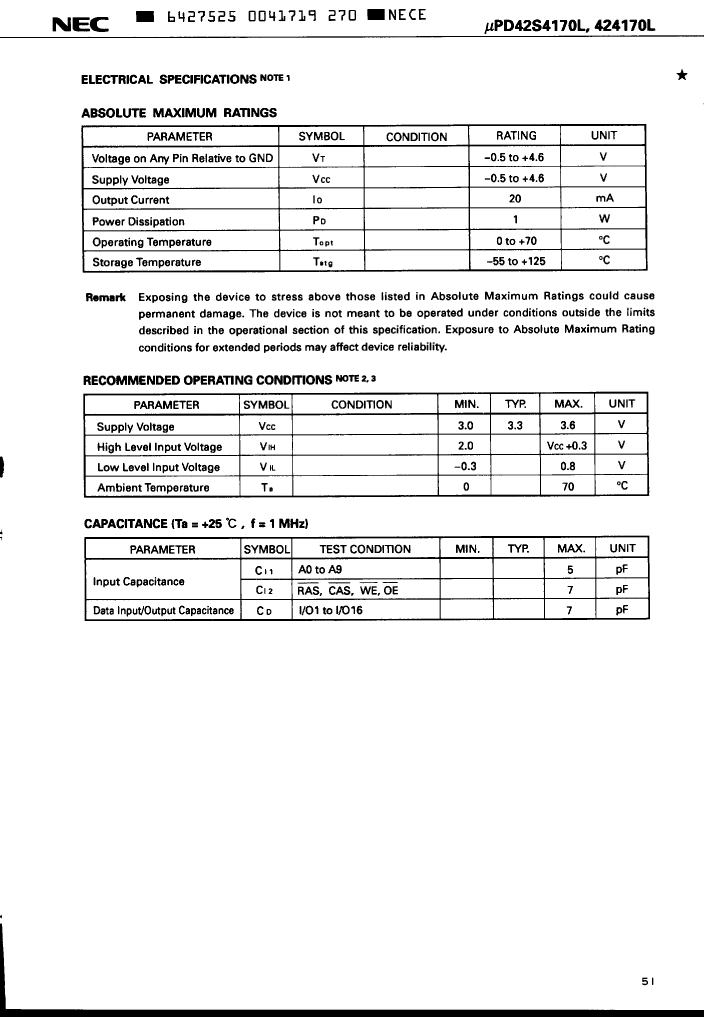

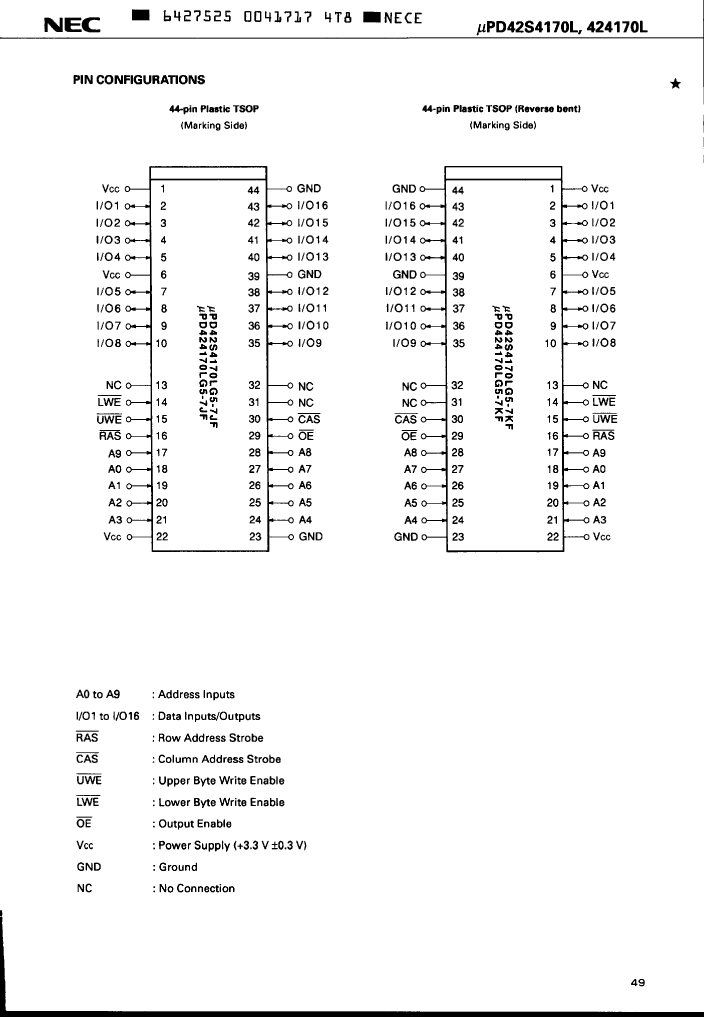

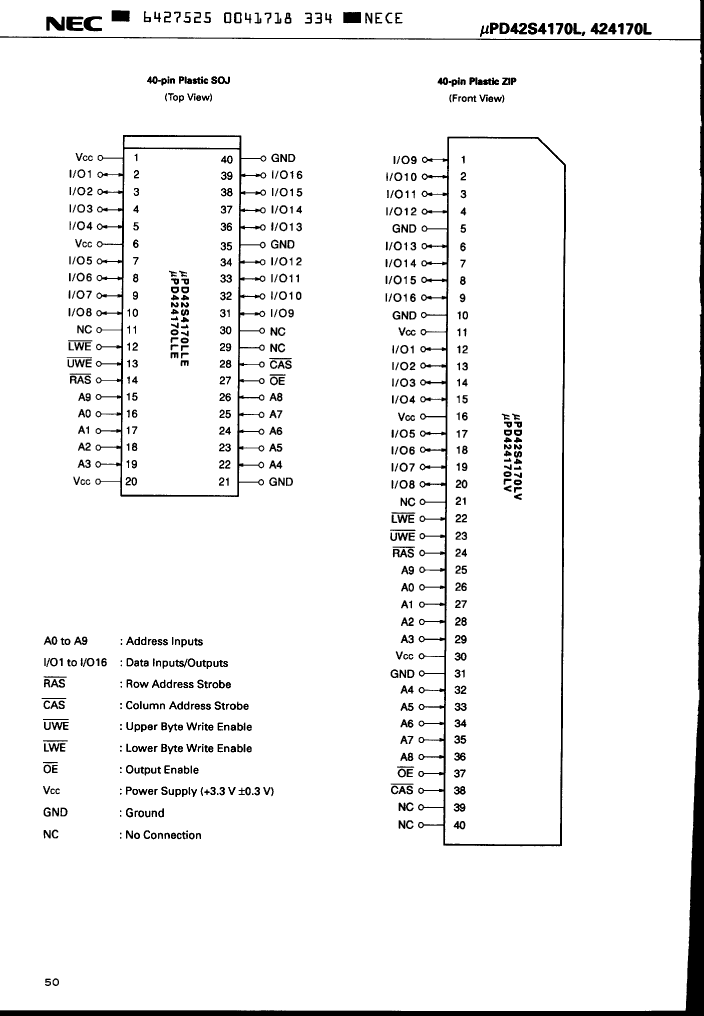

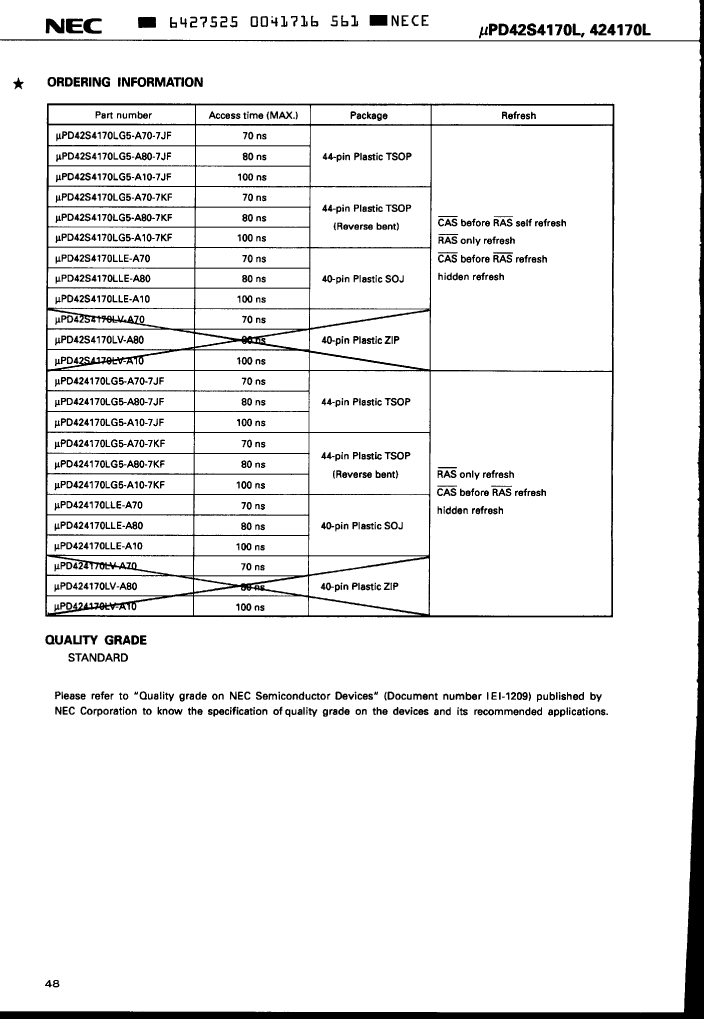

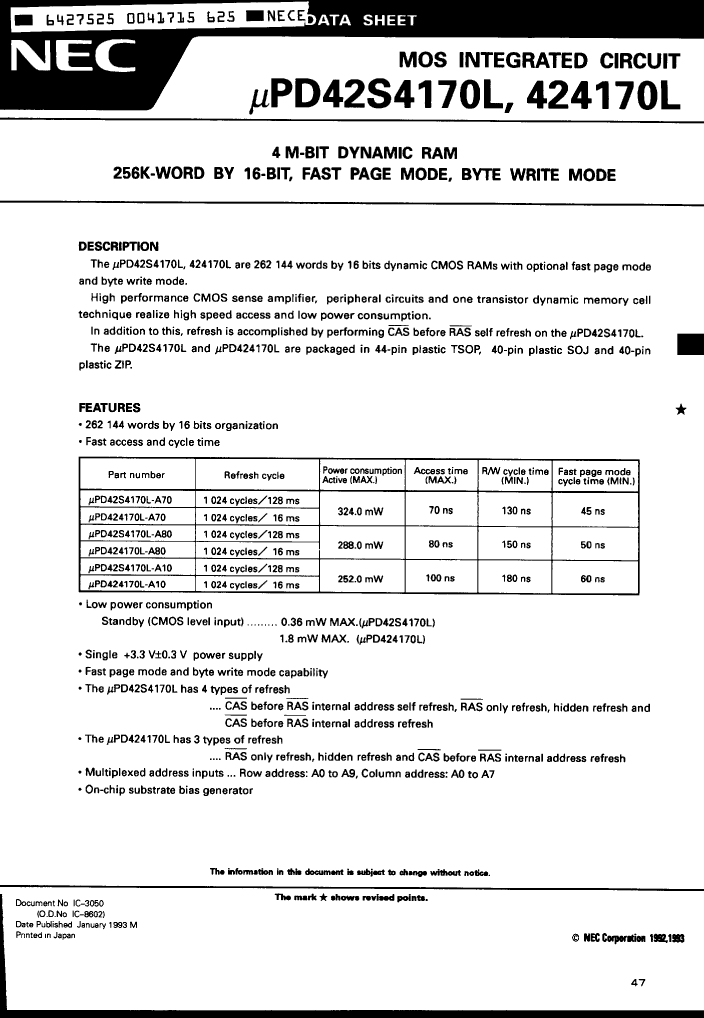

Preview

Download Datasheet

View All

UPD424170LG5-A80-7JF Related Products

	UPD424170LG5-A80-7JF	UPD42S4170LLE-A10	UPD424170LG5-A10-7JF	UPD424170LG5-A10-7KF	UPD424170LG5-A80-7KF	UPD42S4170LG5-A70-7JF
Description	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,SOJ,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC	IC,DRAM,FAST PAGE,256KX16,CMOS,TSOP,40PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSOP, TSOP40/44,.46,32	SOJ, SOJ40,.44	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	80 ns	100 ns	100 ns	100 ns	80 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G40	R-PDSO-J40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16	16
Number of terminals	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	SOJ	TSOP	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP40/44,.46,32	SOJ40,.44	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
self refresh	NO	YES	NO	NO	NO	YES
Maximum standby current	0.0005 A	0.0001 A	0.0005 A	0.0005 A	0.0005 A	0.0001 A
Maximum slew rate	0.08 mA	0.07 mA	0.07 mA	0.07 mA	0.08 mA	0.09 mA
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-
