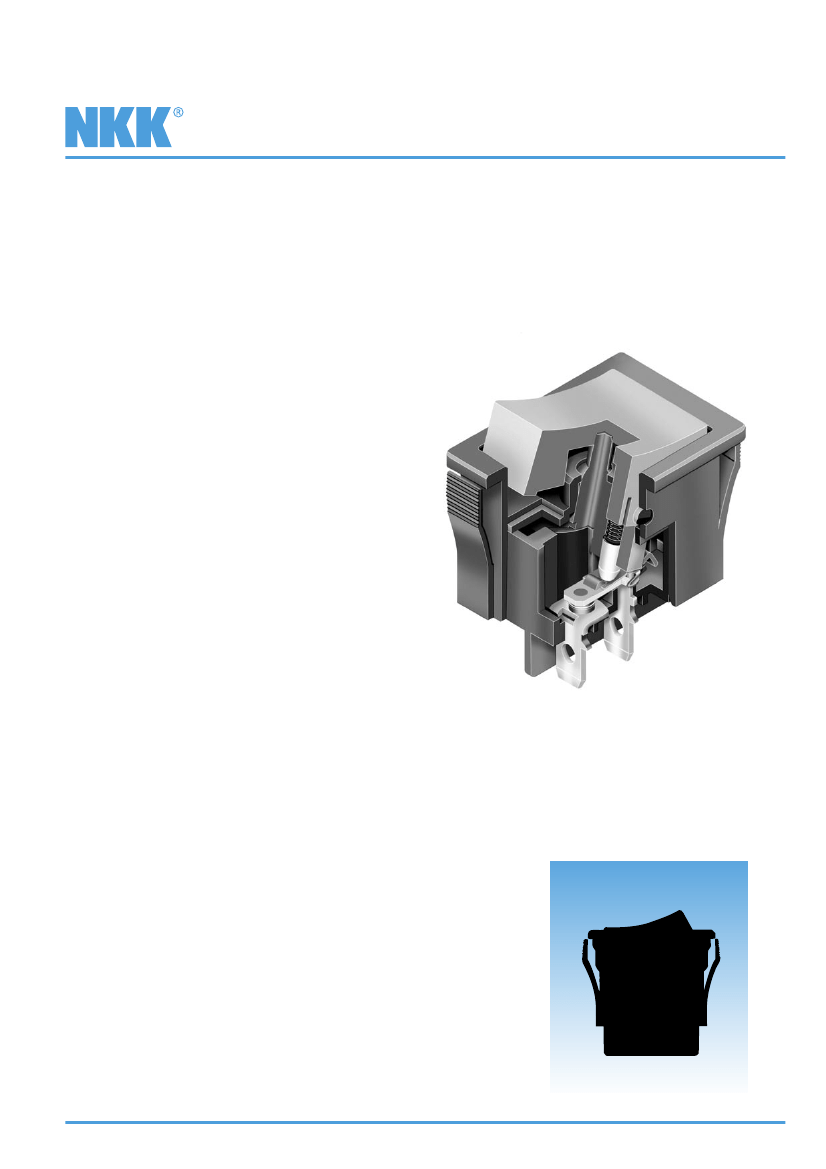

Internationally Approved TV Rated Rockers
Series JW
Distinctive Characteristics
Industry’s first molded rocker with TV rating. Designed to
handle large inrush current. JWM models certified for TV-5
rating and JWL models for TV-8 rating.
Special 5A @ 72V DC rating for JWL models to use
in worldwide telecommunication equipment for
power distribution applications.
Prominent external insulating barriers increase
insulation resistance and dielectric strength.
Constructed for dust resistance with interior
cover between actuator and contact area.
Specially designed to break light contact welds.
JWMW panel seal version meets IP67 of IEC60529
Standards (similar to NEMA 4 and 6).
Terminals are molded in and epoxy sealed to lock out flux, dust,
and other contaminants.
Actual Size JWM
Housing and case of heat resistant resin meet UL 94V-0
standard.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Internationally Approved TV Rated Rockers
Series JW
General Specifications
Electrical Capacity (Resistive Load)
Power Level:
10A @ 125/250V AC for JWM & JWMW models; 10A @ 30V DC for JWMW;
16A @ 125/250V AC for JWL models; 5A @ 72V DC for telecommunication applications
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Angle of Throw:
10 milliohms maximum for JWM & JWMW; 20 milliohms maximum for JWL
1,000 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
25,000 operations minimum
25,000 operations minimum
JWM & JWMW Single Pole 3.92N & Double Pole 7.84N
JWL Single Pole 5.00N & Double Pole 10.00N
26°
Materials & Finishes
Housing/Frame & Barrier:
Interior Seal for JWM & JWL:
Case/Base:
Polyamide (UL94V-0)
Polyphenylene sulfide
Melamine (UL94V-0)
Movable Contacts:
Stationary Contacts:
Terminals:
Silver alloy
Silver alloy
Brass with silver plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Sealing:
–25°C through +70°C (–13°F through +158°F) for JWM & JWL;
–25°C through +85°C (–13°F through +185°F) for panel seal JWMW model
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
IP67 of IEC60529 standard for panel seal JWMW model; dust resistant inner seal for others.
Installation
Soldering Time & Temp:
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
Flammability Standards:
TV Ratings for UL & CSA:
UL File No. WOYR2.E44145
CSA File No. 023535-0-000
UL & C-UL Recognized:
R
CSA Certified:
VDE Approved:
V
D E
UL94V-0 for housing/frame & case/base of JWL, JWM, & JWMW models
JWM & JWMW (TV-5) Overload Test @ 120V AC for 50 operations:
Steady State Current (rms) 7.5A; Minimum Inrush Current (peak) 111A
JWM & JWMW (TV-5) Endurance Test @ 120V AC for 25,000 operations:
Steady State Current (rms) 5A; Minimum Inrush Current (peak) 78A
JWL (TV-8) Overload Test @ 120V AC for 50 operations:
Steady State Current (rms) 12A; Minimum Inrush Current (peak) 163A
JWL (TV-8) Endurance Test @ 120V AC for 25,000 operations:
Steady State Current (rms) 8A; Minimum Inrush Current (peak) 117A
JWM & JWMW models recognized at 10A @ 250V AC & JWMW at 10A @ 30V DC;
JWL models recognized at 16A @ 250V AC; 5A @ 72V DC (specify “/U-DC” after part
number to request UL rating be marked on DC rated switches);
UL File No. WOYR2.E44145; C-UL File No. WOYR8.E44145.
JWM & JWMW models certified at 10A @ 250V AC;
JWL models certified at 16A @ 250V AC; CSA File No. 023535-0-000
JWM models approved at steady state 5A, inrush 80A, resistive 10A, &
motor load 6A all at 250V AC; VDE License No. 115637; JWL models approved at steady state 8A,
inrush 128A, resistive 16A, & motor load 8A all at 250V AC; VDE License No. 115637.
Note: JWM & JWL Double Pole, Single Throw models approved only with the
international on-off symbols on the actuator.
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com

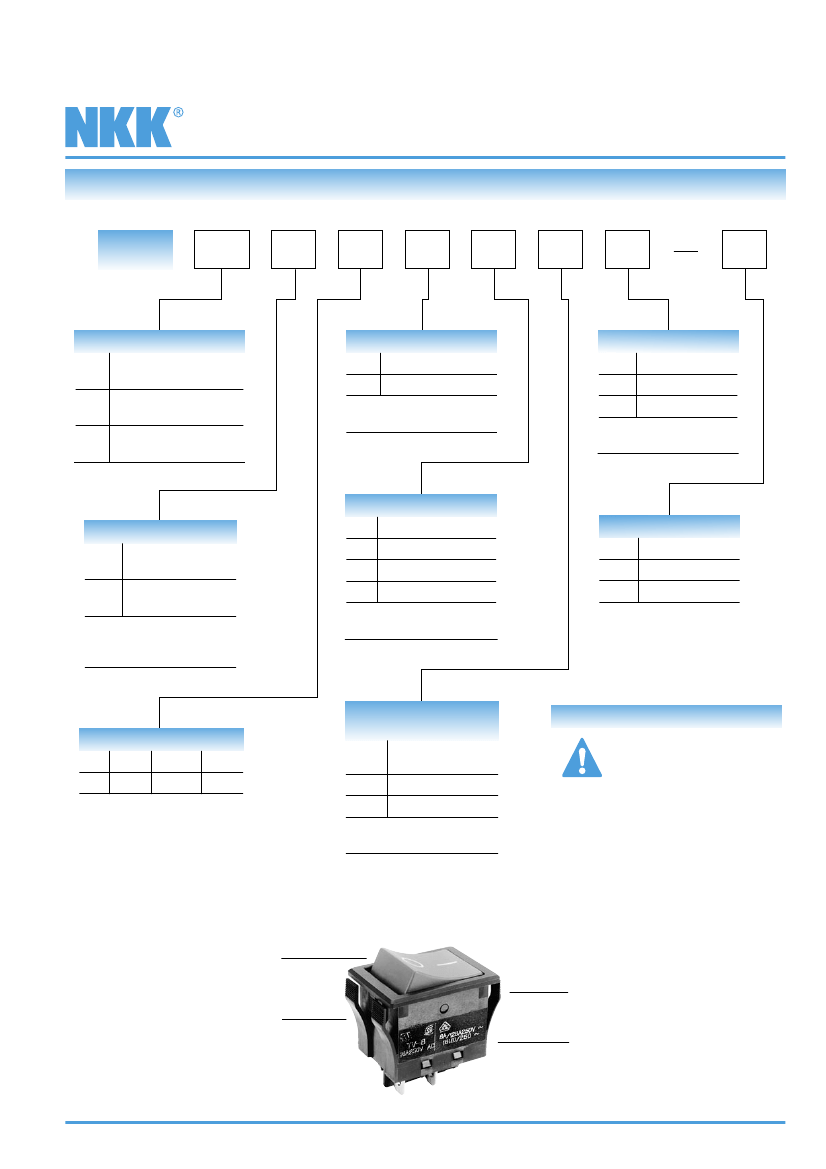

Internationally Approved TV Rated Rockers
TYPICAL SWITCH ORDERING EXAMPLE
Series JW
JW
RATINGS
M
MW
L
L
2
1
R
BARRIER TYPES
C
2
A
HOUSING COLORS
A
B
H
Black
Ivory
Gray
TV-5 Rated
10A @ 125/250V AC
Panel Seal TV-5 Rated
10A @ 125/250V AC
TV-8 Rated
16A @ 125/250V AC
R
B
No Barrier
With Barrier
Note: JWMW combines
with code R only.
Note: JWMW avail-
able with black only.
CAP COLORS
POLES
1
2
SPST
SPDT
* DPST
DPDT
A
B
C
H
Black
Ivory
Red
Gray
BARRIER COLORS
A
B
H
Black
Ivory
Gray
* DPST must have interna-
tional ON-OFF symbols
for VDE approval.
Note: JWMW available
with black or red only.
CIRCUITS
1
2
ON
ON
NONE
NONE
OFF
ON
INSCRIPTION
ORIENTATION
No
Code
1
2
No Inscription
Horizontal
Vertical
IMPORTANT:
Standard markings: TV Rating, UL,
C-UL, CSA, & VDE.
Specific models & ratings for
international approvals noted on
General Specifications page.
These are inscriptions for
Single Throw models only.
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
JWL21RC2A
Red Rocker Cap
with International ON-OFF Symbols
in Vertical Orientation
DPST
ON-NONE-OFF Circuit
Black Housing
TV-8 Rated
16A @ 125/250V AC
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07

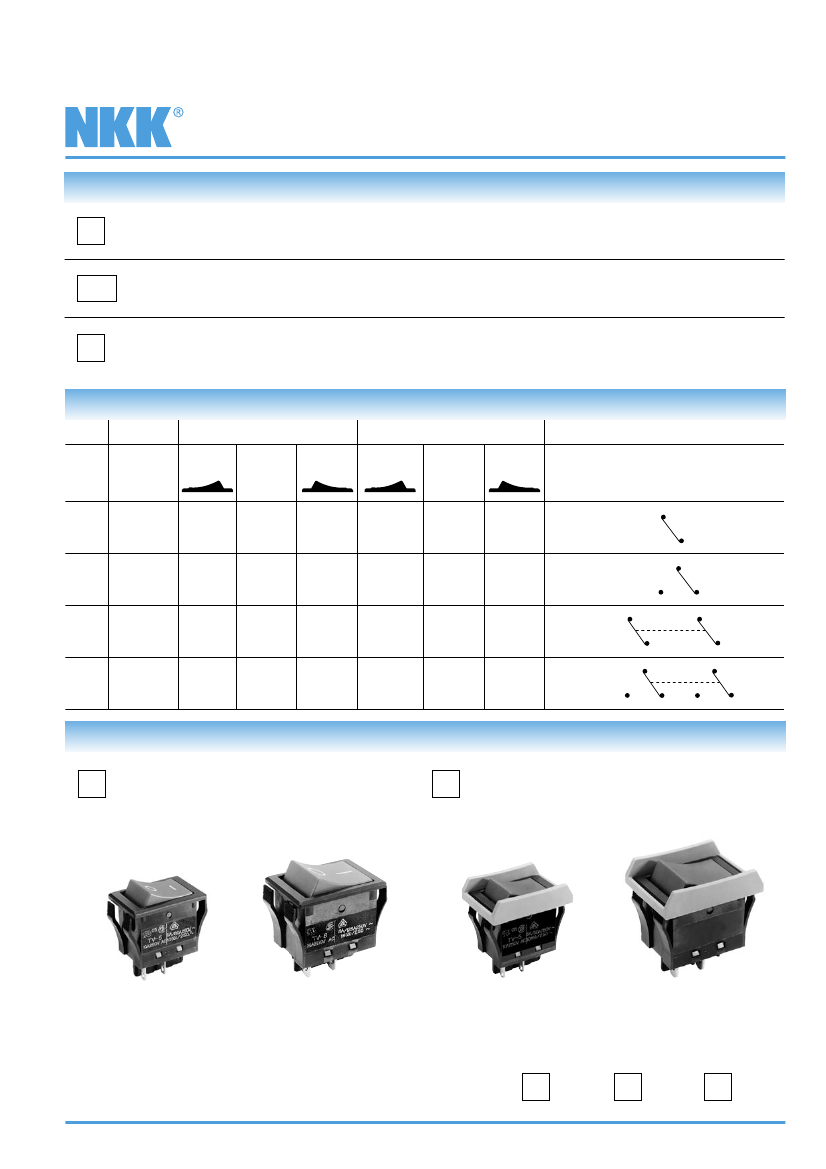

Internationally Approved TV Rated Rockers
RATINGS
M
MW
L
TV-5 Rated
Power Level
10A @ 125/250V AC
Series JW
Panel Seal TV-5 Rated
Power Level
10A @ 125/250V AC
TV-8 Rated
Power Level
16A @ 125/250V AC
POLES & CIRCUITS
Rocker Position
Down
Pole
SP
Model
JWM11
JWMW11
JWL11
JWM12
JWMW12
JWL12
JWM21
JWMW21
JWL21
JWM22
JWMW22
JWL22
ON
NONE
OFF
1-1b
OPEN
OPEN
Center
Up
Connected Terminals
Down
Center
Up
Throw & Schematics
Note: Terminal numbers are not actually
on the switch. Actuator positions oriented
with switch part number facing front.
1 (COM)
SPST
1b
1 (COM)
SP
ON
NONE
ON
1-1b
1-1b
2-2b
1-1b
2-2b
OPEN
1-1a
SPDT
1
1a
(COM)
1b
1
(COM)
1b
2a
2
1b
DP
ON
NONE
OFF
OPEN
OPEN
1-1a
2-2a
DPST
2b
2
2b
DP
ON
NONE
ON
OPEN
DPDT
1a
BARRIER TYPES & COLORS
R
No Barrier
B
With Barrier
Flange/Housing Material: Polyamide
Finish: Matte
Barrier Material: Polyamide
Finish: Matte
JWM
JWL
JWM
JWL
No-barrier type has a flat flange
which is an integral part of the switch.
JWMW panel seal device has exterior seal of acrylonitrile
butadiene rubber covering the flange.
Barrier type designates that either AT217 (for JWM) or
AT218 (for JWL) is factory assembled.
Dimensions for barriers are shown in the Accessories section.
Barrier Colors
Available:
A
Black
B
Ivory
H
Gray
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com

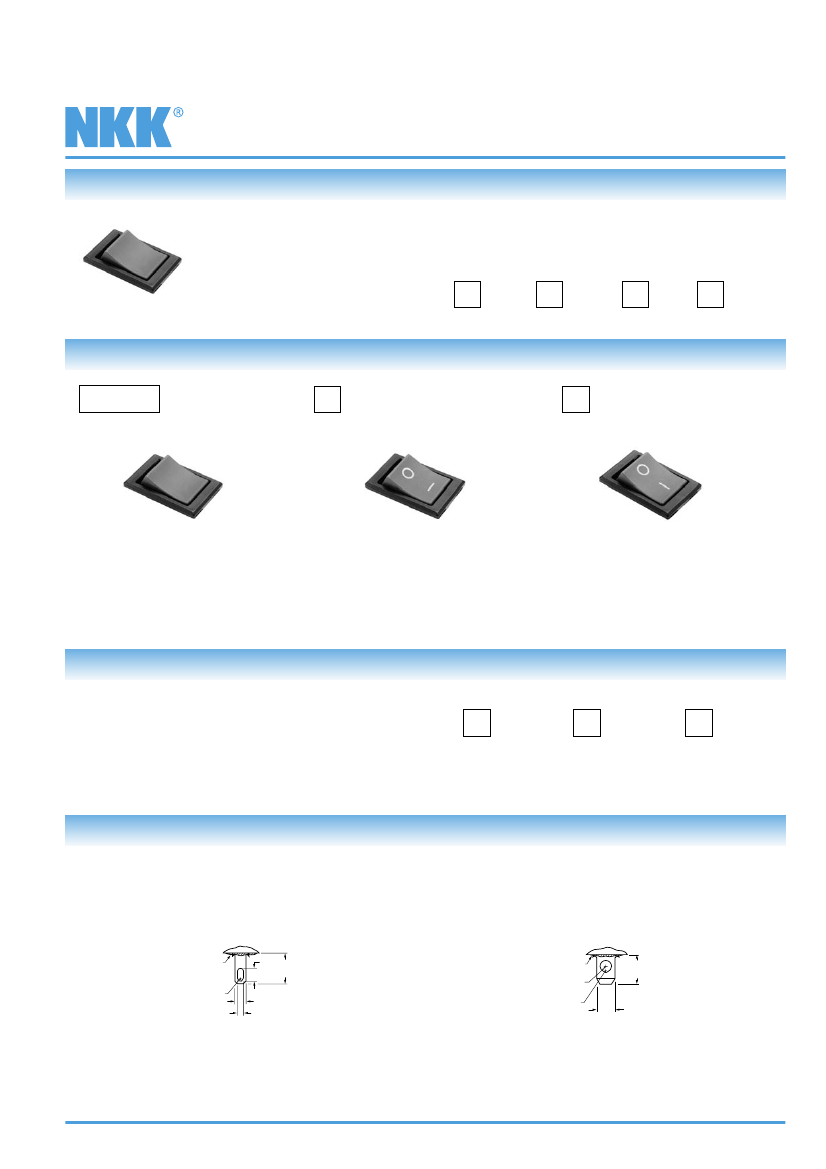

Internationally Approved TV Rated Rockers
CAP COLORS
Cap Material:
Polyphenelene Oxide
Finish: Matte
Series JW
Rocker cap is an integral part of the switch and not available separately.
JWMW available with black or red caps only.
Cap Colors
Available:
A
Black
B
Ivory
C
Red
H
Gray
INSCRIPTIONS
No Code
No Inscription
1
Inscription for
Horizontal Mounting
2
Inscription for
Vertical Mounting
DPST models without inscriptions
do not have VDE approval.
The IEC symbols for On-Off are supplied with Single Throw models only.
Orientation of inscription must be selected.
Inscription Colors: Black ink on Ivory or Gray cap. White ink on Black or Red cap.
Contact factory for other inscriptions.
HOUSING
Material: Polyamide
Finish: Matte
JWMW panel seal models available in black housing only.
Colors Available:
A
Black
B
Ivory
H
Gray
TERMINALS
Solder Lug/.110” (2.8mm) Quick Connect
JWM & JWMW
Solder Lug/.187” (4.75mm) Quick Connect
JWL
Epoxy Seal
(3.2)
.126 (7.5)
.295
Epoxy Seal
(1.5) R
.059
(0.65) R
.026
Thk = (0.8)
.031
(7.5)
.295
(0.6) R
(2.8)
.024
.110
(1.6)
.063
Thk = (0.5)
.020
(4.75)
.187
This switch assembly with connectors is not UL, C-UL, CSA, or VDE approved.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
