SMF1001D1
THRU
SMF1007D1
VOLTAGE 50V ~ 1000V
Elektronische Bauelemente
10.0AMP Surface Mount Fast Recovery Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen-free
TO-252
FEATURES
* Ideal for surface mount applications
* Easy pick and place
* Built-in strain relief
* Fast switching speed
2
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
* Polarity: Color band denotes cathode end
* Mounting position: Any
1
2
3
REF.
PIN 1
PIN 3
PIN 2
CASE
A
B
C
D
E
F
S
Millimeter
Min.
Max.
6.40
6.80
5.20
5.50
6.80
7.20
2.20
2.80
2.30 REF.
0.70
0.90
0.60
0.90
REF.
G
H
J
K
L
M
R
Millimeter
Min.
Max.
0.50
0.70
2.20
2.40
0.45
0.55
0
0.15
0.90
1.50
5.40
5.80
0.80
1.20
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=55 C (Per Leg 5.0A)
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at
5.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Ta=100 C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Thermal Resistance, Juntion to Lead (Note 3)
Thermal Resistance, Juntion to Ambient (Note 3)
Operating and Storage Temperature Range T
J
, T
STG
SMF1001D1 SMF1002D1 SMF1003D1 SMF1004D1SMF1005D1SMF1006D1 SMF1007D1
UNITS
50
35
50
100
70
100
200
140
200
400
280
400
10.0
100
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
V
u
A
1.3
1.5
10
0.5
250
44
8
30
-65 ~ +150
1.7
m
A
500
nS
pF
C/W
C
150
NOTES:
1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3. Rating applies when surface mounted on the minimum pad size recommended, PC Board with 8.0 X 8.0mm copper pad.
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
SMF1001D1
THRU
SMF1007D1
VOLTAGE 50V ~ 1000V
Elektronische Bauelemente
10.0AMP Surface Mount Fast Recovery Rectifiers

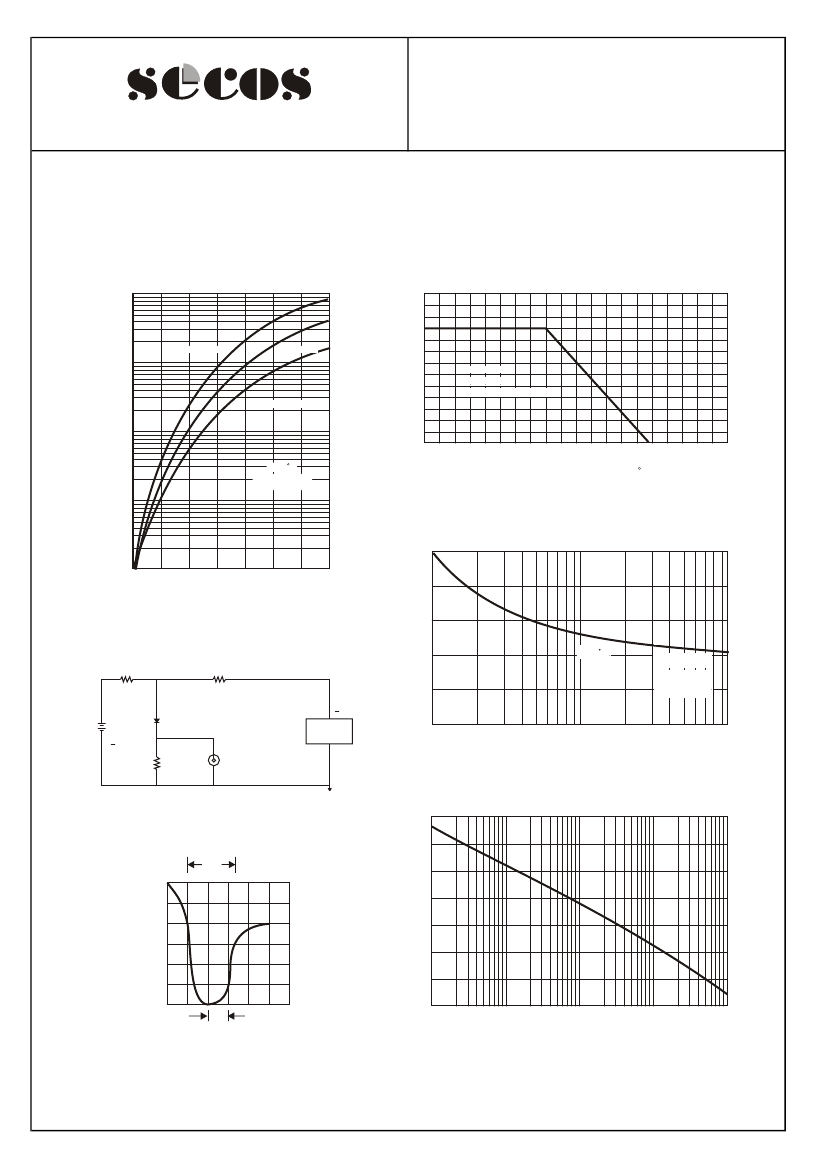

RATING AND CHARACTERISTIC CURVES (SMF1001D1 THRU SMF1007D1)
FIG.1-TYPICAL FORWARD
20
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
12
10
8.0
6.0
4.0
2.0
0
0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
INSTANTANEOUS FORWARD CURRENT,(A)
SMF1001~SMF1004
SMF1005
10
5.0
SMF1006~SMF1007
1.0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE ( C)
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWAARD SURGE CURRENT,(A)
100
0.1
.01
.6
.8
1.2
1.4
1.6
1.8
2.0
2.2
FORWARD VOLT
AGE,(V)
80
FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
60
40
Tj=25 C
8.3ms Single Half
Sine Wave
20
JEDEC method
(+)
25Vdc
(approx.)
( )
1
W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
FIG.5-TYPICAL JUNCTION CAPACITANCE
35
30
25
20
15
10
5
trr
+0.5A
|
|
|
|
|
|
|
|
0
-0.25A
JUNCTION CAPACITANCE,(pF)
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
0
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
