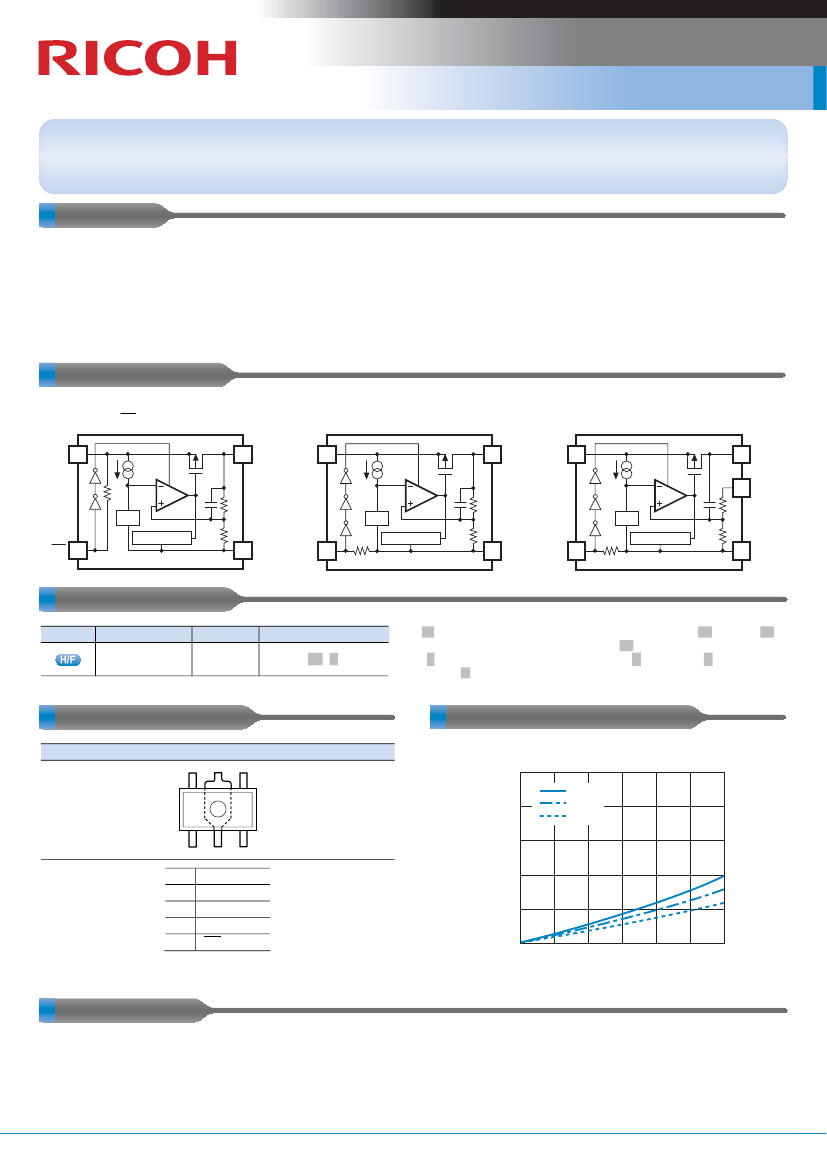

R1130H Series
8V Input 300mA LDO with/without Adjust pin
The R1130H Series are CMOS-based LDO regulators featuring 300mA output. The input voltage (V
IN
) is as high as Max. 8V (maximum
rating of 9V). R1130H is available in two versions : the internally fixed output voltage type or the adjustable output voltage type by
external resistors. The CE pin can switch the regulator into standby mode.
∗)
These products are suitable for automotive applications too. Please refer to our "Car Electronics Products Catalog" or contact us.
FEATURES
•
Supply Current (I
SS
) ························ Typ. 50μA (V
IN
=V
SET
+1.0V)
•
Standby Current (I
standby
) ················· Typ. 0.1μA (Same as above, In standby)
•
Dropout Voltage (V
DIF
) ···················· Typ. 0.25V (I
OUT
=100mA, V
SET
=2.8V)
•
Ripple Rejection (RR)····················· Typ. 60dB (f=1kHz)
•
Input Voltage Range (V
IN
) ··············· 2.5V to 8.0V
•
Output Voltage Range (V
OUT
)·········· 1.5V to 5.0V (Internally fixed)
Adjustable by external resistors (C Version)
(Feedback voltage : 1.8V)
•
Output Voltage Accuracy ················± 2%
•
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
•
Line Regulation·······························Typ. 0.1%/V
•
Fold-back Protection Circuit············Current limit Typ. 70mA (V
OUT
≤3.9V)
•
Current limit Typ. 50mA (V
OUT
≥4.0V)
Package··········································SOT-89-5
BLOCK DIAGRAMS
R1130Hxx1A
(
CE
pin "L" active)
V
DD
V
OUT
R1130Hxx1B
(CE pin "H" active)
V
DD
V
OUT
V
DD
R1130Hxx1C
(With ADJUST pin)
V
OUT
ADJ
Vref
Vref
Vref
CE
Current Limit
GND
CE
Current Limit
GND
CE
Current Limit
GND
SELECTION GUIDE
Halogen Free
Package
SOT-89-5
Q'ty per Reel
Part No.
.xx.
: Specify the output voltage within the range of 1.5V (.15.) to 5.0V (.50.)
in 0.1V steps. (C Version is fixed at
.00..)
.∗
: Select the polarity of the CE pin from (.A.) "L" active, (.B.) "H" active,
or (.C.) "H" active with ADJUST pin.
1,000 pcs R1130H.xx.1.
∗
-T1-FE
PACKAGE (Top View)
SOT-89-5
5
4
TYPICAL CHARACTERISTIC
R1130H331B
2.5
Dropout Voltage V
DIF
(V)
Dropout Voltage vs. Output Current
85°C
25°C
-40°C
2.0
1.5
1.0
0.5
0
0
1
2
3
1
2
3
4
5
V
OUT
V
DD
GND
NC or ADJ
CE
or CE
50
100 150 200 250
Output Current I
OUT
(mA)
300
APPLICATIONS
•
Power source for CD/DVD drives
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for automotive application
•
Power source for laptop personal computers
•
Power source for battery-powered equipment
