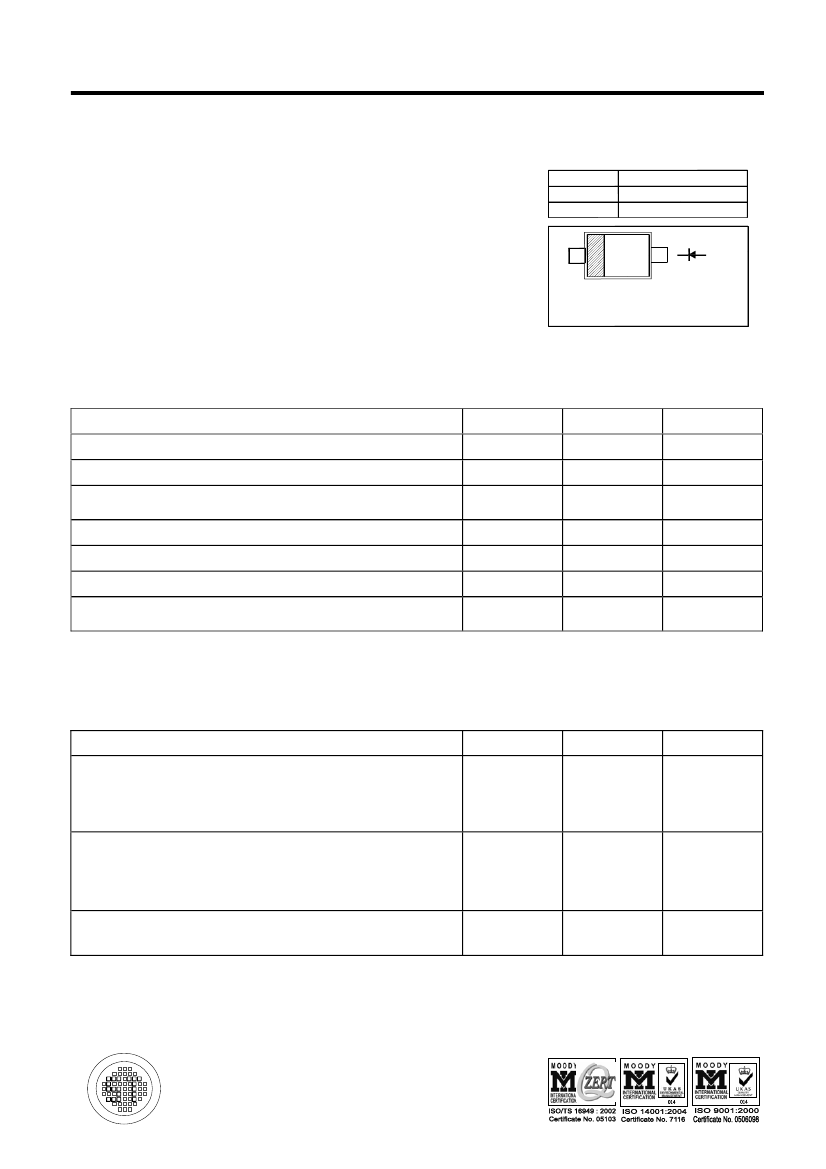

BAT760WS
SCHOTTKY BARRIER DIODE
Features
• Ultra high-speed switching
• Very low forward voltage
• Very small SMD plastic package
Applications
• Ultra high-speed switching
• Voltage clamping
• Protection circuits
PINNING
PIN
1
2
1
DESCRIPTION
Cathode
Anode
2
FP
Top View
Marking Code: "FP"
Simplified outline SOD-323 and symbol
Absolute Maximum Ratings (T
a
= 25
O
C)
Parameter
Reverse Voltage
Continuous Forward Current
Non-repetitive Peak Forward Current (t = 8.3 ms Half Sine
Wave, JEDEC method)
Junction Temperature
Operating Ambient Temperature Range
Storage Temperature Range
Thermal Resistance from Junction to Ambient
Mounted on P.C.B. 10 X 10 mm
2
Cu
2)
Mounted on P.C.B. 40 X 40 mm
2
Cu
1)
Symbol
V
R
I
F
I
FSM
T
J
T
op
T
stg
R
θJA
Value
20
1
5
125
- 65 to + 125
- 65 to + 150
220
2)
180
1)
Unit
V
A
A
O
C
C
C
O
O
K/W
Characteristics at T
a
= 25
O
C
Parameter
Forward Voltage
at I
F
= 10 mA
at I
F
= 100 mA
at I
F
= 1 A
Reverse Current
at V
R
= 5 V
at V
R
= 8 V
at V
R
=15 V
Diode Capacitance
at V
R
= 5 V, f = 1 MHz
Symbol
V
F
Max.
0.27
0.35
0.65
10
20
50
25
Unit
V
I
R
µA
C
d
pF
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 01/09/2006

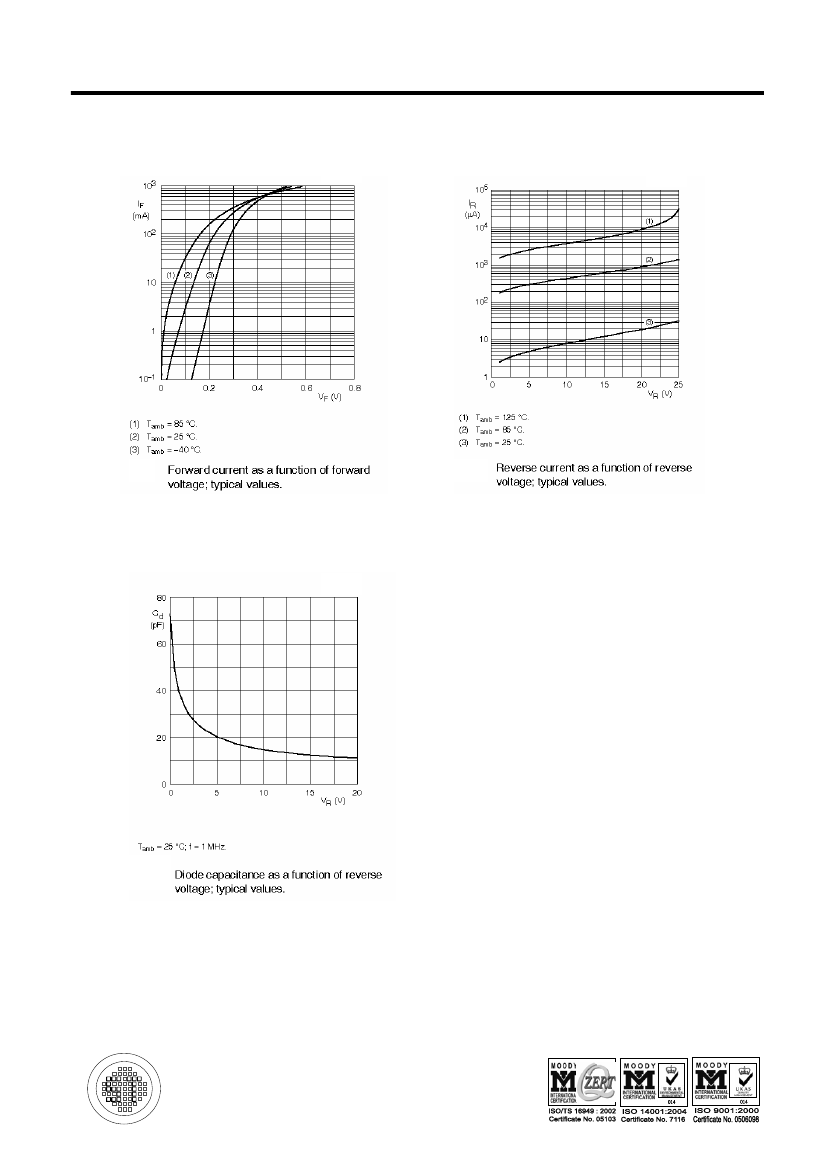

BAT760WS
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 01/09/2006
BAT760WS

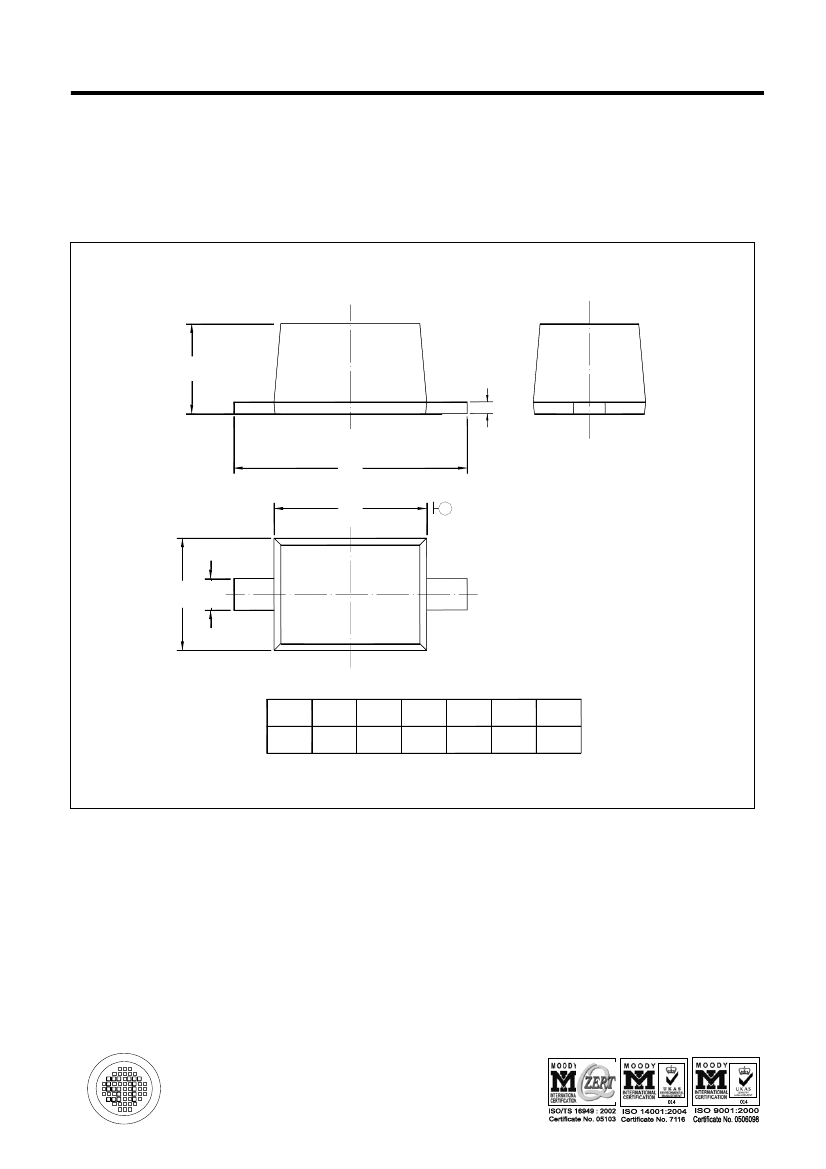

PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
SOD-323
A
c
H
E
D
A
E
b
p
UNIT
mm
A
1.10
0.80
b
p
0.40
0.25
C
0.15
0.00
D
1.80
1.60
E
1.35
1.15
H
E
2.80
2.30
SEMTECH ELECTRONICS LTD.
®
(Subsidiary
of Sino-Tech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
Dated : 01/09/2006
