SUF302B: Description3.0AMP Surface Mount Super Fast Recovery Rectifiers; CategoryDiscrete semiconductor diode; File Size189KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SUF302B Overview

3.0AMP Surface Mount Super Fast Recovery Rectifiers

SUF302B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDSO-C2
Reach Compliance Code	compli
ECCN code	EAR99
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

SUF301B

Elektronische Bauelemente

THRU

SUF305B

VOLTAGE 50V ~ 600V

3.0AMP Surface Mount Super Fast Recovery Rectifiers

RoHS Compliant Product

A suffix of "-C" specifies halogen-free

DO-214AA(SMB)

FEATURES

* Ideal for surface mount applications

* Easy pick and place

* Built-in strain relief

*

Super

Fast switching speed

under 35ns

.083(2.11)

.075(1.91)

.185(4.70)

.160(4.06)

.012(0.31)

.006(0.15)

.096(2.44)

.083(2.13)

.050(1.27)

.030(0.76)

.155(3.94)

.130(3.30)

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Metallurgically bonded construction

* Polarity: Color band denotes cathode end

* Mounting position: Any

* Weight:

1.10

grams

.008

(.203)MAX.

.220(5.59)

.200(5.08)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature unless otherwise specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

Maximum

Recurrent Peak Reverse Voltage

RMS Voltage

DC Blocking Voltage

Average Forward Rectified Current

SUF301B

SUF302B

SUF303B

SUF304B

SUF305B

UNITS

50

35

50

100

70

100

200

140

200

3.0

80

400

280

400

600

420

600

V

A

V

µ

A

.375"(9.5mm)

Lead Length at Ta=55 C

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Instantaneous Forward Voltage at 3.0A

Maximum DC Reverse Current

Ta=25 C

at Rated DC Blocking Voltage

T a=100 C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range T

J

, T

STG

NOTES:

0.98

5.0

80

35

15

-65 +175

1.25

1.7

µ

A

nS

pF

C

1. Reverse Recovery Time test condition: I

F

=0.5A, I

R

=1.0A, I

RR

=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

http://www.SeCoSGmbH.com

Any changing of specification will not be informed individual

01-Jun-2002 Rev. A

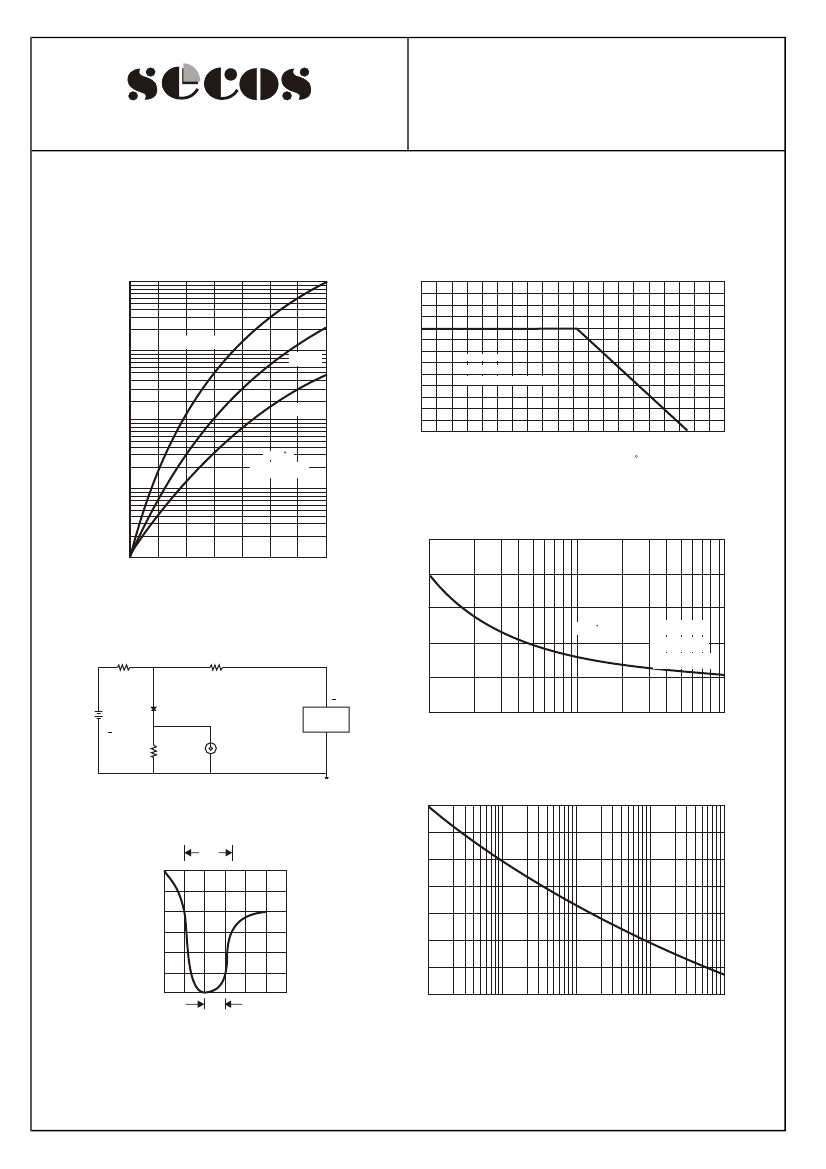

Page 1 of 2
