LESHAN RADIO COMPANY, LTD.
Bridge rectifiers
FEATURES
．Plastic
Package has Underwriters Laboratory
Flammability Classification 94V-0
．Glass
passivated chip junctions
．Surge
overload rating of 30 Amperes peak
．Ideal
for printed circuit board
．
We declare that the material of product
compliance with RoHS requirements.

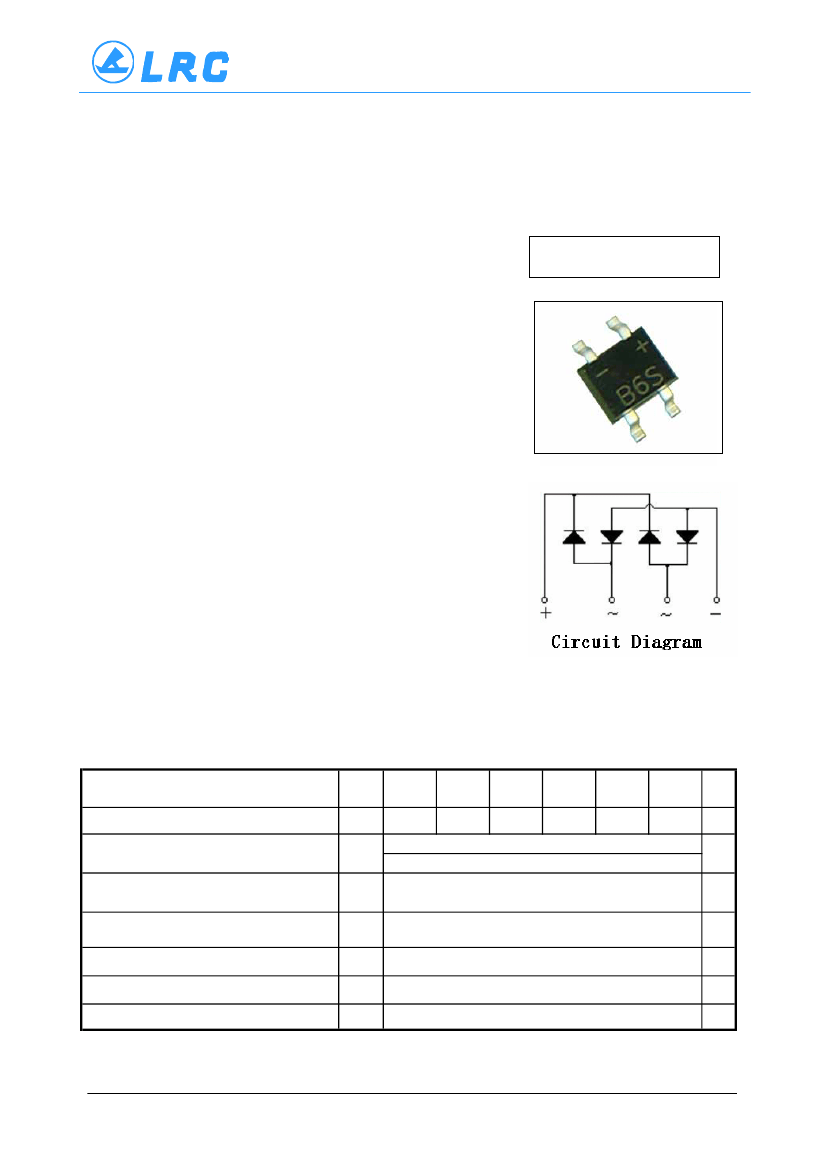

B1S Thru B10S
MECHANICAL DATA
．Case:
Molded plastic
．Weight:
0.02 ounce,0.5 gram
．High
temperature soldering guaranted :
260℃/10seconds
Product Characteristic
Parameter Symbol
Maximum repetitive voltage
Maximum DC reverse current
at rated DC blocking voltage
TA=25
℃
TA=125℃
Symbol
V
RM
I
R
Io
I
FSM
V
F
T
J
Tstg
B1S
B2S
B4S
B6S
B8S
B10S
Unit
V
µA
A
A
V
℃
℃
100
200
400
5
250
0.5
30
1.00
125
600
800
1000
Maximum Average Forward Rectified Current
Tc=40℃
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage at 0.5A
Operating junction temperature
Storage temperature
-40~150
1/4
LESHAN RADIO COMPANY, LTD.
Characteristic Curves

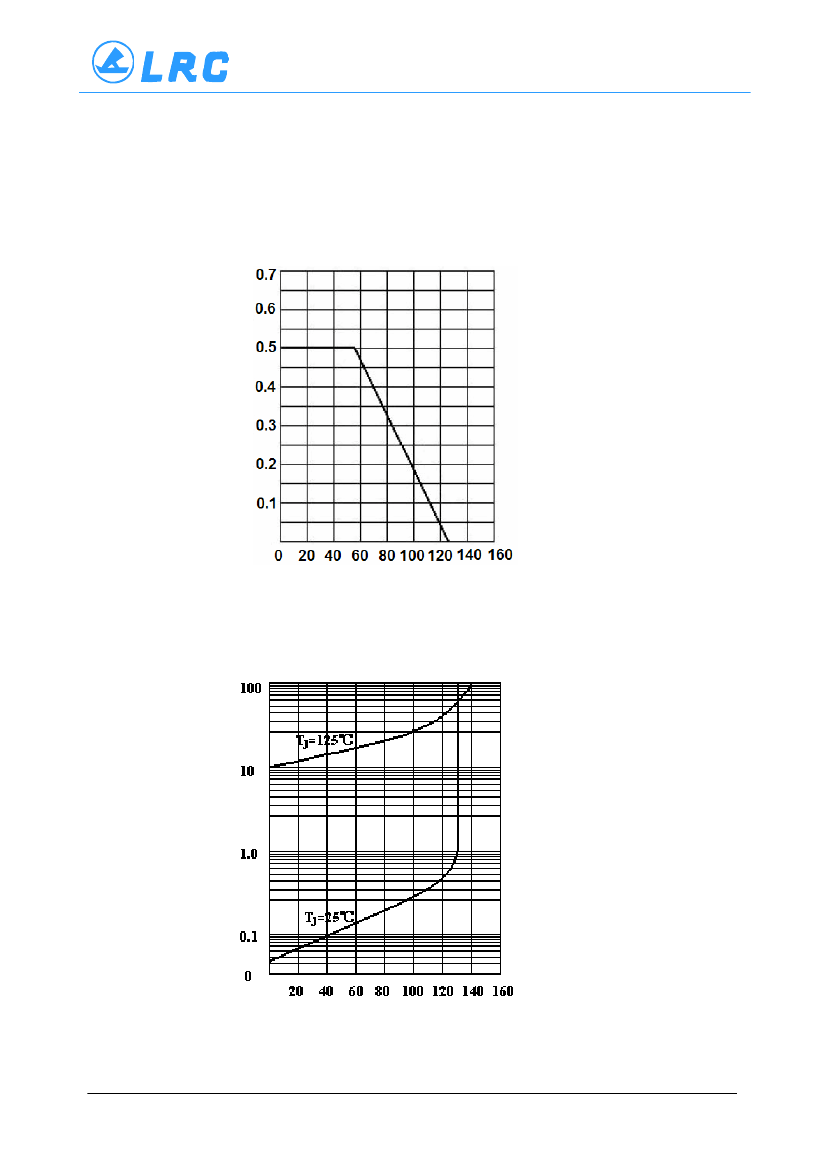

Fig. 1 derating Curve
Average Rectified Forward Current Io(A)
Case Temperature Tc(
℃)
Fig.2 Typical Reverse Characteristics
Instantaneous Reverse Current Microamperes
Percent of Rated Peak Reverse Voltage%
2/4
LESHAN RADIO COMPANY, LTD.

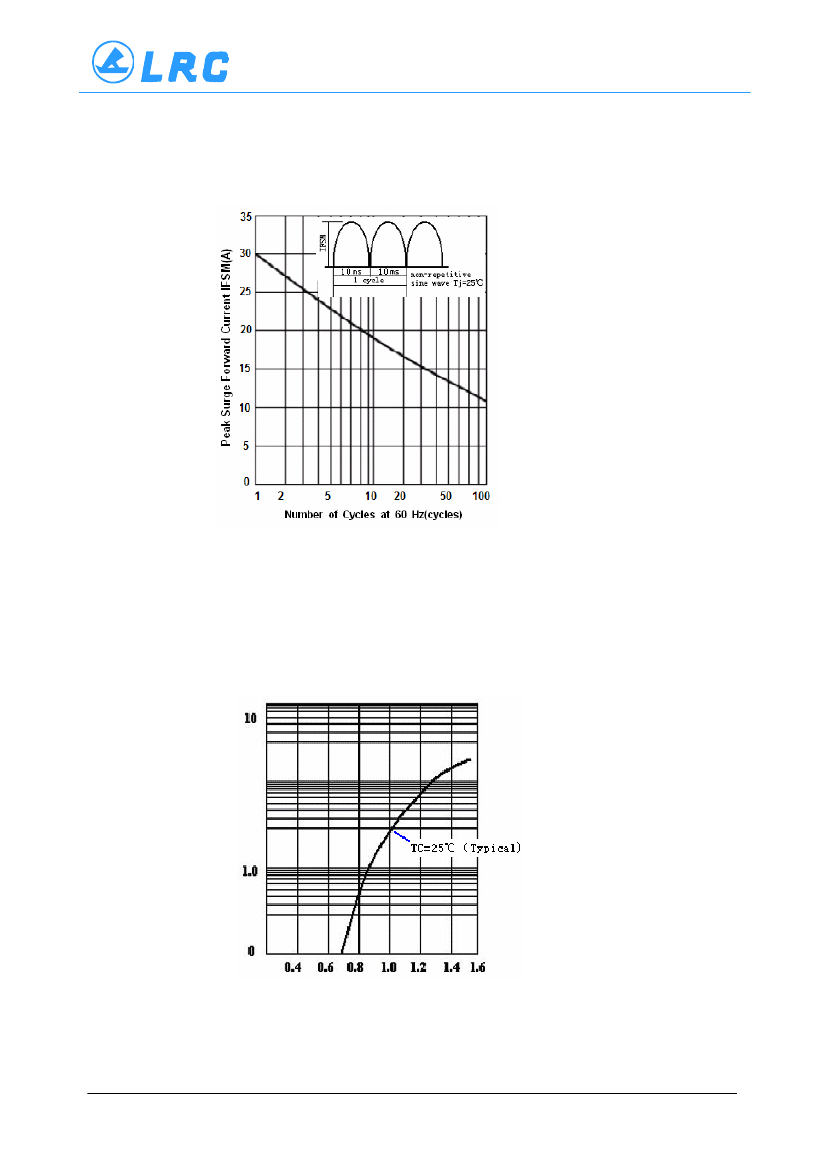

Fig.3 Peak Surge Forward capability
Fig.4 Forward Voltage
Forward Current IF(A)
Forward Voltage V
F
（V）
3/4
LESHAN RADIO COMPANY, LTD.
SHAPE AND DIMENSIONS
DIM
A
B
C
D
E
F
G
H
I
J
NOTES:
INCHES
MIN
MAX
0.177
0.193
0.091
0.106
0.012
0.028
0.091
0.106
0.039 *45°
0.150
0.165
0.020
0.031
0.181
0.220
0.236
0.276
0.006
0.014
MILLIMETERS
MIN
MAX
4.50
4.90
2.30
2.70
0.30
0.70
2.30
2.70
1*45°
3.80
4.20
0.50
0.80
4.60
5.60
6.00
7.00
0.15
0.35
1. DIMENSIONING AND TOLERANCING PER ANSIY14.5M, 1982.
2. CONTROLLING DIMENSION: mm.
4/4
