VC-TXO-23SM-FREQ-B-TR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VC-TXO-23SM-FREQ-B-TR

VC-TXO-23SM-FREQ-B-TR: DescriptionClipped Sine Output Oscillator, 12MHz Min, 40MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size158KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

VC-TXO-23SM-FREQ-B-TR Overview

Clipped Sine Output Oscillator, 12MHz Min, 40MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

VC-TXO-23SM-FREQ-B-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	15 ppm
frequency stability	2.5%
Manufacturer's serial number	VC-TXO-23SM
Installation features	SURFACE MOUNT
Maximum operating frequency	40 MHz
Minimum operating frequency	12 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 0.9mm
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Low Profile

3.2 x 2.5 mm Footprint

Highly stable output

RoHS Compliant

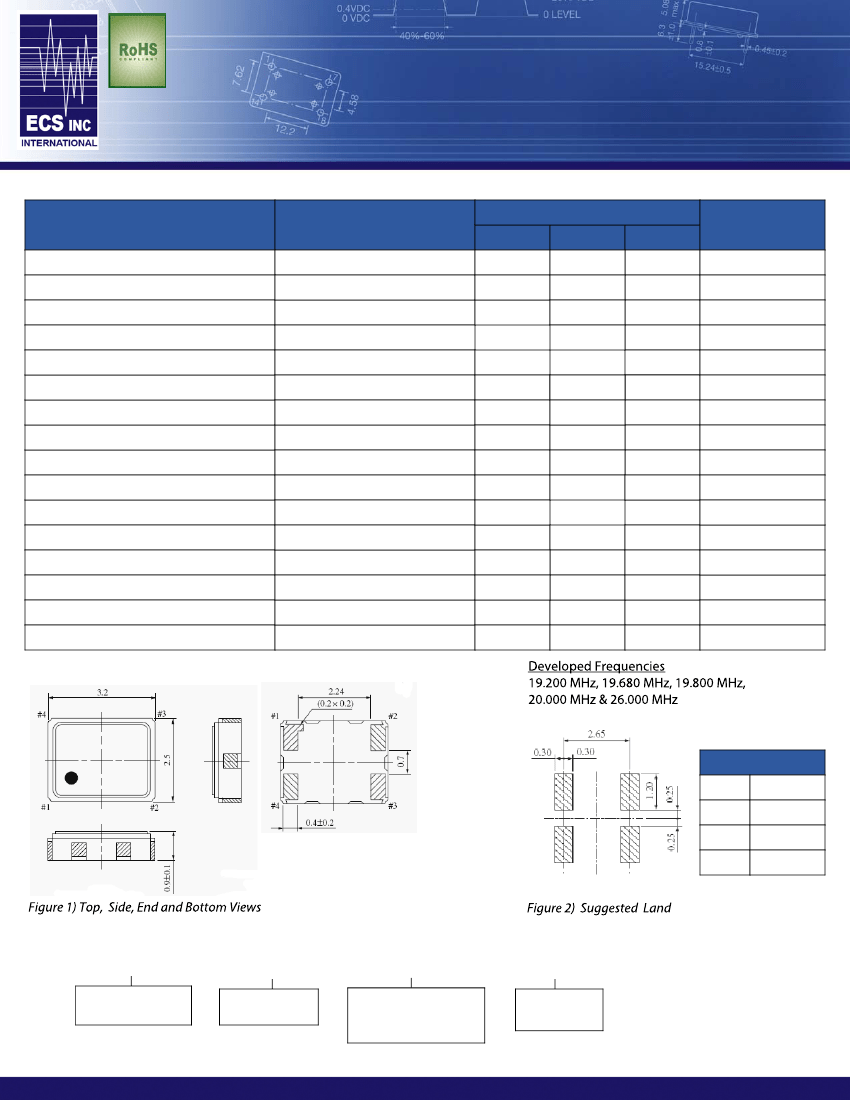

VC-TXO-23SM

SMD VC-TCXO

The miniature VC-TXO-23SM is a compact SMD VC-TCXO.

The 3.2 x 2.5 x 0.9 mm ceramic package is ideal for today's

SMD manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Initial Frequency Tolerance

Stability Option A

Stability Option B

Stability Option C

Supply Voltage Change

Load Change

Aging

Storage Temperature

Supply Voltage

Input Current

Output Voltage

Output Load

Frequency Control Range

Control Voltge

Harmonics

@ +25°C ± 2°C

-10 ~ +70°C

-20 ~ +75°C

-30 ~ +85°C

+3.0V ±5%

10K

Ω

±10%//10 pF ± 10%

Per Year @ +25°C ±3°C

stg

+3.0 V DC Nominal

Without Load

Clipped Sinewave

10K

Ω

±10%//10 pF ± 10%

+1.5 V DC ±1V Positive Slope

±9

+0.5

+1.5

± 15

+2.5

-5.0

ppm

dBc

0.8

-40

+2.85

+3.0

+25

CONDITIONS

VC-TXO-23SM

MIN

12.000

TYP

MAX

40.000

±1

± 2.5

± 5.0

±0.3

±1

+85

+3.15

1.5

UNITS

MHz

ppm

°C

V DC

V p-p

PACKAGE DIMENSIONS (mm)

Pad Connections

Vcontrol

Gnd

Out

+3.0 VDC

PART NUMBERING GUIDE: Example VC-TXO-23SM-192-A-TR

Series

VC-TXO-23SM

- Frequency Abbreviation

192 = 19.200 MHz

Stability

Packaging

-TR =

Tape & Reel

A = ±2.5 ppm -30 ~ +75°C

B = ± 2.5 ppm -20 ~+75°C

C = ± 5.0 ppm -30 ~ +85°C

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com

VC-TXO-23SM-FREQ-B-TR Related Products

	VC-TXO-23SM-FREQ-B-TR	VC-TXO-23SM-1968-B-TR	VC-TXO-23SM-196.8-B-TR	VC-TXO-23SM-FREQ-A-TR	VC-TXO-23SM-260-C-TR	VC-TXO-23SM-198-A-TR	VC-TXO-23SM-192-A-TR	VC-TXO-23SM-1968-C-TR	VC-TXO-23SM-192-C-TR
Description	Clipped Sine Output Oscillator, 12MHz Min, 40MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Oscillator	Clipped Sine Output Oscillator, 12MHz Min, 40MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 26MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.8MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.2MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.68MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.2MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Other features	TAPE AND REEL	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	1 PPM/YEAR	1 PPM/YEAR	-	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	2.5 V	2.5 V	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Minimum control voltage	0.5 V	0.5 V	-	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO	-	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	15 ppm	15 ppm	-	15 ppm	15 ppm	15 ppm	15 ppm	15 ppm	15 ppm
frequency stability	2.5%	2.5%	-	2.5%	5%	2.5%	2.5%	5%	5%
Installation features	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	75 °C	75 °C	-	70 °C	85 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-	-10 °C	-30 °C	-10 °C	-10 °C	-30 °C	-30 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE	-	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω	-	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V	-	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
physical size	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm	-	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm	3.2mm x 2.5mm x 0.9mm
Maximum supply voltage	3.15 V	3.15 V	-	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V
Minimum supply voltage	2.85 V	2.85 V	-	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V
Nominal supply voltage	3 V	3 V	-	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	-	YES	YES	YES	YES	YES	YES
package instruction	-	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	-	-	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Nominal operating frequency	-	19.68 MHz	-	-	26 MHz	19.8 MHz	19.2 MHz	19.68 MHz	19.2 MHz
