ATT-225F-14-TNC-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-225F-14-TNC-02

ATT-225F-14-TNC-02: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size71KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

ATT-225F-14-TNC-02 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, STAINLESS STEEL

ATT-225F-14-TNC-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TNC-F, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	14 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.34
Base Number Matches	1

Preview

Download Datasheet

View All

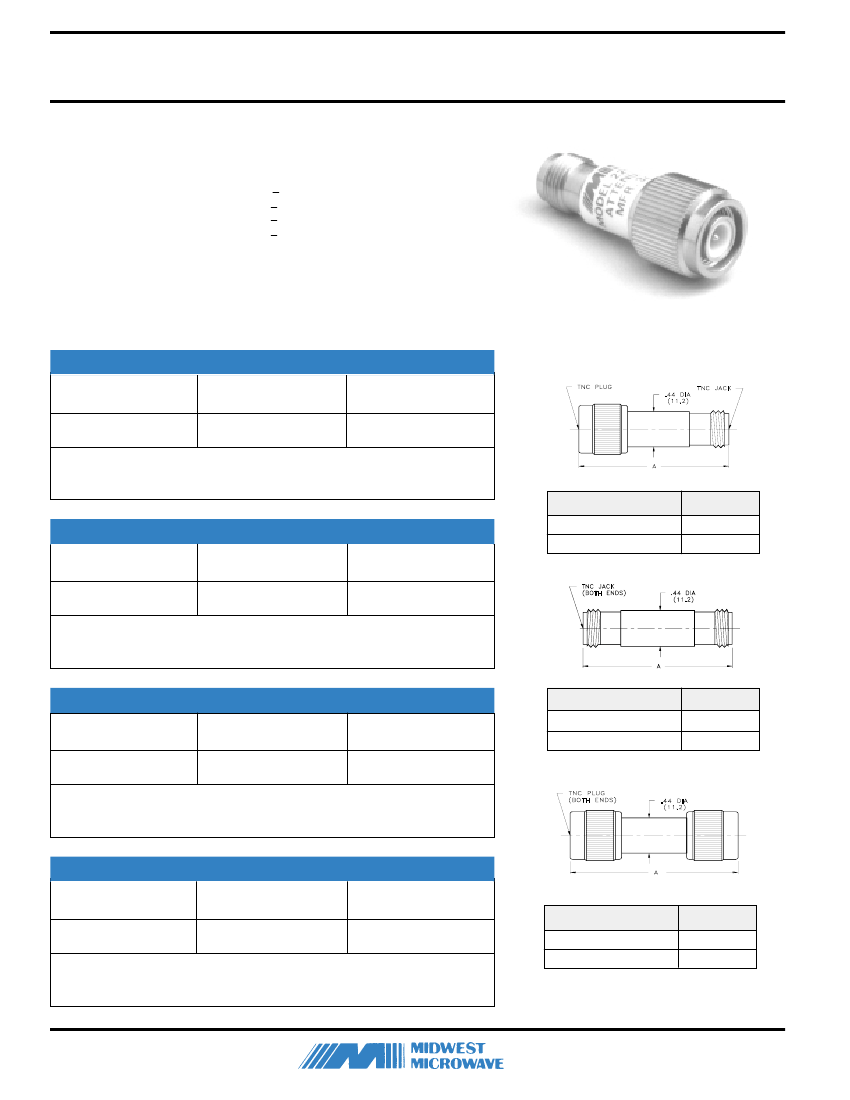

Attenuators

DC - 18 GHz Precision Performance

Frequency:

DC - 18.0 GHz, DC - 12.4, DC - 8.0 and DC - 2.0 units available

Attenuation Values:

1 - 60 dB in 1 dB increments

Attenuation Accuracy:

1 - 6 dB + 0.3 dB

7 - 20 dB

21 - 40 dB

41 - 60 dB

+ 0.5 dB

+ 1.0 dB

+ 1.5 dB

TNC Type

Impedance:

50 Ohms

VSWR:

1.07 + 0.015 f (GHz) max

Power:

2 Watts average @ +25

C derated linearly to 0.5 Watts @ +125

Peak Power:

200 Watts

Operating Temperature Range:

-54C to +125C

Finish:

Stainless Steel

DC - 18.0 GHz

Male/Female

ATT-0225-XX-TNC-02

225 Series

Female/Female

ATT-225F-XX-TNC-02

Model Number

Male/Male

ATT-225M-XX-TNC-02

Attenuation Value = XX, Select 01 thru 60 dB in 1 dB increments

Broadband Performance

Attenuation Value

Length A

1.57 (39.9)

1.84 (46.7)

1 - 20 dB

21 - 60 dB

DC - 12.4 GHz

Male/Female

ATT-0224-XX-TNC-02

224 Series

Female / Female

ATT-224F-XX-TNC-02

Model Number

Male / Male

ATT-224M-XX-TNC-02

Attenuation Value= XX, Select 01 thru 60 dB in 1 dB Increments

DC - 8.0 GHz

Male/Female

ATT-0223-XX-TNC-02

223 Series

Female / Female

ATT-223F-XX-TNC-02

Model Number

Male / Male

ATT-223M-XX-TNC-02

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.66 (42.2)

1.93 (49.0)

Attenuation Value= XX, Select 01 thru 60 dB in 1 dB Increments

DC - 2.0 GHz

Male/Female

ATT-0222-XX-TNC-02

222 Series

Female / Female

ATT-222F-XX-TNC-02

Model Number

Male / Male

ATT-222M-XX-TNC-02

Attenuation Value

1 - 20 dB

21 - 60 dB

Length A

1.71 (43.4)

1.98 (50.3)

Attenuation Value= XX, Select 1 thru 60 dB in 1 dB Increments

Note: U.S. Patent No. 3,824,506 and 4,011,531 applies.
