XZMY56W-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZMY56W-1

XZMY56W-1: DescriptionSingle Color LED, Yellow, Water Clear, 2mm, 3 X 1 MM, 2.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN; CategoryLED optoelectronic/LED photoelectric; File Size210KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZMY56W-1 Overview

Single Color LED, Yellow, Water Clear, 2mm, 3 X 1 MM, 2.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN

XZMY56W-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3 X 1 MM, 2.50 MM HEIGHT, ROHS COMPLIANT, SMD, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	397.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.5 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	30 deg
Base Number Matches	1

Preview

Download Datasheet

View All

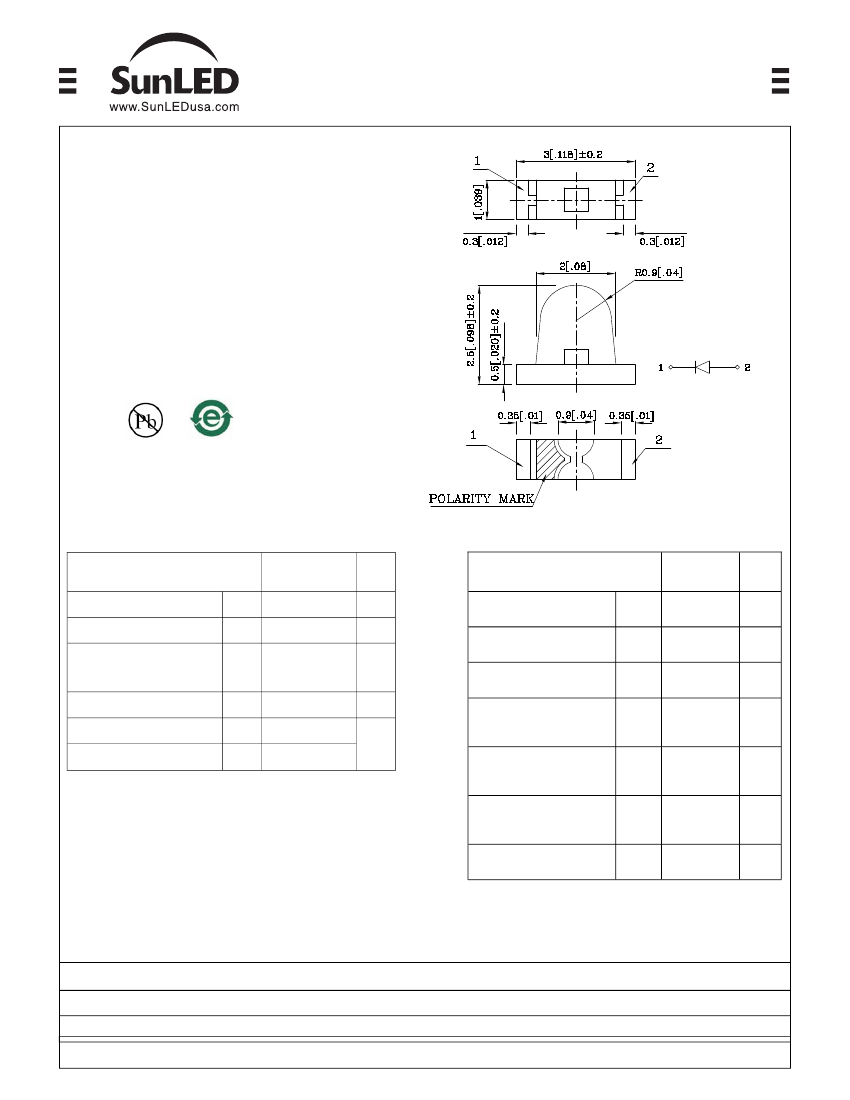

Part Number:

XZMY56W-1

3. 0mmx1.0 mm RIGHT ANGLE SMD CHIP LED LAMP

PRELIMINARY SPEC

Features

3.0mm x 1.0mm RIGHT ANGLE SMT LED, 2.5mm

THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACK LIGHT AND INDICATOR.

VARIOUS COLORS AND LENS TYPES AVAILABLE.

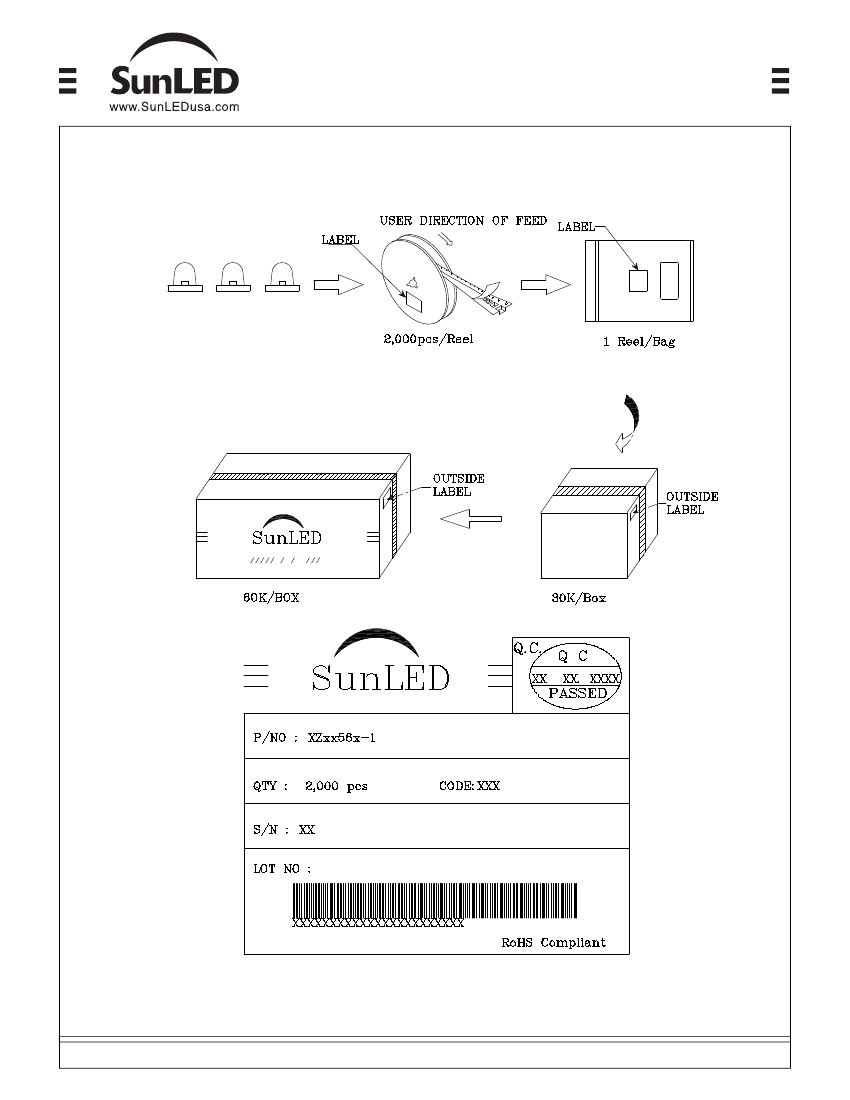

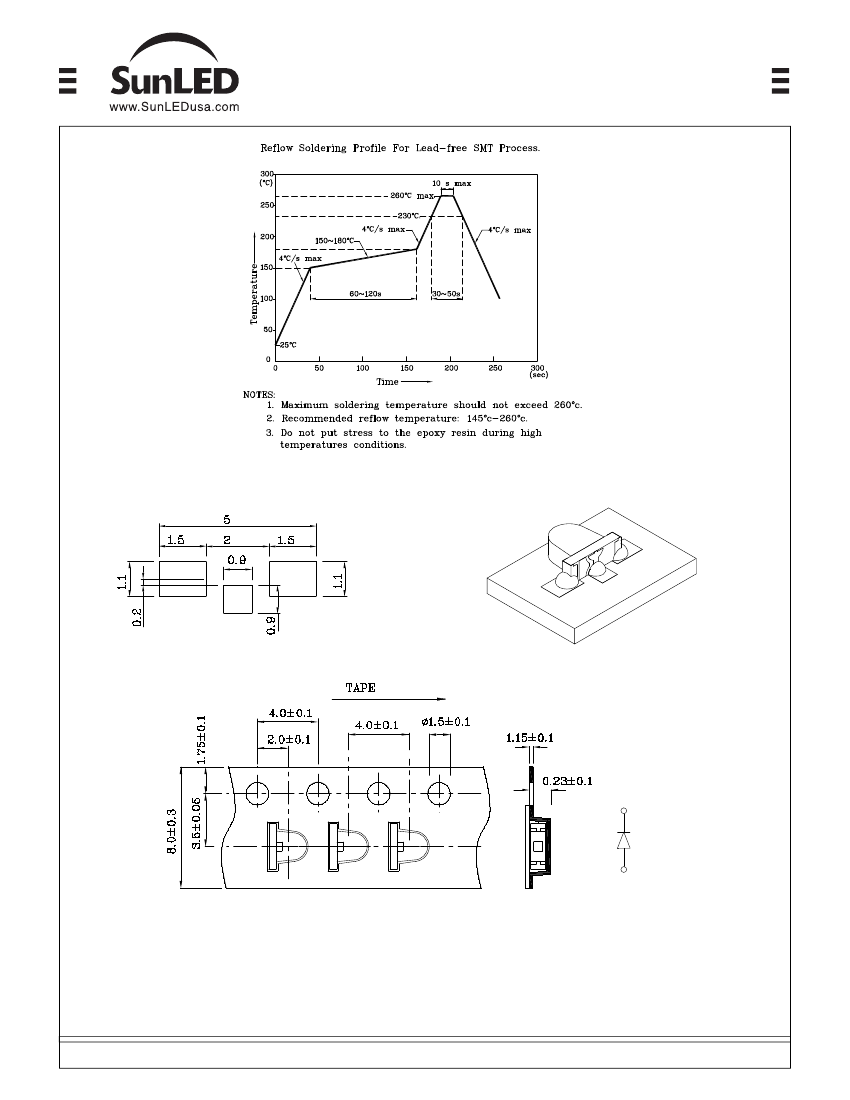

PACKAGE : 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.15(0.006") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(InGaAlP)

150

-40 ~ +85

°C

Unit

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

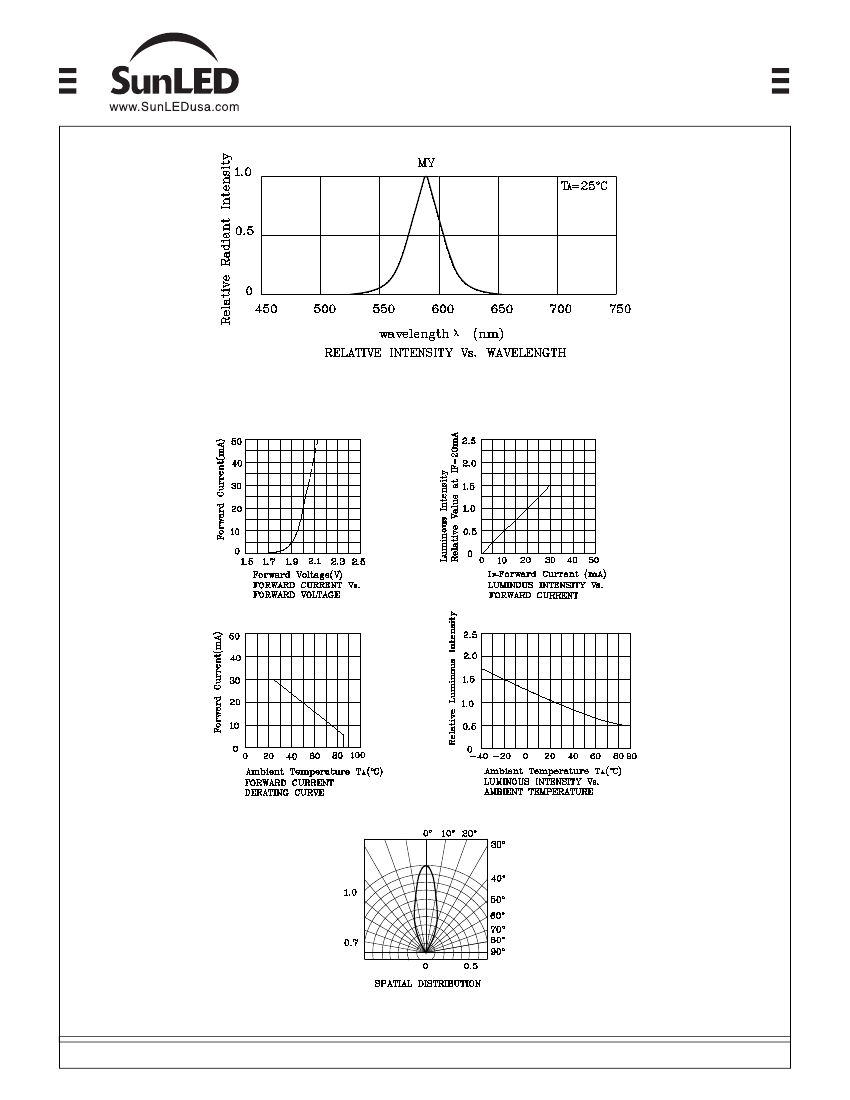

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=20mA)

mcd

min.

XZMY56W-1

Yellow

InGaAlP

Water Clear

180

typ.

397

590

(InGaAlP)

2.0

2.5

Unit

590

588

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Wavelength

Viewing

Angle

1/2

Published Date : JAN 23,2008

Drawing No :XDSB1818

Checked : B.L.LIU

P.1/4
