ZMYK64W-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZMYK64W-8

ZMYK64W-8: DescriptionSingle Color LED, Yellow, Water Clear, T-3/4, 1.78mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size229KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZMYK64W-8 Overview

Single Color LED, Yellow, Water Clear, T-3/4, 1.78mm, ROHS COMPLIANT PACKAGE-2

ZMYK64W-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	1295.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	1.78 mm
surface mount	YES
T code	T-3/4
Terminal pitch	7.3 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number: ZMYK64W-8

www.SunLED.com

SUBMINIATURE SOLID STATE LAMP

Features

●

Ideal for indication light on hand held products

●

Long life and robust package

●

Variety of lens types and color choices available

●

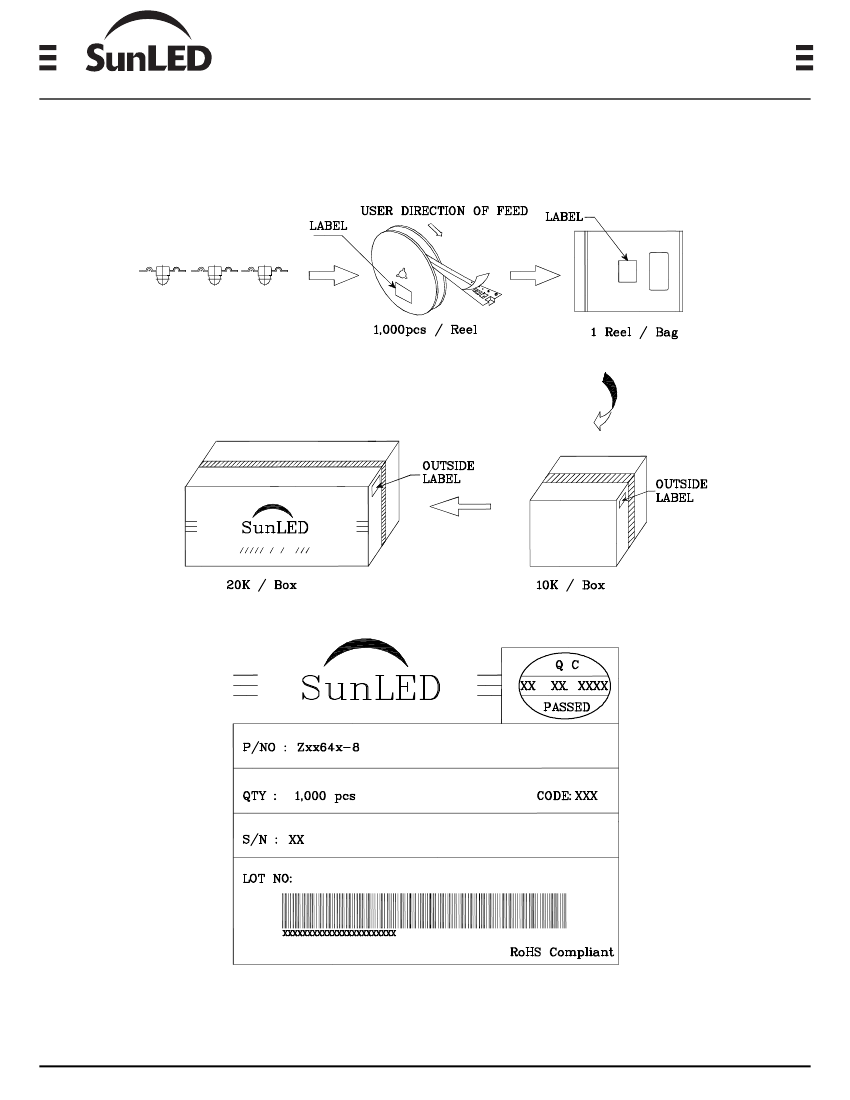

Package :1000pcs / reel

●

Moisture sensitivity level : level 3

●

RoHS compliant

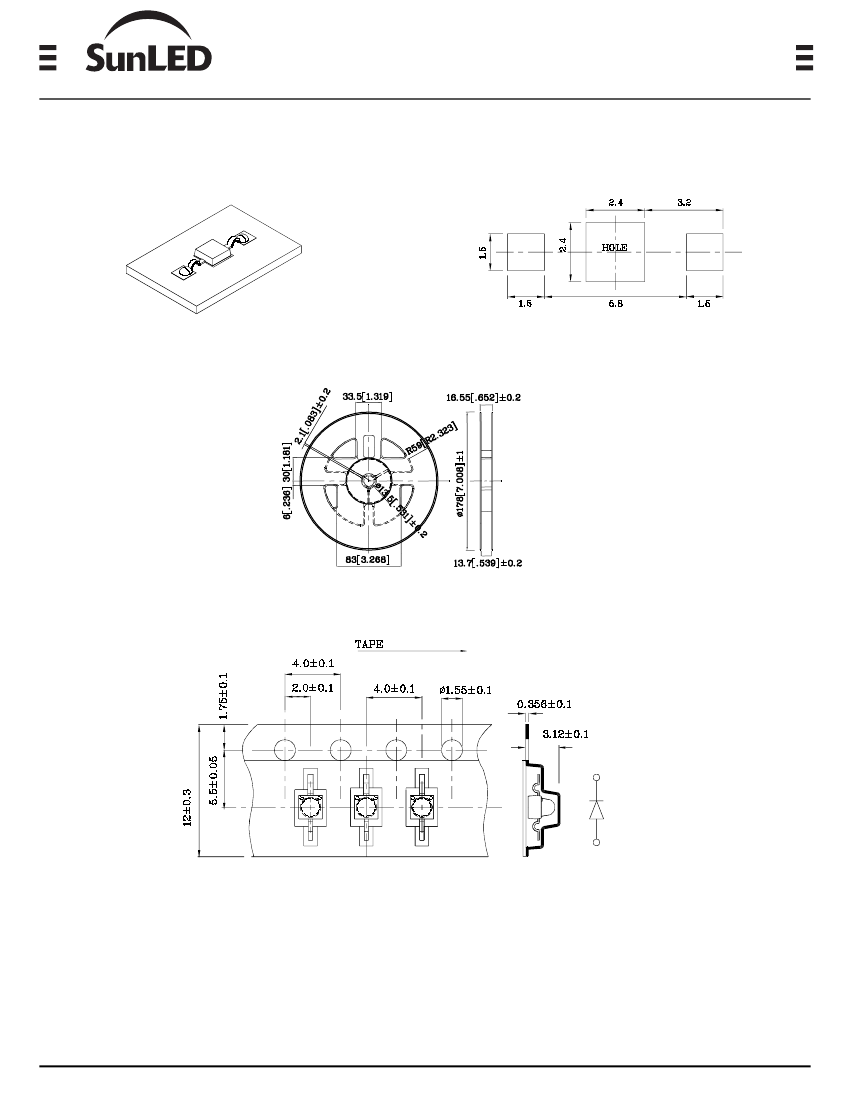

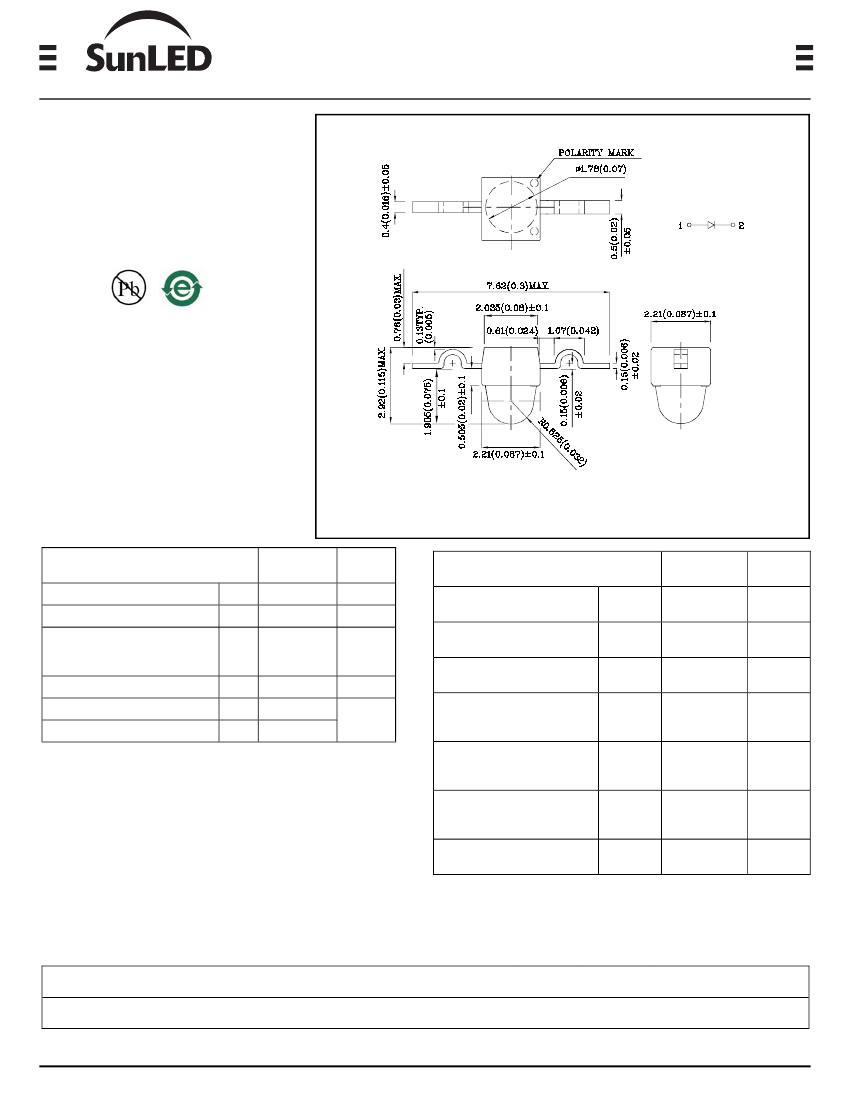

Package Schematics

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

MYK

(AlGaInP)

175

-40 ~ +85

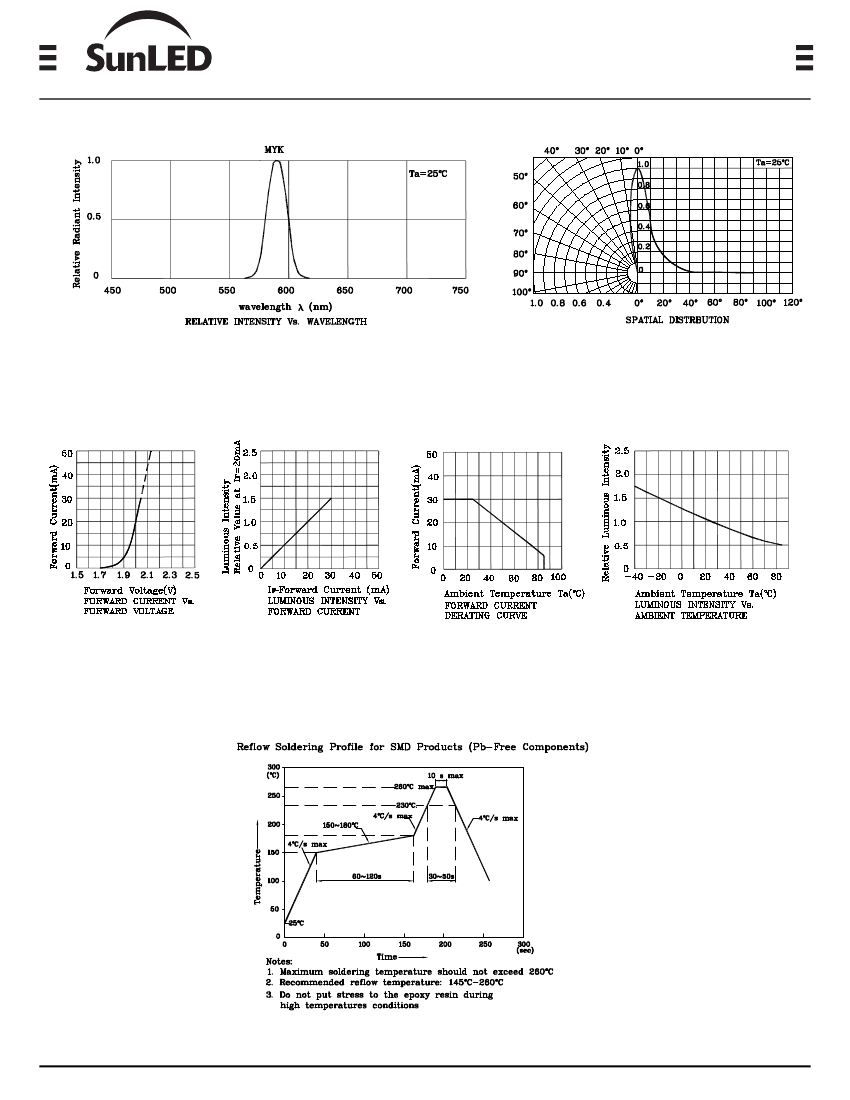

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

MYK

(AlGaInP)

2.5

Unit

°C

Unit

λP

590

λD

590

△λ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

=20mA)

mcd

min.

typ.

2290

SDSA4613

Wavelength

λP

Viewing

Angle

2θ 1/2

ZMYK64W-8

Jan 22,2011

Yellow

AlGaInP

Water Clear

1400

590

20°

Layout: Maggie L.

P. 1/4
