ZFMYK129A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Yellow, 13mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size193KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZFMYK129A Overview

Smart/Normal 7 Seg Numeric LED Display, Yellow, 13mm, ROHS COMPLIANT PACKAGE-10

ZFMYK129A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	YELLOW
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	13 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

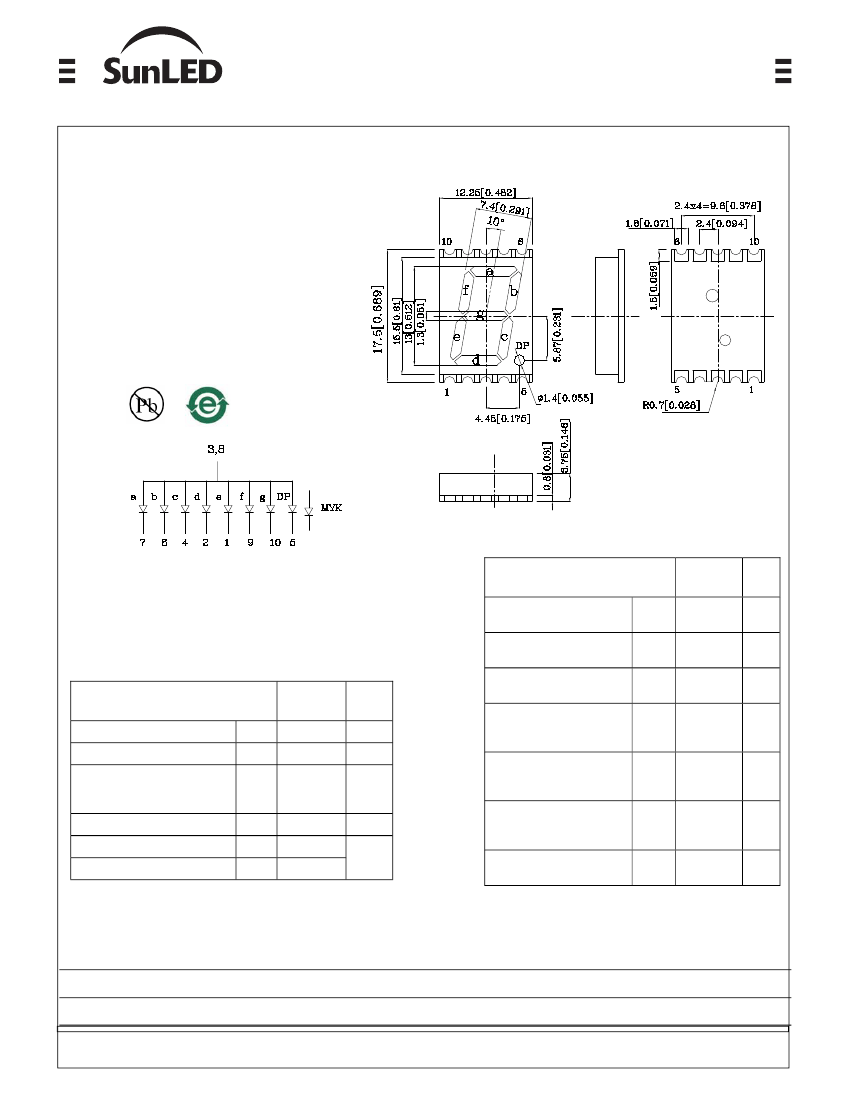

Part Number:

www.SunLED.com

ZFMYK129A

SURFACE MOUNT DISPLAY

PRELIMINARY SPEC

Features

0.51 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

I.C. COMPATIBLE.

MECHANICALLY RUGGED.

GRAY FACE, WHITE SEGMENT.

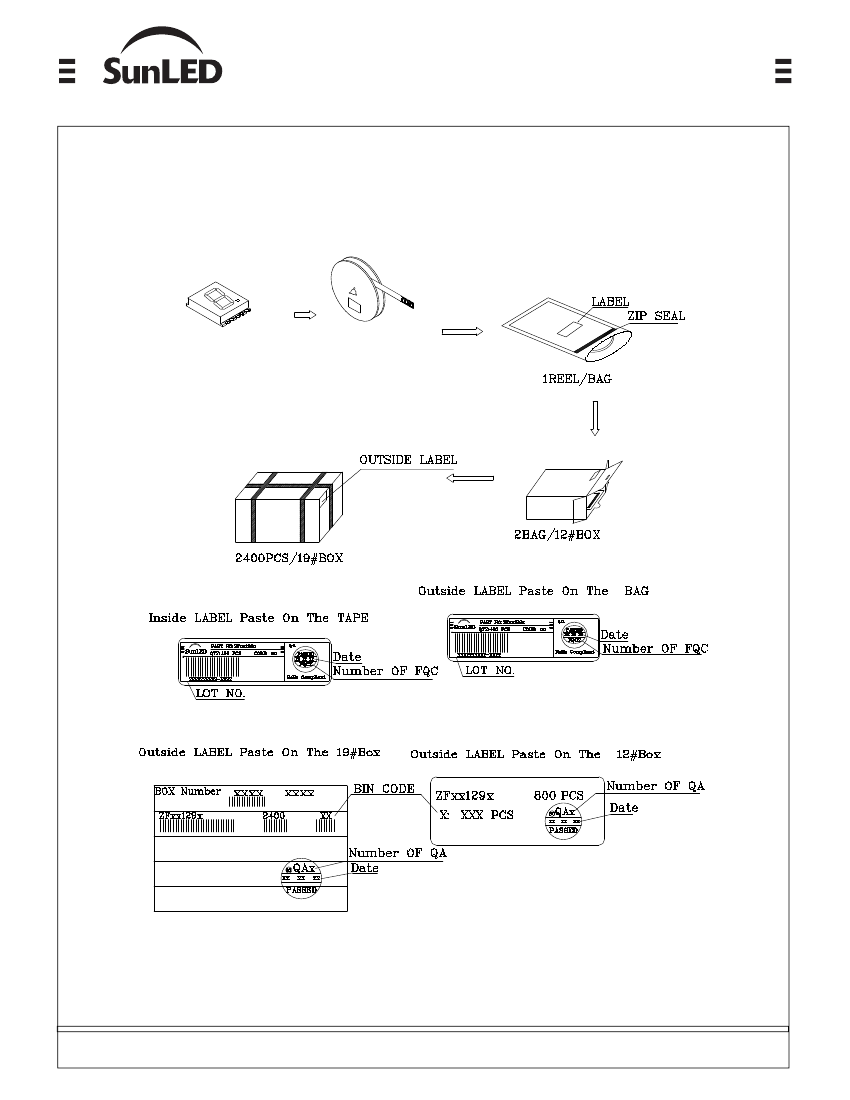

PACKAGE: 400PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

4.Specifications are subject to change without notice.

Absolute Maximum Ratings

(TA=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

MYK

(InGaAlP)

175

-40 ~ +85

Unit

°C

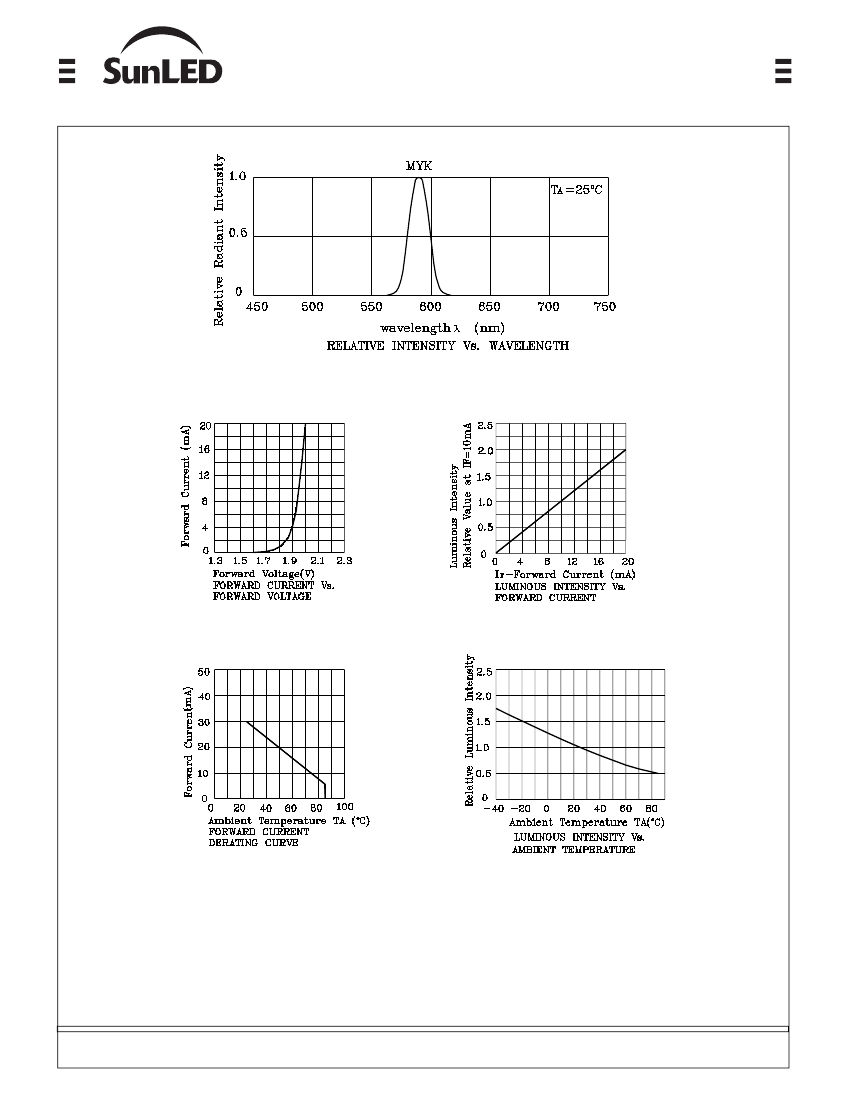

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=10mA)

Wavelength Of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

MYK

Unit

(InGaAlP)

1.95

2.5

590

Δλ

Part

Number

Emitting

Color

Emitting

Material

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

48990

Wavelength

Description

ZFMYK129A

Yellow

InGaAlP

4700

590

Common Anode, Rt. Hand Decimal

Checked : Shin Chi

P.1/4

Published Date : FEB 27, 2008

Drawing No : SDSA6463
