Part Number:
ZBBA94W
www.SunLED.com
5.6X1.4mm RIGHT ANGLE SMD CHIP LED LAMP
PRELIMINARY SPEC
Features

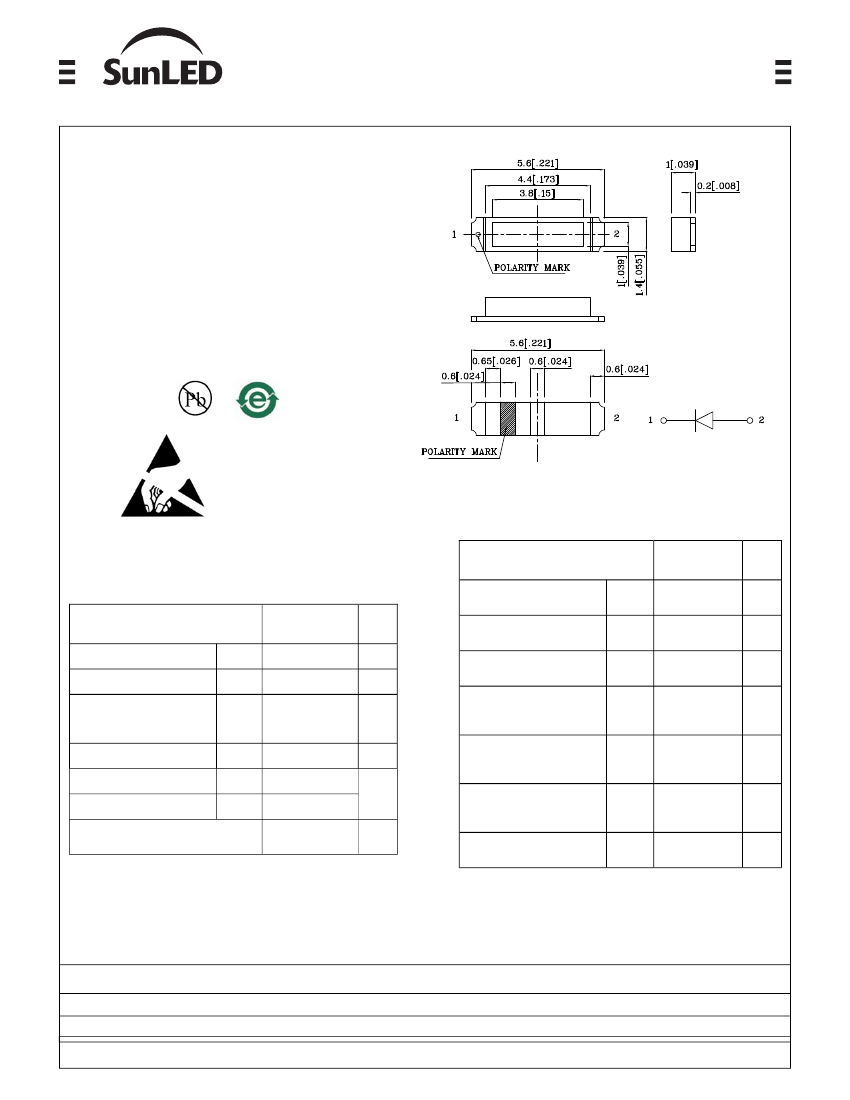

5.6mmX1.4mm RIGHT ANGLE SMT LED, 1.0mm
THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
PACKAGE: 2000PCS / REEL .
RoHS COMPLIANT.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.2(0.008") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
BBA
(InGaN)
5
30
100
120
-40 ~ +85
-40 ~ +85
1000
Unit
V
mA
mA
mW
°C
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength Of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
BBA
(InGaN)
3.2
4.0
10
Unit
V
V
uA
λ
P
468
nm
λ
D
470
nm
Δλ
21
nm
Electrostatic Discharge Threshold
(HBM)
V
C
100
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
79
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZBBA94W
Blue
InGaN
Water Clear
36
468
90°
Published Date : FEB 27,2008
Drawing No : SDSA6423
V1
Checked : B.L.LIU
P.1/4
Part Number:
ZBBA94W
www.SunLED.com
5.6X1.4mm RIGHT ANGLE SMD CHIP LED LAMP

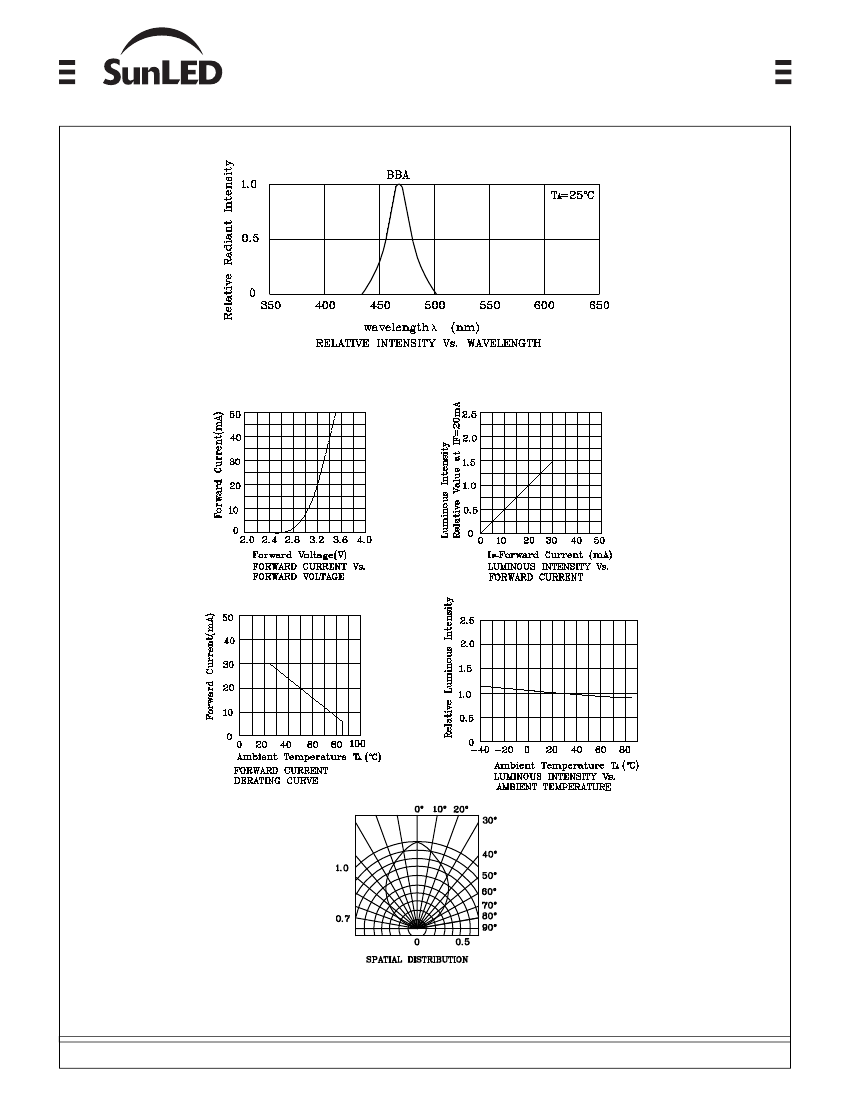

BBA
Published Date : FEB 27,2008
Drawing No : SDSA6423
V1
Checked : B.L.LIU
P.2/4
Part Number:
ZBBA94W
www.SunLED.com
5.6X1.4mm RIGHT ANGLE SMD CHIP LED LAMP

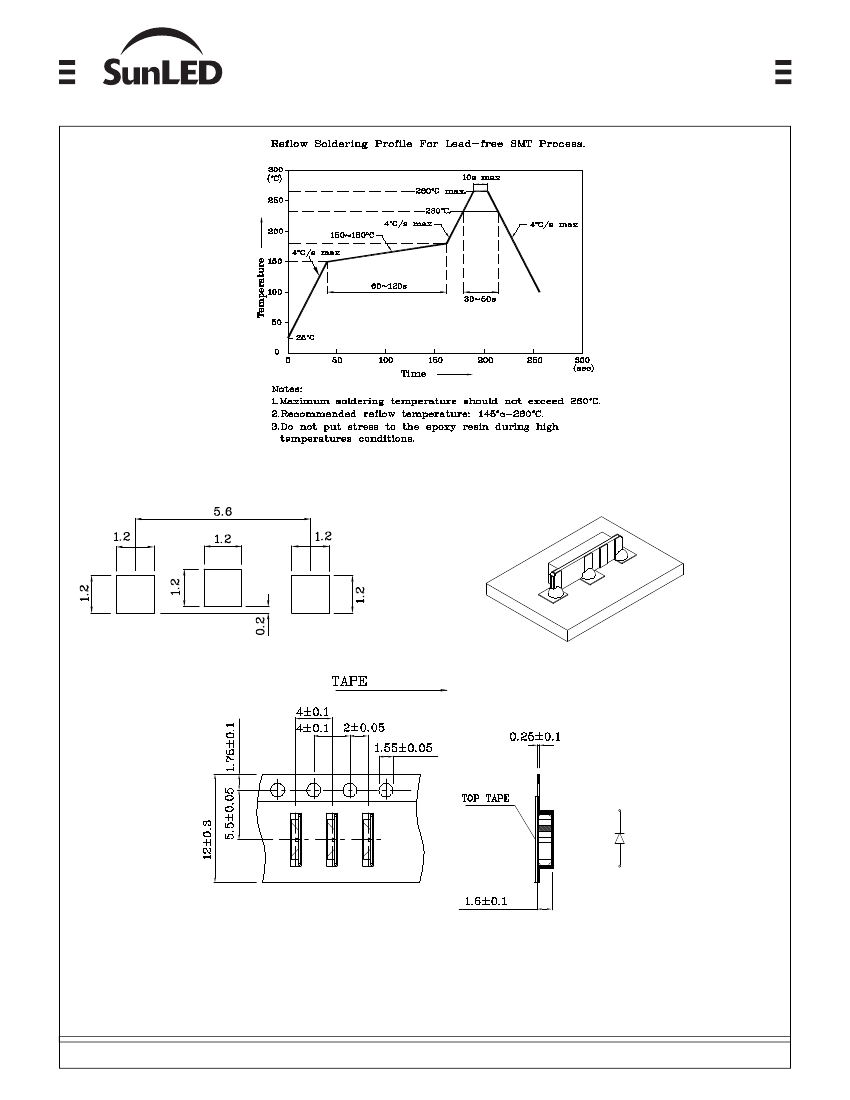

Recommended Soldering Pattern
(Units: mm ; Tolerance: ± 0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 27,2008
Drawing No : SDSA6423
V1
Checked : B.L.LIU
P.3/4
Part Number:
ZBBA94W
www.SunLED.com
5.6X1.4mm RIGHT ANGLE SMD CHIP LED LAMP

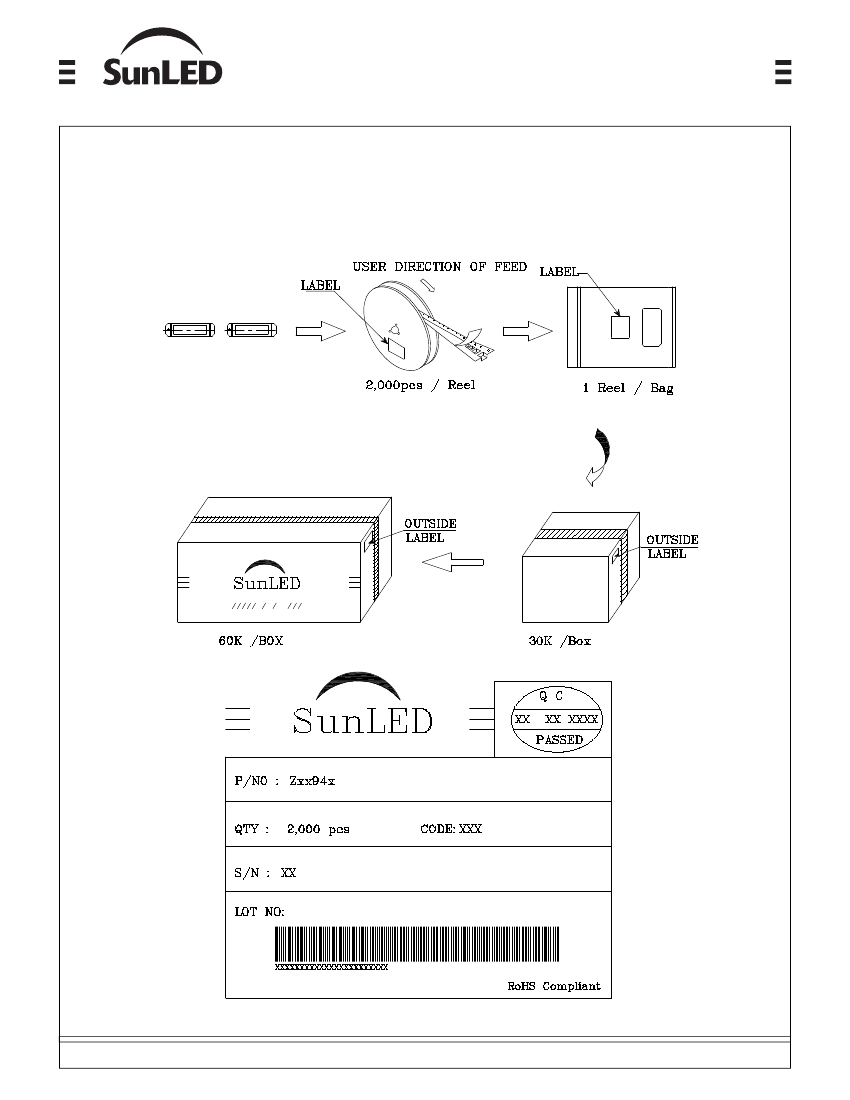

PACKING & LABEL SPECIFICATIONS
ZBBA94W
Published Date : FEB 27,2008
Drawing No : SDSA6423
V1
Checked : B.L.LIU
P.4/4
